Description

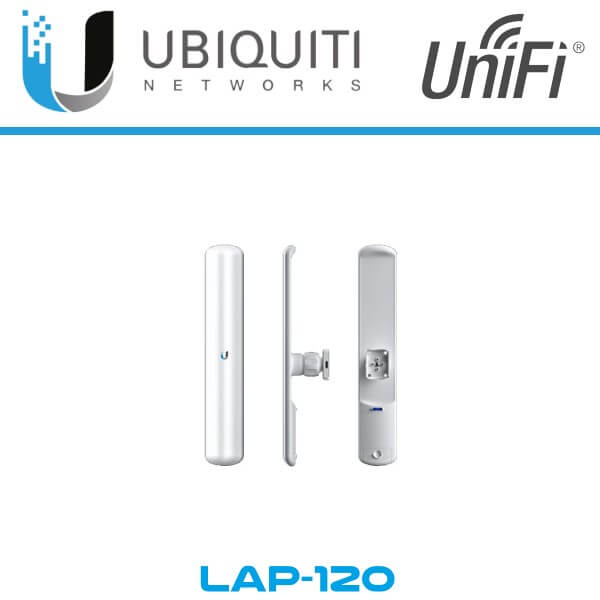

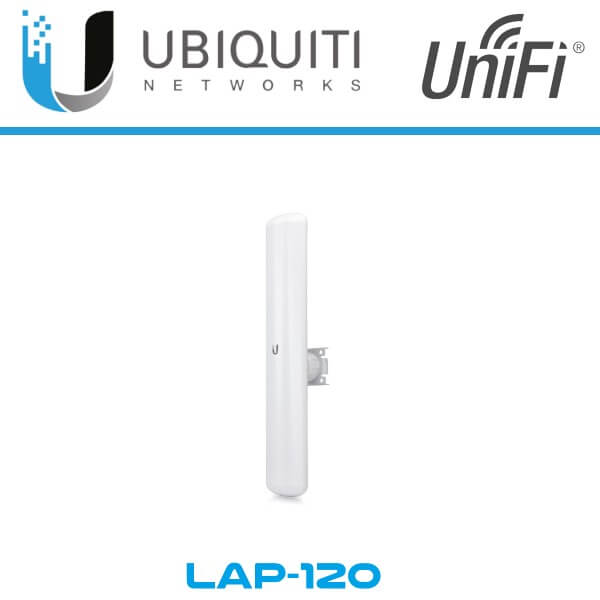

Ubiquiti LAP-120 LiteAP AC Dubai
The LAP-120 Dubai is a 5 GHz, 16 dBi, 120° airMAX® AC AP featuring an ultra-lightweight form factor. It was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. The ball-joint mount provides adjustment flexibility for versatile mounting options. Minimal fasteners simplify installation. No tools are needed; only a single wrench is required for pole-mounting.
The LiteAP AC Dubai combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with cost-effective value
Precise GPS frame synchronization enables co-located LAP-GPS devices to transmit and receive data without interfering with each other, allowing for better frequency reuse and increased network stability.
The LAP-GPS integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Ubiquiti LAP-120 LiteAP AC Dubai Features:
- airMAX ac Sector Coverage
- The LiteAP ac Dubai features a 2×2 MIMO antenna and communicates with multiple airMAX ac CPEs within a 120° coverage area.
- Installation Flexibility
- Featuring the freedom of three-axis alignment, the LiteAP ac Dubai fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.
- Lightweight and Sleek Design
- The LiteAP ac Dubai features a lightweight antenna with an integrated radio in a sleek and highly efficient design.
| LAP-120/th> Specs | |
|---|---|
| Dimensions (Mount Not Included) | 452.3 x 78.7 x 54.4 mm (17.81 x 3.10 x 2.14″) |
| Weight (Mount Not Included) | 420 g (14.82 oz) |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Antenna Gain | 16 dBi |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 20 – 26VDC |
| ESD/EMP Protection | ± 24kV Contact / Air |
| Shock and Vibrations | ETSI300-019-1.4 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 77 N @ 200 km/h (17.3 lbf @ 125 mph) |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) | |
| US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150 – 5250 5250 – 5350 5470 – 5725 5725 – 5850 |
| Worldwide | 5150 – 5875 |
