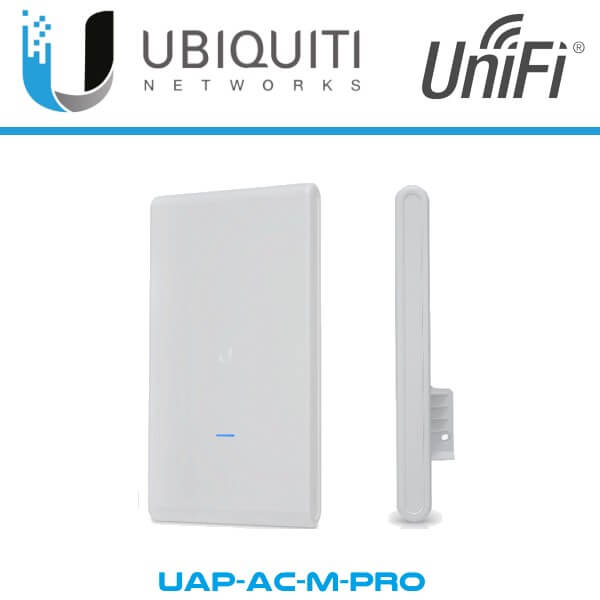

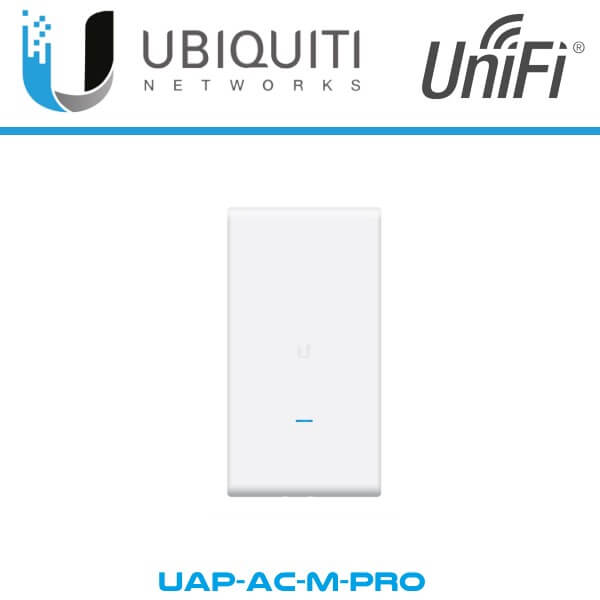

Ubiquiti UAP-AC-M-PRO Dubai



Ubiquiti UAP-AC-M-PRO Dubai

The UAP-AC-M-PRO Dubai  is a high-performance, outdoor, 3×3 MIMO, 802.11ac dual-band access point, capable of speeds of up to 1750 Mbps. It features a proprietary, MIMO-optimized, omni-directional Super Antenna for exceptional 360° coverage, providing symmetrical long-range communications of up to 183 meters.

Description

Ubiquiti UAP-AC-M-PRO Dubai

Ubiquiti UAP-AC-M-PRO Dubai is the pro version of their mesh access points. It can provide coverage to large outdoor areas, such as a park, using a mesh network comprised of mesh access points. This UAP-AC-M-PRO is ideal for applications requiring 3×3 MIMO data rates for close-in omni coverage. The nature of these devices allows for quick outdoor installations and takedowns, without needing prior infrastructure.

The UAP-AC-M-PRO Dubai is a high-performance, outdoor, 3×3 MIMO, 802.11ac dual-band access point, capable of speeds of up to 1750 Mbps. It features a proprietary, MIMO-optimized, Omni-directional Super Antenna for exceptional 360° coverage, providing symmetrical long-range communications of up to 183 meters.

Ubiquiti UAP-AC-M-PRO Features:

  • Weather-Resistant Form Factor
    • The enclosure of the UniFi AC Mesh Pro AP is designed to withstand the elements, making it ideal for outdoor deployment.
  • LED Indicators
    • Unique provisioning LED provides administrator location tracking and alerts for each device.
  • Powerful Coverage
    • Built-in dual-band omni-directional antennas deliver expanded range coverage outdoors.
  • Mounting Flexibility
    • The UniFi AC Mesh Pro AP can be mounted on a wall or pole. (All accessories are included.)
  • Dual Gigabit Ethernet Ports
    • The primary port is for data and PoE; the secondary port is for bridging.
  • Multiple Power Options
    • You can power the UniFi AC Mesh Pro AP with an 802.3af compatible switch, UniFi PoE Switch, or the included Gigabit PoE adapter.
  • UniFi Controller
    • Use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.
  • RF Map
    • Use the RF map to monitor and analyze radio frequencies for optimal AP placement, configuration, and troubleshooting.
  • Powerful RF Performance Features
    • Advanced RF performance and configuration features include spectral analysis, airtime fairness, and band steering.
  • Detailed Analytics
    • Use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.
  • Wireless Uplink
    • Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology.
      For devices that support Plug & Play Mesh, this functionality is extended to allow multi-hop wireless uplink – so wirelessly uplinked APs can support uplink to other wirelessly uplinked APs.
  • Guest Portal/Hotspot Support
    • Easy customization options for Guest Portals include authentication, Hotspot setup, and the ability to use your own external portal server. Use UniFi’s rate limiting for your Guest Portal/Hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use.
      All UniFi APs include Hotspot functionality:
      • Built-in support for billing integration using major credit cards.
      • Built-in support for voucher-based authentication.
      • Built-in Hotspot Manager for voucher creation, guest management, and payment refund.
      • Full customization and branding of Hotspot portal pages.
  • Multi-Site Management
    • A single cloud-based UniFi Controller can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and admin read/write and read-only accounts.
  • WLAN Groups
    • Manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP’s radio.

Ubiquiti UAP-AC-M-PRO Dubai Specs

UniFi
Dimensions 343.2 x 181.2 x 60.2 mm (13.51 x 7.13 x 2.37″)
Weight 633 g (1.40 lb)
Networking Interface (2) 10/100/1000 Ethernet Ports
Ports (2) 10/100/1000 Ethernet
Buttons Reset
Antennas 3 Dualband antennas
Wi-Fi Standards 802.11a/b/g/n/ac
Power Method 802.3af PoE
Power Supply PoE Injector 48VDC -0.5A Gigabit
Maximum Power Consumption 9W
Max TX Power 22 dBm
BSSID Up to Four per Radio
Power Save Supported
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications CE, FCC, IC
Mounting Wall/Pole (Pole Kit Included)
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Advanced Traffic Management
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 100+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 450 Mbps (MCS0 – MCS23, HT 20/40)
802.11ac 6.5 Mbps to 1300 Mbps (MCS0 – MCS9 NSS1/2/3, VHT 20/40/80)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
