Ubiquiti Networks airFiber 60 Wireless Bridge Dubai



Ubiquiti Networks airFiber 60 Wireless Bridge Dubai

AF60 is a 60 GHz radio for low-interference and high-throughput connectivity. It’s integrated with a high-gain dish antenna for long range and high performance. For the 60 GHz link, the AF60 supports two channel width options: 2 GHz and 1 GHz – automatically switching between both options depending on link performance.

Description

Ubiquiti Networks airFiber 60 Wireless Bridge Dubai

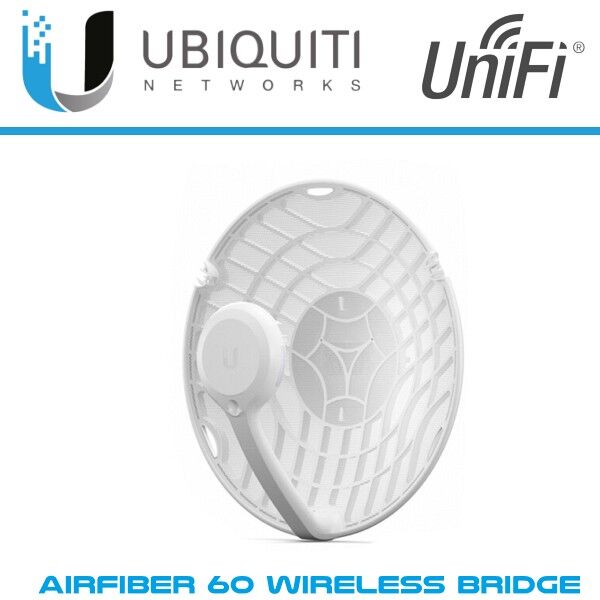

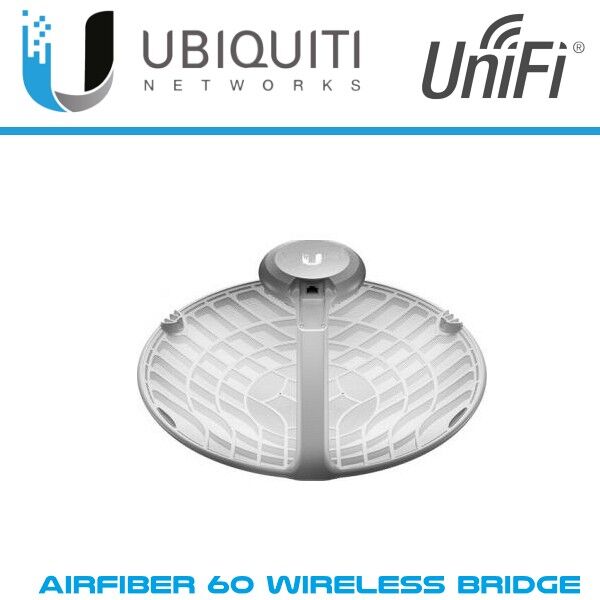

Create a reliable long-distance, point-to-point connection between networks with the airFiber 60 Wireless Bridge from Ubiquiti Networks. This 60 GHz outdoor dish antenna is designed to provide low-interference and high-throughput connectivity with a range of up to 1.24 miles and a maximum data throughput of 1.8 Gb/s. It features 38 dBi gain at 60 GHz and 11 dBi on the 5 GHz radio backup, with a combined transmission power of 25 dBm. Made from aluminum and UV-stabilized plastic, the airFiber 60 can operate between -40 and 140°F, has a wind survivability of 125 mph, and has ESD/EMP protection of about 24kV. A pole mounting kit is included alongside a 24V Gigabit PoE adapter, which connects to the dish’s Gigabit Ethernet port to provide power and data passthrough. Other features include WPA2-PSK and WPA2 Enterprise signal encryption, an integrated GPS, and automatic switching between the 2 GHz and 1 GHz width channels for optimal link performance.

The Ubiquiti airFiber AF60 LR Dubai is a 60GHz radio designed for high-throughput connectivity over an extended range. The airFiber 60 LR features the integrated high-gain dish antenna for high speed, long-range performance Point-to-Point (PtP) links. NewWave Technology enables incredible long-range performance within the 60GHz spectrum.

Ubiquiti Networks airFiber 60 Wireless Bridge Features:

  • Long Distance Connection
    • The airFiber 60 wireless bridge has a range of up to 1.24 miles.
  • Fast Data Throughput
    • The dish has a maximum throughput of 1.8 Gb/s at the 60 GHz radio band with a 5 GHz backup radio. It connects to your network via the built-in Gigabit Ethernet port and includes a 24V PoE adapter for power.
  • High-Powered Dish
    • This dish and integrated antenna have a 38 dBi signal gain at 60 GHz and 11 dBi at 5 GHz, with a combined transmit power of 25 dBm. It automatically switches between the 1 GHz and 2 GHz channel widths on the 60 GHz link to optimize performance.
  • Made for the Outdoors
    • Made from aluminum and UV-stabilized plastic, the airFiber 60 can operate between -40 to 140°F, has a wind survivability of 125 mph, and has ESD/EMP protection of about 24kV. A pole mounting kit is included.
  • Checking Status
    • Easy-to-read LEDs indicate the dish’s power, Ethernet, signal, and GPS status.
AF60 Specs
Dimensions 413 x 413 x 320 mm
(16.26 x 16.26 x 12.60″)
Weight
Without Mount
With Mount
1.4 kg (3.09 lb)
1.8 kg (3.97 lb)
Enclosure Aluminum, UV-stabilized Polycarbonate
Antenna Gain
5 GHz
60 GHz
11 dBi
38 dBi
Networking Interface (1) 10/100/1000 Mbps Ethernet Port
Max. Power Consumption 11W
Power Method Passive PoE, Pins 4, 5+ and 7, 8-
Power Supply 24VDC, 0.5A Gigabit PoE Adapter (Included)
Voltage Range +22 to +26VDC
LEDs Power/Ethernet/5G/60G/GPS
Mounting Pole Mount (Included)
Wind Loading 420 N @ 200 km/h
(94.4 lbf @ 125 mph)
Wind Survivability 200 km/h
(125 mph)
ESD/EMP Protection ± 24kV Contact/Air
Operating Temperature -40 to 60° C
(-40 to 140° F)
Operating Humidity 5 to 95% Noncondensing
Certifications FCC, IC, CE
System
Maximum Throughput 1.8 Gbps
Maximum Range 2+ km
Encryption WPA2-PSK (AES)/WPA2 Enterprise
OS airOS GP
Radio
Max. Conducted TX Power
5/60 GHz Combined
25 dBm
Channel Bandwidth
60 GHz
5 GHz
2160 MHz
20/40/80 MHz
Operating Frequency (Mhz)
US/CA
U-NII-1
U-NII-3
5150 – 5250
5725 – 5850
57,000 – 66,000
Worldwide 5180 – 5875
57,000 – 66,000
Management Radio (MHz)
Worldwide 2412 – 2472
US/CA 2412 – 2462
