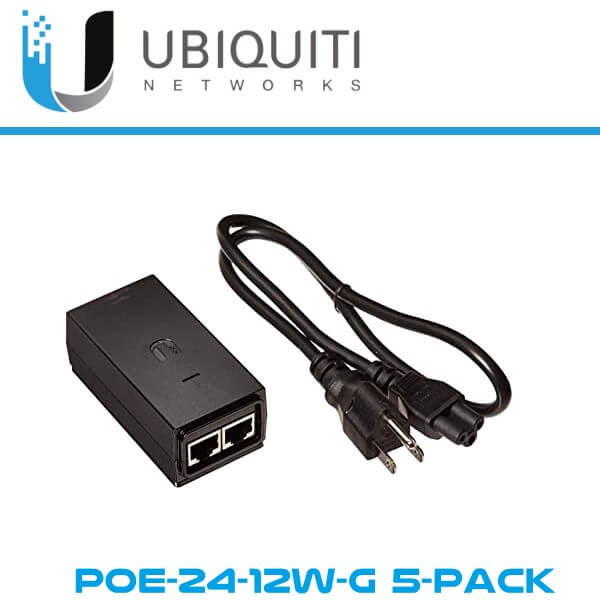

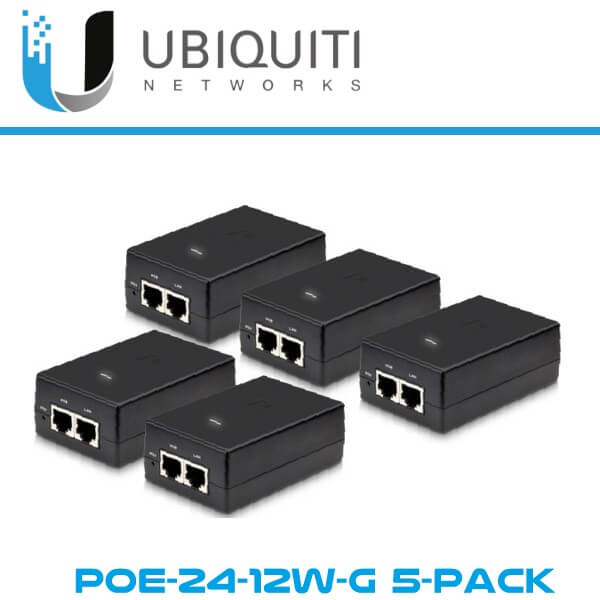

Ubiquiti PoE-24-12W-G (5 – Pack) Dubai



Ubiquiti PoE-24-12W-G (5 – Pack) Dubai

PoE adapters are highly reliable, and when used with the Ubiquiti TOUGHCable(TM), they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.

Description

Ubiquiti PoE-24-12W-G (5 – Pack) Dubai

The Ubiquiti PoE-24-12W-G(5 Pack) Dubai is a PoE adapter designed to power various Ubiquiti devices. Ubiquiti Networks offers Power over Ethernet (PoE) adapters to power a variety of Ubiquiti products. The PoE adapters are compatible with most Ubiquiti PoE devices, including: airFiber(R), airMAX(R), EdgeMAX(R), mFi(R),
UniFi(R) AP, UniFi Video / airVision(R).

Ubiquiti PoE-24-12W-G (5 – Pack Dubai) Features:

  • Device Protection
    • PoE adapters are highly reliable, and when used with the Ubiquiti TOUGHCable(TM), they provide earth grounding and surge protection to help protect against electrostatic discharge (ESD) events.
  • Convenient Wall-Mounting
    • The 24 V, 0.5 A models, PoE-24-12W and PoE-24-12W-G, are wall-mountable using the optional wall-mount brackets.
  • Seamless airGateway(TM) Compatibility
    • The 15 V, 0.8 A and 24 V, 0.5 A models, PoE-15-12W, PoE-24-12W and POE-24-12W-G, work with the airGateway(TM) to bridge airMAX(R) connections to Wi-Fi at customer locations.

Ubiquiti PoE-24-12W-G 5 – Pack Dubai Specifications:

  • Gigabit LAN port: Yes
  • Output voltage: 24 V DC at 0.5 A
  • Input voltage: 90-260 V AC at 47-63 Hz
  • Input current: 0.3 A at 120 V AC, 0.2 A at 230 V AC
  • Inrush current: <15 A peak at 120 V AC, <30 A peak
  • Efficiency: 70+ %
  • Output ripple: 1% max.
  • Switching frequency: 200 kHz
  • Line regulation: +/-0.5%
  • Load regulation: +/-1%
  • Operating temperature: -10°C to +60°C
  • Storage temperature: -20°C to +85°C
  • Size (L x W x H): 85 x 55 x 33 mm
  • Weight: 4 oz
  • AC connector: IEC-320 C6
  • Data IN/PoE: RJ45 shielded socket
  • 80% current indicator: Power LED will change color
  • Surge protection: Common mode
  • Clamping protection: 11 V data, 77.5 V power
  • Max. surge discharge: 1200 A (8/20 uS) power
  • Peak pulse current: 36 A (10/1000 uS data)
  • Shunt capacitance: <5 pF data
  • Response time: <1 nS
  • Compliance: UL, EN55022 (CISPR22) class B, meets CE
  • NO remote reset button
