Ubiquiti AF60LR Dubai



Ubiquiti AF60LR Dubai

Made from aluminum and UV-stabilized plastic, the Ubiquiti AF60LR Dubai can operate between -40°F and 140°F and has ESD/EMP protection of about 24kV.

Description

Ubiquiti AF60LR Wi-Fi Bridge Dubai

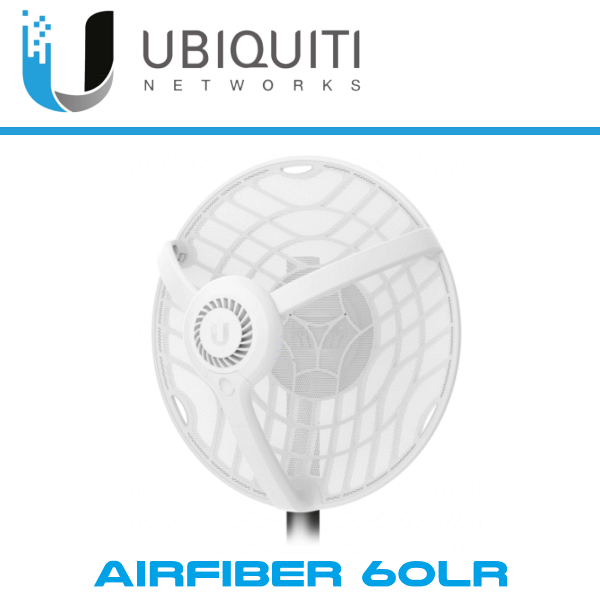

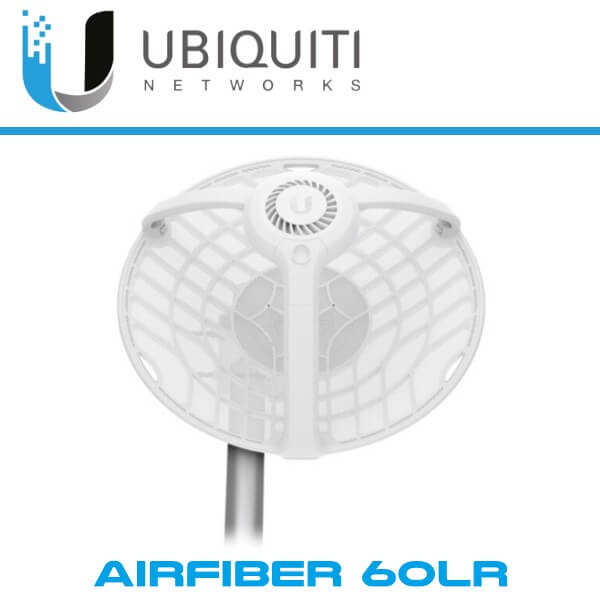

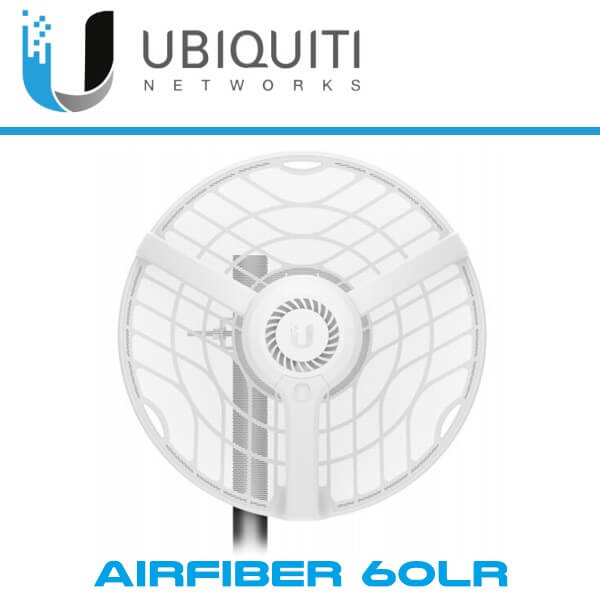

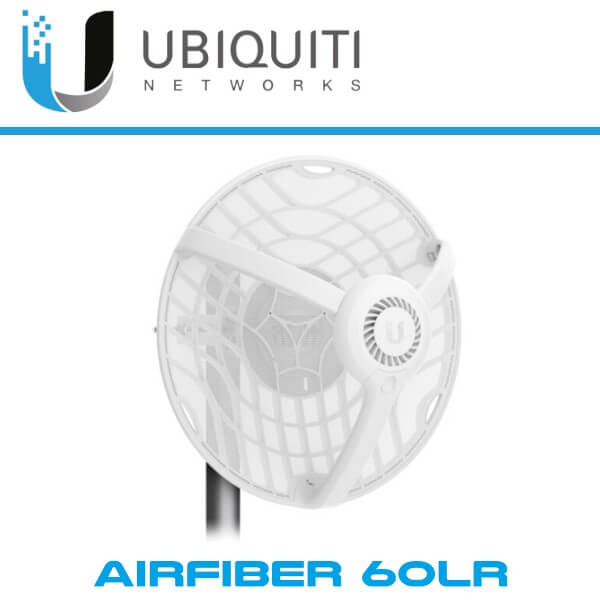

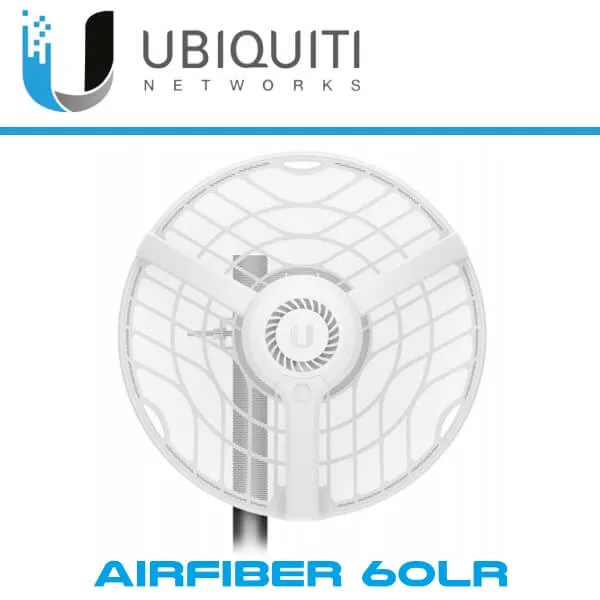

The Ubiquiti AF60LR Dubai (airFiber 60 GHz Long-range Radio (AF60 LR)) is a PtP system that uses Wave Technology to establish long-distance, true-duplex Gigabit links. Equipped with a high-gain dish antenna, the AF60 LR can reach a 1.9 Gbps maximum throughput rate and sustain its links over 12 km. Ubiquiti AF60LR Dubai also has a dedicated Bluetooth management radio so it can be set up quickly and fully configured with the UISP® application (web/mobile). Ubiquiti AF60LR Dubai can also be seamlessly integrated into an existing deployment with Ubiquiti’s dedicated link planning platform and tracked from anywhere with its built-in GPS antenna.

This 60 GHz outdoor dish antenna is designed to provide low-interference, high-throughput connectivity at ranges up to 7.5 miles and a maximum data throughput of 1.8 Gb/s. Made from aluminum and UV-stabilized plastic, the Ubiquiti AF60LR Dubai can operate between -40 and 140°F and has ESD/EMP protection of about 24kV. A precision alignment pole mount is included alongside a 48V Gigabit PoE adapter, which connects to the dish’s Gigabit Ethernet port to provide power and data passthrough. Other features include an integrated GPS and WPA2-PSK signal encryption.

Features:

  • Low-interference 60 GHz spectrum
  • High-gain dish antenna
  • Maximum throughput : 1.9 Gbps
  • Link range : 12+ km
  • Link planning support via ISP Design Center
  • Integrated GPS antenna
  • Included precision angle mount
  • Easy-to-install snow cover
  • Simple, Bluetooth-powered setup with the UISP* Mobile app

Exceptionally Long Connection Range

The Ubiquiti AF60LR Dubai wireless bridge has a range of up to 7.5 miles.

Fast Data Throughput

The Ubiquiti AF60LR Dubai has a maximum throughput of 1.8 Gb/s at the 60 GHz radio band. It connects to your network via the built-in Gigabit Ethernet port and includes a 48V PoE adapter for power.

Made for the Outdoors

Made from aluminum and UV-stabilized plastic, the Ubiquiti AF60LR Dubai can operate between -40 to 140°F and has ESD/EMP protection of about 24kV. A precision alignment pole mounting kit is included.

Checking Status

Easy-to-read LEDs indicate the dish’s power, Ethernet, signal, and GPS status.

Technical Specs

Mechanical
Dimensions Ø413 x 360 mm (Ø16.3 x 14.2″)
Weight Without mount : 1.5 kg (3.3 lb)
With mount : 2.7 kg (6 lb)
Enclosure materials Aluminum, UV stabilized polycarbonate
Mount material Galvanized steel

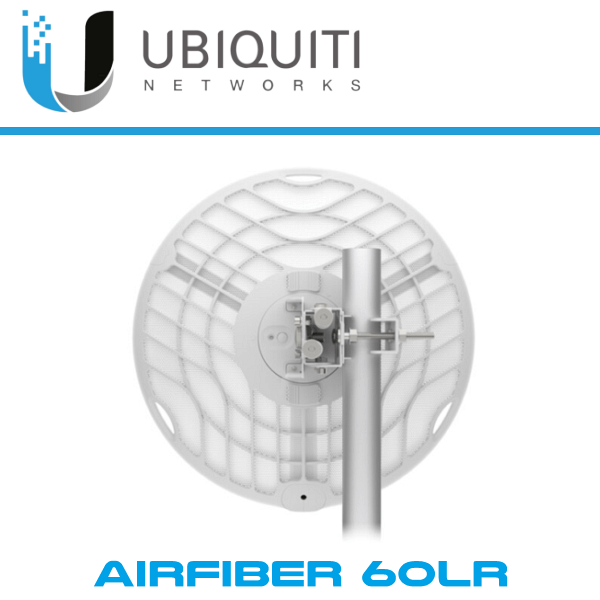

Mounting Precision Alignment Kit (included)
Pole compatibility : Ø25.4-76.2 mm (Ø1-3″)
Wind loading 420 N at 200 km/h (94.4 lbf at 125 mph)
Hardware
Processor Quad-Core ARM® Cortex® A7
Memory 256 MB DDR3
Networking interface GbE RJ45 port
RF Connections Internal
Max. Power Consumption 18W
Power method Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 😎 or 2-pairs (4, 5+; 7, 8- )
Power supply 48VDC, 0.65A gigabit PoE adapter (included)
Supported Voltage Range 48VDC ± 10%
ESD/EMP Protection Air/Contact : ± 24kV
Operating Temperature -40°C to 60°C (-40°F to 140°F)
Operating Humidity 5 to 95% Noncondensing
Certifications FCC, IC, CE
LEDs
Power Flashing white : bootup in progress
White : not connected to UISP console
Blue : connected to UISP console
Ethernet Flashing blue : ethernet activity
GPS Blue : receiving at least (4) GPS satellite signals
60G Blue : active connection
Software
OS airOS
Operating mode PtP only
Ubiquiti specific features Integrated 60 GHz radio, discovery protocol, Wave technology
Network Bridge mode
Services UISP, ping watchdog, NTP client, device discovery
Tools Antenna alignment, discovery utility, ping, trace route, speed test
Software management Bluetooth management for easy setup over UISP app
WEB UI
Minimum software requirements Any modern WEB browser/iOS or Android based smartphone
System
Maximum throughput 1.95 Gbps
Maximum range 12+ km
Encryption WPA2-PSK (AES)
RF
Operating Frequency 57 to 71 Ghz
GPS Yes
Channel Bandwidth 2160, 1080 MHz
