Yealink ZVC400 Zoom Rooms Kit Dubai

Yealink ZVC400 Zoom Rooms Kit Dubai

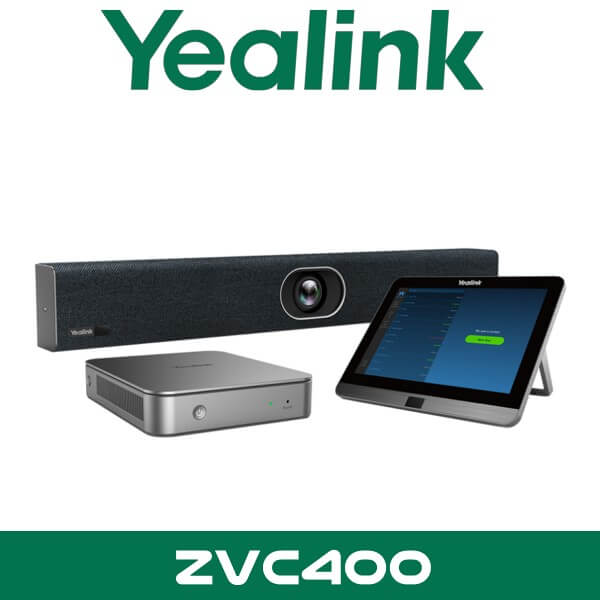

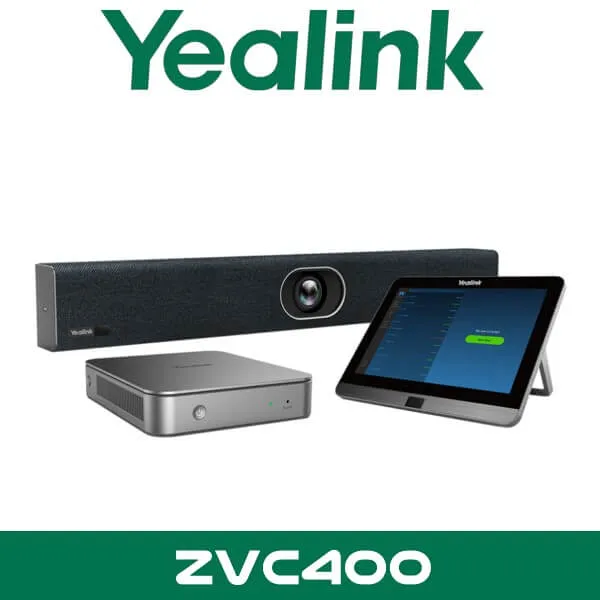

The Yealink ZVC400 Zoom Rooms Kit Dubai is an all-in-one bundle video solution that is designed to deliver collaborative Zoom meeting experiences in small rooms. The package includes a high-performance MCore Mini-PC, an MTouch II touch panel, and a USB video bar. The Yealink ZVC400 Zoom Rooms Kit System Dubai combines a range of advanced features such as an 8-MEMS microphone and speaker, 133 ° field of view camera with AI technology including face detection, sound localization, and speaker tracking to deliver an immersive audio and video conferencing experience. The Yealink ZVC400 Zoom Rooms Kit Dubai is designed to offer easy deployment in small-sized meeting rooms.

Description

Yealink ZVC400 Zoom Rooms Kit Dubai

The Yealink ZVC400 Zoom Rooms Kit Dubai is an all-in-one bundle video solution that has been specifically designed for use with Zoom Meetings in small-sized conference rooms. The bundle is equipped with all the elements including a high-performance MCore Mini-PC, an MTouch II touch panel, and a UVC40 USB PTZ video bar which are required for an excellent video conference session. The Yealink ZVC400 Zoom Rooms Kit Dubai is packed with many advanced features including an 8-MEMS microphone array, a super wide-angled 133° field of view, and many AI technologies including speaker tracking, face detection, sound localization, and many others. The Yealink ZVC400 Zoom Rooms Kit Dubai uses the Yealink Noise Proof Technology to reduce background noises, resulting in crystal clear sounds.

Yealink ZVC400 Zoom Rooms Kit Features:

  • Smart Video Meeting
    • The Yealink UVC40 Dubai is integrated with some AI technologies including Auto Framing and Speaker Tracking. It uses its expansive 133° field of view and Auto Framing feature to automatically detect and recognize the number of and the position of attendees in the conference room. This ensures that everyone is brought into the focus lens, thus delivering a highly productive meeting. The Speaker Tracking technology with a 20MP camera provides you with a high-definition, life-like visual experience. An electric lens cap on the UVC40 camera automatically turns on and off with the aid of its detection function, securing privacy for your conference rooms.
  • Full -Duplex Audio
    • The Yealink UVC40 Dubai has a built-in 8 – MEMS microphone array which uses Yealink Noise Proof Technology and dereverberation to deliver crisp and clear sounds. Acoustic Echo Cancellation Technology further enhances sound clarity, resulting in natural, life-like conversations.
  • Easy Deployment
    • The MCore unit features an easy one-cable system to ensure stable wire connection, with the most appropriate deployment being achieved depending on the layout of the conference room. MCore cable management solution integrates data transmission and power supply cables into one CAT5e cable, provides a straightforward solution to complicated cabling and reduces the deployment time. Easy deployment can be realized by just connecting the MTouch II and the UVC40 to the MCore mini-PC.
  • Seamless Content Sharing
    • An included WPP20 can be used to wirelessly share content with a clear output of 1080p @ 30 frames per second. A simple USB or HDMI connection allows for smooth wired content sharing.
  • Certified for Zoom Rooms
    • The Yealink ZVC400 Zoom Rooms Kit comes ready with integrated Zoom Rooms software which allows users to easily connect and collaborate.

Why the Yealink ZVC400 Zoom Rooms Kit Dubai?

  • Certified for Zoom Rooms: native Zoom experiences
  • All-in-one video conferencing system for huddle rooms
  • Ideal for small group collaboration
  • UVC40: plug-and-play USB video bar with camera, speaker and mic
  • 8x ePTZ camera with 4k UHD sensor
  • Automatic framing of speakers for natural experience
  • MTouch II: 8″ color touch display for controlling conferences
  • Native Zoom user interface for seamless experience across devices
  • MCore mini-PC with Intel Core i5 processor
  • Zoom Rooms comes pre-installed so it’s ready out of the box

Yealink ZVC400 – Technical Specifications

Preload ●       Windows 10 IoT Enterprise X64

●       Windows 10 IoT Enterprise License

●       Microsoft Teams Rooms App, support Skype for Business on – premise /online and Teams meetings

●       Yealink RoomConnect

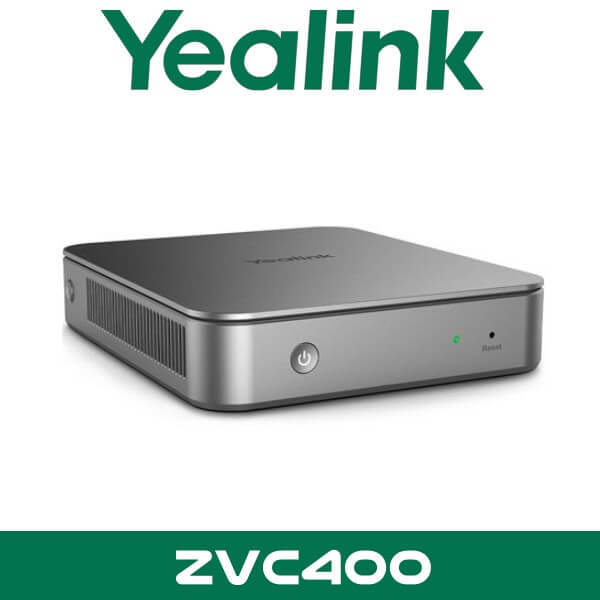

MCore Mini PC ●       8th gen – Intel® QUAD – CORE i5

●       Memory : 8GB(2 × 4GB)

●       Storage : 128GB SSD

●       2 × HDMI video output with CEC supported

●       Bluetooth and Wi-Fi

●       1 × Yealink VCH port (RJ45), connect to MTouch II

●       4 × USB 3.0 Type – A

●       1 × 10/100/1000M Ethernet port

●       1 × Power port

●       1 × Security slot

●       Integrated cable management

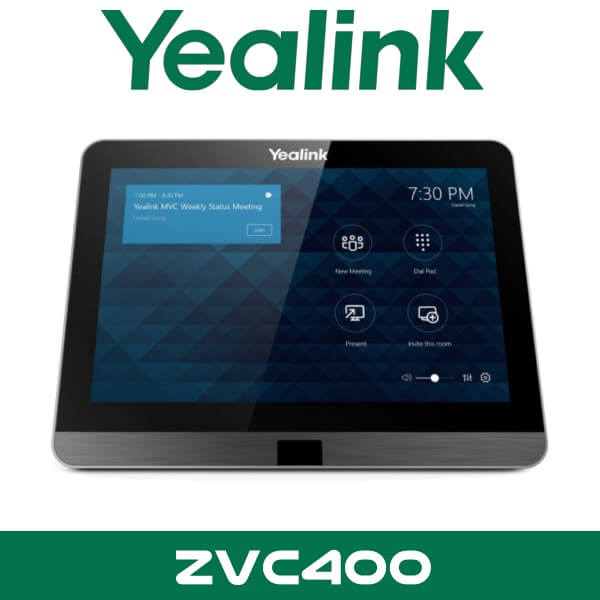

MTouch II Panel ●       8 – inch IPS Screen

●       1280 × 800 resolution

●       10 – point capacitive touch screen

●       3.5mm headset jack

●       Human Motion Sensor

●       Angle adjustable bracket (28° ~50°)

●       1080p/30FPS FHD for sharing

●       Support wired and wireless content sharing

●       Built – in Wi-Fi AP for Yealink wireless presentation device

●       HDMI/ USB – C video input

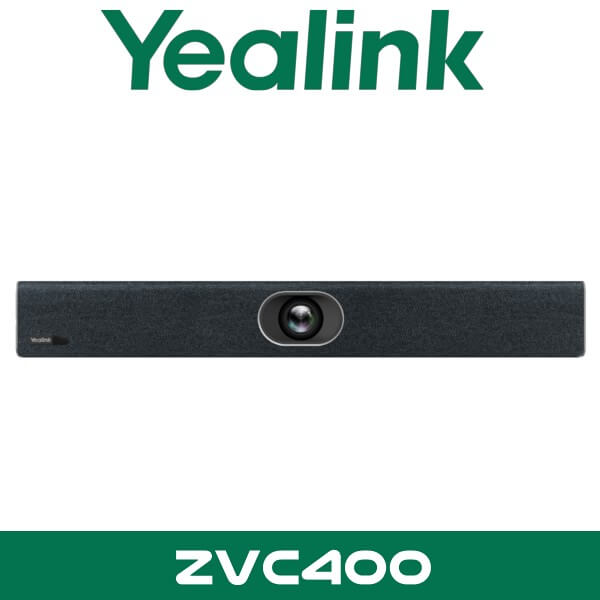

UVC40 USB Video Bar ●       20MP Camera

●       8 × e – PTZ camera

●       Field of View (diagonal) – 133°

●       Auto framing

●       Speaker tracking

●       AI Face Enhancement

●       Camera presets

●       Built – in 8 MEMS microphone array

●       Yealink Noise Proof Technology

●       Beamforming directed voice pick up technology

●       Full duplex technology

●       Echo cancellation technology

●       1 × Line – in(3.5mm)

●       1 × Yealink Microphone port (RJ – 45)

●       1 × USB 3.0 Type – B

●       1 × USB 2.0 Type – A

●       1 × Power port

●       1 × Security slot

●       1 × Reset slot

●       1 × 2.5m USB 2.0 cable

Product Dimensions(W*H*D) ●       MTouch II : 202mm × 151mm × 100mm

○       N.W/CTN : 1kg

●       MCore : 168mm × 197mm × 39mm

○       N.W/CTN : 1.35kg

●       UVC40 : 600mm × 68mm × 82mm

○       N.W/CTN : 2.56kg

Package Features ●       N.W/CTN : 6.4kg

●       G.W/CTN : 7.6kg

●       Carton measurement : 685mm × 356mm × 285mm

Package Contents ●       MCore Mini – PC

●       MTouch II Panel

●       UVC40 USB bar

Datasheet Download
