Cisco Catalyst3850-48E Dubai



Cisco Catalyst3850-48E Dubai

The Cisco Catalyst3850-48E Dubai Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans, and power supplies.

Category:

Description

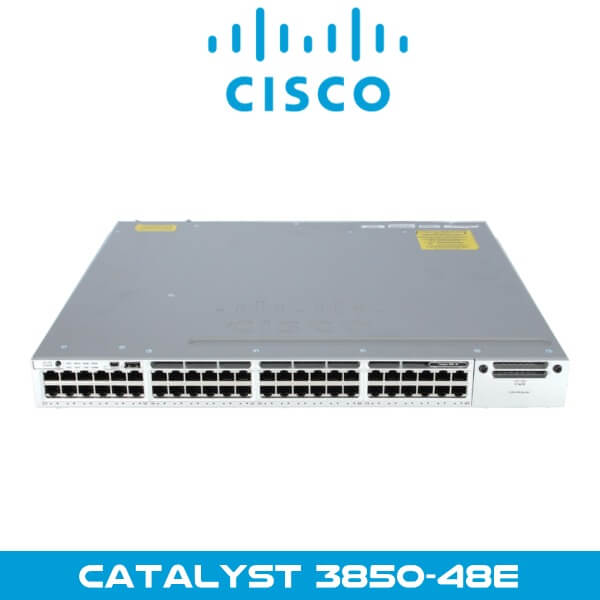

Cisco Catalyst3850-48E Network Switch Dubai

Cisco next generation Catalyst WS-C3850-48U-E is stackable enterprise level switch and integrated with 48 Ethernet UPOE ports in IP service feature set. Cisco Catalyst3850-48E Dubai enables sophisticated layer 2-4 switching capability by providing the optimal solution for access layer and aggregation layer.

The Cisco Catalyst 3850 Series is the next generation of enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired plus wireless policy enforcement, application visibility, and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480. The Cisco Catalyst3850-48E Dubai Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans, and power supplies.

Features

  • Integrated wireless controller capability with support for up to 100 access points and 2000 wireless clients on each switching entity (switch or stack)
  • 48 10/100/1000 Ethernet PoE+ [800W] ports with Energy-Efficient Ethernet (EEE)
  • Cisco StackWise-480 technology provides scalability and resiliency with 480 Gbps of stack throughput
  • Cisco StackPower technology provides power stacking among stack members for power redundancy
  • Cisco Catalyst3850-48E Dubai has full IEEE 802.3at (PoE+) with 30W power on all copper ports in 1 Rack Unit (RU) form factor
  • 715WAC power supply 1 RU
  • IEEE 802.3bz (2.5/5 G/s BASE-T) to go beyond 1 Gb/s with existing Cat5e and Cat6
  • IEEE 802.1ba AV Bridging (AVB) built-in to provide better AV experience for including improved time synchronization and QoS
  • Software support for IPv4 and IPv6 routing, multicast routing, modular Quality of Service (QoS), Flexible NetFlow (FNF), and enhanced security features
  • Cisco Catalyst3850-48E Dubai is integrated with a single universal Cisco IOS® Software image across all license levels, providing an easy upgrade path for software features
  • Cisco DNA services delivered through Cisco ONE Software, providing simplified, high-value solutions with license portability and flexibility
  • Support for AES-256 with the powerful MACSEC 256-bit for SFP+ and Multigigabit models and 128-bit encryption algorithm available on all models
  • Cisco Catalyst3850-48E Dubai has an enhanced Limited Lifetime Warranty (E-LLW) with Next Business Day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support

Technical Specs

Product Code WS-C3850-48U-E
Enclosure Type 1 RU
Feature Set IP Service
Network SFP uplink module selection
  • C3850-NM-4-1G
  • C3850-NM-2-10G
  • C3850-NM-4-10G
Ports 48 x 10/100/1000 ports with UPoE
Available PoE Power 800W
Maximum stacking number 9
Stack bandwidth 480 Gbps
Forwarding Performance 130.95 Mpps
Switching Capacity 176 Gbps
RAM 4 G
Flash Memory 2 G
Dimensions 44.5 cm x 44.5 cm x 4.45 cm
