The 24 PoE+ compliant Gigabit Ethernet ports of the Cisco CBS250-24FP4X Dubai support up to 30W of power each, with a total budget of 370W to operate advanced surveillance cameras, videophones, thin client devices, and more.

Category:

Description

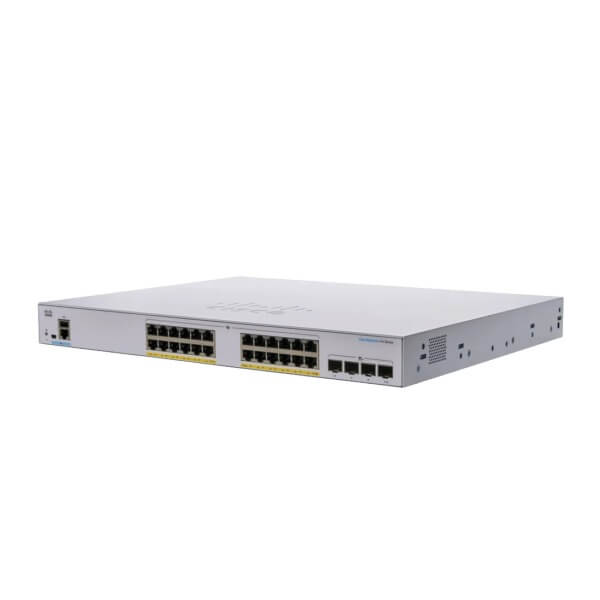

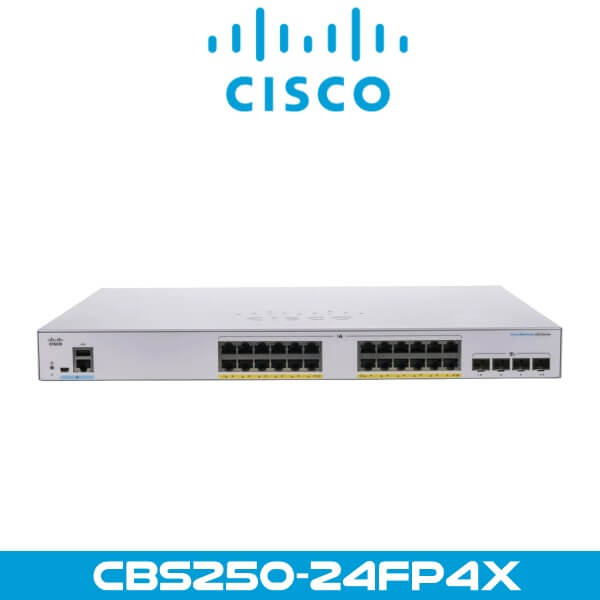

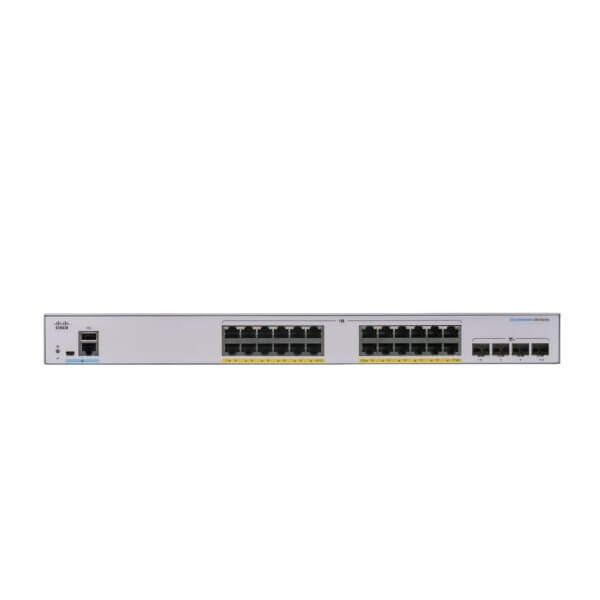

Cisco CBS250-24FP4X Network Switch Dubai

This managed rackmount Cisco CBS250-24FP4X Dubai switch features 24 PoE+ compliant Gigabit Ethernet ports with a 370W budget to operate compatible devices. There are also four 10GbE SFP+ ports available for high-speed fiber connections. Its extensive Layer 2 and Layer 3 features include link aggregation to create up to four groups of eight ports for multi-Gig connections to compatible devices. Its 128 Gb/s switching capacity and 95.23 Mbps forwarding rate also help to ensure smooth and reliable data transfers. Use the Cisco Business Dashboard portal and mobile app to configure and monitor the Cisco CBS250-24FP4X Dubai and its connected devices. The single fan cooling design produces about 34.8 dB of noise to minimize disruptions to your environment.

Features:

Performance

The Cisco CBS250-24FP4X Dubai is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 128 Gb/s switching capacity and 95.23 Mbps forwarding rate

Power over Ethernet

The 24 PoE+ compliant Gigabit Ethernet ports of the Cisco CBS250-24FP4X Dubai support up to 30W of power each, with a total budget of 370W to operate advanced surveillance cameras, videophones, thin client devices, and more.

Layer 3 Static Routing

Segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch’s internal routing and dedicate your router to external traffic and security to help your network run efficiently.

Compact Design

With a sleek and compact 1 RU design, the Cisco CBS250-24FP4X Dubai can fit into wiring closets and other installations within retail stores, offices, and other businesses.

Energy Efficient

Support for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.

Specifications

Interfaces
Ports
  • 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
  • 4 x 10Gb SFP+
  • 1 x USB Type-A (Console)
Protocols
Layer Services Supported Layer 2 Support, Layer 3 Support
Supported Protocols
  • Head-of-Line (HOL) Blocking
  • IGMP Snooping
  • IPv4
  • IPv6
  • Link Aggregation
  • MAC Filtering
  • Port Mirroring
  • RADIUS
  • SNMPv1
  • SNMPv2c
  • SNMPv3
Queuing Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support 9000 Bytes
MAC Address Table Size 8K
Multicast Groups 255
VLAN IDs 255
Security
Security Features
  • DoS Attack Prevention
  • RADIUS Authentication’
  • Storm Control
Access Control List 512
IP Interfaces 16
Static Routes 32
SNMP Support 1, 2c, 3
Standards
RFC RFC 4330
Supported IEEE Standards 802.1d, 802.1q, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ad, 802.3af, 802.3at, 802.3u, 802.3x, 802.3z
Performance
Forwarding Rate 95.23 Mpps
Switching Bandwidth 128 Gb/s
Priority Queues 8
Packet Buffer 1.5 MB
Computer
Flash Memory 256 MB
Processor 800 MHz ARM
Memory 512 MB
Electrical
Power Draw 451.8 W (Max)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
PoE Power Budget 370 W
PoE per Port 30 W
Power Supply Type Internal
Environmental
Operating Temperature 23 to 122°F / -5 to 50°C
Operating Humidity 10 to 90%
Storage Temperature -13 to 158°F / -25 to 70°C
Storage Humidity 10 to 90%
Noise Level 34.8 dB
General
Cooling System Fan
Mean Time Between Failures (MTBF) 698,220 Hours
Indicator Lights Link/Activity, PoE, Speed, System
Rack Form Factor 1 RU
Dimensions 17.5 x 13.6 x 1.7″ / 445 x 345 x 44 mm
Weight 10.1 lb / 4.6 kg
