Description

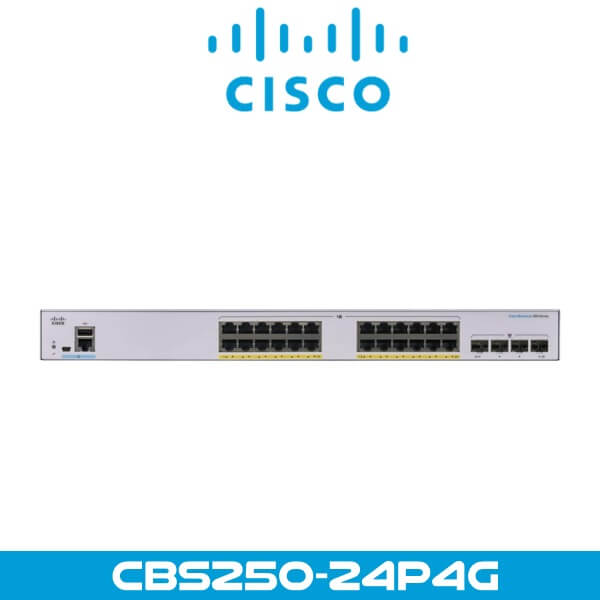

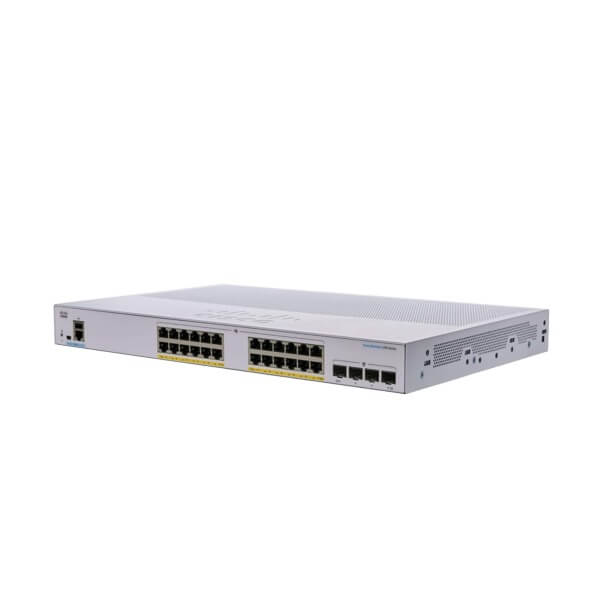

Cisco CBS250-24P4G Network Switch Dubai

Cisco CBS250-24P4G Dubai is a 24-port PoE+ – Compliant managed rackmount switch that offers high network performance to businesses that require a cost-effective network solution. It is equipped with 4 1GbE SFP ports that offer high-speed fiber connections, and is integrated with extensive Layer 2 and Layer 3 features which include link aggregation to create up to four groups of eight ports for multi-Gig connections to compatible devices.

Cisco CBS250-24P4G Dubai comes with 56 Gb/s switching capacity and 41.66 Mbps forwarding rate which help to ensure smooth and reliable data transfers. Use the Cisco Business Dashboard portal and mobile app to configure and monitor the Cisco CBS250-24P4G Dubai and its connected devices. The fanless design also helps to reduce power consumption while allowing the switch to operate silently in the background.

Features

Performance

The Cisco CBS250-24P4G Dubai is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 56 Gb/s switching capacity and 41.66 Mbps forwarding rate.

Power over Ethernet

The 24 PoE+ compliant Gigabit Ethernet ports support up to 30W of power each, with a total budget of 195W to operate advanced surveillance cameras, videophones, thin client devices, and more.

Layer 3 Static Routing

Segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch’s internal routing and dedicate your router to external traffic and security to help your network run efficiently.

Compact Design

With a sleek and compact 1 RU design, the Cisco CBS250-24P4G Dubai can fit into wiring closets and other installations within retail stores, offices, and other businesses.

Energy Efficient

Support for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.

Specifications

Interfaces
Ports	24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ 4 x 10/100/1000 Mb/s Gigabit SFP 1 x USB Type-A (Console)
Protocols
Layer Services Supported	Layer 2 Support, Layer 3 Support
Supported Protocols	Head-of-Line (HOL) Blocking IGMP Snooping IPv4 IPv6 Link Aggregation MAC Filtering Port Mirroring RADIUS SNMPv1 SNMPv2c SNMPv3
Queuing	Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support	9000 Bytes
MAC Address Table Size	8K
Multicast Groups	255
VLAN IDs	255
Security
Security Features	DoS Attack Prevention RADIUS Authentication Storm Control
Access Control List	512
IP Interfaces	16
Static Routes	32
SNMP Support	1, 2c, 3
Standards
RFC	RFC 4330
Supported IEEE Standards	802.1d, 802.1q, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ad, 802.3af, 802.3at, 802.3u, 802.3x, 802.3z
Performance
Forwarding Rate	41.66 Mpps
Switching Bandwidth	56 Gb/s
Priority Queues	8
Packet Buffer	1.5 MB
Computer
Flash Memory	256 MB
Processor	800 MHz ARM
Memory	512 MB
Electrical
Power Draw	239.7 W (Max)
AC Input Power	100 to 240 VAC, 50 / 60 Hz
PoE Power Budget	195 W
PoE per Port	30 W
Power Supply Type	Internal
Environmental
Operating Temperature	23 to 122°F / -5 to 50°C
Operating Humidity	10 to 90%
Storage Temperature	-13 to 158°F / -25 to 70°C
Storage Humidity	10 to 90%
General
Cooling System	Passive
Mean Time Between Failures (MTBF)	698,220 Hours
Indicator Lights	Link/Activity, PoE, Speed, System
Rack Form Factor	1 RU
Dimensions	17.5 x 11.8 x 1.7″ / 445 x 299 x 44 mm
Weight	7.78 lb / 3.53 kg
Packaging Info
Package Weight	11.6 lb
Box Dimensions (LxWxH)	22.5 x 16.8 x 4.3″
