Cisco SG500X-24P Dubai



Cisco SG500X-24P Dubai

In addition to enhanced network connectivity, the Cisco SG500X-24P Dubai supports true stacking functionality along with enhanced security and QoS capabilities making it easy to secure the network and manage bandwidth.

Category:

Description

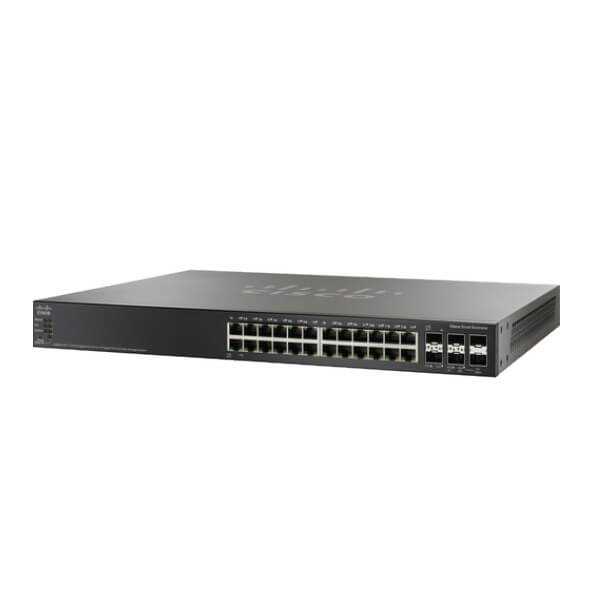

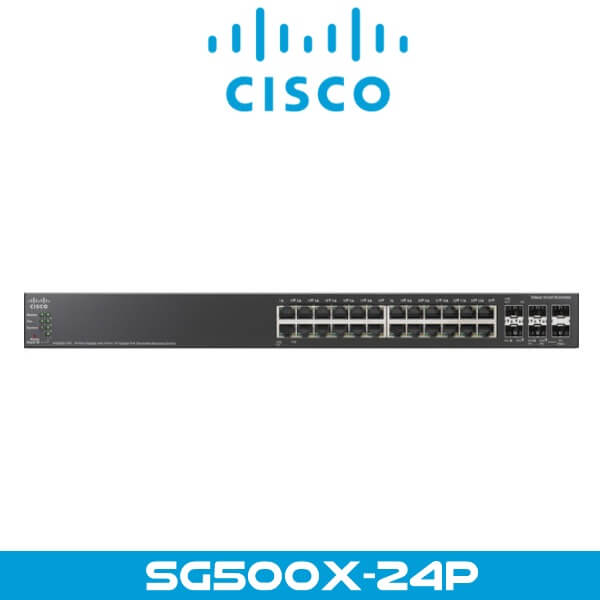

Cisco SG500X-24P Network Switch Dubai

With Layer 3 switching support, the Cisco SG500X-24P Dubai is designed to handle business applications and more. This Cisco SG500X-24P Dubai comes equipped with 24 Fast Ethernet PoE network ports and 4 SFP+ expansion slots allowing for multiple connection options. In addition to enhanced network connectivity, this switch supports true stacking functionality along with enhanced security and QoS capabilities making it easy to secure the network and manage bandwidth. Once configured, administrators can manage the network using the web-based management utility tool.

Features:

  • True stacking
  • Advanced security and QoS
  • Dynamic Layer 3 switching
  • IPv6 support
  • Energy-efficient design and EEE
  • Easy-to-use web-based management tool, CDP, Auto Smartports, CCA, Textview (CLI) and Cisco FindIT utility
  • Simple Network Management Protocol (SNMP) support
  • Limited lifetime warranty with next business day (NBD) advance replacement

Technical Specs

Interfaces/Ports Total Number of Network Ports
24
Token Ring Port
No
LRE Port
No
Bypass
No
Modular
No
Management Port
Yes
Number of PoE (RJ-45) Ports
24
Stack Port
Yes
Number of Network (RJ-45) Ports
24
Media and Performance Media Type Supported
Twisted Pair
Twisted Pair Cable Standard
Category 5
Ethernet Technology
Gigabit Ethernet
Ethernet Technology
Fast Ethernet
Network Technology
10/100/1000Base-T
I/O Expansion Slots Number of Total Expansion Slots
4
Number of SFP+ Slots
4
Network and Communication Layer Supported
3
Management Protocols Manageable
Yes
Management

  • Web-based Management
  • VLAN
  • QoS
  • CLI
  • GUI
  • DHCP
  • SNMP
Memory Standard Memory
256 MB
Flash Memory
32 MB
Power PoE (RJ-45) Port
No
Input Voltage
110 VAC
Input Voltage
220 VAC
Power Source
Power Supply
Certifications and Standards
  • UL 60950
  • FCC Part 15 A
  • CSA 22.2
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3z
  • IEEE 802.1D
  • IEEE 802.1Q
  • IEEE 802.3ab
  • IEEE 802.1p
  • IEEE 802.3af
  • IEEE 802.3x
  • IEEE 802.3ad (LACP)
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.1s
  • IEEE 802.3at
  • IEEE 802.3az
Dimensions 1.7 x 17.3 x 13.8″ / 4.3 x 43.9 x 35.1 cm
Weight 11.70 lb / 5.31 kg
