Cisco CBS350-8MGP2X Dubai

The sleek and compact design for the Cisco CBS350-8MGP2X Dubai Switches provide additional deployment flexibility, including outside wiring closet installation such as retail stores, open plan offices, and classrooms without disturbing the environment.

Description

Cisco CBS350-8MGP2X Network Switch Dubai

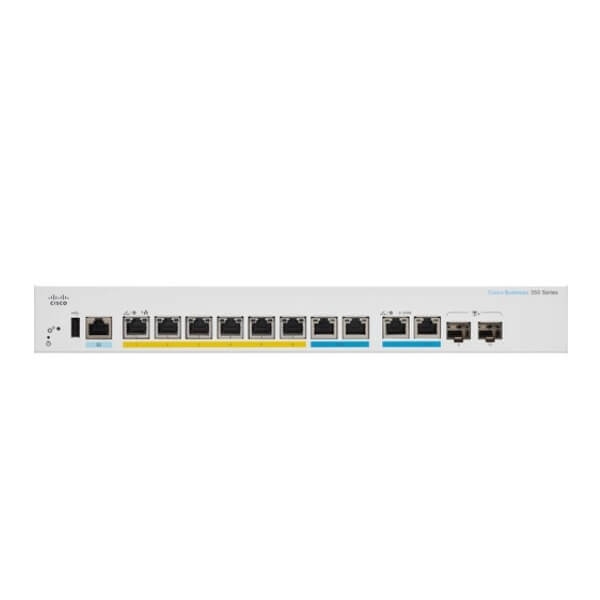

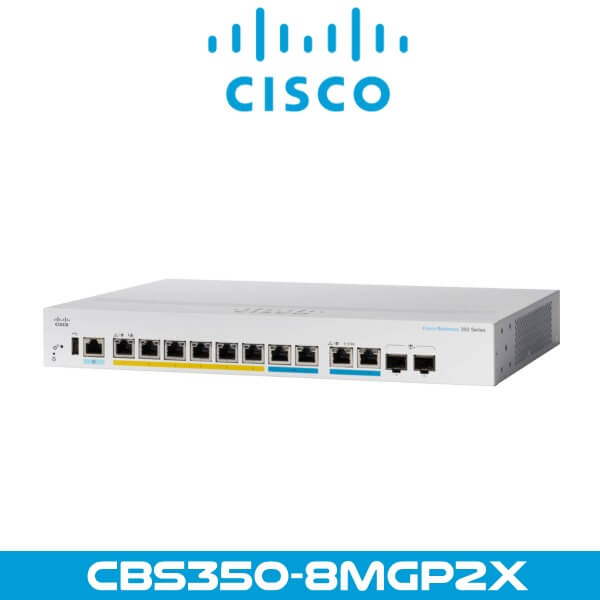

The Cisco CBS350-8MGP2X Dubai is a ten ports managed switch with 6 x 1G, 2 x 2.5G, and 2 x 10G Ethernet ports. The 10G Ethernet ports support both copper and SFP, allowing connection to an Internet router through fiber optics, for example, or as an uplink to another managed switch. The CBS350 family has other port combinations, ranging from eight to forty ports.

The Cisco CBS350-8MGP2X Dubai is ready to be used out of the box. The switch boots in less than three minutes with ports linking up and a web interface running. A green status LED flashes rapidly during the boot process and stays on once complete. The metal box stays warm with an increase in temperature by up to 20 degrees C when PoE devices are connected.

The CBS350-8MGP2X is shipped with a mounting kit, a power cable, and a small user manual. The switch, in the form of a white metal box, measures 4.4cm x 34.4cm x 25.2cm and weighs 2.5kg. It requires little maintenance and is very quiet. This is due to the use of a large heatsink located at the back instead of fans. Four mounting holes located on each side make it suitable for rack mounting.

Features:

High Reliability and Resiliency

The Cisco CBS350-8MGP2X Dubai Switches support dual images, allowing you to perform software upgrades without having to take the network offline or worry about the network going down during the upgrade.

Strong Security

Cisco CBS350-8MGP2X Dubai Switches provide the advanced security features you need to protect your business data and keep unauthorized users off the network:

Support for advanced network security applications such as IEEE 802.1X and port security tightly limits access to specific segments of your network. Web-based authentication provides a consistent interface to authenticate all types of host devices and operating systems, without the complexity of deploying IEEE 802.1X clients on each endpoint.
Advanced defense mechanisms, including dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping, detect and block deliberate network attacks. Combinations of these protocols are also referred to as IP-MAC port binding (IPMB).
IPv6 First Hop Security extends the advanced threat protection to IPv6. This comprehensive security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check, providing unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks.

Power over Ethernet (PoE)

Cisco Business 350 Series Switches are available with up to 48 Power over Ethernet (PoE) ports. This capability simplifies advanced technology deployments such as IP telephony, wireless, and IP surveillance by allowing you to connect and power network endpoints over a single Ethernet cable. With no need to install separate power supplies for IP phones or wireless access points, you can take advantage of advanced communications technologies more quickly and at a lower cost. Models support 802.3af PoE and 802.3at PoE+. 60W PoE is also supported on select switches to power high-performance wireless access points and Internet of Things (IoT) devices.

IPv6 Support

As the IP address scheme evolves to accommodate a growing number of network devices, the Cisco Business 350 Series Switches can support the transition to the next generation of networking. These switches continue to support previous-generation IPv4, allowing you to evolve to the new IPv6 standard at your own pace and helping ensure that your current network will continue to support your business applications in the future. Cisco Business 350 Series Switches have successfully completed rigorous IPv6 testing and have received the USGv6 and IPv6 Gold certification.

Advanced Layer 3 Traffic Management

The Cisco CBS350-8MGP2X Dubai Switches enable a more advanced set of traffic management capabilities to help growing businesses organize their networks more effectively and efficiently. For example, the switches provide dynamic Layer 3 routing, allowing you to segment your network into workgroups and communicate across VLANs without degrading application performance.

With these capabilities, you can boost the efficiency of your network by offloading internal traffic-handling tasks from your router and allowing it to manage primarily external traffic and security.

True stacking

Cisco CBS350-8MGP2X Dubai switches provide true stacking capability, allowing you to configure, manage, and troubleshoot all switches in a stack as a single unit with a single IP address.

A true stack delivers a unified data and control plane, in addition to management plane, providing flexibility, scalability, and ease of use because the stack of units operates as a single entity constituting all the ports of the stack members. This capability can radically reduce complexity in a growing network environment while improving the resiliency and availability of network applications. True stacking also provides other cost savings and administrative benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring, which clustered switches cannot support.

Compact Design
