Cisco CBS110-24PP Dubai



Cisco CBS110-24PP Dubai

Each Cisco CBS110-24PP Dubai Series switch supports the Energy Efficient Ethernet (IEEE 802.3az) standard, reducing energy consumption by monitoring traffic and putting specific links to sleep during quiet periods.

Category:

Description

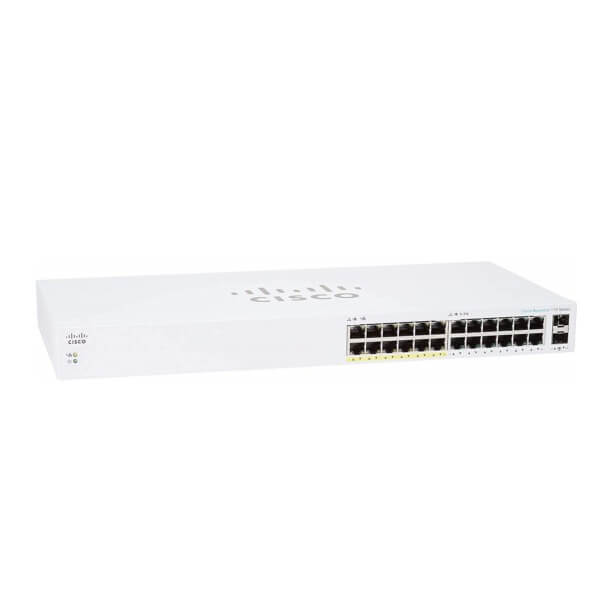

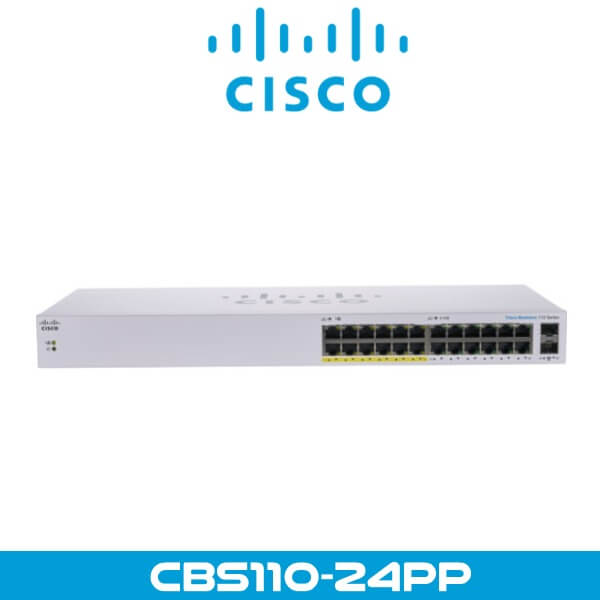

Cisco CBS110-24PP Network Switch Dubai

The Cisco CBS110-24PP Dubai switch offers 12 standard Gigabit Ethernet ports with an additional 12 Gigabit Ethernet PoE ports designed to power various network devices. Two additional SFP expansion slots allow you to plug in optional fiber-optic modules. Each port operates on Gigabit Ethernet and 10/100/1000Base-T technologies accompanied by layer 2 support, ensuring your devices properly send and receive information quickly and accurately. You can easily set your Cisco CBS110-24PP Dubai up with plug-and-play design, getting your business connected without the need for additional hardware or software. The included mounting brackets allow you to secure this switch in networking racks and cabinets.

Features:

Built for Simplicity

You can use this device immediately out of the box without configuration. Cisco CBS110-24PP Dubai Series unmanaged switches are designed to provide basic connection to the internet while optimizing network performance.

Gigabit Speeds

Whether you are a small business focusing on minimal network connections or repeatedly using cloud-based services, the 110 Series switch provides you with stability suitable for online document management, streaming media, and live-chat conference calls.

Reduced Energy Cost

Each Cisco CBS110-24PP Dubai Series switch supports the Energy Efficient Ethernet (IEEE 802.3az) standard, reducing energy consumption by monitoring traffic and putting specific links to sleep during quiet periods.

Advanced Technologies

Advanced Cisco traffic-handling features keep your applications running at maximum performance, streamlining your network efficiency. Integrated QoS, loop detection, cable diagnostics, and fast store-and-forward switching all work automatically without configuration, simplifying your network.

Requirements

The Cisco CBS110-24PP Dubai Series switch requires the use of a network interface for each connected computer, Cat 5e or better Ethernet cable, and devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet.

Technical Specs

Interfaces
Ports
  • 12 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
  • 12 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE
  • 2 x SFP
Protocols
Layer Services Supported Layer 2 Support
Transmission Method Store-and-Forward
Security
Security Features Kensington Lock Support
Performance
Switching Bandwidth 48 Gb/s
Packet Buffer 2 Mb
Computer
Flash Memory 8 MB
Processor 400 MHz ARM
Memory 64 MB
Electrical
Power Draw 17.29 W (Max)
AC Input Power 110 to 240 VAC, 50 / 60 Hz
PoE Power Budget 100 W
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 10 to 90% (Non-Condensing)
Storage Temperature -4 to 158°F / -20 to 70°C
Storage Humidity 5 to 90%
Certifications CE, CSA, FCC, UL, as per Manufacturer
General
Dimensions 17.3 x 8 x 1.7″ / 43.9 x 20.3 x 4.3 cm
Weight 6.57 lb / 2.98 kg
Packaging Info
Package Weight 9.49 lb
Box Dimensions (LxWxH) 20.7 x 12.5 x 4.1″
