Cisco CBS350-24T4X Dubai



Cisco CBS350-24T4X Dubai

The Cisco CBS350-24T4X Dubai is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 128 Gb/s switching capacity and 95.23 Mbps forwarding rate.

Category:

Description

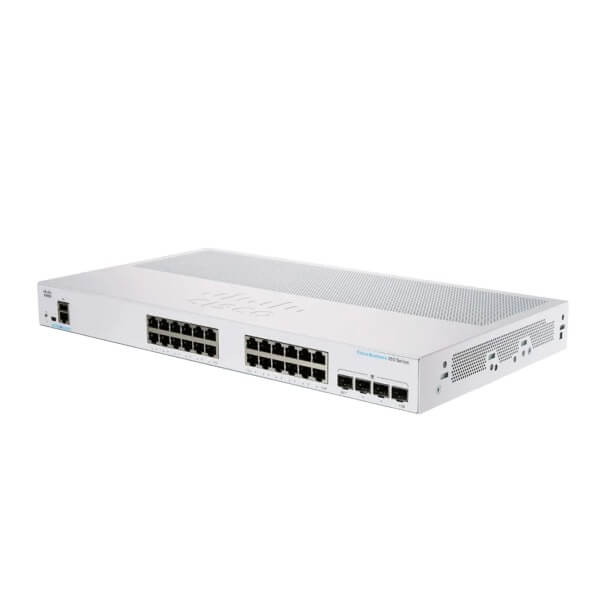

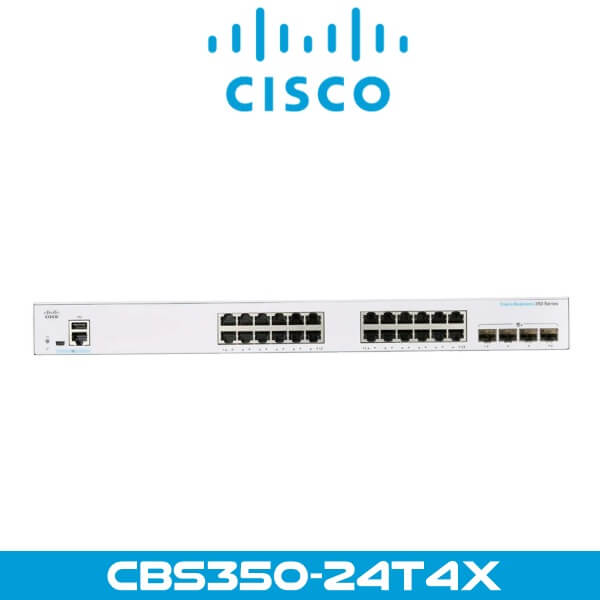

Cisco CBS350-24T4X Network Switch Dubai

The Cisco CBS350-24T4X Dubai managed rackmount switch features 24 Gigabit Ethernet ports that connect to a variety of wired devices such as computers, network attached storage, and more. There are also four 10GbE SFP+ ports available for high-speed fiber connections. Its extensive Layer 2 and Layer 3 features include secure connections, clear communications, and link aggregation to create up to eight groups of 16 ports for multi-Gig connections to compatible devices. Its 128 Gb/s switching capacity and 95.23 Mbps forwarding rate help to ensure smooth and reliable data transfers. Use the Cisco Business Dashboard portal and mobile app to configure and monitor the Cisco CBS350-24T4X Dubai and its connected devices. The fanless design helps to reduce power consumption while allowing the switch to operate silently in the background.

Features

Performance

The Cisco CBS350-24T4X Dubai is equipped with an 800 MHz ARM processor and 512MB of memory, which work to deliver smooth and reliable data transfers with a 128 Gb/s switching capacity and 95.23 Mbps forwarding rate.

Extensive Security

  • Support for features such as IEEE 802.1x and port security limit access to specific segments of your network while web-based authentication provides a consistent interface to all types of host devices and operating systems.
  • Advanced defense mechanisms such as dynamic Address Resolution Protocol (ARP) inspection, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) snooping help to detect and block network attacks. When combined, these protocols may be referred to as IP-MAC port binding (IPMB).
  • The IPv6 First Hop Security suite includes ND inspection, RA guard, DHCPv6 guard, and neighbor binding integrity check to protect your IPv6 network against a range of address spoofing and man-in-the-middle attacks.

IPv6 Support

The Cisco CBS350-24T4X Dubai switch allows you to evolve your network using the IPv6 standard while remaining compatible the previous-generation IPv4 networks.

Layer 3 Static Routing

Dynamic Layer 3 routing features include the ability to segment your network into separate workgroups and communicate across VLANs without degrading application performance, which allows you to manage your switch’s internal routing and dedicate your router to external traffic and security to help your network run efficiently.

True Stacking

Reduce the complexity of your network while enhancing your control over a growing network by configuring, managing, and troubleshooting all your switches in a stack as a single unit using a single IP address. True stacking also provides other benefits through features such as cross-stack QoS, VLANs, LAGs, and port mirroring.

Compact Design

With a sleek and compact 1 RU design, the Cisco CBS350-24T4X Dubai can fit into most wiring closets and other installations within retail stores, offices, and other businesses.

Energy Efficient

Support for the Energy Efficient Ethernet (IEEE 802.3az) standard helps to significantly reduce energy consumption by monitoring the amount of traffic an active link receives and putting it to sleep during down times.

Technical Specs

Interfaces
Ports
  • 24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
  • 4 x 10Gb SFP+
  • 1 x Micro-USB
Protocols
Layer Services Supported Layer 2 Support, Layer 3 Support
Supported Protocols
  • Head-of-Line (HOL) Blocking
  • IGMP Snooping
  • IPv4
  • IPv6
  • Link Aggregation
  • MAC Filtering
  • Port Mirroring
  • RADIUS
  • SNMPv1
  • SNMPv2c
  • SNMPv3
Queuing Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support 9000 Bytes
MAC Address Table Size 16K
Multicast Groups 2000
VLAN IDs 4094
Security
Security Features
  • DoS Attack Prevention
  • RADIUS Authentication
  • Storm Control
Access Control List 1024
IP Interfaces 128
Static Routes 990
SNMP Support 1, 2c, 3
Standards
RFC RFC 4330
Supported IEEE Standards 802.1ab, 802.1d, 802.1q/p, 802.1s, 802.1w, 802.1x, 802.3, 802.3ab, 802.3ad, 802.3an, 802.3az, 802.3u, 802.3x, 802.3z
Performance
Forwarding Rate 95.23 Mpps
Switching Bandwidth 128 Gb/s
Priority Queues 8
Packet Buffer 1.5 MB
Computer
Flash Memory 256 MB
Processor 800 MHz ARM
Memory 512 MB
Electrical
Power Draw 27.25 W (Max)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Supply Type Internal
Environmental
Operating Temperature 23 to 122°F / -5 to 50°C
Operating Humidity 10 to 90%
Storage Temperature -13 to 158°F / -25 to 70°C
Storage Humidity 10 to 90%
General
Cooling System Passive
Mean Time Between Failures (MTBF) 2,026,793 Hours
Indicator Lights Link/Activity, Speed, System
Rack Form Factor 1 RU
Dimensions 17.5 x 9.4 x 1.7″ / 445 x 240 x 44 mm
Weight 6.13 lb / 2.78 kg
Packaging Info
Package Weight 9.66 lb
Box Dimensions (LxWxH) 22.5 x 14.5 x 4.3″
