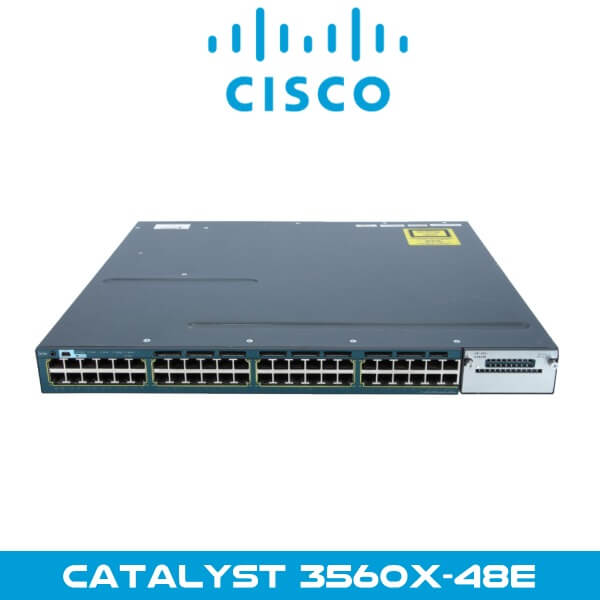

Cisco Catalyst3560X-48E Dubai



Cisco Catalyst3560X-48E Dubai

The Cisco Catalyst3560X-48E Dubai is designed for enterprise distribution layer switching in full layer 3 capability includes BGP, EIGRP, OSFP, IPv4/v6, multicast routing, IPSLA, Netflow, advanced Qos, VRF-lite.

Category:

Description

Cisco Catalyst3560X-48E Network Switch Dubai

The Cisco Catalyst3560X-48E Dubai is a 48-Gigabit Ethernet POE+ ports standalone switch with four optional 1G/10G network uplink module and no option to stack in IP service feature set. WS-C3560X-48P-E support IEEE802.3at standard to allocate up to 30W power on each port in total 435W POE budget to power up IP phones, wireless and video; customers can specify the power setting on individual port in command line setting. IP service feature set provides up to 1005-Vlans and advanced layer 3 routing features, advanced security features and management features.

The Cisco Catalyst3560X-48E Dubai is designed for enterprise distribution layer switching in full layer 3 capability includes BGP, EIGRP, OSFP, IPv4/v6, multicast routing, IPSLA, Netflow, advanced Qos, VRF-lite. WS-C3560X-48P-E switch comes with one default power supply module, customers can purchase additional power supply module insert into power supply bay 2 in order to power redundancy.

Features

  • 48 * 10/100/1000 Ethernet PoE+ ports
  • Four optional uplink network modules with GE or 10GE ports435W POE power budget with up to 30W per port
  • Dual redundant, modular power supplies and fans
  • IP service feature set with full Layer 3 routing features, VRF-lite, IPSLA, advanced QoS, PIM, Netflow, PBR
  • 64MB flash and 256 memory (DRAM)
  • USB Type-A and Type-B ports for storage and console respectively and an out-of-band Ethernet management port

Technical Specs

Manufacturer Cisco Systems, Inc
Manufacturer Part Number WS-C3560X-48P-E
Product Type Switch – 48 ports – L3 – Managed
Form Factor Rack mountable – 1U
Switch Ports 48 x 10/100/1000 Ethernet POE+ Ports
Power Over Ethernet (PoE) Yes
Routing Protocol OSPF, Eigrp, PIM, RIP-1, RIP-2, HSRP, VRRP, GLBP, static IP routing, RIPng
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features Hot swap module replacement, Layer 3 switching, Layer 2 switching, dynamic IP address assignment , DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, traffic shaping, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Per-VLAN Spanning Tree Plus (PVST+), EIGRP, OSPF, BGP, PIM
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at
DRAM Memory 256 MB
Flash Memory 64 MB Flash
Status Indicators Port status, link activity, port transmission speed, port duplex mode, power, system
Connectivity Slots
Interfaces
  • 48 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE
  • USB : 1 x 4 PIN USB Type A
  • 1 x console – mini-USB Type B – management
  • 1 x RS-232 – RJ-45 – management
  • 1 x 10Base-T/100Base-TX – RJ-45 – management
Expansion Slot(s) 1 (total) / 1 (free) x Expansion Slot
Power Supply
Power Device Power supply – redundant – plug-in module
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Voltage Required AC 120/230 V ( 50/60 Hz )
Features Redundant Power System (RPS) connector
Dimensions / Weight / Miscellaneous
Width 44.5 cm
Depth 46 cm
Height 4.5 cm
Weight 7.4 kg
Rack Mounting Kit Optional
MTBF 149,594 hour(s)
Compliant Standards CE, TUV GS, CISPR 22 Class A, GOST, cUL, NOM, VCCI Class A ITE, EN55022 Class A, CB, AS/NZS 60950-1, AS/NZ 3548 Class A, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, FCC Part 15 A, CSA C22.2 No. 60950-1
System Software
Software Included Cisco IOS IP Service
