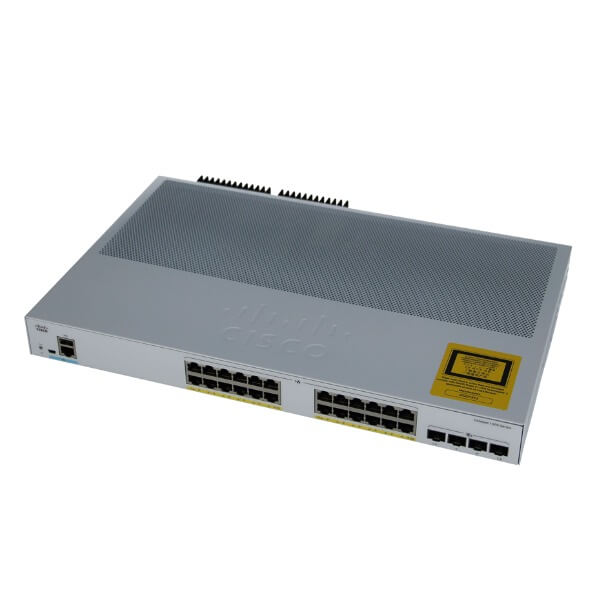

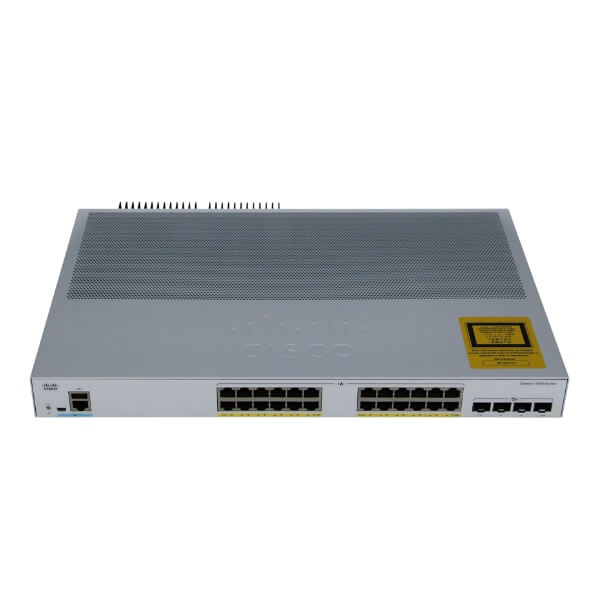

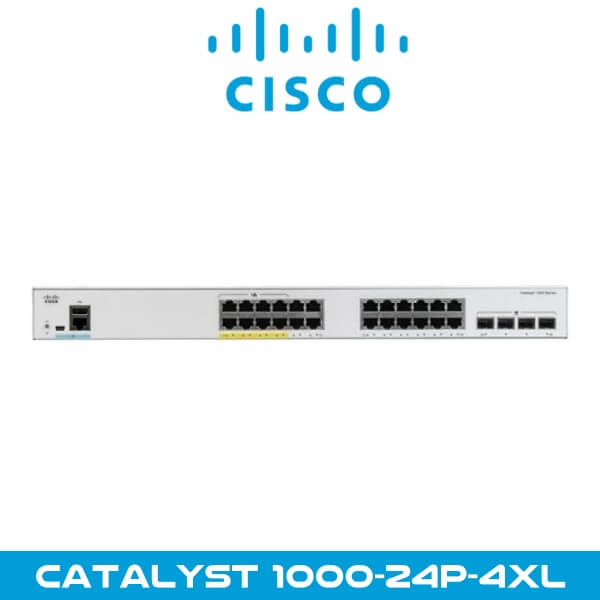

Cisco Catalyst1000-24P4XL Dubai



Cisco Catalyst1000-24P4XL Dubai

The Cisco Catalyst1000-24P4XL Dubai are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments.

Category:

Description

Cisco Catalyst1000-24P4XL Network Switch Dubai

Cisco Catalyst 1000 Series Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. The Cisco Catalyst1000-24P4XL Dubai are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco Catalyst 1000 operate on Cisco IOS Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.

Features

The Cisco Catalyst 1000 Series Switches provides these features:

  • 8, 16, 24, or 48 Gigabit Ethernet data or PoE+ ports with line-rate forwarding
  • 2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP)/RJ 45 Combo uplinks or 4 fixed 0 Gigabit Ethernet Enhanced SFP (SFP+) uplinks
  • Perpetual PoE+ support with a power budget of up to 740W
  • CLI and/or intuitive web UI manageability options
  • Network monitoring through sampled flow (sFlow)
  • Security with 802.1X support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard
  • Compact fanless models available with a depth of less than 13 inches (33 cm)
  • *Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console access
  • Reliability with a higher Mean Time Between Failures (MTBF) and an enhanced limited lifetime warranty support(E-LLW)

Technical Specs

Product Code

C1000-24P-4X-L

Description 24x 10/100/1000 Ethernet PoE+ ports and 195W PoE budget, 4x 10G SFP+ uplinks
Gigabit Ethernet ports 24
Uplink interfaces 4 SFP+
PoE+power budget 195W
Fanless Y
Dimensions (WxDxH in inches) 17.5 x 11.76 x 1.73
CPU ARM v7 800 MHz
DRAM 512 MB
Flash memory 256 MB
Forwarding bandwidth 64 Gbps
Switching bandwidth 128 Gbps
Forwarding rate(64—byte L3 packets) 41.67 Mbps
