Cisco Catalyst1000-24P4GL Dubai



Cisco Catalyst1000-24P4GL Dubai

The Cisco Catalyst1000-24P4GL Dubai switch platform provides a range of options to fulfill almost any small-business network’s requirements. All models include an easy-to-use web UI for configuration, management, and monitoring.

Category:

Description

Cisco Catalyst1000-24P4GL Network Switch Dubai

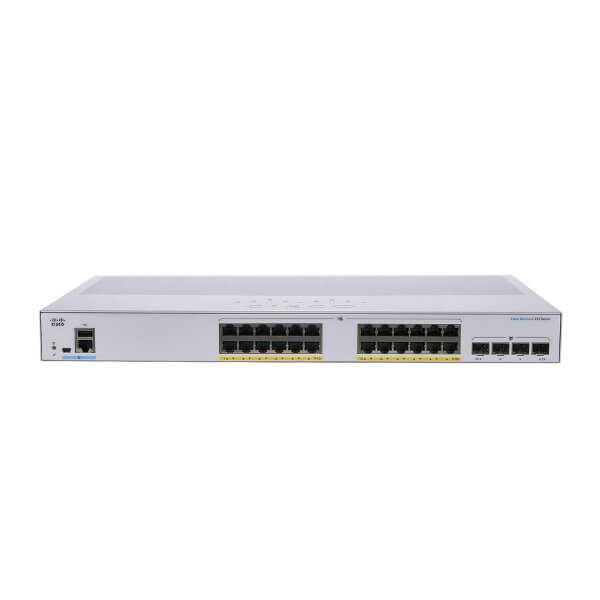

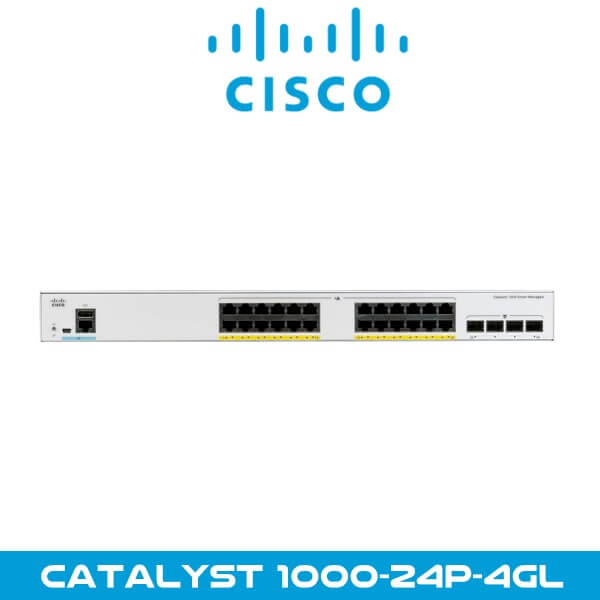

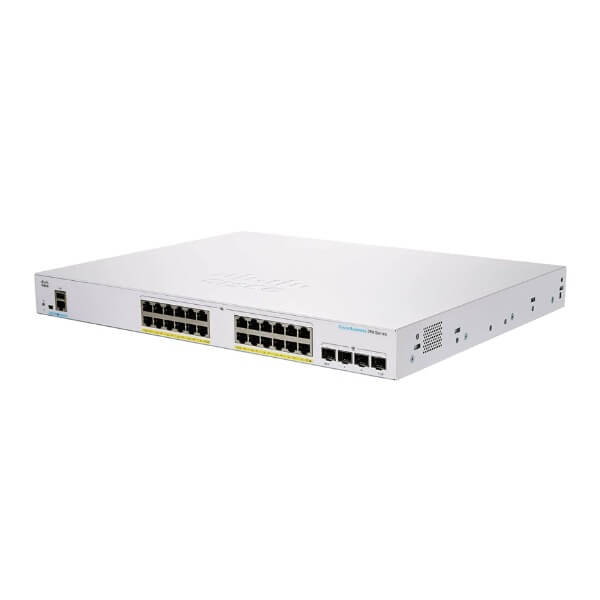

Cisco Catalyst1000-24P4GL Dubai Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco Catalyst 1000 operate on Cisco IOS Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.

Features :

Simplicity, flexibility, and security
Cisco Catalyst1000-24P4GL Dubai switches provide enterprise-grade network access sized for small businesses. With a wide range of Power over Ethernet (PoE) and port combinations, these easy-to-manage switches provide the performance a modern small office needs.

Quiet and compact
The compact, fanless design means Cisco Catalyst1000-24P4GL Dubai can hide in plain sight in open-plan spaces.

Simplified management
Cisco Catalyst1000-24P4GL Dubai run on classic Cisco IOS and can be configured with an intuitive on-box web UI, making management simple and easy.

Enhanced security
With Catalyst 1000 switches’ larger-scale access-control tables and additional security features, you can segment traffic for greater security.

Power over Ethernet
With a range of PoE options featuring Perpetual PoE, Catalyst 1000 switches make installing IoT devices as easy as plugging in cables.

Compare Catalyst 1000 models
The Cisco Catalyst1000-24P4GL Dubai switch platform provides a range of options to fulfill almost any small-business network’s requirements. All models include an easy-to-use web UI for configuration, management, and monitoring.

Technical Specs

General
Device Type Switch – 24 ports – managed
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE) PoE+
PoE Budget 195 W
Performance
  • Forwarding bandwidth : 28 Gbps
  • Switching bandwidth : 56 Gbps
  • Forwarding rate (64‑byte L3 packets) : 41.67 Mpps
Capacity
  • Unicast MAC addresses : 15360
  • IPv4 unicast direct routes : 542
  • IPv4 unicast indirect routes : 256
  • IPv6 unicast direct routes : 414
  • IPv6 unicast indirect routes : 128
  • IPv4 routes (static) : 16
  • IPv6 routes (static) : 16
  • IPv4 routes (Multicast) : 1024
  • IPv6 groups (Multicast) : 1024
  • IPv4/MAC security ACEs : 600
  • IPv6 security ACEs : 600
  • Active VLANs : 256
  • VLAN IDs : 4094
  • STP instances : 64
  • SPAN sessions : 4
  • MTU-L3 packet : 9198 byte
Jumbo Frame Support 10240 bytes
Routing Protocol IGMP, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX
Processor X ARM : 800 MHz
RAM 512 MB
Flash Memory 256 MB
Status Indicators Status
Expansion / Connectivity
Interfaces
  • 24 x 1000Base-T RJ-45 PoE+ – 15 W
  • 4 x 1000Base-X SFP uplink
  • 1 x management RJ-45
  • 1 x mini-USB Type B
  • 1 x USB Type A
Power
Power Device Internal power supply
Installed Qty 1
Voltage Required AC 120/230 V (50 – 60 Hz)
Miscellaneous
MTBF 2,026,793 hours
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A
Dimensions & Weight
Width 17.5 in
Depth 11.8 in
Height 1.7 in
Weight 7.78 lbs
Manufacturer Warranty
Service & Support Limited warranty – replacement – lifetime – response time : next business day ¦ Technical support – consulting – 90 days
Environmental Parameters
Min Operating Temperature 23 °F
Max Operating Temperature 122 °F
Humidity Range Operating 5 – 90%
Min Storage Temperature -13 °F
Max Storage Temperature 158 °F
Humidity Range Storage 5 – 95%
