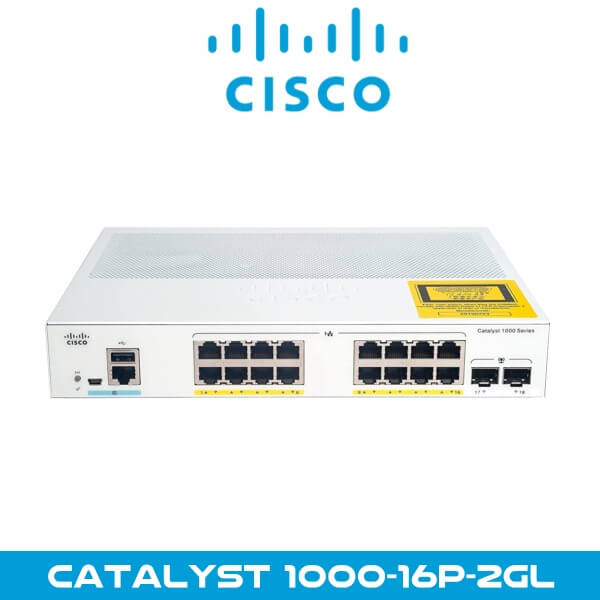

Cisco Catalyst1000-16P2GL Dubai



Cisco Catalyst1000-16P2GL Dubai

The Cisco Catalyst1000-16P2GL Dubai Network Switch is an enterprise-class fixed managed Gigabit Ethernet Layer 2 switch designed for small businesses and branch offices.

Category:

Description

Cisco Catalyst1000-16P2GL Network Switch Dubai

The Cisco Catalyst1000-16P2GL Dubai Network Switch is an enterprise-class fixed managed Gigabit Ethernet Layer 2 switch designed for small businesses and branch offices. This simple, flexible, and secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and features a CLI (command-line interface) as well as an intuitive web user interface.

Features

Hardware Configuration

Cisco Catalyst1000-16P2GL Dubai has 16 10/100/1000 Gigabit Ethernet (GbE) PoE+ ports, 2 SFP uplink ports; Compact form factor switch with Power budget of 120W and Perpetual PoE+ support for uninterrupted power to PoE devices even in case of switch reboot

Management

Manage the Cisco Catalyst1000-16P2GL Dubai via the Cisco IOS CLI (command-line interface) and/or intuitive web UI. Centrally monitor and configure up to 8 switches via a Single IP or with any third party network management tool

Security

Enterprise Class Security which natively supports IPv4/IPv6 FHS Security features such as port security, DHCP snooping, dynamic ARP inspection which can easily be configured using a Single “Auto-Secure” command along with 802.1x support for all connected devices

Enterprise Class Hardware

Tamperproof switch designed with the best of Cisco’s trustworthy solutions technologies like HW anchored secure boot and Trust anchor Module to ensure you get an authentic and secure product.

Specifications

General

Device Type Switch – 16 ports – managed
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink)
Power Over Ethernet (PoE) PoE+
PoE Budget 120 W
Performance
  • Forwarding bandwidth : 18 Gbps
  • Switching bandwidth : 36 Gbps
  • Forwarding rate (64‑byte L3 packets) : 26.78 Mpps
Capacity
  • Unicast MAC addresses : 15360
  • IPv4 unicast direct routes : 542
  • IPv4 unicast indirect routes : 256
  • IPv6 unicast direct routes : 414
  • IPv6 unicast indirect routes : 128
  • IPv4 routes (static) : 16
  • IPv6 routes (static) : 16
  • IPv4 routes (Multicast) : 1024
  • IPv6 groups (Multicast) : 1024
  • IPv4/MAC security ACEs : 600
  • IPv6 security ACEs : 600
  • Active VLANs : 256
  • VLAN IDs : 4094
  • STP instances : 64
  • SPAN sessions : 4
  • MTU-L3 packet : 9198 byte
Jumbo Frame Support 10240 bytes
Routing Protocol IGMP, MLDv2, MLD, MSTP, RSTP, STP
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), Intrusion Detection System (IDS), Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, DiffServ Code Point (DSCP) support, IGMP filtering, IP source guard, Weighted Tail Drop (WTD), SmartPort technology, VLAN Trunking Protocol (VTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), proxy ARP, Switched Port Analyzer (SPAN), loopback detection, MAC Access Bypass (MAB), BPDU Guard, Network Edge Access Topology (NEAT)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX
Processor X ARM : 800 MHz
RAM 512 MB
Flash Memory 256 MB
Status Indicators Status
Expansion / Connectivity
Interfaces
  • 16 x 1000Base-T RJ-45 PoE+
  • 2 x 1000Base-X SFP uplink
  • 1 x management RJ-45
  • 1 x mini-USB Type B
  • 1 x USB Type A
Power
Power Device Internal power supply
Installed Qty 1
Voltage Required AC 120/230 V (50 – 60 Hz)
Power Consumption Operational 136.92 Watt
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A
Dimensions & Weight
Width 10.6 in
Depth 11.7 in
Height 1.7 in
Weight 5.25 lbs
