Cisco Catalyst9500-24Q Dubai



Cisco Catalyst9500-24Q Dubai

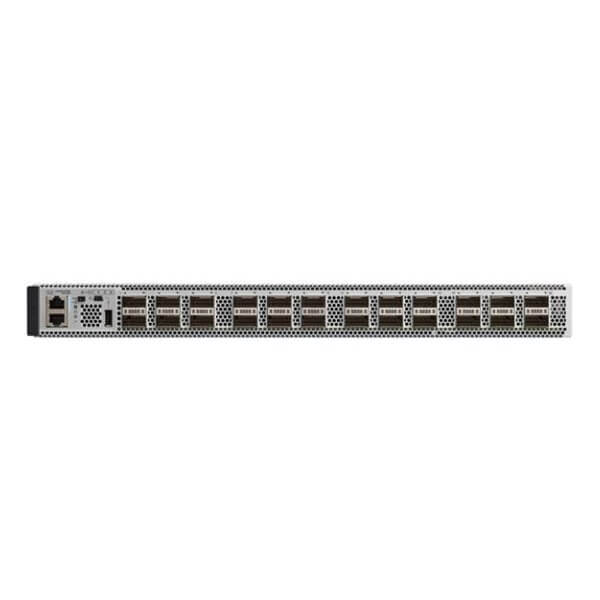

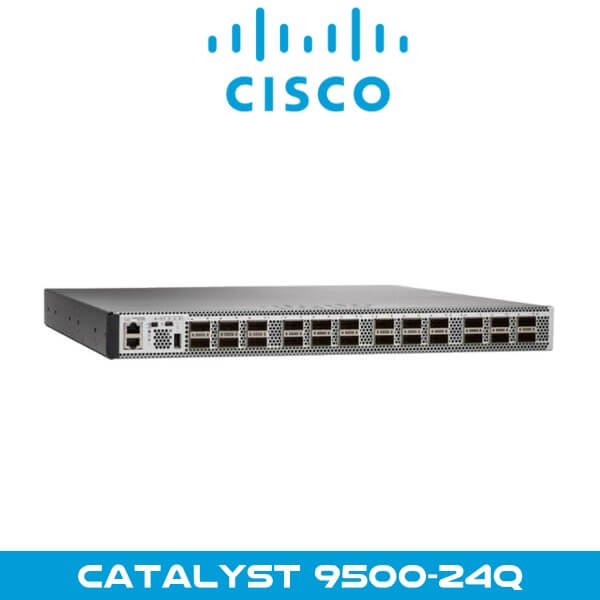

The Cisco Catalyst9500-24Q Dubai Ethernet Switch is part of the Cisco Catalyst 9500 Series switches and are among the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability.

Category:

Description

Cisco Catalyst9500-24Q Network Switch Dubai

The Cisco Catalyst9500-24Q Dubai Ethernet Switch is part of the Cisco Catalyst 9500 Series switches and are among the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Cisco Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The C9500-24Q comes with a 4-core x86, 2.4-GHz CPU, 16-GB DDR4 memory, and 16-GB internal storage.

The Cisco Catalyst9500-24Q Dubai also supports foundational high-availability capabilities such as patching, Graceful Insertion and Removal (GIR), Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), redundant platinum-rated power supplies, and fans.

Features

  • Simplified device deployment
  • Unified management of wired and wireless networks
  • Network virtualization and segmentation
  • Group-based policies
  • Context-based analytics
  • Up to 6.4-Tbps switching capacity with up to 2 Bpps of forwarding performance
  • Platinum-rated AC/DC power supplies
  • Up to 512,000 Flexible NetFlow (FNF) entries in hardware
  • Intel® 2.4-GHz x86 CPU with up to 120 GB of USB 3.0 or up to 960 GB of SATA SSD storage for container-based application hosting
  • SD-Access for policy-based automation from edge to cloud
  • 24x 40G Gigabit Ethernet

Technical Specs

Product Code C9500-24Q-A
Description Catalyst 9500 24-port 40G switch, Network Advantage
Switching capacity Up to 1920 Gbps
Forwarding rate Up to 1440 Mpps
AC power max rating 950W
System power consumption 850W max
Dimensions (H x W x D) 1.73 x 17.5 x 21.52 in
Rack units (RU) 1 RU
