Description

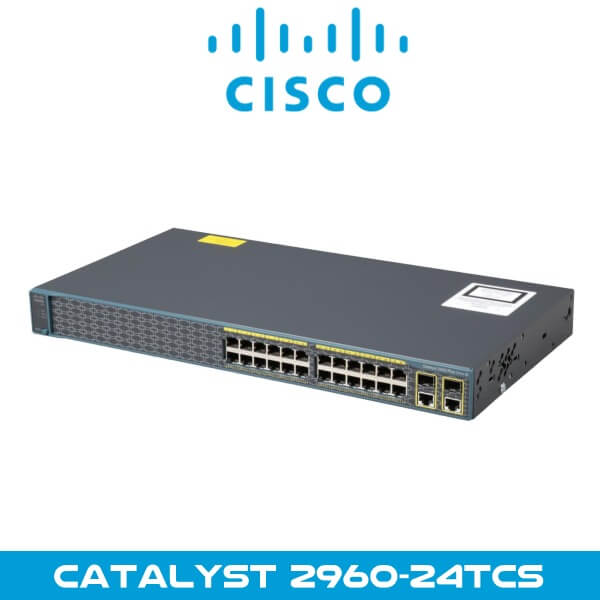

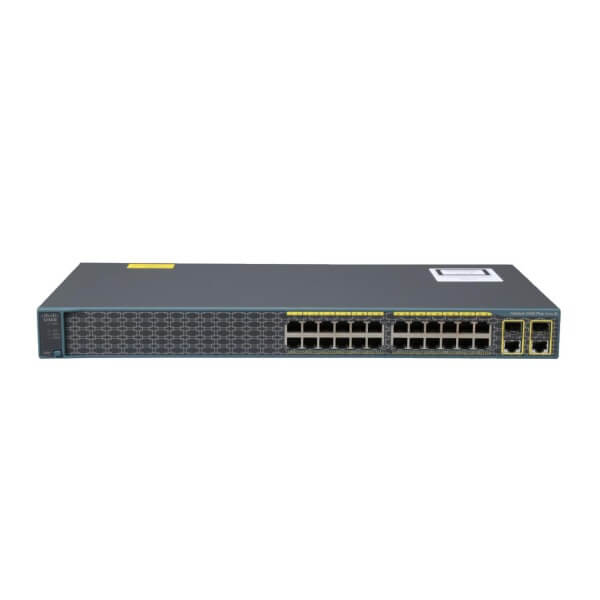

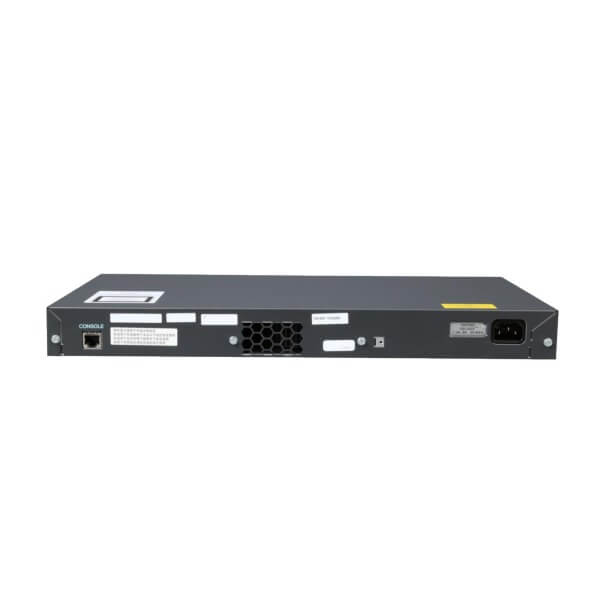

Cisco Catalyst2960-24TCS Network Switch Dubai

The Cisco Catalyst2960-24TCS Dubai is an enterprise-class switch that gives you advanced features and control over your small-to-medium sized business network. This switch features twenty-four Fast Ethernet ports as well as two dual-purpose uplink ports. These dual-purpose uplink ports can either function as a Gigabit Ethernet port or as SFP-based Gigabit Ethernet port. With the included Lan Lite software, you can easily and quickly configure the switch’s settings. The Cisco Catalyst2960-24TCS Dubai switch features advanced Quality of Service, rate-limiting, Access Control Lists, IPv6 management, multicast control, and more.

Features

Cisco Catalyst2960-24TCS Dubai supports Layer 2 Fast Ethernet switching in a 24-port configuration with 2 dual-purpose uplink ports(10/100/1000 or SFP)
Security management through SSH, SSL, SNMPv3, and Network Admission Control enabled through 802.1x, MAC-Auth Bypass, and Port Security
Availability : 802.1S/W enables standards-based fault tolerance, load balancing, and rapid recovery; PVST+ increases available bandwidth by allowing traffic on redundant links
QoS : Cisco Catalyst2960-24TCS Dubai supports traffic classification and shaping to prioritize various applications
Management : Cisco IOS software based switch operation, Cisco Network Assistant support : Express Setup is quick and easy using the web page interface for network configuration
Simplified installation, configuration, and troubleshooting with ease of use capabilities such as Auto Smart Ports and DHCP Auto Install
Cisco Catalyst2960-24TCS Dubai supports enhanced troubleshooting for link connectivity issues and cable diagnostics
Single IP address, SYSLOG, SNMP management for a stack of up to 16 switches
Limited lifetime hardware warranty
Software updates at no additional charge

Specifications

Performance
Standards	IEEE 802.1D Spanning Tree Protocol IEEE 802.1p CoS Prioritization IEEE 802.1Q VLAN IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab (LLDP without MED) IEEE 802.3ad IEEE 802.3ah (100BASE-X single- and multimode fiber only) IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports IEEE 802.3 10BASE-T specification IEEE 802.3u 100BASE-TX specification IEEE 802.3ab 1000BASE-T specification IEEE 802.3z 1000BASE-X specification 100BASE-FX (SFP) 1000BASE-SX (SFP) 1000BASE-LX/LH (SFP) Remote Monitoring (RMON) I and II standards SNMPv1, v2c, and v3
Protocols	TCP/IP
Ports	24 x Ethernet 10/100 2 x dual-purpose ports (10/100/1000 or SFP)
Bandwidth	Forwarding Bandwidth : 16Gbps
Flash Memory	32MB
Memory (DDR SDRAM)	64MB
Speed	10/100 Mbps 10/100/1000 Mbps (dual-purpose ports only)
MAC Address Table Size	8K
Frame Rate	9016 bytes
Switching Method	Managed
VLANs	up to 64 up to 4000 IDs
Output Data Size	Maximum Transmission Unit (MTU) : Up to 9198 bytes
Maximum Forwarding Rate	6.5mpps
Advanced Features	Unicast MAC Addresses Default : 8000 QOS : 8000 Dual : 8000IPv4 IGMP Groups Default : 256 QoS : 256 Dual : 256 IPv4 MAC QoS Acccess Control Entries (ACEs) Default : 128 QoS : 384 Dual : 0 IPv4 Mac Security ACEs Default : 384 QoS : 128 Dual : 256
Management	BRIDGE-MIB CISCO-CABLE-DIAG-MIB CISCO-CDP-MIB CISCO-CLUSTER-MI CISCO-CONFIG-COPY-MIB CISCO-CONFIG-MAN-MIB CISCO-ENTITY-VENDORTYPE-OID-MIB CISCO-ENVMON-MIB CISCO-ERR-DISABLE-MIB CISCO-FLASH-MIB CISCO-FTP-CLIENT-MIB CISCO-IGMP-FILTER-MIB CISCO-IMAGE-MIB CISCO-IP-STAT-MIB CISCO-LAG-MIB CISCO-MAC-NOTIFICATION-MIB CISCO-MEMORY-POOL-MIB CISCO-PAGP-MIB CISCO-PING-MIB CISCO-PORT-QOS-MIB CISCO-PORT-SECURITY-MIB CISCO-PORT-STORM-CONTROL-MIB CISCO-POWER-ETHERNET-EXT-MIB CISCO-PRODUCTS-MIB CISCO-PROCESS-MIB CISCO-RTTMON-MIB CISCO-SMI-MIB CISCO-STP-EXTENSIONS-MIB CISCO-SYSLOG-MIB Cisco-UDLDP-MIB CISCO-TC-MIB CICSO-TCP-MIB CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB CISCO-VLAN-IFTABLE-MEMBERSHIP-MIB CISCO-VTP-MIB ENTITY-MIB ETHERLIKE-MIB IEEE8023-LAG-MIB IF-MIB INET-ADDRESS-MIB OLD-CISCO-CHASSIS-MIB OLD-CISCO-FLASH-MIB OLD-CISCO-INTERFACES-MIB OLD-CISCO-IP-MIB OLD-CISCO-SYS-MIB OLD-CISCO-TCP-MIB OLD-CISCO-TS-MIB RFC1213-MIB RMON-MIB RMON2-MIB SNMP-FRAMEWORK-MIB SNMP-MPD-MIB SNMP-NOTIFICATION-MIB SNMP-TARGET-MIB SNMPv2-MIB TCP-MIB UDP-MIB
Pressure Levels	Typical Sound Pressure : 40dB
MTBF	403,745 hours
General
Agency & Safety Certifications	·UL 60950-1, Second Edition ·CAN/CSA 22.2 No. 60950-1, Second Edition ·TUV/GS to EN 60950-1, Second Edition ·CB to IEC 60950-1 Second Edition with all country deviations ·CE Marking ·NOM (through partners and distributors)
Emissions Standards	·FCC Part 15 Class A ·EN 55022 Class A (CISPR22) ·EN 55024 (CISPR24) ·AS/NZS CISPR22 Class A ·CE ·CNS13438 Class A ·MIC ·GOST ·China EMC Certifications
Environmental	Reduction of Hazardous Substances (ROHS) 5
Environmental Requirements	Operating Temperature Up to 5,000′ / 1500 m : 23° to 113°F / -5° to 45°C Operating Temperature Up to 10,000′ / 3000 m : 23° to 104°F / -5° to 40°C Short-term Exception at Sea Level : 23° to 31°F / -5° to 55°C Short-term Exception Up to 5000′ / 1500 m : 23° to 122°F / -5° to 50°C Short-term Exception Up to 10,000′ / 3000 m : 23° to 113°F / -5° to 45°C Operating Altitude : Up to 10,000′ / 3,000m Storage Altitude : Up ot 13,000′ / 4,000m Operating Relative Humidity : 10% to 95% non-condensing Storage Relative Humidity : 10% to 95% non-condensing
Power Consumption	100% Throughput Measured Power Consumption : 22W 5% Throughput Measured Power Consumption : 21W
Power Requirements	100 to 240 VAC, 1.3 to 0.8 A, 50 to 60 Hz
Power Rating	0.05kVA
Safety Compliance	UL 60950-1, Second Edition CAN/CSA 22.2 No. 60950-1, Second Edition TUV/GS to EN 60950-1, Second Edition CB to IEC 60950-1 Second Edition with all country deviations CE Marking NOM (through partners and distributors)
Emission Standard	FCC Part 15 Class A EN 55022 Class A (CISPR22) EN 55024 (CISPR24) AS/NZS CISPR22 Class A CE CNS13438 Class A MIC GOST China EMC Certifications
RoHS Compliant	Yes
Dimensions	1.73 x 17.7 x 9.52″ / 4.4 x 45 x 24.2cm
Weight	8 lb / 3.6kg
Packaging Info
Box Dimensions (LxWxH)	21.8 x 14.2 x 6.8″
