Yealink MeetingEye800 Dubai


Yealink MeetingEye800 Dubai

When Yealink MeetingEye800 Dubai combines with the microphone array, each microphone owns a premium, 20ft (6m) and 360° voice pickup range.

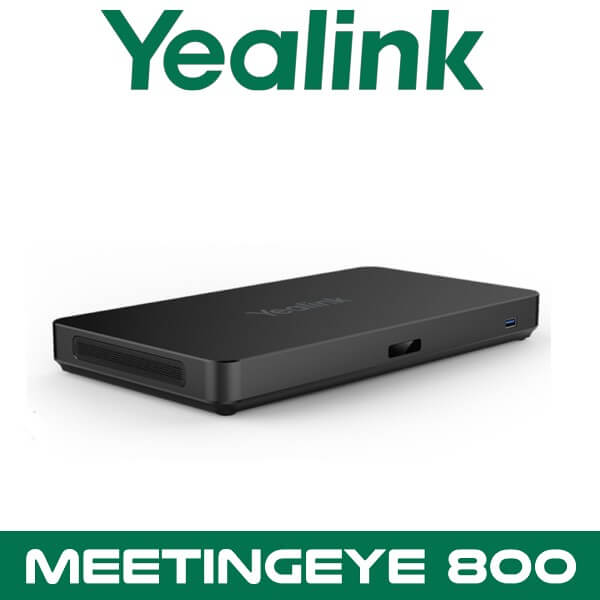

Yealink MeetingEye800 Video Conferencing Endpoint Dubai

The Yealink MeetingEye800 Dubai is a bundle video solution that is specially designed for use in large-sized meeting rooms. It supports 4Kp60 UHD video calls and content sharing and resists 30% video packet loss with no screen flicking. You can present different 4K video/content on three screens and select the display layout as you like. MeetingEye 800 can connect up to 9 external cameras, including Yealink 36x hybrid zoom 4K UHD PTZ camera or third-party cameras, regarding as the ideal solution for any large meeting rooms. When Yealink MeetingEye800 Dubai  combines with the microphone array, each microphone owns a premium, 20ft (6m) and 360° voice pickup range. Also, Yealink MeetingEye800 Dubai can work with Yealink’s new soundbar, providing a professional sound experience. Its VCH interface is able to convey not only the data and control signal but also the power needed for MeetingEye 800, realizing the minimalist deployment and reducing cost. Furthermore, it allows multiple content sharing methods, adapts to any computer, supports H.323/SIP, and deeply integrates with Yealink Meeting Server and Yealink Meeting Management Platform.

The Yealink MeetingEye800 Dubai Video Conferencing Endpoint features an all-in-one design that offers its user the easiest possible deployment as well as fast sharing, thus giving you a world-class conference experience.

Key Features :

  • AI Intelligent Framing Efficient Conference
    • The Yealink MeetingEye800 Dubai Video Conferencing Endpoint is integrated with a number of smart AI technologies including face detection, sound source location, voice tracking, and many others. This enables the camera to automatically adjust, providing you with the best framing solutions depending on the number of conference participants and also their location within the meeting room. Real-time close-ups to the presenter and manual operations free allow all attendees well focus on the meeting.
  • UHD 4K Dual Camera System
    • The super-wide 133° field of view and 10x Hybrid Zoom can make every participant and detail in the conference be seen clearly. Moreover, the image brightness can be automatically optimized even in a dim or backlight environment, ensuring the participant faces can be seen clearly.
  • SoundTracking Quality Sound Effect
    • The Yealink MeetingEye800 Dubai Video Conferencing Endpoint is equipped with 8 MEMS single-direction microphones which are placed into a linear microphone array. The microphones filter out surrounding noises and enhance reverberation capability resulting in outstanding audio clarity. The microphones are embedded with a modern Beamforming algorithm which delivers an accurate directional voice tracing and fluent conversations with a full-duplex technology.
  • Convenient in Content Sharing
    • The Yealink MeetingEye800 Dubai is designed to support the WPP20 wireless screen transmitter, AirPlay, Miracast, as well as many other wireless screen projection methods which enable you to easily share your content including documents, files, music, videos, and much other multimedia contents. This convenient feature works so fast, thus saving time and avoiding delays, resulting in productive meetings.
  • Wi-Fi Connectivity
    • The Yealink MeetingEye800 Dubai Video Conferencing Endpoint comes with a built-in dual-band Wi-Fi 802.11 a/b/g/n/ac which provides a fast network signal for smooth video and audio conference sessions over the internet at speeds of 2.4GHz and 5GHz. It also allows for easy content sharing.
  • Built-In Bluetooth Connectivity
    • The Yealink MeetingEye800 Dubai uses integrated Bluetooth 4.2 + EDR to connect with Bluetooth speakers/ microphones, and keyboards so as to facilitate smooth data exchange.
  • Reliable Privacy Protection
    • Automatically opening in video conference and closing when not, the privacy-protection lens cap with visible state definitely erases “camera anxiety” daily.
  • All-in-one Design, Easy Deployment
    • The Yealink MeetingEye800 Video Conferencing Dubai comes with a built-in camera, an 8MEMS microphone array, speakers, video codec, Wi-Fi and Bluetooth connectivity. It combines all the functions the conference needs, making it simple to install with a minimum of only 3 cables.

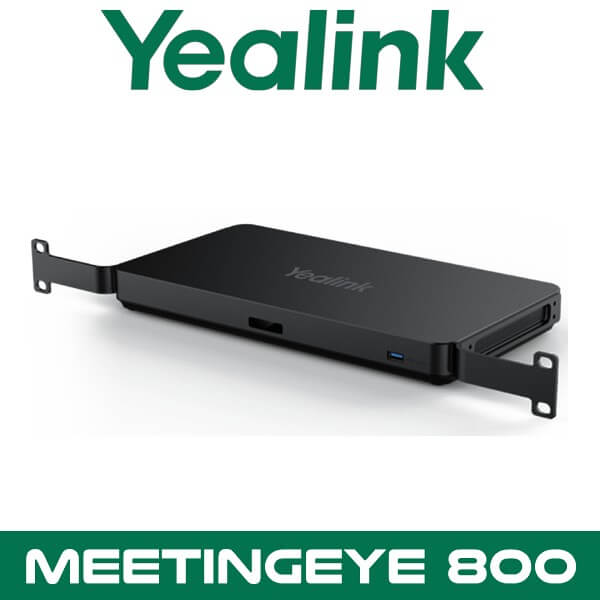

  • Flexible Installation
    • The Yealink MeetingEye800 Dubai Video Conferencing Endpoint is designed to offer you multiple installation options depending on your preferences and room layout. It can be mounted on a wall, TV rack, tray, or placed on the counter, resulting in a generally neat and organized workspace.

Technical Specifications

Package Includes

  • MeetingEye800 Codec (integrate codec/camera/microphone/speaker)
  • VCR20 Remote Control
  • Wall Bracket
  • Collaboration Touch Panel
  • Wireless Presentation Pod(WPP20)
  • Optional
    – Wireless Microphone Package(CPW90)
    – VCH51 Sharing Box
    – TV Mount Kit

Operating System

  • Based on Android 9.0

Dual Camera System

  • Wide Camera :
    – 20MP camera with SONY 1-inch CMOS
    – Field of view : 133°
    – 4x e-PTZ camera
  • Telephoto Camera :
    – 8MP camera
    – Field of view : 90°
    – 10x Hybrid Zoom(3.5x optical, 3x digital)
    – Horizontal Rotation Angle : +25°/-25°
    – Vertically Rotation Angle : +16°/-16°
  • Auto Privacy Shutter
  • Intelligence Feature
    – Auto Framing
    – Speaker Tracking


  • Built-in 8 MEMS Microphone Array


  • 2 built-in 5W Speakers

Audio Features

  • Audio codecs :
    – ARES : 48kHz bandwidth
    – Opus : 8~48kHz bandwidth
    – G.722.1C : 14kHz bandwidth
    – G.722.1 : 7kHz bandwidth
    – G.711 (PCMA/PCMU) : 3.4kHz bandwidth
    – G.729
  • Audio technology :
    – Yealink Noise Proof Technology
    – Beamforming directed voice pickup technology
    – Post-processing on multi-channel acoustic echo cancellation
    – Multi-channel dereverberation
    – Long-distance full-duplex voice pickup
    – Automatic gain control
    – CNG/PLC/AJB/De-Rerb

Call Features

  • Video quality : up to 4Kp30 people + 4Kp15 content sharing
  • Bandwidth Requirements :
    – 4Kp30 : 2Mbps or more(H.265)
    – 1080p30 : 512Kbps or more (H.265)
    – 720p30 : 384Kbps or more (H.265)
  • Video/Audio recording and playback
  • DND (do not disturb)
  • Multi-language support

Standard Communication Protocol

  • 323/SIP
  • Dual stream protocol : H.239 (H.323)/BFCP (SIP)
  • FECC : H.224/H.281
  • 323 protocol suite : H.245, H.225, H.235, H.241
  • Gatekeeper account and SIP account

Video Standard and Network Suitability

  • Video codecs : H.265, H.264 High Profile, H.264, H.263, H.263+
  • Forward Error Correction (FEC), anti 30% video packet loss and 70% audio packet loss
  • Bandwidth dynamic adaptive adjustment
  • Shared content and audio preference strategy
  • Bandwidth/ protocol/ video&audio self-adaptive

Network and Security Features

  • Built-in dual-band wireless network (802.11a/b/g/n/ac)
    – Wireless AP mode
    – Wireless Client mode
  • Bluetooth 4.2
  • TCP/IP (IPv4 and IPv6), DHCP/Static IP
  • HTTP/HTTPS Web server
  • RS232/HTTP API for control system integration
  • SRTP/TLS/H.235/AES 256-bit encryption
  • QoS : 802.1p/q, Diffserv
  • Anti-attack
  • Network diagnosis : ping, trace route
  • Time and date synchronisation using SNTP
  • Built-in certificate

NAT and Firewall Traversal

  • 460
  • NAT (manual/auto mode)
  • Yealink Intelligent Firewall Traversal
  • OpenVPN

Content Sharing

  • HDMI/USB-C (VCH51)
  • Wireless Presentation Pod (WPP20)
  • Apple AirPlay
  • Miracast
  • Virtual Whiteboard

Configuration Management

  • Configuration via web/display/auto-provisioning
  • Virtual remote control
  • Firmware upgrade
  • Export or import configuration
  • System log exporting

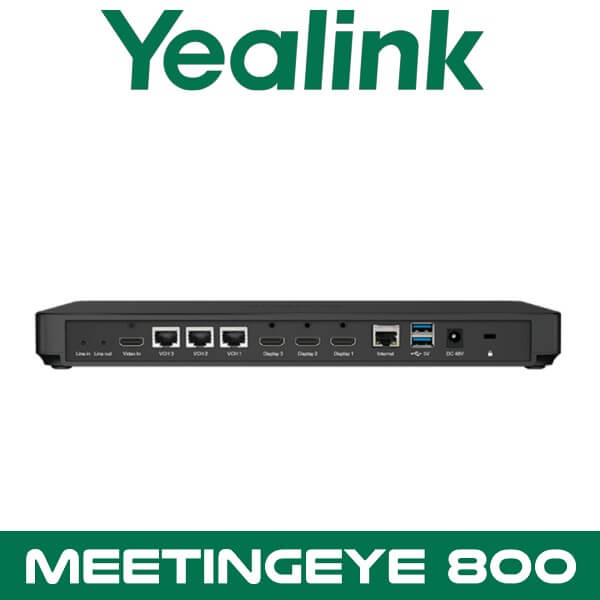

MeetingEye800 Codec Connections

  • 2 x HDMI output (CEC supported)
  • 1 x Line-in (3.5mm)
  • 1 x Line-out (3.5mm)
  • 2 x USB 2.0
  • 1 x 10/100/1000M Ethernet port
  • 1 x Yealink extension port (RJ-45)
  • 1 x Power port
  • 1 x Security lock slot
  • 1 x Reset slot

Other Physical Features

  • External Yealink Power Adapter : AC 100~240V input and DC 48V/0.7A Output
  • Storage : built-in 16 GB
  • USB Output : 5V 0.5A
  • Power consumption (PSU) : Idle<13W; Normal operating : 15W; MAX : 16W
  • Dimension (W.D.H) : 700 mm x 98 mm x 121 mm
  • Operating humidity : 10~95%
  • Operating temperature : 0~40°C
  • Storage temperature : -30~70°C
