Yealink MVC900 II Microsoft Teams Room System Dubai

Yealink MVC900 II Microsoft Teams Room System Dubai

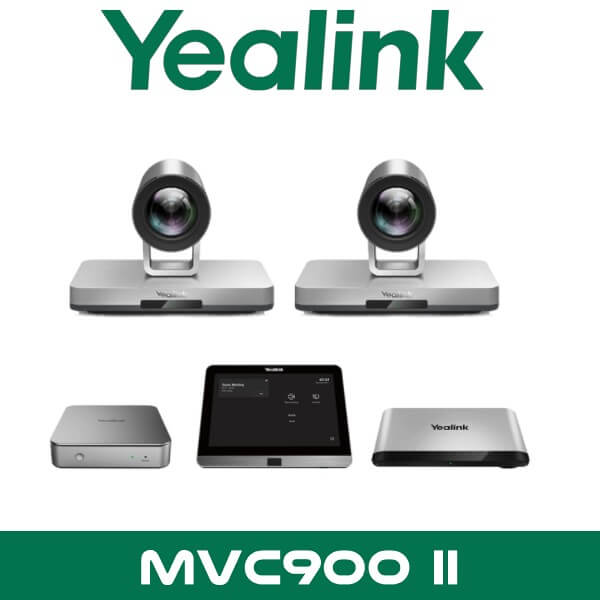

The Yealink MVC900 II Microsoft Teams Room System has been specifically designed to meet the video conference needs and requirements of users in extremely large meeting spaces. The System includes an MTouch II panel, MCore mini-PC, two UVC80 USB Pan-Tilt-Zoom Cameras and a Camera Hub. Its Microsoft Teams Room – tailored interface enables users to connect and collaborate seamlessly. The Yealink MVC900 II has been designed for easy deployment and extension in large rooms, courtesy of a VCH Port and MCore cable management system. It is an easy-to-use solution which requires no technical expertise of its user.

Description

Yealink MVC900 II Microsoft Teams Room System Dubai

The Yealink MVC900 II is a Microsoft Teams Room system for video conferencing in extra-large meeting rooms. It comes as a bundle inclusive of MTouch II, MCore mini-PC, two UVC80 USB Pan-Tilt-Zoom Cameras and a Camera Hub, giving users an all-inclusive solution of multi-camera interaction, collaboration, and connecting with remote users. With a 12x optical zoom, the Yealink UVC80 captures every angle of the conference hall, including the farthest. The included VCM34 microphone captures crystal clear audio from a radius of 20 feet (6 meters), ensuring that every conference participant’s voice is heard with utmost clarity. The supplied high performance mini-PC offers practicality and ease of integration and cable management for seamless and reliable deployment. This Mini-PC box declutters the user’s workstation as it can be mounted on the wall, set on the table, or placed on a TV cart. The MVC900 II has a tailor-made interface for Microsoft Teams that is user-friendly as easy to operate, saving you time at the start of meetings and conferences.

Yealink MVC900 II Microsoft Teams Room System Features:

  • Flexible Camera Layout for Extra-large Conferencing Halls
    • The Yealink MVC900 II boasts two UVC80 12x Optical PTZ Cameras and a Camera Hub to create a layout that can serve multiple cameras used in extra-large meeting halls. Users enjoy unlimited flexibility to change the camera layouts as per their preference. The UVC80 camera records 1080p at 60 frames per second, with a 12x optical zoom for super video clarity.
  • 4K Resolution
    • The camera on the MVC900 Microsoft Teams Room System uses a UVC80 USB PTZ camera which has a 4K output, on top of auto-tracking precision and Ultra High Definition resolution of 1080p at 60 frames per second, resulting in crystal clear images. Its inbuilt sensor offers users next-level video performance for every frame of the production, complete with auto exposure, auto focus, and auto white balance.
  • Yealink Noise Proof Technology
    • Yealink has developed its Noise Proof Technology to eliminate background noise and provides noise-free services even in a busy environment. Its Active Speaker feature helps you to recognize who is speaking during the meeting, therefore easily differentiating voices of speakers. The phones automatically mute the microphone when no human voice is detected, and intelligently reduce background noise to a minimum when you are speaking.
  • Simplified MTR Deployment
    • The Yealink MVC900 II has been designed for easy deployment and extension in large rooms, courtesy of a VCH Port and MCore cable management system. With a converged data transmission and power supply cable into a single CAT5e cable, ensuring wired connectivity is stable and reliable. This makes it possible to connect the TV and the Conference areas through one cable, making it a straightforward and time-saving approach to deployment. The same CAT5e is used for power supply, cutting out the hassle and untidiness that sometimes occurs due to many cables at a workspace.
  • Microsoft Teams-tailored User Interface
    • Users enjoy a one-touch meeting join courtesy of the Native Microsoft Teams-tailored user interface. The Yealink MVC900 is built around the concept of multi-function all-in-one, achieved through the MTouch II touch panel that is used for call management, camera control, and content sharing among other operations. Also built into the MTouch Ⅱ is a Human Motion Sensor for automatic waking up the system when the conference is about to start.
  • Share both Wired and Wireless Content Easily
    • Once the Yealink WPP20 is plugged in, one click is all a user does and content is shared wirelessly. There is also the option of connect to a laptop via USB-C or HDMI therefore flexibility in content sharing. With effective team meetings, you can enjoy talking freely and exchanging creative ideas.
  • Remote Device Management
    • The Yealink Device Management Platform and Cloud Services make it possible to monitor, manage, update, and configure the device’s audio and video peripherals remotely.

Yealink MVC900 II – Technical Specifications

Preload



Windows 10 IoT Enterprise X64

Windows 10 IoT Enterprise License

Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings

Yealink Room Connect

MCore Mini-PC



8th-gen Intel® QUAD-CORE i5

Memory: 8GB (2 x 4GB)

Storage: 128GB SSD

2 x HDMI video output with CEC supported

Bluetooth and Wi-Fi

1x Yealink VCH port, connect to MTouch II

4 x USB 3.0 Type-A

1 x 10/100/1000M Ethernet port

1 x Power port

1 x Security lock slot

Built-in cable management

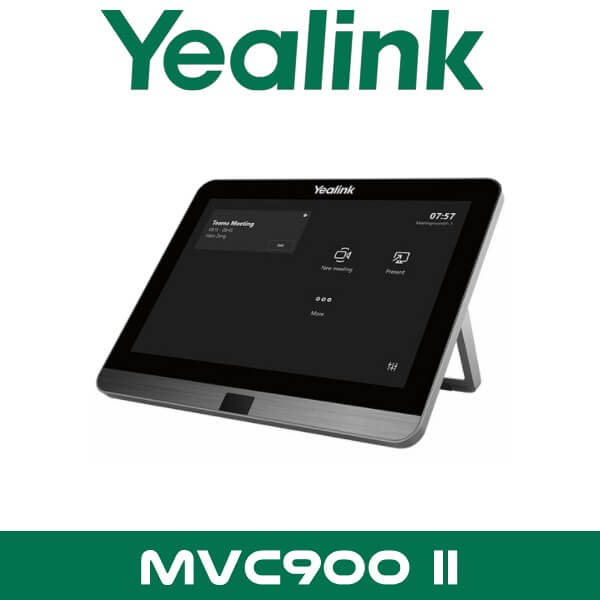

MTouch II touch panel



8-inch IPS screen

1280 x 800 resolution

10-point capacitive touch screen

3.5mm headset jack

Human Motion Sensor

Angle adjustable bracket (28° ~ 50°)

1080P/30FPS FHD for sharing

Support wired and wireless content sharing

Built-in Wi-Fi AP for Yealink wireless presentation device

HDMI/USB-C video input

Camera Hub Support up to 9 cameras

Support camera layout

1 x RCA-in

1 x RCA-out

1 x Yealink Microphone port (RJ-45)

3 x USB 2.0 Type-A

1 x Power port

1 x Security lock slot

1 x Reset slot

1 x Ethernet port for camera connection

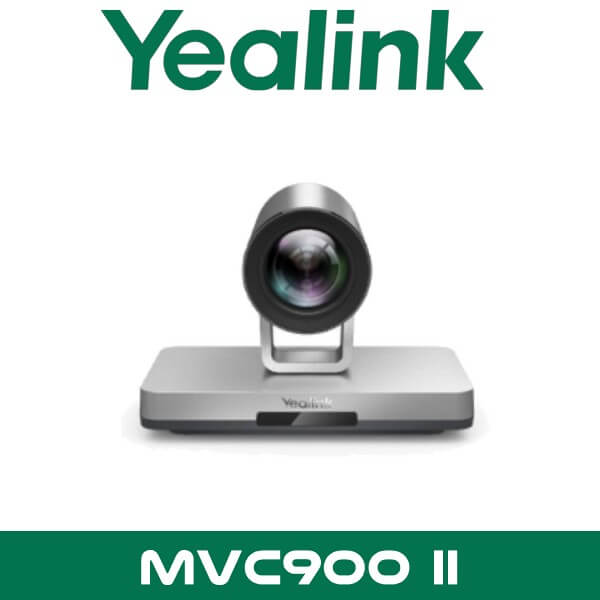

UVC50 USB PTZ Camera



1920 x 1080 video resolution

60 frame-rate

5x optical zoom

Field of view (diagonal): 78.5°

Auto-framing

Camera presets

Pan range: 200°

Tilt range: 60°

1 x Line-in (3.5mm)

1 x Line-out (3.5mm)

1 x Yealink Microphone port (RJ-45)

1 x USB 2.0 Type-B

1 x USB 2.0 Type-A

1 x Power port

1 x Security lock slot

1 x Reset slot

Package Features



N.W/CTN: 9Kg

G.W/CTN: 11Kg

Carton Measurements: 600mm x 545mm x 285mm

Package Contents

  • MCore Mini-PC
  • MTouch II touch panel
  • 2 x UVC80 USB PTZ camera
  • Camera Hub
  • WPP20 wireless presentation pod (optional)
