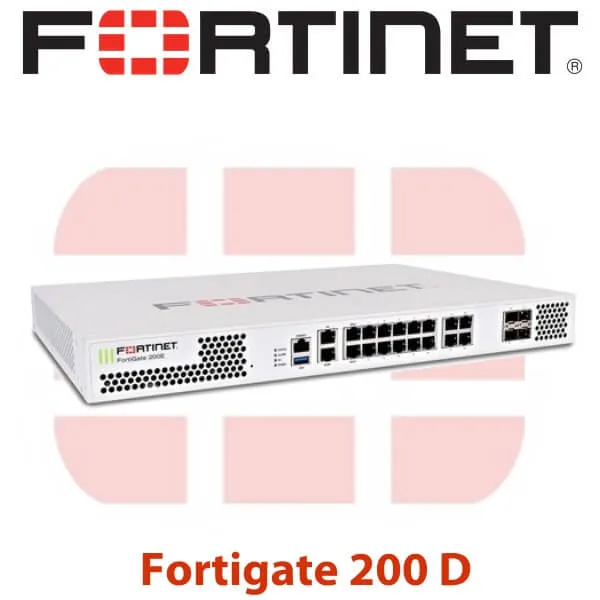

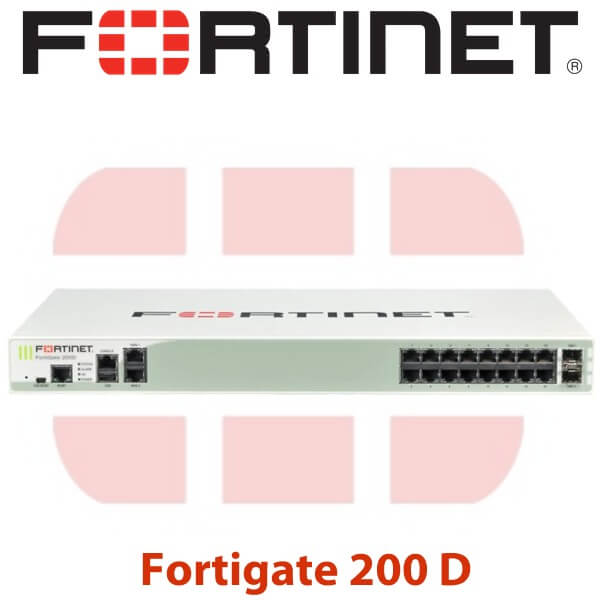

Fortinet FortiGate 200D Firewall Dubai



Fortinet FortiGate 200D Firewall Dubai

The Fortinet FG 200D Firewall Dubai offers high–speed security and performance for campus perimeter as well as branch office wired or wireless networks. It comes with purpose-built processors which deliver up to 4 Gbps firewall throughput, enabling protection of your applications and network without affecting availability or performance.

Description

Fortinet FortiGate 200D Firewall Dubai

The FortiGate-200D series provides comprehensive threat protection with Fortinet’s unmatched range of enterprise-grade security technologies. They deliver firewall, VPN (IPSec and SSL), intrusion prevention, antivirus/antispyware, antispam, and web filtering technologies. These platforms also provide application control, data loss prevention, dynamic routing for IPv4 and IPv6, endpoint NAC, and SSL-encrypted traffic inspection. These comprehensive security components enable you to deploy required technologies most suited for your unique environment.

FortiASIC purpose-built processors ensure that your security countermeasures will not become a network bottleneck. The FortiASIC CP8 processor delivers deep inspection security components such as application control, IPS and anti-malware. The FortiASIC NP4Lite processor delivers firewall and VPN throughput at switching speeds by performing high-speed processing of network flows.

The FortiGate-200D series installs in minutes, automatically downloading regular updates to protect against the latest viruses, network vulnerabilities, worms, spam and phishing attacks, and malicious websites with no administrator intervention. Leveraging patented FortiASIC acceleration, the FortiGate-200D series offers market-leading performance, with high-density GbE interfaces that facilitate network growth and expansion. Onboard storage provides local archiving of data for policy compliance and/or web caching.

Fortinet FortiGate 200D Firewall Features:

  • Complete and Real-time Security
    • Fortinet designed FortiOS to deliver the advanced protection and performance that standalone products simply cannot match. The integrated technologies work together as a system to provide better visibility and mitigation of the latest network and application threats, stopping attacks before damage can occur. FortiGuard Subscription Services provide automated, real-time, up-to-date protection against security threats.
  • Industry Validation
    • The FortiGate family of physical and virtual appliances has earned more certifications than any other vendor by consistently meeting rigorous third-party standards. Our industry-leading technology provides you with air-tight security.
  • Unique Visibility and Control
    • FortiOS gives you greater visibility and more consistent, granular control over users, devices, applications and data. Dashboard widgets allow administrators to quickly view and understand real-time network activities and threat situations while reputation-based analysis quickly identifies potentially compromised systems.
  • Ease of Use
    • FortiOS lowers costs and reduces IT staff workloads. Physical or virtual FortiGate appliances give you the flexibility to match your security to your environment while enforcing a uniform security policy. Single pane of glass management and centralized analysis ensure consistent policy creation and enforcement while minimizing deployment and configuration challenges.
  • Switch & Wireless Controller
    • Securing BYOD environment with integrated switch & wireless controller capabilities that simplifies network deployments at branch offices while lowering TCO and enhancing security with protection at the edge.
  • World-Class Technical Support and Documentation
    • Fortinet FortiCare support offerings provide comprehensive global support for all Fortinet products and services. You can rest assured your Fortinet security products are performing optimally and protecting your users, applications, and data around the clock.
FortiGate Model FortiGate-200D FortiGate-240D
Hardware Specifications
10/100/1000 WAN Interfaces (RJ45) 2 2
10/100/1000 Internal Interfaces (RJ45) 16 40
GbE SFP DMZ Interfaces 2 2
USB (Client / Server) 1/1 1/1
Console (RJ45) 1 1
Local Storage 16GB 32GB
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 3 Gbps 4 Gbps
Firewall Latency (64 byte UDP packets) 2 μs 6 μs
Firewall Throughput (Packets Per Second) 4.5 Mpps 6 Mpps
Concurrent Sessions (TCP) 1.4 Million 3.2 Million
New Sessions/Sec (TCP) 77,000 77,000
Firewall Policies (Max) 10,000 10,000
IPSec VPN Throughput (512 byte packets) 1.3 Gbps 1.3 Gbps
Gateway-to-Gateway IPSec VPN Tunnels 2,000 2,000
Client-to-Gateway IPSec VPN Tunnels 5,000 5,000
SSL-VPN Throughput 400 Mbps 400 Mbps
Concurrent SSL-VPN Users (Recommended Max) 300 300
IPS Throughput 1.7 Gbps 2.1 Gbps
Antivirus Throughput (Proxy Based / Flow Based) 600 / 1,100 Mbps 600 / 1,100 Mbps
Virtual Domains (Default / Max) 10 / 10
Max Number of FortiAPs 32
Max Number of FortiTokens 1,000
Max Number of Registered FortiClients 2,000
High Availability Configurations Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length 1.72 x 9.17 x 8.78 in (44 x 233 x 223 mm) 1.50 x 8.50 x 6.18 in (38 x 216 x 157 mm)
Weight 10.5 lbs (4.8 kg)
Form Factor Rack Mount, 1 RU
Environmental
Power Required 100 – 240 VAC, 50 – 60 Hz
Max Current 110 V / 3 A, 220 V / 1.5 A
Power Consumption (AVG / Max) 55 / 79 W 80 / 98 W
Heat Dissipation 270 BTU / h 335 BTU / h
Operating Temperature 32 – 104 °F (0 – 40 °C)
Storage Temperature -31 – 158 °F (-35 – 70 °C)
Humidity 20 to 90% non-condensing
