Qnap TS869U-RP Dubai



Qnap TS-869U-RP Dubai

The Qnap TS-869U-RP Dubai supports SMB/CIFS, NFS and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks.

Description

Qnap TS869U-RP Dubai

You can use the Surveillance Station Pro on the Qnap TS869U-RP Dubai to manage the connected IP cameras and set up a video surveillance system with comprehensive monitoring, recording and playback features through mobile access.

The Qnap TS-869U-RP Dubai 2U SATA Turbo NAS Server for SMBs is an 8-bay, all-in-one NAS server with exceptional performance that can meet the storage requirements of modern SMB IT environments. It includes secure cross-platform file sharing for Windows, Mac and Linux/UNIX users, an iSCSI / IP-SAN storage combo solution and a number of value-added business applications. Critical business information can be safely protected against unexpected data loss with a set of integrated backup solutions. It is also an ideal shared storage solution for virtualized and clustered environments with VMware Ready and Citrix Ready certification and has a proven compatibility with Microsoft Hyper-V environments.

Features

Cross-platform Sharing with Antivirus

The Qnap TS-869U-RP Dubai supports SMB/CIFS, NFS and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks. Your accounts and shared folders can be created via a user-friendly web based interface without IT expertise. The integrated antivirus solution for the Turbo NAS ensures business stability. It offers detection against the latest viruses, malware, worms and Trojan horses.

Windows Active Directory (AD) and LDAP Directory Service

The Windows AD and Lightweight Directory Access Protocol (LDAP) is a directory service feature that enables you to retrieve user accounts from Windows AD or LDAP based directory server to the Qnap TS-869U-RP Dubai. This reduces time and effort in setting up a new account. You can use the same login name and password to access the Turbo NAS.

Shared Folder Aggregation

As an added convenience, you can connect to the shared folders of other servers on Microsoft Networking via the portal folder on the Qnap TS-869U-RP Dubai. This minimizes the hassle of logging in to various servers one by one.

ISO File Archiving and Sharing

The Qnap TS-869U-RP Dubai supports the mounting of ISO images of CD or DVD discs for network sharing folders for data archiving, storage and sharing. This feature conserves much more space than storing the physical discs. It lowers the risk of data loss due to long-term use of the discs and improves the performance of data sharing on a business network.

Windows ACL (Access Control List)

This feature offers sophisticated shared folder permission settings and thus simplifies IT management for businesses with a large number of users. By enabling the Windows ACL, basic permissions and 13 advanced permissions can be set up from the Windows Explorer and synchronized with the permission settings of the Turbo NAS. In addition, the same permissions apply to AFP, FTP, Web File Manager and Samba when “Advanced Folder Permissions” are enabled at the same time.

Advanced Folder Permissions

You can configure folder/subfolder access to the Qnap TS-869U-RP Dubai with advanced folder permissions. With this feature enabled, you can manage the folder permissions from Microsoft Windows or the web-based management interface of the Turbo NAS easily.

TS-869U-RP – Specs

Hardware
CPU Intel Atom 2.13 GHz Dual-core processor
DRAM 2 GB RAM
Flash Memory 512 MB DOM
Hard Disk Drive 8 x 3.5″ (88.9 mm) or 2.5″ (63.5 mm) SATA 6 Gb/s, SATA 3 Gb/s hard drive or SSD

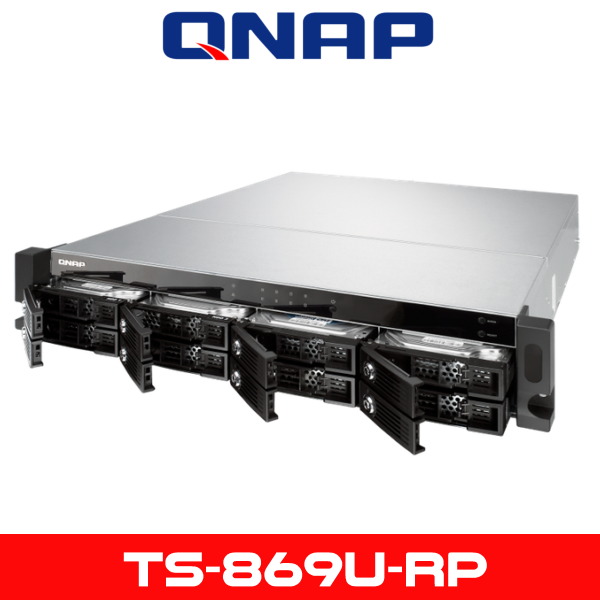

Hard Disk Tray 8x Hot-swappable and lockable tray
LAN Port 2x Gigabit RJ-45 Ethernet ports
LED Indicators Status, LAN, USB, eSATA, Power, HDD 1, HDD 2, HDD 3, HDD 4, HDD 5, HDD 6, HDD 7, HDD 8
USB 2x USB 3.0 port (Back: 2)
4x USB 2.0 port (Back: 4)
Support USB printer, pen drive, USB hub, and USB UPS and more
eSATA 2x eSATA ports (back)
Buttons Power, Reset, Enter, Select
Alarm Buzzer System warning
Form Factor 2U Rackmount
Power Consumption Sleep mode: 56.6 W
In Operation: 74.7 W
Power-off (in WOL mode): 1 W
(with 8x 1 TB HDD installed)
Power Supply 100-240 VAC, 50/60 Hz,
Output: Redundant 300 W
Secure Design K-lock security slot for theft prevention
VGA Reserved VGA interface for maintenance
Fan 2x quiet cooling fan 2.76″ (7 cm), 12 VDC
Software
Operating System Embedded Linux
Supported Operating System Windows XP, Vista, Windows 7 (32/64-bit), Windows Server 2003/2008 R2
Apple Mac OS X
Linux & UNIX
Supported Web Browsers Microsoft Internet Explorer 8, 9
Mozilla Firefox 8+
Apple Safari 4+
Google Chrome
Language Support Chinese (Traditional and Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish
File System Internal Hard Drive: EXT3, EXT4
External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+
Networking TCP/IP (IPv4 and IPv6: Dual stack)
Dual Gigabit NICs with jumbo frame
-Failover
-Multi-IP settings
-Port trunking/NIC teaming (Modes: Balance-rr, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-tlb and Balance-alb)
Service binding based on network interfaces
Virtual LAN (VLAN)
DHCP client, DHCP server
Protocols: CIFS/SMB, AFP (v3.3), NFS (v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP and SMSC
UPnP and Bonjour discovery
USB Wi-Fi adapter support
Backup Solution Real-time Remote Replication (RTRR)
-Works as both RTRR Server & Client with bandwidth control
-Real-time & Scheduled backup
-Encryption, Compression, File filter, and Transfer rate limitation
Block-level Remote Replication
-Works as both Rsync Server & Client with bandwidth control
-Encrypted replication between QNAP NAS servers
USB one touch backup (Import/Export)
Desktop backup by QNAP NetBak Replicator for Windows
Apple Time Machine support with backup management
Data backup to multiple external storage devices
Data backup to cloud storage (Amazon S3, ElephantDrive, and Symform)
Security IP Filter and Policy-based automatic IP blocking
Network Access Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
Encrypted Access: HTTPS, FTP with SSL/TLS (Explicit), SSH/SFTP (admin only), Encrypted remote replication between QNAP NAS servers (Rsync over SSH)
CIFS Host Access Control for shared folders
Antivirus protection
FIPS 140-2 validated AES 256-bit volume-based data encryption
AES 256-bit external drive encryption
Importable SSL certificate
Instant alert via E-mail, SMS, Instant messaging (Windows Live), beep and LCD panel
Disk Management Single Disk, JBOD, RAID 0, 1, 5, 6, 10, 5 + Hot Spare, 6 + Hot Spare, 10 + Hot Spare
Global hot spare
Online RAID capacity expansion and online RAID level migration
Bad block scan and hard drive S.M.A.R.T.
RAID recovery
Bitmap support
iSCSI (IP SAN) iSCSI target
Multi-LUNs per target
Up to 256 targets/LUNs combined
Supports LUN mapping & masking
Online LUN capacity expansion
Supports SPC-3 persistent reservation
Supports MPIO & MC/S
iSCSI LUN backup, one-time snapshot, and restore
iSCSI connection and management by QNAP Finder (Windows)
Virtual disk drive (via iSCSI Initiator)
Stack chaining master
Max no. of virtual disk drives: 8
Server Virtualization and Clustering Supports VMware vSphere
Supports Citrix XenServer
Supports Windows server 2008 R2 Hyper-V & Failover clustering
Power Management Wake on LAN
Internal hard drive standby mode
Scheduled Power on/off (Max 15 settings)
Automatic power on after power recovery
USB and network UPS support with SNMP management
Access Rights Management Max no. of users: 4,096
Max no. of user groups: 512
Max no. of network shares: 512
Batch Users creation
Import/Export users
User Quota management
Subfolder permissions support for CIFS/SMB, AFP, FTP and Web File manager
Domain Authentication Integration Microsoft Active Directory (AD)
LDAP Server
LDAP Client
Domain users login via CIFS/SMB, AFP, FTP, and Web File Manager
MyCloudNAS Service Private Cloud Storage and Sharing
Free Host Name registration (DDNS)
Auto Router configuration (via UPnP)
MyCloudNAS Connect for easy VPN connection (Windows utility)
Storage Plug & Play Windows Software: QNAP Finder
Create and map shared folders
Create and connect to iSCSI target/LUN
Web Administration AJAX-based UI
Smart fan control
Dynamic DNS (DDNS)
SNMP (v2 & v3)
Resource monitor
Network recycle bin for file deletion via CIFS/SMB and AFPComprehensive logs (events & connection)
Syslog client
Firmware Live update
System settings backup and restore
Restore to factory default
Mobile App Qmanager for Remote Monitoring
Powerful All-in-one server
File Server File sharing across Windows, Mac, and Linux/UNIX
Windows ACL
Advanced folder permission for SMB, AFP, FTP, Web File manager
Shared Folder aggregation (CIFS/SMB)
Web File manager
-Supports ISO mounting
-Direct file viewing via Google Doc
-Create and send download links for public file sharing with expiration time and password protection
Mobile App: Qfile for file browsing and management
FTP Server FTP over SSL/TLS (Explicit)
Max no. of concurrent connections: 256
FXP supported
Passive FTP port range control
FTP bandwidth & connection control
Unicode support
Backup Server Remote Replication Server (over Rsync)
Real-time Remote Replication to another QNAP NAS or FTP Server
Apple Time Machine support
Windows Client backup application: QNAP NetBak Replicator
Third Party Backup Software Support: Acronis True Image, CA BrightStor, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper and more
Web Server HTTP/HTTPS connections
Supports WebDAV connection
Support Virtual Host (Max: 32)
Importable SSL certificate
Database Server Built-in MySQL Server
Web-based Management via phpMyAdmin (QPKG)
Print Server Max no. of printers: 3
Supports Internet printing protocol
-Print job display and management
-IP- and Domain Name-based privilege control
Supports Apple Bonjour printing
Syslog Server Centralized Log monitoring and archiving
Immediate E-mail alerts
Supports Log filtering
RADIUS Server Centralized account management and authentication for network access
Supports PAP, EAP-TLS/PAP, and EAPTTLS/PAP authentication
VPN Server Secure Remote Access: PPTP & OpenVPN VPN services
Remote access to other resources on local network
Max no. of clients: 30
Surveillance Station Pro Max. IP Cameras: 12
Mobile app: VMobile (iOS & Android)
iTunes Server Audio and Video Sharing (AIF, M4A, M4B, M4V, MOV, MP1, MP2, MP3, MP4, MPEG, MPG, WAV))
Smart playlist for iTunes client (Windows & Mac OS)
Multimedia Station Supports Photo, Audio and Video
Image slideshow and rotation
Automatic & Schedule thumbnail generation for easy browsing
Display photo details from EXIF: Date, Exposure Time, Aperture
Display audio details from ID3 Tag: Album Cover, Title, Artist, Album
Access Authority management
Multimedia (Video & Audio) streaming
Supports Cooliris
Supports Web Publishing (Facebook, MySpace, MSN Live, Twitter, Plurk, Blogger)
Share photos by Email
Supported formats:
Photo – JPG/JPEG, GIF, PNG
Audio – MP3
Video
-Playback: FLV, MPEG-4 Video (H.264 + AAC)
-Transcode: AVI, M4V, MPG/MPEG, RM/RMVB, WMV
QNAP Exclusive iPhone & Android App – Qmobile
Photo Station Supported File Formats:
-Photo: JPG/JPEG, GIF, PNG, BMP, RAW (RAW: .arw, .srf, .sr2, .dcr, .kdc, .cr2, .crw, .nef, mrw, .pef, .paf, .3fr, .erf, .mef, .mos, .orf, .rw2, .dng, .x3f, .tif, .nrw, .raf)
-Video: FLV, MPEG-4 Video (H.264 + AAC)
Image slideshow with background music, thumbnails, and different playback modes
Online photo editing by Pixlr editor
Geotagging photos with Google Maps
Slideshow sharing (from private albums) with password protection
Photo publishing to social websites (Facebook, MySpace, Twitter, Plurk, and Blogger)
Photo sharing by email
Music Station Supported Audio Formats:
-MP3, MP4, OGG, WAV, AIFF, AU, FLAC, M4A, APE, AAC
Local playback with USB speaker/sound card
Browse other UPnP Media Servers on local network
Internet Radio (MP3)
Music alarm (up to 8 alarms)
Playback control by QNAP Mobile App: QMobile music remote
Download Station PC-less BT, FTP, HTTP download (up to 500 tasks)
BT download
-Supports magnet links
-Supports TCP/UDP Tracker protocol
-Scheduled download
-Configurable port range
-Bandwidth control
-RSS subscription and download (Broadcatching)
-Selectable download files
HTTP/ FTP download
-Configurable saving directory
-Bulk download with wildcard settings
-RapidShare download support
QNAP Download Management Software: QGet
-For both Windows & Mac OS
-Manage the download tasks of multiple QNAP NAS remotely over LAN or WAN
Antivirus Protection against the latest known viruses, trojans and other threats
Free virus databases update on manual or scheduled basis
Multiple scan tasks (max: 64, concurrent: 5) with custom folder selection and scheduled
Scanning
Email notification upon task completion or virus detection
Quarantines or deletes infected files
QPKG Center Expands application services by easy online installation
A wide variety of official and community QPKG Add-ons
Business
-eyeOS
-GLPI
-Squid Proxy Server
-Vtiger CRM
CMS
-Gallery
-Joomla
-WordPress
-Xoops
Communications
-Asterisk
-XMail Mail Server
-Xeams Mail Server
Download-MLDonkey
-NZBGet
-pyLoad
-SABnzbdplus
-Transmission
Entertainment
-QiTunesAir
-IceStation
-Plex Media Server
-PS3 Media Server
-Squeezebox Server
Utilities
-iStat
-Optware IPKG
-phpMyAdmin
-Piwik
Miscellaneous
-Java Runtime Environment
Mono
-Python
-QUSBCam
-Tomcat
General
Temperature 32 – 104°F (0 – 40°C)
Humidity 0 to 95% R.H.
Dimensions 3.50 x 18.98 x 21.02″ (89 x 482 x 534 mm)
Weight 24.29 lb (11.02 kg)
Packaging Info
Package Weight 33 lb
