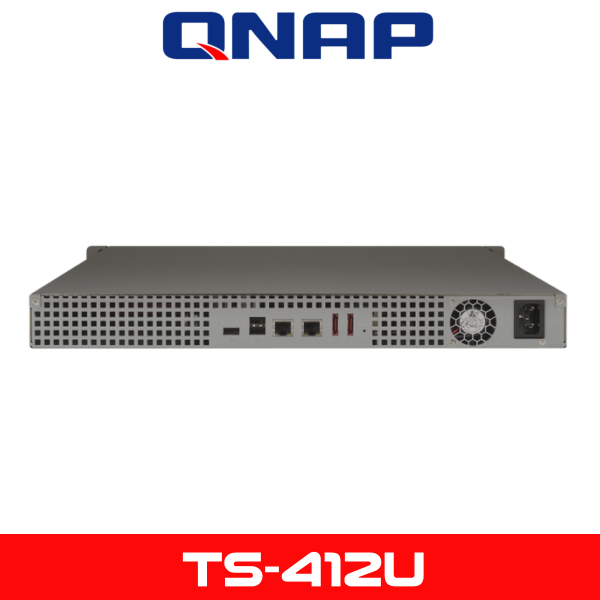

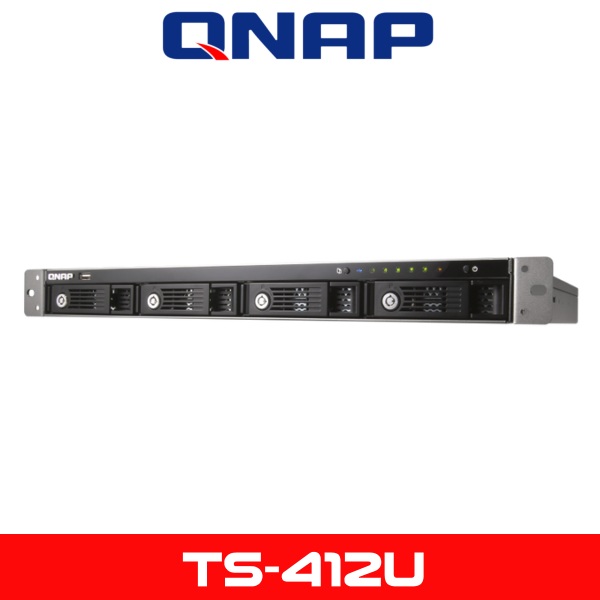

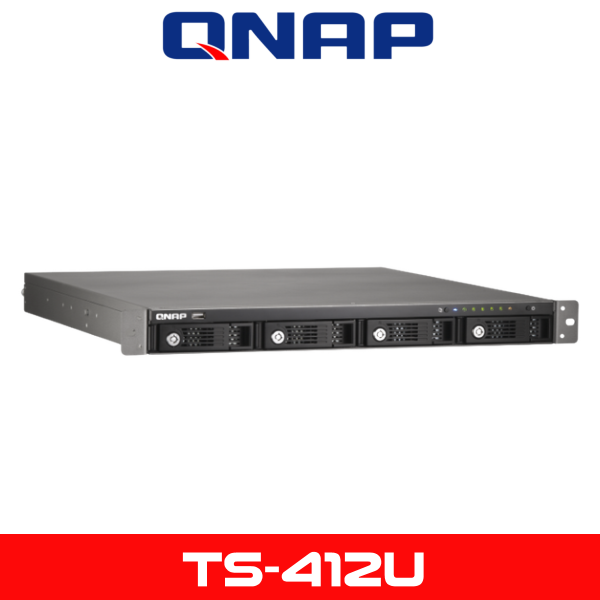

Qnap TS412U Dubai



Qnap TS412U Dubai

Qnap TS 412U Dubai offers RAID 0, 1, 5, 6, 10, 5 + hot spare, single, and JBOD disk configurations. It also supports hot-swap design that a failed member drive of a RAID configuration (RAID 1 or above only) can be replaced by hot swapping without turning off the server.

Description

Qnap TS412U Dubai

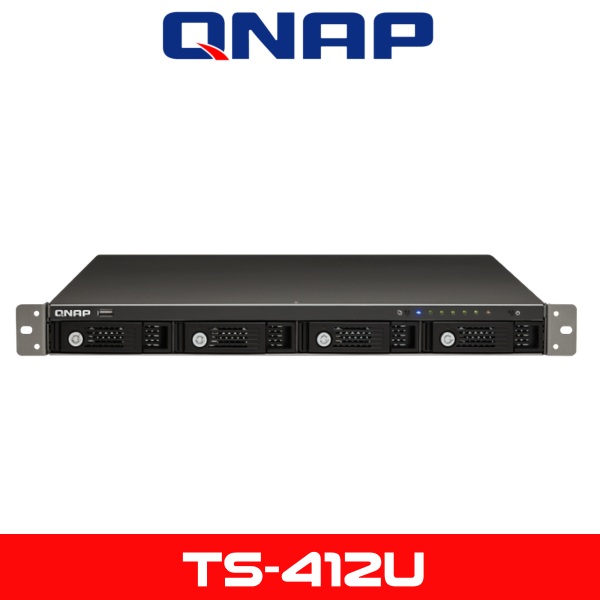

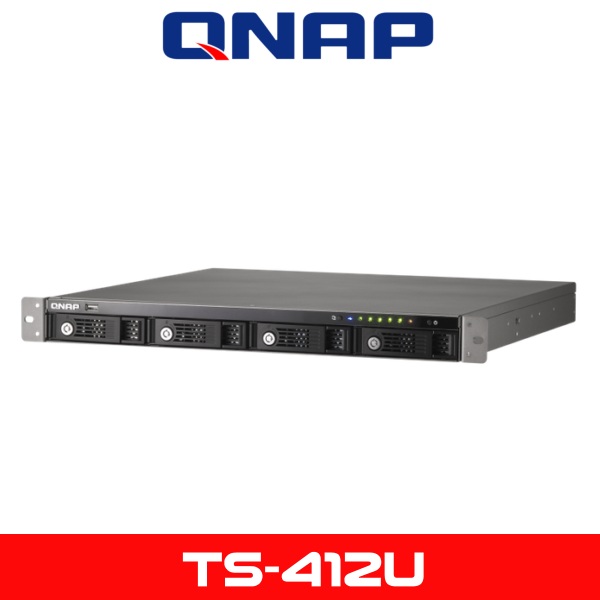

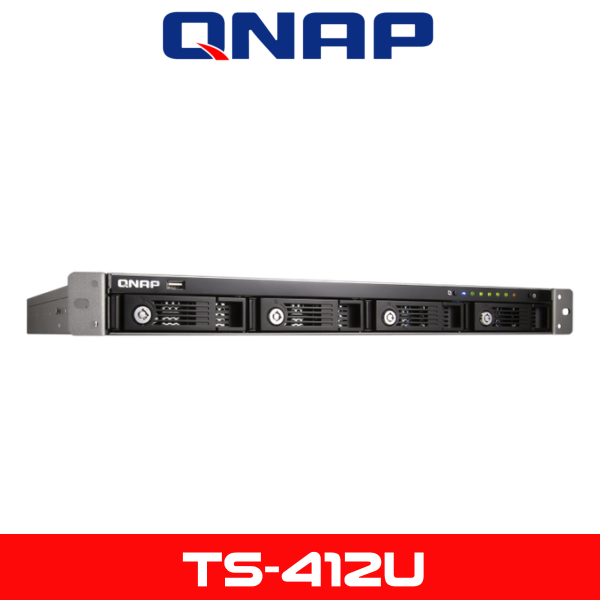

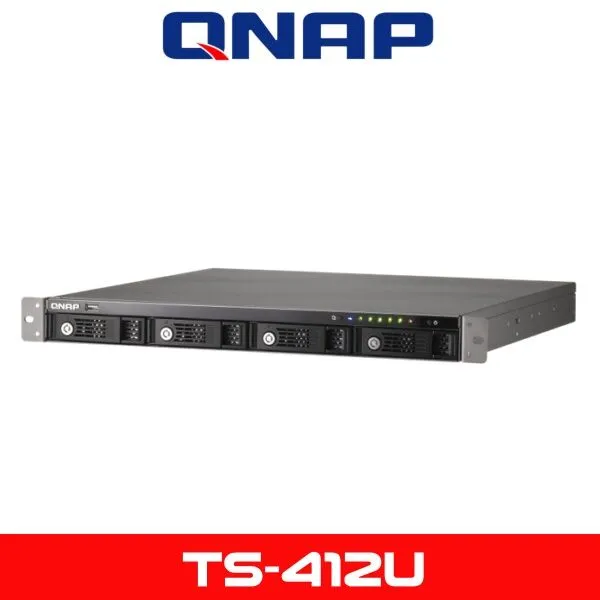

Qnap TS412U Dubai is fitted with 4 hard disk drive bays that accommodate 2.5″ or 3.5″ SATA II or I hard disk drives, offering you a reliable solution to meet your storage needs and requirements. It is a highly flexible business-class Turbo NAS 1U Rackmount Server that can easily fit into your business network on a 1U server rack. The NAS server allows you to scale up to a maximum of 12TB of storage, with each drive being 3TB in capacity. With whatever capacity drives you install, you can use the NAS to store your media and other files in a centralized location and access it from any computer or other device on your network. If you want to host websites, backup data, share data across different platforms, and much more, this server is a particularly affordable solution.

Features:

Advanced RAID Management with Hot-swap Design

Qnap TS-412U Dubai offers RAID 0, 1, 5, 6, 10, 5 + hot spare, single, and JBOD disk configurations. It also supports hot-swap design that a failed member drive of a RAID configuration (RAID 1 or above only) can be replaced by hot swapping without turning off the server.

Online RAID Capacity Expansion

The storage capacity of a RAID disk volume of the NAS can be expanded by replacing the hard drives with larger ones. All the data will be kept and seamlessly moved to the newly installed hard drives. There is no need to turn off the server during the process.

Virtual Disk Drive (VDD)

The Qnap TS412U Dubai supports flexible storage expansion by stacking other iSCSI targets on the network via its built-in iSCSI initiator. The connected iSCSI targets are turned into “virtual disk drives” of the NAS to provide more storage capacity.

Built-in iSCSI/IP-SAN Target Service

The Qnap TS-412U Dubai is both a NAS and an iSCSI target server, ideal for cost-efficient IP-SAN setup. You can make use of the built-in iSCSI target service to add up to 256 iSCSI devices. Different iSCSI Target LUNs (Logical Unit Number) can be defined as storage expansion or backup destination of the existing application servers, such as database servers and mail servers.

Furthermore, the “Virtual Space Allocation” (Thin Provisioning) feature is provided which allows you to flexibly allocate the capacity of iSCSI LUN (Logical Unit Number). When the physical storage capacity of the volume is going to be full, you can easily expand the storage capacity by online RAID capacity expansion or adjust/ remove the current unused volume space.

Complete Data Backup Solution

The Qnap TS412U Dubai offers complete backup solution for data protection, including cloud-based storage backup (Amazon S3, ElephantDrive), Apple Time Machine support, encrypted remote replication, third party software backup, one-touch-copy backup and QNAP exclusive Windows-based utility NetBak Replicator.

QNAP TS-412U Specs

Hardware
Processor Marvell 6282 1.2GHz Processor
RAM DRAM: 256MB DDR2 RAM
Memory 16MB Flash Memory
Storage The system does not ship with drives but supports the below:

4x  3.5″ or 2.5″ SATA II or SATA I hard disk drives

Refer to the manufacturer for a list of compatible drives

Trays HDD: 4x  Hot-swappable and lockable trays

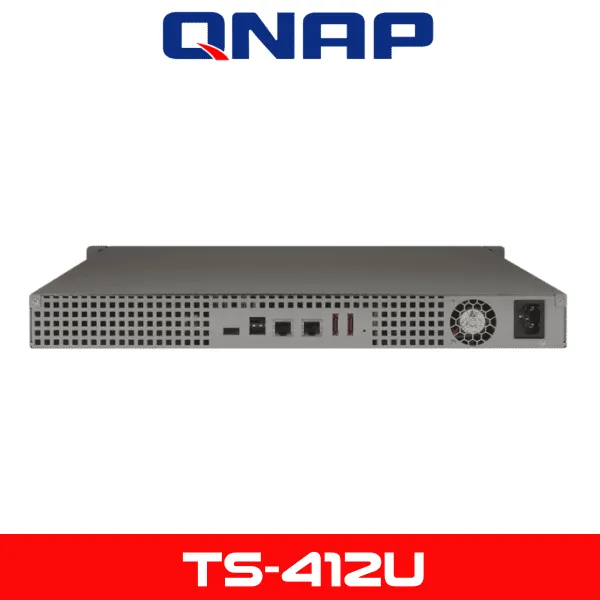

LAN Port 2x  RJ-45 10/100/1000 Gigabit Ethernet Ports
LED Indicators Status, LAN, USB, HDD 1, HDD 2, HDD 3, HDD 4
Ports 4x  USB 2.0 port (Front: 1; Back: 3)
Supports a USB printer, disk, pen drive, USB hub, and USB UPS, for example
eSATA 2x  eSATA ports (Back)
Buttons System: Power button, USB One-Touch-Backup Button, Reset button
Audible Alarm System Warning
Form Factor 1U Rackmount
Fan 3x  4 cm / 12V DC Quiet Cooling Fan
Software
Operating System Embedded Linux
Power Management
  • Scheduled Power on/off (Max 15 settings)
  • Automatic Power on after Power Recovery
Access Rights Management
    Max User Accounts: 4,096

  • Max Groups: 512
  • Max. Share Folder: 512
  • Batch Creating Users
  • Import/Export Users
  • User Quota Management

Subfolder Permissions Support

Windows AD Support
  • Domain Users Login via CIFS/SMB, AFP, FTP and Web File Manager
  • Supports NTLMv2 Authentication
Utilities
  • Internal HDD: EXT3, EXT4
  • External HDD: EXT3, EXT4, NTFS, FAT32, HFS+
Networking
  • TCP/IP (IPv4 & IPv6: Dual Stack)
  • Dual Gigabit NICs with Jumbo Frame
  • Multi-IP Setting, Port Trunking/NIC Teaming (Modes: Balance-rr, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-tlb and Balance-alb.)
  • DHCP Client, DHCP Server
  • Protocols: CIFS/SMB, AFP (3.1), NFS, FTP, HTTP, HTTPS, Telnet, SSH, iSCSI and SNMP
  • Network Service Discovery (UPnP, Bonjour)
  • USB Wi-FI 802.11n Adapter Support (Optional Purchase)
Web Administration
  • AJAX-based User Interface
  • HTTP/HTTPS Connections
  • Alert Notification (E-mail & SMS)
  • Smart Fan Control
  • DDNS & MyCloudNAS Remote Access
  • SNMP (v2 & v3)
  • UPS Support with SNMP Management (USB)
  • Supports Network UPS
  • Resource Monitor
  • Network Recycle Bin for CIFS/SMB and AFP
  • Comprehensive Logs (Events & Connection)
  • Real-time Online User List
  • Syslog Client
  • Firmware Update with Live Update Notification
  • Backup and Restore System Settings
  • Restore to Factory Default
Network File Sharing
  • CIFS/SMB (Plus DFS Support)
  • AFP
  • NFS
  • FTP
  • WebDAV
Applications
  • Web File Manager
  • Multimedia Station
  • Download Station
  • Surveillance Station
  • iTunes Server
  • Apache Web Server
  • MySQL Server
Backup Solution
  • USB One Touch Backup (Import/Export)
  • Apple Time Machine Support with Backup Management
  • Block-level Remote Replication
  • Work as Both Rsync Server & Client
  • Supports Encrypted Replication between QNAP NAS Servers
  • Back up to External Storage Device
  • Back up to Cloud Storage (Amazon S3 & ElephantDrive)
QMobile App
  • QMobile for iPhone, iPad, iPod touch, Android devices
  • Third Party UPnP Media Player
Security
  • IP Filter & Policy-based Automatic IP Blocking
  • Network Access Protection with Auto-blocking
  • Encrypted Access: HTTPS, FTP with SSL/TLS (Explicit), SSH/SFTP (admin only), Encrypted Remote Replication (Rysnc over SSH)
  • CIFS Host Access Control for Shared Folders
  • Importable SSL Certificate
  • Instant Alert via E-mail and SMS
QPKG Web Applications:
Joomla!
phpMyAdmin
WordPress
AjaXplorer
vtigerCRM
GLPI
Magento
eyeOS
P2P Applications:
MLDonkey (eMule)
SABnzbd+
NZBGet
Server Applications:
Asterisk
XDove (Mail Server)
OpenLDAP
Media Server:
Squeezebox Server
IceStation
Misc.:
Optware IPKG
Python
iStat
Disk Management
  • Single Disk, JBOD, RAID 0 / 1 / 5 / 5+Hot Spare / 6 / 10
  • Online RAID Capacity Expansions & Online RAID Level Migration
  • Bad Block Scan and HDD S.M.A.R.T
  • RAID Recovery
  • Bitmap Support
  • Supports ISO Mount (via Web File Manager)
iSCSI iSCSI Target

  • Multi-LUNs per Target
  • Up to 256 LUNs
  • Supports LUN Mapping
  • Supports LUN Masking
  • Supports SPC-3 Persistent Reservation
  • Supports MPIO & MC/S

Virtual Disk Drive (via iSCSI Initiator)

  • Stack Chaining Master
  • Maximum Virtual Disk Drives: 8
Server
File Server
  • File Sharing Across Windows, Mac OS and Linux/ Unix Platforms
  • Protocols: CIFS/SMB, AFP (3.1), NFS, FTP, HTTP, HTTPS
  • QNAP Web File Manager
  • Supports ISO Mounting
  • Direct File Viewing via Google Doc
FTP Server
  • FTP over SSL/TLS (Explicit)
  • Max Concurrent Connections: 256
  • FXP Supported
  • Passive FTP Port Range Control
  • FTP Bandwidth & Connection Control
  • Unicode Support
Web Server
  • HTTP/HTTPS Connections
  • Supports WebDAV Connection
  • Support Virtual Host
  • Importable SSL Certificate
Database Server
  • Built-in MySQL Server
  • Web-based Management via phpMyAdmin (QPKG)
Backup Server
  • Remote Replication Server (over Rsync)
  • Real-time Remote Replication Server
  • Apple Time Machine Support
  • QNAP Client Backup Application-NetBak Replicator
  • 3rd Party Backup Software Support: Acronis True Image, CA Brightstor, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie Silverkeeper
iTunes Server
  • Audio and Video Sharing
  • Smart Playlist for iTunes Client (Windows & Mac OS)
Print Server
  • Network Printer Sharing (USB)
  • Max Printers: 3
  • Supports Internet Printing Protocol
  • Supports Apple Bonjour Printing
  • Advanced Printer Management:
  • Print Jobs Display and Management
  • Access Right Control (IP & Domain Names)
Multimedia Station
    • Supports Photo, Audio and Video
    • Image Slide Show and Rotation
    • Automatic and Schedule Thumbnail Generation for Easy Browsing
    • Display Photo Details from EXIF: Date, Exposure Time, Aperture, etc.
    • Display Audio Details from ID3 Tag: Album Cover, Title, Artist, Album, etc.
    • Access Authority Management
    • Multimedia (Video & Audio) Streaming
    • Supports Cooliris
    • Supports Web Publishing (Facebook, MySpace, MSN Live, Twitter, Plurk, Blogger)

<

  • Supports Email Publishing
  • Supported Formats:
    • Photo – JPG/JPEG, GIF, PNG
    • Audio – MP3
    • Video
      • Playback: FLV, MPEG-4 Video (H.264 + AAC)
      • Transcode: AVI, M4V, MPG/MPEG, RM/RMVB, WMV
  • QNAP Exclusive iPhone & Android App-QMobile
Download Station
  • PC-less BitTorrent/FTP/HTTP Download (up to 500 tasks)
  • BitTorrent Download
    • Supports TCP/UDP Tracker Protocol
    • Schedule Download
    • Configurable Port Range
    • Bandwidth Control
    • UPnP NAT Port Forwarding
    • Subscribe to RSS Feeds
    • RSS Download (Broadcasting)
    • Selectable Download Files
  • HTTP/FTP Download
    • Configurable Saving Directory
    • Bulk Download with Wildcard Setting
    • RapidShare Download Support
  • QNAP Download Management Software: QGet
    • For Both Windows & Mac OS
    • Manage the Download Tasks of Multiple QNAP NAS Remotely over LAN or WAN
Surveillance Station Supports 4 IP Cameras (Optional Purchase) for Network Surveillance
Language Support Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Russian, Spanish, Swedish, Turkish
General
System Requirements Operating System: Windows 2000, XP, Vista (32 or 64-bit), 7 (32 or 64-bit); Windows Server 2003, 2008; Mac OS X; Linux; UNIX
Web Browser: Internet Explorer 7 or 8, Firefox 3 or 4, Safari 3 or 4, or Google Chrome
Environmental Requirements Operating
Temperature: 32° to 104°F / 0° to 40°C
Humidity: 0 to 95% R.H.
Power Requirements AC: 100-240VAC, 50/60Hz, 2A
Output: 250W
Power Consumption Sleep mode: 15W
In Operation: 29W
Power-off (in WOL mode): 1W
(With 4x  500GB Hard Disk Drives installed)
Dimensions 1.73 x 16.97 x 19.02″ / 4.4 x 43.9 x 48.3 cm
Weight 14.77 lb / 6.7 kg
