The Qnap TS 669 Dubai Pro is an ideal shared storage solution for virtualized and clustered environments. It is VMware and Citrix Ready. It also has proven compatibility with Microsoft Hyper-V environments.



Description

Qnap TS669 Pro Dubai

The Qnap TS669 Dubai Pro Turbo NAS Server for SMBs from QNAP is an all-in-one NAS server with exceptional performance that can meet the storage requirements of modern SMB IT environments. It features a secure cross-platform file sharing for Windows, Mac and Linux/UNIX users. The NAS server also has an iSCSI or IP-SAN storage combo solution and a number of versatile, value-added business applications. It has a well-rounded set of backup solutions, which helps critical business information to be safely protected against unexpected data loss. The Qnap TS-669 Dubai Pro is an ideal shared storage solution for virtualized and clustered environments. It is VMware and Citrix Ready. It also has proven compatibility with Microsoft Hyper-V environments. Qnap TS-669 Dubai Pro

Features:

Cross-platform Sharing with Antivirus

The Qnap TS-669 Pro Dubai supports SMB/CIFS, NFS and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks. Your accounts and shared folders can be created via a user-friendly web based interface without IT expertise. The integrated antivirus solution for the Turbo NAS ensures business stability. It offers detection against the latest viruses, malware, worms and Trojan horses.

Windows Active Directory (AD) and LDAP Directory Service

The Windows AD and Lightweight Directory Access Protocol (LDAP) is a directory service feature that enables you to retrieve user accounts from Windows AD or LDAP based directory server to the Qnap TS-669 Pro Dubai. This reduces time and effort in setting up a new account. You can use the same login name and password to access the Turbo NAS.

Shared Folder Aggregation

You can access the shared folders of other servers on Microsoft Networking through the “portal folder” on the Qnap TS-669 Pro Dubai. This saves the time and effort in logging in multiple servers one by one.

ISO File Archiving and Sharing

With the Qnap TS-669 Pro Dubai you can mount ISO images of CD and DVD discs as network shares for data archiving, storage and sharing. This saves the space for storing the physical discs and reduces the risk of data loss caused by disc wear and tear. It also enhances the efficiency of data sharing on business network.

Advanced Folder Permissions

You can configure folder/subfolder access to the Qnap TS-669 Pro Dubai with advanced folder permissions. With this feature enabled, you can manage the folder permissions from Microsoft Windows or the web-based management interface of the Turbo NAS easily.

Secure Measures for Data Storage and Access

Policy based Unauthorized IP Blocking:
You can allow, deny or auto block specified IP address or network domain which attempt to connect to the Turbo NAS via SSH, Telnet, HTTP(S), FTP, Samba or AFP.

QNAP TS-669 Pro Specs

Hardware
CPU Intel Atom 2.13 GHz Dual-Core Processor
DRAM 1 GB RAM (expandable RAM, up to 3 GB)
Flash Memory 512 MB DOM
Hard Drive 6x 3.5″ (88.89 mm) SATA 6 GBps, SATA 3 GBps hard drive or 2.5″ (63.49 mm) SATA, SSD hard drive*
Hard Disk Tray 6x hot-swappable and lockable tray

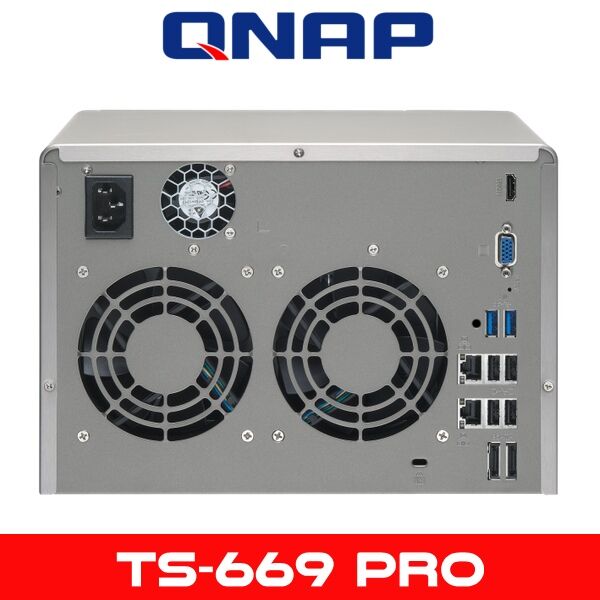

LAN Port 2x Gigabit RJ-45 Ethernet ports
LED Indicators Status, LAN, USB, eSATA, Power, HDD 1, HDD 2, HDD 3, HDD 4, HDD 5, HDD 6
USB 2x USB 3.0 ports (back: 2)
5x USB 2.0 ports (front: 1 ; back: 4)
Supports USB printer, pen drive, USB hub, USB UPS and more
eSATA 2x eSATA ports (back)
Performance Reading: 221.8 MBps
Writing: 220.8 MBps
Buttons System: Power button, USB one-touch backup button, reset button
LCD Panel Mono-LCD display with backlight
Enter and select buttons for configuration
Supply Type System warning
Form Factor Tower
Sound Level Without HDD installed: 35.7 dB
Stand by: 35.2 dB
In operation: 40.8 dB
(with 6x 500GB HDD installed)
Power Consumption Sleep mode: 31.5 W
In operation: 63.6 W
Power-off (in WOL mode): 1 W
(with 6x 500GB HDD installed)
Power Supply Input: 100 – 240 V AC, 50 – 60 Hz
Output: 250 W
Secure Design K-lock security slot for theft prevention
VGA Reserved VGA interface for maintenance
Fan 2x 3.54″ (9 cm), 12 V DC quiet cooling fan
Software
Operating System Embedded Linux
Supported Operating System Windows XP, Vista, Windows 7 (32/64-bit), Windows Server 2003/2008 R2
Apple Mac OS X
Linux and UNIX
Supported Web Browsers Microsoft Internet Explorer 8, 9
Mozilla Firefox 8, 9, 10
Apple Safari 4, 5
Google Chrome
Language Support Chinese (Traditional and Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish
File System Internal Hard Drive: EXT3, EXT4
External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+
Networking TCP/IP (IPv4 and IPv6: Dual stack)
Multiple Gigabit NICs with jumbo frame
-Failover
-Multi-IP settings
-Port trunking/NIC teaming (Modes: Balance-rr, Active Backup, Balance XOR, Broadcast, IEEE 802.3ad/Link Aggregation, Balance-tlb and Balance-alb)
Service binding based on network interfaces
Virtual LAN (VLAN)
DHCP client, DHCP server
Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP and SMSC
UPnP andbonjour discovery
USB Wi-Fi adapter support
Backup Solution Real-Time Remote Replication (RTRR)
-Works as both RTRR server and client with bandwidth control
-Real-time and scheduled backup
-Encryption, compression, file filter and transfer rate limitation
Block-Level Remote Replication
-Works as both Rsync Server and client with bandwidth control
-Encrypted replication between QNAP NAS servers
One touch backup (import/export) via USB
Desktop backup by QNAP NetBak replicator for Windows
Apple Time Machine support with backup management
Data backup to multiple external storage devices
Data backup to Cloud Storage (Amazon S3, ElephantDrive and Symform)
Security IP Filter and policy-based automatic IP blocking
Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
Encrypted Access: HTTPS, FTP with SSL/TLS (Explicit), SSH/SFTP (admin only), encrypted remote replication between QNAP NAS servers (Rsync over SSH)
CIFS host access control for shared folders
Antivirus protection
FIPS 140-2 validated AES 256-bit volume-based data encryption*
AES 256-bit external drive encryption*
Importable SSL certificate
Instant alert via Email, SMS, Instant Messaging (Windows Live), Beep and LCD panel
Disk Management Single Disk, JBOD, RAID 0, 1, 5, 5+Hot-Spare, 6, 6+Hot-Spare, 10, 10+Hot-Spare
Online RAID capacity expansion and online raid level migration
Bad block scan and hard drive S.M.A.R.T.
Global hot-spare drive
RAID recovery
Bitmap support
iSCSI (IP SAN) iSCSI target
-Multi-LUNs per target
-Up to 256 targets/LUNs combined
-Supports LUN mapping and masking
-Online LUN capacity expansion
-Supports SPC-3 persistent reservation
-Supports MPIO and MC/S
iSCSI LUN backup, one-time snapshot and restore
iSCSI connection and management by QNAP finder (Windows)
Virtual disk drive (via iSCSI initiator)
-Stack chaining master
-Max. no. of virtual disk drives: 8
Server Virtualization and Clustering Supports VMware vSphere
Supports Citrix XenServer
Supports Windows Server 2008 R2 Hyper-V and failover clustering
Power Management Wake on LAN
Internal hard drive standby mode
Scheduled power on/off (max. 15 Settings)
Automatic power on after power recovery
USB and network UPS support with SNMP management
Access Rights Management Max. No. of Users: 4,096
Max. No. of User Groups: 512
Max. No. of Network Shares: 512
Batch users creation
Import/export users
User quota management
Subfolder permissions support for CIFS/SMB, AFP, FTP and web file manager
Domain Authentication Integration Microsoft Active Directory (AD)
LDAP server
LDAP client
Domain users login via CIFS/SMB, AFP, FTP and web file manager
MyCloudNAS Service Private Cloud Storage and sharing
Free host name registration (DDNS)
Auto router configuration (via UPnP)
MyCloudNAS connect for easy connection (Windows utility)
Storage Plug & Play Windows Software: QNAP finder
Create and map shared folders
Create and connect to iSCSI target/LUN
Web Administration AJAX-based user interface
Smart fan control
Dynamic DNS (DDNS)
SNMP (v2 and v3)
Resource monitor
Network recycle bin for file deletion via CIFS/SMB and AFP
Comprehensive logs (Events and connection)
Syslog client
Firmware live update
System settings backup and restore
Restore to factory default
Powerful All-in-one server
File Server File sharing across Windows, Mac and Linux or UNIX
Shared folder aggregation (CIFS/SMB)
Web file manager
-Supports ISO mounting
-Direct file viewing via Google doc
-Create and send download links for public file sharing with expiration time and password protection
FTP Server FTP over SSL/TLS (explicit)
Max. No. of Concurrent Connections: 256
FXP supported
Passive FTP port range control
FTP bandwidth and connection control
Unicode support
Backup Server Remote Replication server (over Rsync)
Real-Time Remote Replication to another QNAP NAS or FTP server
Apple Time Machine support
Windows Client Backup Application: QNAP NetBak replicator
Third Party Backup Software Support: Acronis True Image, CA BrightStor, ARCserve, Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper and more
Web Server HTTP/HTTPS connections
Supports WebDAV connection
Support virtual host (Max.: 32)
Importable SSL certificate
Database Server Built-in MySQL server (v5.1.36)
Web-based management via phpMyAdmin (QPKG)
Print Server Max. Number of Printers: 3
Supports Internet printing protocol
-Print job display and management
-IP- and domain name based privilege control
Supports Apple bonjour printing
Syslog Server Centralized log monitoring and archiving
Immediate email alerts
Supports log filtering
RADIUS Server Centralized account management and authentication for network access
Supports 802.1x security authentication
TFTP server with PXE booting (read-only)
VPN Server Secure Remote Access: PPTP and OpenVPN services
Remote access to other resources on local network
Max. no. of Clients: 30
iTunes Server Audio and video sharing (AIF, M4A, M4B, M4V, MOV, MP1, MP2, MP3, MP4, MPEG, MPG, WAV)
Smart playlist for iTunes client (Windows and Mac OS)
UPnP Media Server Built-in TwonkyMedia server
Real-time and background photo transcoding
Supports UPnP media player such as PlayStation 3 and Xbox 360
Supported format (The actual playback capabilities may vary depending on the UPnP client.)
-Audio: MP3, MP4, M4A, M4A (ALAC), M4B, 3GP, APL, AC3, M1V, M4V, MOV, AAC, AMR, AWB, WAV, PCM, LPCM, MP1, MP2, AIF, AIFF, AIFC, SND, WMA, OGG, FLAC
-Photo: JPG, JPE, JPEG, TIFF, TIF, GIF, PNG, BMP
-Video: WMV, ASF, VDR, AVI, XVID, DIVX, FLV, MPG, MPE, MTS, M2TS, M2T, MPEG, SPTS, M2P, M2V, MP2T, MP2P, MPG2, DVR-MS, VOB
-Playlist: M3U, M3U8, WPL, PLS
Multimedia Station Supports photo, audio and video
Image slideshow and rotation
Automatic and scheduled thumbnail generation for easy browsing
Display Photo Details from EXIF: Date, exposure time, aperture and more
Display Audio Details from ID3 Tag: Album cover, title, artist, album and more
Access authority management
Multimedia (video and audio) streaming
Supports cooliris
Supports web publishing (Facebook, MySpace, MSN Live, Twitter, Plurk and Blogger)
Share photos by email
Supported Formats:
Photo – JPG/JPEG, GIF, PNG
Audio – MP3
Video
-Playback: FLV, MPEG-4 Video (H.264 + AAC)
-Transcode: AVI, M4V, MPG/MPEG, RM/RMVB, WMV
QNAP Exclusive iPhone and Android App: QMobile
Photo Station Supported File Formats:
-Photo: JPG/JPEG, GIF, PNG, BMP
-Video: FLV, MPEG-4 Video (H.264 + AAC)
Image slideshow with background music
Photo publishing to social websites (Facebook, MySpace, Twitter, Plurk and Blogger)
Photo sharing by email
Music Station Supported Audio Formats:
-MP3, MP4, OGG, WAV, AIFF, AU, FLAC, M4A, APE, AAC
Local playback with USB speaker or sound card
Browse other UPnP media servers on local network
Internet radio (MP3)
Music alarm (up to 8 Alarms)
Playback control by QNAP Mobile App: QMobile music remote
Download Station PC-less BT, FTP, HTTP download (up to 500 tasks)
BT Download
-Supports TCP/UDP tracker protocol
-Scheduled download
-Configurable port range
-Bandwidth control
-UPnP NAT port forwarding
-RSS subscription and download (broadcatching)
-Selectable download files
HTTP/ FTP Download
-Configurable saving directory
-Bulk download with wildcard settings
-RapidShare download support
QNAP Download Management Software: QGet
-For both Windows and Mac OS
-Manage the download tasks of multiple QNAP NAS remotely over LAN or WAN
Surveillance Station Supports 1 – 20 IP* cameras (sold separately) for network surveillance
Supports 1 Webcam via QPKG Add-on: QUSB Cam
Antivirus Protection against the latest known viruses, trojans and other threats
Free virus databases update on manual or scheduled basis
Multiple scan tasks (max: 64, concurrent: 5) with custom folder selection and scheduled
Scanning
Email notification upon task completion or virus detection
Quarantines or deletes infected files
QPKG Center Expands application services by easy online installation
A wide variety of official and community QPKG* add-ons
Business
-eyeOS
-GLPI
-Squid proxy server
-Vtiger CRM
CMS
-Gallery
-Joomla
-WordPress
-Xoops
Communications
-Asterisk
-XMail
-Xeams
Download
-MLDonkey
-NZBGet
-pyLoad
-SABnzbdplus
-Transmission
Entertainment
-Ice Station
-Plex media server
-PS3 media server
-Squeezebox server
Utilities
-AjaXplorer
-iStat
-Optware IPKG
-phpMyAdmin
-Piwik
Miscellaneous
-Java runtime environment
-Mono
-Python
-QUSB Cam
-Tomcat and more
General
Temperature 32 to 104°F (0 to 40°C)
Humidity 0 to 95% R.H.
Dimensions 6.89 x 10.12 x 9.25″ (175 x 257.04 x 234.94 mm)
Weight 11.46 lb (5.2 kg)
Packaging Info
Box Dimensions (LxWxH) 15.2 x 13.6 x 9.9″
