Qnap TS469U-SP Dubai



Qnap TS-469U-SP Dubai

The Qnap TS-469U-SP Dubai supports SMB/CIFS, and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks.

Description

Qnap TS469U-SP Dubai

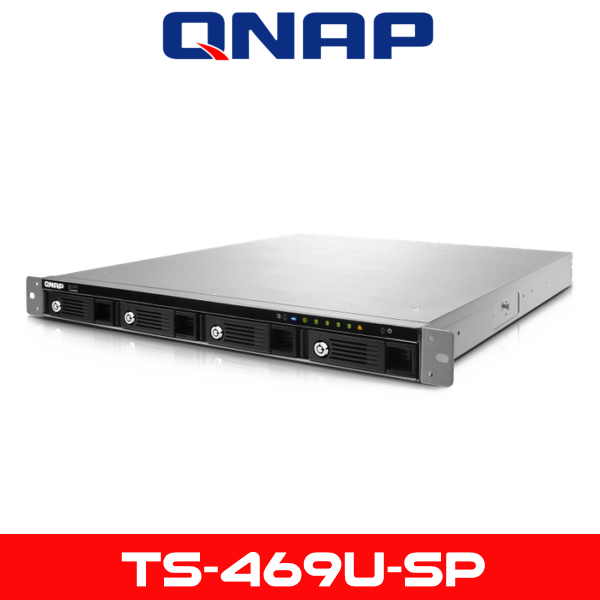

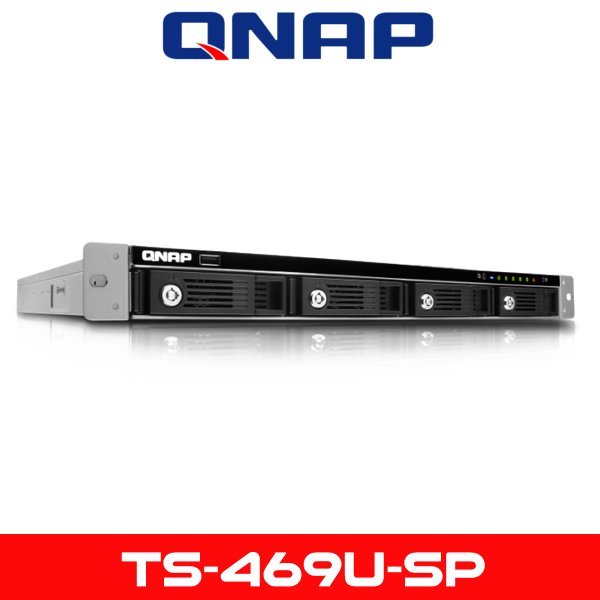

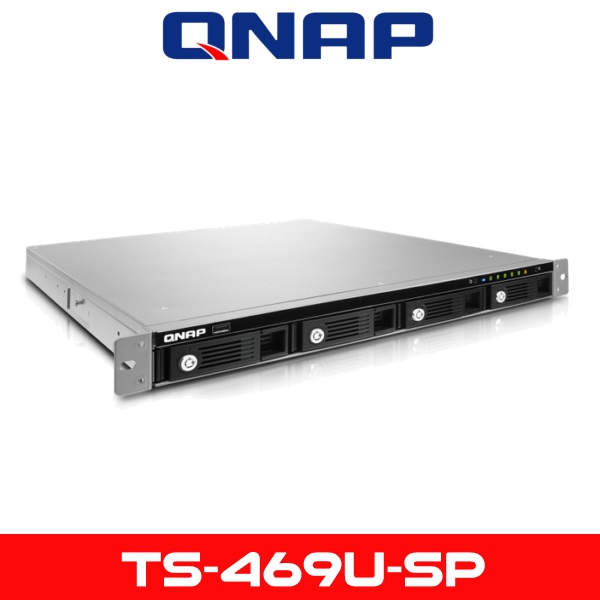

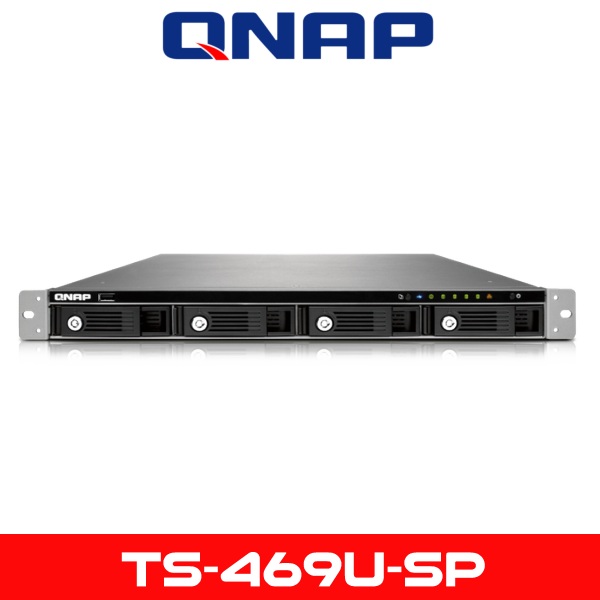

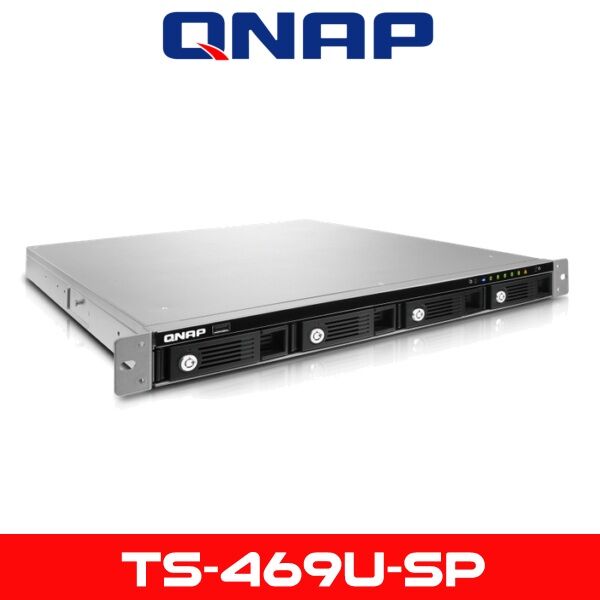

The Qnap TS469U-SP Dubai for SMBs from Qnap is a 4-bay, all-in-one NAS server with exceptional performance that can meet the storage requirements of modern SMB IT environments. Features include, secure-platform file sharing for Windows, Mac, and Linux/Unix users, an iSCSI/IP-SAN storage combo solution and a number of versatile, value-added business applications. With a well-rounded set of backup solution integrated in the Qnap TS-469U-SP, critical business information can be safely protected against unexpected data loss. The Qnap TS-469U-SP is also an ideal shared storage solution for virtualized and clustered environments, via VMware Ready and Citrix Ready certification, and a proven compatibility with Microsoft Hyper -V environments.

Features

Cross-Platform Sharing with Antivirus

The Qnap TS-469U-SP Dubai supports SMB/CIFS, and AFP protocols for file sharing across Windows, Mac, Linux/UNIX networks. User accounts and shared folders can be created via the user-friendly web-based interface without IT expertise. The integrated antivirus solution for the Turbo NAS ensures business continuity by offering detection against the latest viruses, malware, worms, and Trojan horses.

Windows Active Directory and LDAP Directory Service

The Windows AD and LDAP (Lightweight Directory Access Protocol) directory service features enable the IT administrator to retrieve user accounts from Windows AD or LDAP-based directory server to the Turbo NAS, reducing time and effort in account setup. Users can use the same login name and password to access the Turbo NAS.

Shared Folder Aggregation

Access the shared folders of other servers on Microsoft Networking through the “portal folder” on the Qnap TS-469U-SP Dubai. This saves the time and effort in logging in multiple servers one by one.

ISO File Archiving and Sharing

The Qnap TS-469U-SP Dubai supports mounting ISO images of CD and DVD discs as the network shares for data archiving, storage, and sharing. This feature saves the space otherwise used for storing the physical discs, reduces the risk of data loss caused by disc wearing and tearing, and enhances the efficiency of data sharing on business networks.

Windows ACL

The Windows ACL (access control list) feature offers sophisticated shared folder permission settings and thus simplifies IT management for businesses with a large number of users. By enabling the Windows ACL, basic permissions and 13 advanced permissions can be set up from the Windows Explorer and synchronized with the permission settings of the Turbo NAS. In addition, the same permissions apply to AFP, FTP, Web File Manager, and Samba when Advanced Folder Permissions are enabled at the same time.

Advanced Folder Permissions

Advanced folder permissions allow users to configure folder/subfolder access to the Qnap TS-469U-SP Dubai. With this feature enabled, users can easily manage the folder permissions from Microsoft Windows or the web-based management interface of the Turbo NAS.

QNAP TS-469U-SP Specs

Hardware Specification
CPU Intel Atom 2.13GHz Dual-Core Processor
DRAM 1GB RAM (Expandable RAM, up to 3GB)
NOTE:
1. The system memory can be increased to 3GB by installing an additional 1GB/2GB SO-DIMM RAM module.
2 .For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide
Flash Memory 512MB DOM
Hard Disk Drive 4 x 3.5″ or 2.5″ SATA 6Gb/s, SATA 3Gb/s hard drive or SSD
NOTE:
1. The system is shipped without HDD.
2. For the HDD compatibility list, please visit http://www.qnap.com/en/index.php?sn=3877&lang=en

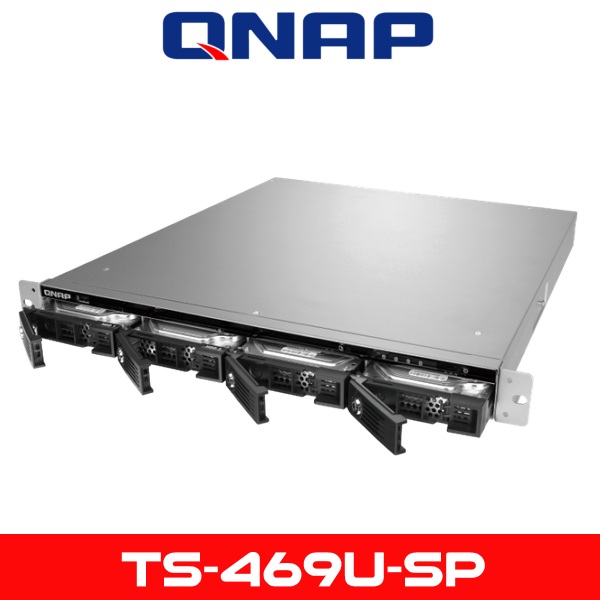

Hard Disk Tray 4 x Hot-Swappable and Lockable Tray

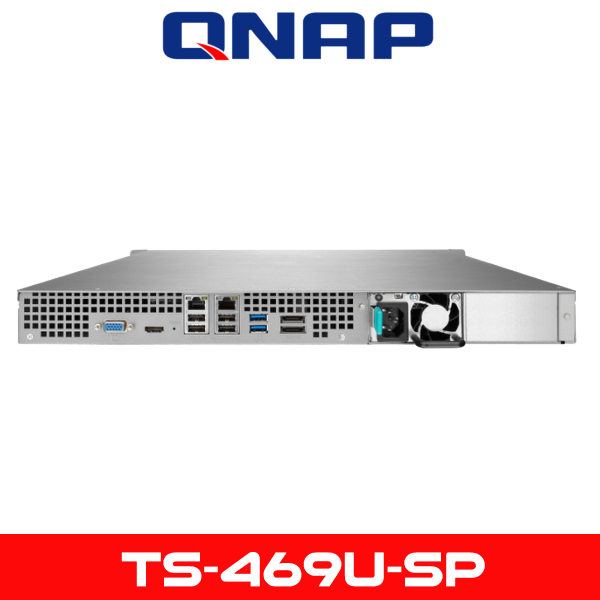

LAN Port 2 x Gigabit RJ-45 Ethernet Port
LED Indicators Status, LAN, USB, HDD 1, HDD 2, HDD3, HDD4
USB 2 x USB 3.0 port (Back: 2)
5 x USB 2.0 port (Front: 1; Back: 4)
(Support for USB printer, pen drive, USB hub, and USB UPS etc.)
eSATA 2 x eSATA Port (back)
Buttons System: Power Button, USB One-Touch-Backup Button, Reset Button
Alarm Buzzer System Warning
Form Factor 1U, Rackmount
Secure Design K-Lock security slot for theft prevention
VGA Reserved VGA interface for maintenance
Fan 2 x Quiet Cooling Fan (4 cm, 12V DC)
Power Consumption Sleep Mode: 37W
In Operation: 52W
Power-off (in WOL mode): 1W
(with 4 x 1TB HDD installed)
Power Supply Input: 100-240V AC, 50/60Hz
Output: Redundant 250W
Environmental Requirements Temperature: 32-104°F (0-40°C)
Humidity: 0-95% R.H.
Software Specification
Operating System QNAP Turbo NAS System 3.7
Supported Clients Windows XP, Vista, Windows 7 (32/64-bit), Windows Server 2003/2008 R2
Apple Mac OS X
Linux & UNIX
Supported Web Browsers Microsoft Internet Explorer 8, 9
Mozilla Firefox 8+
Apple Safari 4+
Google Chrome
Multilingual Support Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish
File System Internal Hard Drive: EXT3, EXT4
External Hard Drive: EXT3, EXT4, NTFS, FAT32, HFS+
Networking •TCP/IP (IPv4 & IPv6: Dual Stack)
•Dual Gigabit
•Service Binding based on Network Interfaces
•Virtual LAN (VLAN)
•DHCP Client, DHCP Server
•Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
•UPnP & Bonjour Discovery
•USB Wi-Fi Adapter Support NICs with Jumbo Frame
Backup Solutions •Real-time Remote Replication (RTRR)
•Block-level Remote Replication
•USB One Touch Backup (Import/Export)
•Desktop Backup by QNAP NetBak Replicator for Windows
•Apple Time Machine Support with Backup Management
•Data Backup to Multiple External Storage Devices
•Data Backup to Cloud Storage (Amazon S3, ElephantDrive, and Symform)
Security •IP Filter and Policy-based Automatic IP Blocking
•Network Access Protection with Auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
•Encrypted Access: HTTPS, FTP with SSL/TLS (Explicit), SSH/SFTP (admin only), Encrypted Remote Replication between QNAP NAS Servers (Rsync over SSH)
•CIFS Host Access Control for Shared Folders
•Antivirus Protection
•FIPS 140-2 Validated AES 256-bit Volume-based Data Encryption*
•AES 256-bit External Drive Encryption*
•Importable SSL Certificate
•Instant Alert via E-mail, SMS, Instant Messaging (Windows Live), and Beep
Disk Management •Single Disk, JBOD, RAID 0, 1, 5, 6, 10, 5+hot spare
•Online RAID Capacity Expansion & Online RAID Level Migration
•Bad Block Scan & Hard Drive S.M.A.R.T.
•RAID Recovery
•Bitmap Support
iSCSI (IP SAN) •iSCSI Target
•iSCSI LUN Backup, One-time Snapshot, and Restore
•iSCSI Connection and Management by QNAP Finder (Windows)
•Virtual Disk Drive (via iSCSI Initiator)
Server Virtualization & Clustering •Supports VMware vSphere
•Supports Citrix XenServer
•Supports Windows Server 2008 R2 Hyper-V & Failover Clustering
Power Management •Wake on LAN
•Internal Hard Drive Standby Mode
•Scheduled Power on/off (Max 15 Settings)
•Automatic Power on after Power Recovery
•USB and Network UPS Support with SNMP Management
Access Rights Management •Max No. of Users: 4,096
•Max No. of User Groups: 512
•Max No. of Network Shares: 512
•Batch Users Creation
•Import/Export Users
•User Quota Management
•Subfolder Permissions Support for CIFS/SMB, AFP, FTP and Web File Manager
Domain Authentication Integration •Microsoft Active Directory (AD)
•LDAP Server
•LDAP Client
•Domain Users Login via CIFS/SMB, AFP, FTP, and Web File Manager
MyCloudNAS Service •Private Cloud Storage and Sharing
•Free Host Name Registration (DDNS)
•Auto Router Configuration (via UPnP)
•MyCloudNAS Connect for Easy VPN Connection (Windows utility)
Storage Plug & Play •Windows Software: QNAP Finder
•Create and Map Shared Folders
•Create and Connect to iSCSI Target/LUN
Web Administration •AJAX-based User Interface
•Smart Fan Control
•Dynamic DNS (DDNS)
•SNMP (v2 & v3)
•Resource Monitor
•Network Recycle Bin for File Deletion via CIFS/SMB and AFP
•Comprehensive Logs (Events & Connection)
•Syslog Client
•Firmware Live Update
•System Settings Backup and Restore
•Restore to Factory Default
•Mobile App Qmanager for Remote Monitoring
Central Server Specifications
File Server •File Sharing across Windows, Mac, and Linux/UNIX
•Windows ACL
•Advanced Folder Permission for SMB, AFP, FTP, Web File Manager
•Shared Folder Aggregation (CIFS/SMB)
•Web File Manager
•Mobile App: Qfile for File Browsing and Management
FTP Server •FTP over SSL/TLS (Explicit)
•Max No. of Concurrent Connections: 256
•FXP Supported
•Passive FTP Port Range Control
•FTP Bandwidth & Connection Control
•Unicode Support
Backup Server •Remote Replication Server (over Rsync)
•Real-time Remote Replication to another QNAP NAS or FTP Server
•Apple Time Machine Support
•Windows Client Backup Application: QNAP NetBak Replicator
•Third Party Backup Software Support: Acronis True Image, CA BrightStor, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie SilverKeeper, etc.
Web Server •HTTP/HTTPS Connections
•Supports WebDAV Connection
•Support Virtual Host (Max: 32)
•Importable SSL Certificate
Database Server •Built-in MySQL Server
•Web-based Management via phpMyAdmin (QPKG)
Print Server •Max No. of Printers: 3
•Supports Internet Printing Protocol
•Supports Apple Bonjour Printing
Syslog Server •Centralized Log Monitoring and Archiving
•Immediate E-mail Alerts
•Supports Log Filtering
RADIUS Server •Centralized Account Management and Authentication for Network Access
•Supports PAP, EAP-TLS/PAP, and EAPTTLS/PAP Authentication
TFTP Server •Secure Remote Access: PPTP & OpenVPN VPN services
•Remote Access to Other Resources on Local Network
•Max No. of Clients: 30
