The Meraki MS225-24P Dubai is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files, or even direct physical access to the switch.

Description

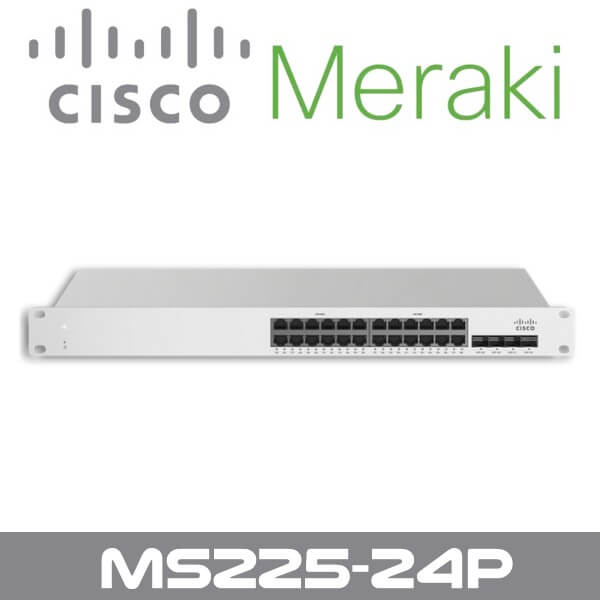

Meraki MS225-24P Network Switch Dubai

The Meraki MS225-24P Dubai is a 24 port PoE+ switch which provides layer 2 access switching and is ideal for deploying to branch locations. With stacking capabilities and 10G SFP+ uplinks, performance is guaranteed. This family also supports an optional, rack-mountable remote PSU (Cisco RPS-2300) for power redundancy requirements

Meraki Network Switches Dubai are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.

The Meraki MS225-24P Dubai is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files, or even direct physical access to the switch.

Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.

Features:

  • 24 Port Gigabit Access switching
  • 4 x 10G SFP+ uplink interface
  • Built-in dual stacking interfaces with up to 80G bandwidth
  • Non-blocking switch backplane with up to 128 Gbps bandwidth support
  • 8 dedicated QoS queues for converged voice, video, and data applications
  • Up to 370 watt PoE budget with PoE+ support and dynamic power allocation for powering APs, phones, cameras, and other PoE-enabled devices
  • Low power consumption, quiet acoustic design, and shallow rack depth options, enabling flexible deployment in wiring closets as well as offices and classrooms
  • Integrated mounting brackets for rack and desk mounting
  • Lifetime hardware warranty and advanced replacement at no additional cost

Technical Specs:

Interfaces

  • 24 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
  • 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on MS225-24P, available on all ports (maximum of 30W per port for PoE+)
  • 4 × SFP+ 10 Gigabit Ethernet interfaces for uplink
  • 2 × Stacking interfaces
  • Auto negotiation and crossover detection

Management

  • Managed via the cloud using the Meraki dashboard
  • Integrated with Meraki Wireless and complete portfolio of IT products and solutions
  • No-touch remote deployment (no staging needed)
  • Detailed historical per-port and per-client usage statistics
  • DHCP, client, and hostname fingerprinting
  • SNMP and SYSLOG support for integration with other network management solutions
  • Seamless over-the-web firmware upgrades with scheduling & control

Remote diagnostics

  • Email, SMS and Mobile push notification alerts
  • Cable testing and link failure detection with alerting
  • Live remote packet capture
  • Dynamic and interactive network discovery and topology
  • Aggregated event logs with instant search

Flexible stacking

  • Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models
  • Virtual stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration

Ethernet switching capabilities

  • 802.1p Quality of Service prioritization
  • 802.1Q VLAN tagging with 4,095 addressable tags
  • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
  • Broadcast storm control
  • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
  • 802.3ad link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
  • IGMP snooping for multicast filtering
  • MAC forwarding entries : 16K on 24-port models, 32K on 48-port models

Security

  • Integrated two-factor authentication for Dashboard management
  • Role-based access control (RBAC) with granular device and configuration control
  • Corporate wide password policy enforcement
  • IEEE 802.1X RADIUS, hybrid authentication and RADIUS server testing
  • MAC-based RADIUS authentication (MAB)
  • Port security: Sticky MAC, MAC whitelisting
  • DHCP snooping, detection and blocking
  • STP Enhancements: BPDU guard, Root guard
  • IPv4 ACLs

Power over Ethernet:

  • 802.3af (PoE) 15.4 W per port and 802.3at (PoE+) 30 W per port
  • Maximum PoE output (24P) : 370 W
  • PoE available on all ports simultaneously

Performance

  • Non-blocking switching fabric
  • Switching capacity : 128Gbps (24-port models), 176Gbps (48-port models)
  • Forwarding rate (mbps) : 95.24 (24-port models), 127.98 (48-port models)
  • Jumbo Frame Support (9578 byte Ethernet frame)
  • Flow control support

Layer 3

  • Static Routing (maximum of 16 static routes supported)
  • DHCP Relay

Power

  • Power input : 100 – 240 VAC, 47-63 Hz
  • Power consumption : 15 – 448 W
  • RPS interface : Requires RPS-2300 chassis, see Cisco RPS-2300 Datasheet for further information

Mounting

  • 1U Rack-mountable with included rack mount hardware
  • 2-post front mounting options available
  • Desktop-mountable with included feet

Environment

  • Operating temperature : 32°F to 104°F (0°C to 40°C)
  • Humidity : 5 to 95% non-condensing
  • MS225-24, MS225-48 feature fanless operation

Regulatory

  • CSA-US (US, Canada)
  • FCC (USA)
  • IC (Canada)
  • CE (Europe)
  • RCM (Australia/New Zealand)
  • RoHS

Warranty

  • Full lifetime hardware warranty with next-day advanced replacement included

MTBF at 25°C

  • MS225-24 : 590,165
  • MS225-24P : 391,648

Physical dimensions (H×W×D)

  • MS225-24 : 1.72 x 19.08 x 9.84”(4.38 x 48.46 x 25cm)
  • MS225-24P : 1.72 x 19.08 x 9.84”(4.38 x 48.46 x 25cm)

Physical Weight

  • MS225-24 : 6.03 lb (2.73 kg)
  • MS225-24P : 8.18 lb (3.71 kg)
