Meraki MR84 Dubai



Meraki MR84 Dubai

The MR84 provides a maximum 2.5 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/WIPS with automated RF optimization, and a fourth integrated radio delivers Bluetooth Low Energy (BLE) scanning and Beaconing.

Description

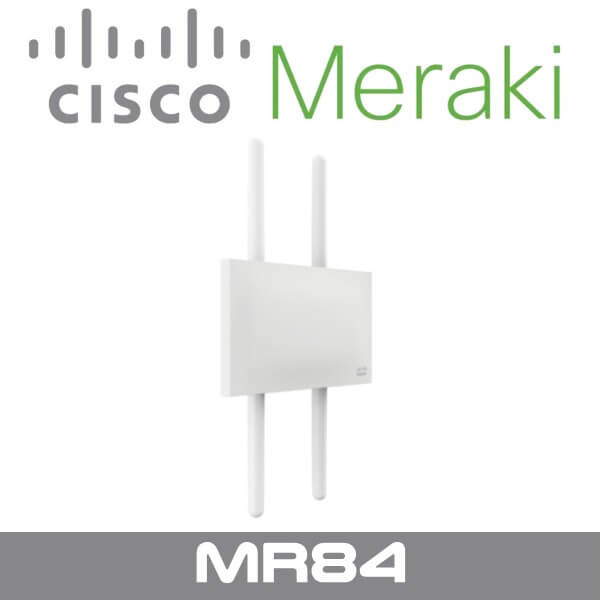

Meraki MR84 Access Point Dubai

The  Meraki MR84 Dubai is a four-radio, cloud-managed 4×4 MU-MIMO 802.11ac Wave 2 access point. Designed for high-performance next-generation deployments — in high-density environments with tough RF — the MR84 offers performance, enterprise- grade security, and simple cloud-based management. A unique industrial design enables flexible installation in harsh outdoor conditions or indoor spaces. The MR84 provides a maximum 2.5 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/WIPS with automated RF optimization, and a fourth integrated radio delivers Bluetooth Low Energy (BLE) scanning and Beaconing.

Key Features

  • Ideal for outdoor and industrial indoor environments
  • 2×2:2 802.11ac, 1.3 Gbps aggregate dual-band data rate
  • 24×7 real-time WIPS/WIDS and spectrum analytics via dedicated third radio
  • Integrated Bluetooth Low Energy (BLE) Beaconing and scanning radio
  • Forms point-to-point links with optional sector antennas
  • Self-healing, zero-configuration mesh
  • Integrated enterprise security and guest access
  • Application-aware traffic shaping
  • Self-configuring, plug-and-play deployment

Technical Specifications

Radios

  • 2.4 GHz 802.11b/g/n/ac client access radio
  • 5 GHz 802.11a/n/ac Wave 2 client access radio
  • 2.4 GHz & 5 GHz WIDS/WIPS, spectrum analysis, and location analytics radio
  • 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support
  • Concurrent operations of all four radios

Supported frequency bands (country-specific restrictions apply):

  • 2.412-2.484 GHz
  • 5.150-5.250 GHz (UNII-1)
  • 5.250-5.350 GHz (UNII-2)
  • 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
  • 5.725-5.825 GHz (UNII-3)

802.11ac Wave 2 and 802.11n Capabilities

  • 2 x 2 multiple input, multiple output (MIMO) with two spatial streams
  • SU-MIMO and MU-MIMO support
  • Maximal ratio combining (MRC) and beamforming
  • 20 and 40 MHz channels (802.11n); 20, 40, 80 channels (802.11ac)
  • Up to 256-QAM on both 2.4 GHz and 5 GHz bands
  • Packet aggregation

Power

  • Power over Ethernet : 37 – 57 V (802.3at required with functionality-restricted 802.3af mode supported)
  • Power consumption : 21W max (802.3at)
  • Power over Ethernet injector sold separately

Mounting

  • Mounts to walls and vertical poles
  • Mounting hardware included

Physical Security

  • Security screw included
  • Concealed mount plate

Environment

  • Operating temperature : -4 °F to 131 °F (-20 °C to 55 °C)
  • IP67 environmental rating
  • Operating humidity : 5% to 95%

Physical Dimensions

  • 28.6 cm x 17.6 cm x 18.5 cm including mounting bracket
  • Weight : 3.8 lbs. (1.7 kg)

Interfaces

  • 1x 100/1000/2.5G BASE-T Ethernet & 1x 10/100/1000 BASE-T Ethernet (RJ45)
  • Four external N-type female antenna connectors

Security

  • Integrated Layer 7 firewall with mobile device policy management
  • Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
  • Flexible guest access with device isolation
  • VLAN tagging (802.1Q) and tunneling with IPSec VPN
  • PCI compliance reporting
  • WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
  • EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
  • TKIP and AES encryption
  • Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration)
  • ISE integration for Guest access and BYOD Posturing

Quality of Service

  • Advanced Power Save (U-APSD)
  • WMM Access Categories with DSCP and 802.1p support
  • Layer 7 application traffic identification and shaping

Mobility

  • PMK, OKC, and 802.11r for fast Layer 2 roaming
  • Distributed or centralized Layer 3 roaming

Analytics

  • Embedded location analytics reporting and device tracking
  • Global L7 traffic analytics reporting per network, per device, & per application

Warranty

  • 1 year hardware warranty with advanced replacement included

Compliance

  • EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC

Ordering Information

  • MR84-HW Meraki MR84 Cloud Managed 802.11ac AP
  • MA-INJ-5-XX: Meraki 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU)
  • MA-ANT-20 Meraki Dual-Band Omni Antennas
  • MA-ANT-27 Meraki Dual-Band Sector Antenna
  • MA-ANT-25 Meraki Dual-Band Patch Antenna

Note: Meraki Enterprise license required. For AIR-ANT2513P4M-N= antenna, contact
directly.
