Meraki MG21E Dubai



Meraki MG21E Dubai

A router like the Meraki MG21E Dubai helps you connect multiple devices to the Internet, and connect the devices to each other. Also, you can use routers to create local networks of devices.

Description

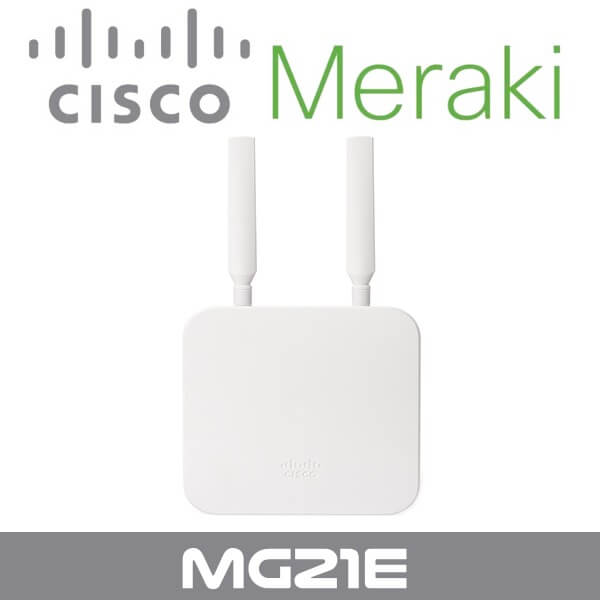

Meraki MG21E Cellular Router Dubai

The Cisco Meraki MG21E Dubai series is a cellular router, or a cellular gateway, as Meraki calls it. It converts an LTE (cellular) signal to an ethernet signal. It is managed centrally, from the web, together with all other Meraki products. And, like all other Meraki products, it is a pleasant pushover to set up and use. Meraki’s MG21 and MG21E routers are identical, except that the Cisco Meraki MG21E Dubai has external antennas.

A router like the Cisco Meraki MG21E Dubai helps you connect multiple devices to the Internet, and connect the devices to each other. Also, you can use routers to create local networks of devices. These local networks are useful if you want to share files among devices or allow employees to share software tools. So basically, a router sends traffic from one network to another.

Cisco Meraki MG21E Dubai  can be used for mainline or back-up connectivity. A basic home router can simply inter-connect the devices within your home or office and nothing else. For instance, if you want to print a photo from your smartphone to your home printer, all you have to do is connect the two devices to the router’s wireless hotspot.

Features :

Hardware

  • Sleek, low profile form factor
  • x1 CAT6 cellular modem – up to 300Mbps
  • x1 nano SIM card slot
  • x2 GbE ports
  • Multi-surface mounting bracket for attachment to walls, ceilings, or poles
  • x2 dipole antennas included (high gain patch antenna available separately)
  • IP67 rated for environments of all types

Power

  • DC or PoE

Use cases

  • Primary cellular connectivity
  • Failover cellular connectivity

Cloud-based centralized management

  • Managed centrally over the web
  • Zero-touch, self-provisioning deployments
  • Remote troubleshooting tools
  • Secure, user-scheduled firmware updates
  • Remote visibility of key cellular information: IMEI, ICCID, APN, RSRP, RSRQ

Cloud APIs

  • All MG configuration settings executable via APIs

MG21E-Technical Specs

Performance

  • 300 Mbps CAT 6 LTE integrated modem

Interfaces

  • 1 * PoE IN
  • LAN interfaces: 1 x GbE
  • 1 x CAT 6 LTE modem for cellular connectivity

Monitoring and Reporting

  • Throughput, connectivity monitoring
  • Org-level change logs for compliance and change management

Environmental Specifications

  • Power : 12V/1A, 48-57V DC/0.35A
  • Power Load 10 Watt Maximum (PoE 802.3AF)
  • Operating temperature : 4°F to 113°F (-20°C to 45°C)
  • Humidity : 5 to 95% non-condensing
  • IP67 environmental rating
  • Desktop or wall mount or ceiling mount(all standard mounting hardware included)

Remote Diagnostics

  • Live remote packet capture
  • Real-time diagnostic and troubleshooting tools

Management

  • Managed via the web using the Meraki Cloud Controller
  • Single pane of glass management of wired and wireless networks
  • Zero-touch remote deployment (no staging needed)
  • Automatic firmware upgrades and security patches
  • Centralized policy management
  • Org-level two-factor authentication and single sign-on
  • Role based administration with change logging and alerts

Integrated Cellular

  • LTE bands : (North America) 2,4,5,12,13,17,29. (Worldwide*) 1,3,5,7,8,18,19,20,26,28
  • 300 Mbps CAT 6 LTE
  • Additional regulatory information : PTCRB (US), RCM (ANZ, APAC), GCF (EU)

Supported UICC/SIM

  • 1 * external SIM card

Regulatory

  • FCC (US)
  • CB (IEC)
  • CISPR (Australia/New Zealand)
  • PTCRB (North America)
  • RCM (Australia/New Zealand, Asia Pacific)
  • GCF (EU)

Warranty

  • Full lifetime hardware warranty with next-day advanced replacement included.

Physical

  • Dimensions (without antennas) (w x d x h) : 165.7 x 160.45 x 34.45mm
  • Weight (without accessories or antennas) : 489g
