Meraki switches are managed through an elegant, intuitive cloud interface, rather than through command line. To set up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch.

Description

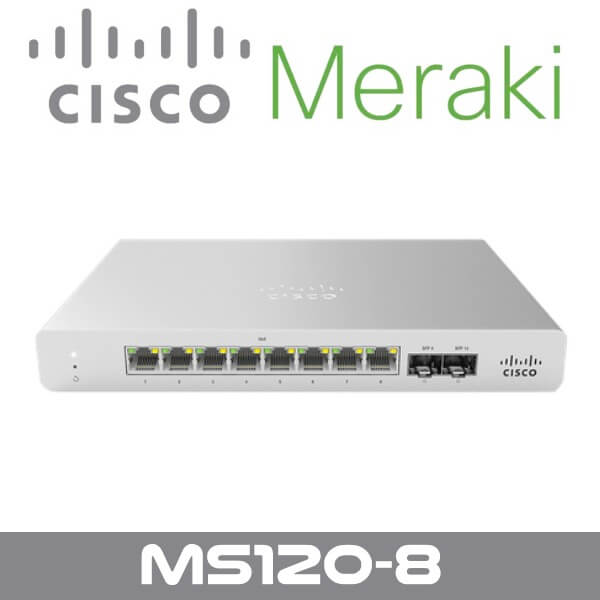

Meraki MS120-8 Network Switch Dubai

The Meraki MS120-8 Dubai compact switches provide Layer 2 access switching in a fanless, compact form factor. All models include 1GbE SFP ports for fiber uplink, integrated mounting brackets, and a Kensington security slot, making them ideal for rapid and secure deployment to branch location.

Meraki MS120-8 Dubai is built from the ground-up to be easily managed without compromising any of the power and flexibility traditionally found in enterprise-class switches.

Meraki switches are managed through an elegant, intuitive cloud interface, rather than through command line. To set up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch.

Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. For example, you can quickly see which switches are near capacity across hundreds of sites, or find all configuration changes made by a member of the team with instant search.

Meraki MS120-8 Features:

Industry-Leading Cloud Management

Cloud management has a number of benefits that make it easier to build networks large and small:

  • True zero-touch device provisioning
  • Virtual Stacking: manage up to thousands of ports from a single pane of glass
  • Application-layer visibility with automatic operating system, client, and hostname fingerprinting
  • Powerful live tools such as packet capture and cable test to isolate and troubleshoot network issues
  • Alerts to indicate power loss, downtime, excessive Layer 1 issues, and configuration changes
  • Role-based administration and automatic, scheduled firmware upgrades over the web
  • Regular feature updates and enhancements delivered on demand from the Meraki cloud

Product Highlights

  • Gigabit Access switching with 8 x 1GbE RJ45 ports and optional PoE/PoE+
  • 2 x 1G SFP uplink interfaces on all models
  • Fanless operation
  • 20Gbps non-blocking compact switch
  • 67/124 watt PoE budget with PoE+ support and dynamic power allocation for powering access points, phones, cameras, and other PoE-enabled devices
  • 8 dedicated QoS queues for converged voice, video, and data applications
  • Integrated mounting brackets for wall or desk mounting, with included Kensington security slot
  • Lifetime hardware warranty and advanced replacement at no additional cost

Specifications

MS120-8 HW Specification

Interfaces
  • 8 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover)
  • 2 x 1GbE SFP uplink
Switching capacity
  • 20 Gbps
Forwarding rate
  • 14.88mpps with standard packet size
Idle / Full Load Power
  • 5 / 9 W
Power Supply Configuration
  • External Power Supply
Power Supply/Model Number
  • DC 12V/2.5A,30W
  • MA-PWR-30WAC
What’s included
  • 1 x Mounting screw kit and anchor
  • 1 x External Power Supply
Dimensions
  • 1.1 x 8.74 x 5.91” (2.8 x 22.2 x 15cm)
Weight
  • 2.36 lb (1.07 kg)
Management
  • Managed via the Web with the Meraki cloud management platform
  • Integrated with Meraki Wireless and complete portfolio of IT products and solutions
  • Zero-touch remote provisioning (no staging needed)
  • Detailed historical per-port and per-client usage statistics
  • DHCP, client, and hostname fingerprinting
  • SNMP and SYSLOG support for integration with other network management solutions
  • Automatic firmware upgrades with scheduling control
Layer 3
  • DHCP Relay
Remote Diagnostics
  • Email, SMS and Mobile push notification alerts
  • Cable testing and link failure detection with alerting
  • Live remote packet capture
  • Dynamic and interactive network discovery and topology
  • Combined event and configuration change logs with instant search
Stacking
  • Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Power
  • Power input : 100 – 240 VAC, 47-63 Hz
  • Power consumption : 5 – 161W
Mounting
  • Wall or utility board mountable with included mount hardware
  • Desktop-mountable with included feet
  • Kensington lock slot included
Ethernet Switching Capabilities
  • 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
  • 802.1Q VLAN and trunking support for up to 4,094 VLANs
  • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
  • Broadcast storm control
  • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
  • 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
  • Port mirroring
  • IGMP snooping for multicast filtering
  • MAC forwarding entries : 16K
Environment
  • Operating temperature : 0°C to 45°C
  • Humidity : 5 to 95% non-condensing
  • Fanless operation
Regulatory
  • CSA-US (US, Canada)
  • FCC (USA)
  • IC (Canada)
  • CE (Europe)
  • RCM (Australia/New Zealand)
  • RoHS
Security
  • Integrated two-factor authentication for Dashboard management
  • Role-based access control (RBAC) with granular device and configuration control
  • Corporate wide password policy enforcement
  • IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing
  • Multi-Domain/Multi-Host/Multi Authentication
  • Port security : Sticky MAC, MAC whitelisting
  • DHCP snooping, detection and blocking, Dynamic ARP Inspection
  • STP Enhancements : BPDU guard, Root guard, Loop guard
  • IPv4 and IPv6 ACLs
MTBF Ratings 784,221
