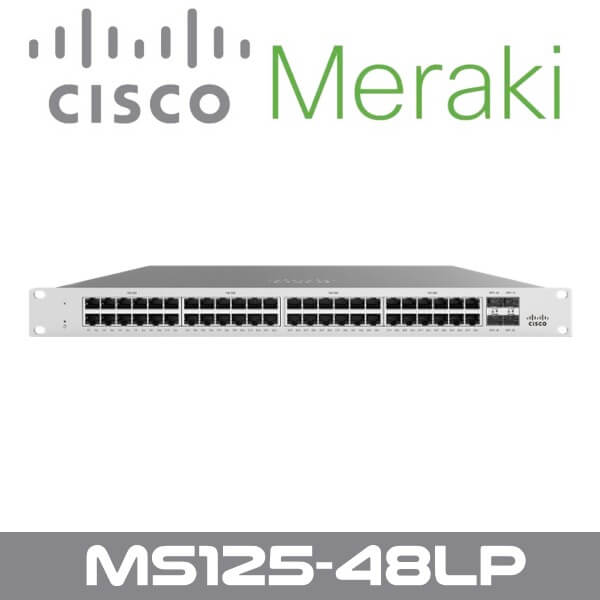

Meraki MS125-48LP Dubai



Meraki MS125-48LP Dubai

Meraki MS125-48LP Dubai is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch.

Description

Meraki MS125-48LP Network Switch Dubai

Meraki MS125-48LP Dubai is built from the ground up for cloud management without compromising any of the power and flexibility traditionally found in enterprise-class switches.

Meraki MS125-48LP Dubai is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch.

Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.

Meraki MS125-48LP Dubai provides Layer 3 access switching ideal for branch and campus deployments. The MS125 series features a variety of power options designed to meet the diverse needs of large enterprise networks.

Features:

Converged Voice, Video and Data Environments

The Meraki MS125-48LP Dubai is designed to unify data, voice, and video onto a single IP backbone. All Meraki switches support rich qualityof-service (QoS) functionality for prioritizing data, voice, and video traffic. The switches support eight class-of-service (CoS) queues on every port, enabling them to maintain end-to-end traffic prioritization.

PoE models provide power VoIP telephones, IP security cameras, wireless access points (APs), and other IP devices. In addition, using CDP and LLDP, PoE power is intelligently budgeted to maximize the number of PoE clients supported. For the most power-hungry applications, support for Cisco UPoE is also available. The Meraki MC products work flawlessly with Meraki switches, and create a unique and powerful experience to installing, supporting and troubleshooting VoIP technology

Application Layer Visibility

Meraki MS125-48LP Dubai is the only switch to include integrated Layer 7 fingerprinting. Identify hundreds of applications from business apps to BitTorrent and YouTube. User fingerprinting with Google-like search allows administrators to easily identify and control individual users, PCs, iMacs, iPads, Androids, and other devices. This unprecedented visibility allows optimizing of network resources and maintaining optimal network performance.

Unified Software Architecture

Meraki switches run the same Meraki operating system used by all of Meraki’s products. The use of a common operating system allows Meraki to deliver a consistent experience across all product lines. When connected, Meraki MS125-48LP Dubai switches automatically connect to the Meraki cloud, download configuration, and join the appropriate network. If new firmware is required, this is retrieved by the switch and updated automatically. This ensures the network is kept up-to-date with bug fixes, security updates, and new features.

Technical Specs:

MS125-48 MS125-48LP MS125-48FP
Interface
  • 48 × 10/100/1000BASE-T Ethernet (RJ45)
  • 4 × 10G SFP+ ports for uplinks
  • Auto-negotiation and crossover detection
Management
  • Managed via the Web with the Meraki cloud management platform
  • Integrated with Meraki wireless and complete portfolio of IT products and solutions
  • Zero-touch remote provisioning (no staging needed)
  • Detailed historical per-port and per-client usage statistics
  • Operating system, device, and hostname fingerprinting
  • SNMP and SYSLOG support for integration with other network management solutions
  • Automatic firmware upgrades with scheduling control
Remote diagnostics
  • Email, SMS, and Mobile push notification alerts
  • Ping, traceroute, cable testing, and link failure detection with alerting
  • Remote packet capture
  • Dynamic and interactive network discovery and topology
  • Combined event and configuration change logs with instant search
Stacking
  • Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Ethernet switching capabilities
  • 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping)
  • 802.1Q VLAN and trunking support for up to 4,094 VLANs
  • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP)
  • STP Enhancements: BPDU guard, Root guard, Loop guard, UDLD
  • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP)
  • 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches
  • Port mirroring
  • IGMP snooping for multicast filtering
  • MAC forwarding entries : 32K
Security
  • Integrated multi-factor authentication for cloud management platform
  • Role-based access control (RBAC) with granular device and configuration control
  • Corporate-wide password policy enforcement
  • IEEE 802.1X RADIUS and MAB, hybrid authentication, and RADIUS server testing
  • Single-Host/Multi-Domain/Multi-Host/Multi Authentication
  • Port security : Sticky MAC, MAC whitelisting
  • DHCP snooping, detection and blocking
  • IPv4 and IPv6 ACLs
Performance
  • Switching capacity : 176 Gbps
  • Forwarding rate : 130.95 mpps
  • Jumbo frame support (9578 byte Ethernet frame)
  • Flow control
Layer 3
  • DHCP Relay
Power
  • Power input : 100 – 240 V~, 50-60 Hz
  • 21.7-42W max, fanless
  • Power input: 100 – 240 V~, 50-60 Hz
  • 40.2-439.8 W
  • Power input: 100 – 240 V~, 50-60 Hz
  • 52-845.4 W
Mounting
  • 1U Rack-mountable with included rack mount hardware
  • 2-post front mounting options available
Environment
  • Operating temperature : 0°C to 45°C
    0°C – 40°C at sea level
    0°C – 35°C at 10,000 feet for MS125-48 when using MA-SFP-10GB-ER
  • Humidity : 5 to 95% RH
Regulatory
  • CSA-US (US, Canada)
  • FCC (USA)
  • IC (Canada)
  • CE (Europe)
  • RCM (Australia/New Zealand)
  • RoHS
Warranty
  • Full lifetime hardware warranty with next-day advanced replacement included
