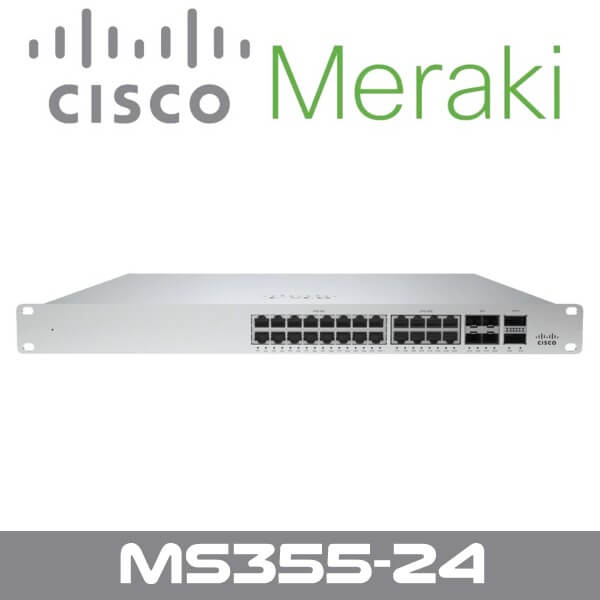

Meraki MS355-24 Dubai



Meraki MS355-24 Dubai

The Meraki MS355-24 Dubai supports 40G or 10G uplinks, physical stacking, up to 60W of port power with UPoE, and field-replaceable power supplies/fans.

Description

Meraki MS355-24 Network Switch Dubai

The Meraki MS355-24 Dubai is one of the Cisco Meraki MS355 series that provides full 10G multi-gigabit (mGig) access switching for demanding enterprise and campus environments. The switch series features a high mGig port density for 802.11ax wireless access points, servers, and workstations. The Meraki MS355-24 Dubai supports 40G or 10G uplinks, physical stacking, up to 60W of port power with UPoE, and field-replaceable power supplies/fans. All Meraki switches are managed through an elegant, intuitive cloud-based interface, rather than a cryptic command line. To bring up a Meraki switch, simply plug it in. Meraki switches do not require CLI for switch configuration or port management.

Features:

INDUSTRY LEADING CLOUD MANAGEMENT

Cloud management has many benefits that make it easier to build networks large and small:

  • Automatic email alerts from power loss, downtime, excessive Layer 1 errors, or configuration changes
  • Powerful remote diagnostic tools such as packet capture to help isolate and troubleshoot network issues
  • Role-based administration
  • Firmware upgrades and enhancements from the Meraki cloud
  • Virtual Stacking enables switch port configuration changes on the dashboard interface without the need to physically stack switches
  • Incredible network transparency with application, operating system, client, and hostname visibility
  • Zero-touch provisioning for rapid deployment across sites
  • Flow control
  • Auto-negotiation
  • ARP support
  • VLAN support
  • Syslog support
  • Port mirroring
  • E-mail alert
  • Broadcast Storm Control
  • Spanning Tree Protocol (STP) support
  • Rapid Spanning Tree Protocol (RSTP) support
  • DHCP server
  • SMS alert
  • Dynamic ARP Inspection (DAI)
  • Uni-Directional Link Detection (UDLD)
  • LLDP support
  • DHCP relay
  • Static routing
  • Crossover detection
  • Bridge protocol data unit (BPDU)
  • Role-Based Access Control (RBAC)
  • Push notification
  • Root Guard
  • Loop Guard

Technical Specs

  • Device Type : Switch – 24 ports – L3 – managed – stackable
  • Enclosure Type : Desktop, rack-mountable 1U
  • Subtype : Gigabit Ethernet
  • Ports : 8 x 1/2.5/5/10GBase-T + 16 x 10/100/1000 + 4 x 10 Gigabit SFP+ + 2
  • Switching Capacity : 544 Gbps
  • Stacking Bandwidth : 400 Gbps
  • Capacity : Tagged VLANs: 4096
  • MAC Address Table Size : 512K entries
  • Jumbo Frame Support : 9600 bytes
  • Max Units In A Stack: 8
  • Routing Protocol : IGMP, VRRP, OSPFv2, static IP routing
  • Remote Management Protocol : SNMP
  • Authentication Method : RADIUS
  • Compliant Standards : IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at

WHAT’S INCLUDED

  • Cisco Meraki MS355-L3 Stackable Cloud Managed 24 Port Switch MS355-24X-HW
  • 1 x Power Supply (MA-PWR-1025WAC)
  • 4-Post Rack Mount Kit
  • 3 x Pre-Installed Fans
