Grandstream GSC3506 Dubai



Grandstream GSC3506 Dubai

The Grandstream GSC3506 Dubai has been designed to enable schools, offices, apartments, and hospitals set up powerful public address announcement solutions that expand security and communication.

Description

Grandstream GSC3506 SIP Speaker Dubai

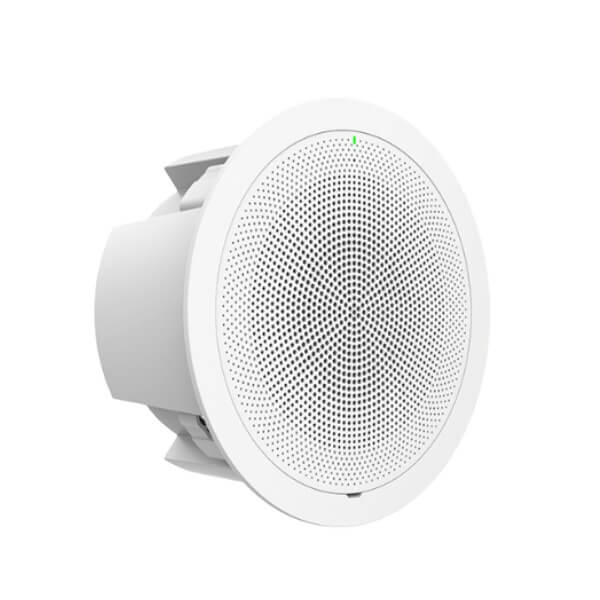

The Grandstream GSC3506 Dubai has been designed to enable schools, offices, apartments, and hospitals set up powerful public address announcement solutions that expand security and communication. It is a 1-way public address SIP speaker that offers crystal clear HD audio functionality with a high-fidelity 30-Watt HD speaker. The GSC3506 support built-in whitelists ,blacklists and greylists to easily block unwanted calls, SIP and multicast paging, group paging and PTT. users can easily sculpt a state-of-the-art security and PA announcement solution. Thanks to its modern industrial design and rich features, the GSC3506 is the ideal SIP speaker for any setting.

Features

  • Up to 16 SIP accounts.
  • Ethernet RJ45 10/100Mbps, PoE/PoE+, Integrated Bluetooth, Wi-Fi.
  • 1-way public address SIP speaker with crystal clear
    HD audio functionality with a high-fidelity 30-Watt HD speaker.
  • 2-Pin port enabling Alarm configuration
  • USB Plug support

Technical Standards

  • Protocols/Standards : SIP RFC3261, TCP/IP/UDP, RTP/RTCP, RTCP-XR,HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, SIMPLE, LDAP,TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN
  • Network Interfaces :  One 10/100 Mbps port with integrated PoE/PoE+

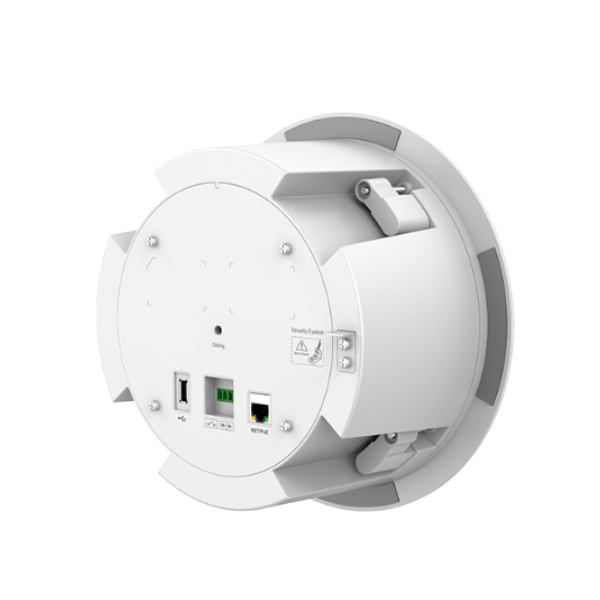

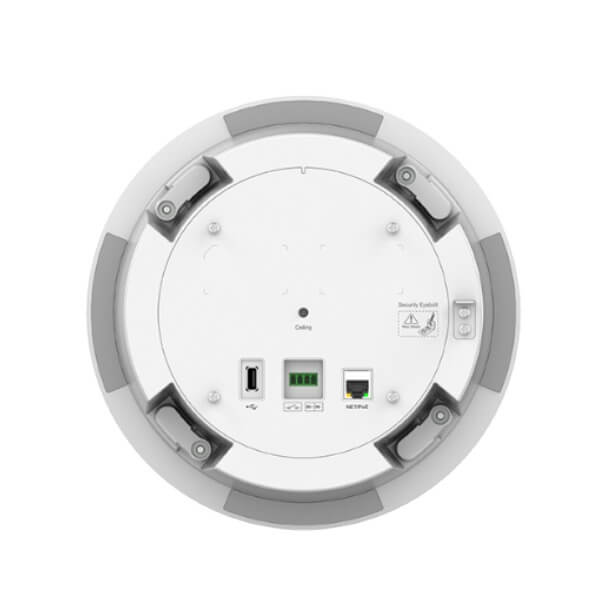

  • Auxiliary Port :  One 2-pin switch-in input port, one Alarm-in input port, vol+/- Key, reset, one
    network port
  • USB Port :  USB2.0, External USB Storage
  • Voice Codecs and Capabilities : G.711µ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.723, G.729A/B, in-band and out-of band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, PLC, AJB, AGC, ANS
  • Telephony Features :  SIP Paging, Multicast Paging,Group Paging, PTT, call-waiting with priority override
  • HD Audio :  Yes, HD speaker with support for full-band audio

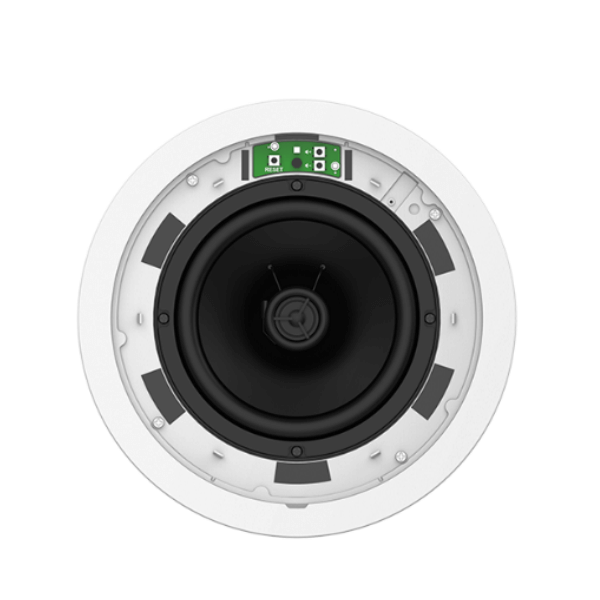

  • Speaker : 30W high-fidelity HD speaker(coaxial)
  • Frequency : 110Hz-20000 Hz
  • Sensitivity: Up to 95 dBA at 1W power at 1 meter
  • QoS  : Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
  • Security : User and administrator level passwords, MD5 and MD5-sess based authentication,256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control, secure boot
  • Multi-language :  English, German, French, Spanish, Portuguese, Russian & Chinese
  • Upgrade/Provisioning :  Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using GDMS/TR069 or AES encrypted XML configuration file
  • Power & Green Energy Efficiency :  Integrated PoE* 802.3af Class 3, PoE+ 802.3at Class 4
  • Temperature and Humidity Operation : 0°C to 45°C Storage: -10°C to 60°C,
  • Humidity : 10% to 90% Non-condensing
  • Package Content :  GSC3506, Mounting hole cut-Out template, Ceiling mount kit(optional), Quick installation guide
  • Physical Unit Dimensions : 257.5mm (diameter) x 118mm (depth)
  • Unit Weight : 2.09kg , Box Weight: 2.76kg
  • Compliance :
    • FCC: FCC 47 CFR Part 15 Subpart B
    • IC: ICES-003
    • CE: EN 55032:EN 55035; EN IEC 61000-3-2: EN 61000-3-3; EN IEC 62368-1.
    • UKCA: BS EN 55032;BS EN 55035;BS EN IEC 61000-3-2;BS EN 61000-3-3;BS EN IEC
      62368-1.
    • RCM: AS/NZS CISPR 32:AS/NZS 62368.1
