Grandstream GWN7602 Dubai

Grandstream GWN7602 Wifi Access Point

Grandstream GWN7602 is a compact Wi-Fi access point designed for small businesses with  2×2 802.11ac. It has an integrated Ethernet switch that supports a 100-meter wireless coverage range and up to 80 concurrent Wi-Fi clients. It provides three 100Mb ports to provide IP phones, IPTV, computers, and similar devices with ethernet while also providing an uplink Gigabit network port with PoE/PoE+. The GWN7602 offers dual-band 2×2:2 MIMO technology and sophisticated antenna design.

Description

Grandstream GWN7602 in Detail

Grandstream GWN7602 Wi-Fi AP provides dual-band 2×2:2 MIMO technology and a sophisticated antenna design that supports up to 80 Wi-Fi clients and a 100-meter coverage range. It includes support for advanced QoS, low-latency real-time applications, mesh networks, and captive portals. The GWN7602 small businesses, homes, offices, and hotels and offer three inbuilt 100Mb ports to provide VoIP phones, IPTV, Desktop/ Laptop Computers, and similar devices. Moreover, it also offers an uplink Gigabit network port with PoE/PoE+ and PSE.

Grandstream Gwn7602 Access Point

Grandstream Gwn7602 Access Point

The Grandstream GWN7602 Support 4 SSID per radio and 2 dual-band internal antennas. To ensure easy installation and management, the GWN7602 is supported by GWN.Cloud. GWN.Cloud offers a free cloud management platform for unlimited GWN APs. The GWN manager (coming soon) offers a premise-based software controller for up to 3,000 GWN APs.

GWN7602 Wireless Access Points can be deployed in a network environment as standalone using only one GWN76xx to provide wireless network access or in Master/Slave architecture using multiple GWN760x units to extend wireless network access range.[ GWN7610 as Master and up to 30 when using GWN7600 as Master] Grandstream GWN7602 Mesh networking mode can be abstracted into the following three modes: chain mode, star mode, and hierarchical star mode. Each mode has its advantage and specifications about the environment where it is more preferable than the other modes while taking into consideration more parameters such as radio conditions, capacity and bandwidth utilization.

Grandstream Gwn7602 Wireless Ap

Grandstream Gwn7602 Wireless Ap

Grandstream GWN7602 Quick Specs:

  • Wi-Fi: 802.11ac
  • Wireless Range: up to 100m (328ft)
  • 1.17 Gbps aggregate wireless throughput
  • SSIDs: up to 4 per radio
  • Concurrent Clients: up to 80

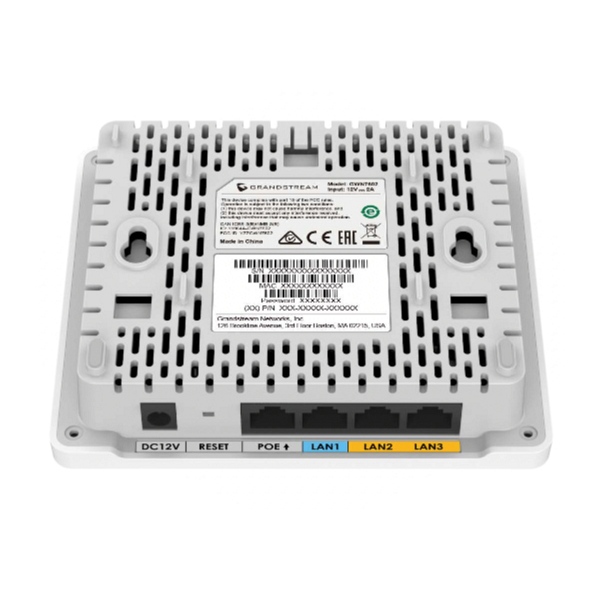

  • Ethernet Ports:
    • 1x Gigabit, PoE in
    • 2x 10/100, PoE out
    • 1x 10/100
  • PoE: 802.3af/at
  • Self power adaptation upon auto-detection of PoE/PoE+ & PSE
  • Supports up to 80 concurrent Wi-Fi client devices
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot & critical data/control lockdown via digital signatures
  • Anti-hacking secure boot & critical data/control lockdown via digital signatures
  • GWN.Cloud for a free cloud management platform
  • Operating Temperature: 32°F to 104°F

Grandstream GWN7602 Wi-Fi Access Point Package Contents:

    • Grandstream GWN7602 Access Point
    • Quick Start Guide
