Grandstream GWN7701M Dubai



Grandstream GWN7701M Dubai

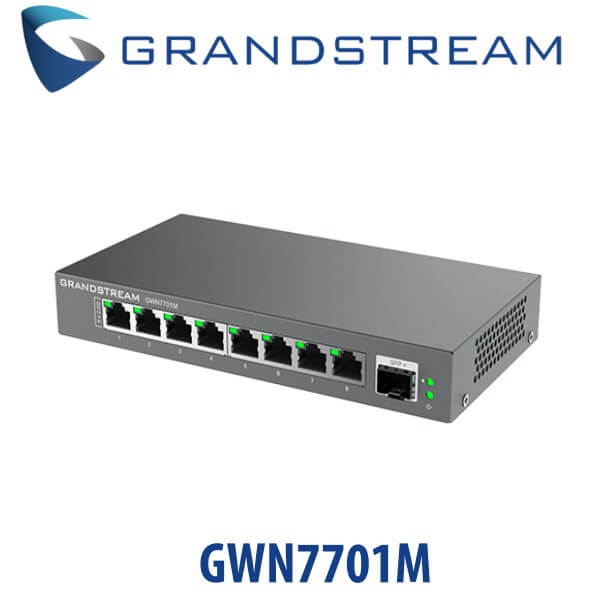

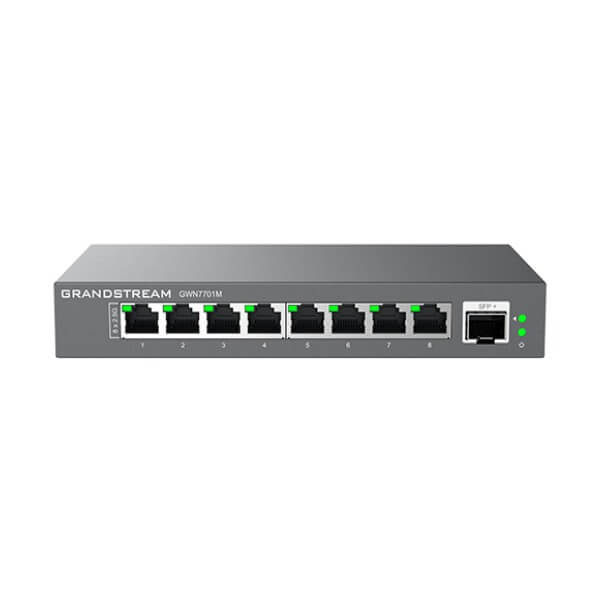

The Grandstream GWN7701M Dubai is an easy-to-use network switch that offers fast network connections with speeds up to 2.5 Gbps.

Description

Grandstream GWN7701M Network Switch Dubai

The Grandstream GWN7701M Dubai is an easy-to-use network switch that offers fast network connections with speeds up to 2.5 Gbps. Designed for home offices and small businesses, these switches contain 6 or 9 ports and support Ethernet, 1 GbE and 2.5 GbE speeds. In addition, it is equipped with 1GbE SFP fiber optic connectors for high-speed 1Gb or 10Gb upstream communications. The GWN7700M and GWN77001M adapters are plug-and-play adapters, requiring no configuration or installation. It can be mounted on the table or on the wall and automatically adjust MDI/MDIX without wires. The Grandstream GWN7701M Dubai switch features auto-negotiation on each port, which intelligently detects the speed (100/1000/2500 Mbps) of the connected network device and optimizes performance for maximum compatibility. The Grandstream GWN7701M Dubai plug-and-play switches are ideal for home offices and small businesses that require high-speed multi-gigabit connectivity.

Grandstream GWN7701M Features

  • 5 and 8 Multi-Gigabit Copper Ports provide 100/1000/2500Mbps connectivity
  • One SFP+ Fiber Port with 1 Gigabit or 10-Gigabit connectivity
  • LED Indicators; Per port : Link/Activity/Speed Per device : Power
  • Auto MDI/MDIX crossover for all ports
  • Whisper Quiet : fanless
  • Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
  • Green technology reduces power consumption
  • QoS – Supports Default Strict Priority when present

Additional Information

Weight 1.7 lbs
Dimensions 11.81 × 5.12 × 2.1 in
Brand Grandstream
Product Family GWN-Cloud
Switch Type Unmanaged Switches
Number of Ports 5-10
Main Port Speed 2.5G
Uplink Ports 10G SFP+
Layer Support L2
PoE Support No
Redundant Power Supply No

Technical Specifications

GENERAL INFO :

  • Model : GWN7701M
  • Box Contents :
    • 1x GWN7701M Switch
    • 1x Power Adapter
    • 1x QIG
  • Enclosure : Metal
  • Mounting : Desktop/ Wall-Mount
  • Power Adapter : External 12V/1A
  • Max Power Consumption by Base System : 9. 7W
  • LED Indicators :
    • Per port : Link/Activity Green
    • Per device : Power Green
  • Compliance : FCC, CE, RCM, IC, UKCA

PORTS :

  • Gigabit Ports : 8
  • Port Features :
    • 8× 100/1000/2500Mbps RJ45 Ports
    • 1× SFP+ Fiber Port
    • AUTO Negotiation
    • AUTO MDI/MDIX

NETWORK :

  • Network Media :
    • 2.5GBase-T / 1000Base-T / 100Base-TX/10Base-Te (Half-Duplex only supported in 10/100M mode on port 4-8)
  • Mac Address Table : 4K
  • Switching Capacity : 60Gbps
  • Jumbo Frame : 9KB
  • Advanced Features :
    • Mac Address Auto-Learning And Auto-Aging
    • IEEE 802.3x Flow Control
    • IEEE 802.3az (Energy Efficient Ethernet)
    • 802.1p/DSCP QoS
    • IGMP :
      • IGMP Fast-Leave
      • IGMP Snoop
      • Route Port Autolearn
      • Query Refresh Member Port
