Grandstream GCC6010W Dubai


Grandstream GCC6010W Dubai

The Grandstream GCC6010W Dubai offers a remarkable all-in-one solution that transforms the communications experience by integrating your unified communications and networking solutions into a single platform.


Grandstream GCC6010W All-in-One Solution Dubai

The Grandstream GCC6010W Dubai offers a remarkable all-in-one solution that transforms the communications experience by integrating your unified communications and networking solutions into a single platform. These advanced devices combine the functionality of four products into one comprehensive solution, encompassing a VPN router, next-generation firewall, IP PBX, and either a network switch or Wi-Fi access point. With the GCC Series, you can effortlessly create and manage wired, wireless, and VPN networks, ensuring enterprise-grade network security and utilizing a cutting-edge communication and collaboration platform.

These versatile devices enable unified management and centralized control of all Grandstream endpoint solutions, including Wi-Fi access points, network switches, IP phones, and more. The Grandstream GCC6010W Dubai allows for complete UC, networking, and security solutions to be configured within minutes. Management is streamlined through the cloud using the Grandstream Device Management System (GDMS) and can also be handled via the mobile app, local web UI, and CLI console management.

Perfectly suited for small to medium-sized businesses, the Grandstream GCC6010W Dubai delivers an all-in-one platform that consolidates all business data, security, communication, and collaboration needs into a single device. This integration simplifies the process and makes it more affordable than ever to establish state-of-the-art communication solutions. By merging multiple functionalities into one device, businesses can enjoy a more seamless and efficient operation, ensuring they stay ahead in today’s fast-paced technological landscape.

Features and Benefits

VPN Router

Secure Multi-WAN and Networking

  • Dynamic routing and Multi-WAN capabilities
  • NAT, VLAN, performance-based WAN link selection and monitoring
  • Load balancing, WAN link failover
  • Hardware and firewall acceleration
  • DHCP server, DNS server, IGMP proxy, TURN server
  • IPv4/IPv6 support


  • Filter by source destination, protocol, and port
  • Stateful packet inspection
  • DoS attack protection (UDP/ICMP/SYN flood)
  • Enhanced spoofing defense

Wi-Fi Access Point

  • Up to 500+ concurrent Wi-Fi client devices
  • Dual-band (2.4 GHz and 5 GHz)
  • 802.11 a/b/g/n/ac/ax wireless standards
  • Wireless intrusion detection and prevention
  • Virtual access point
  • Captive portals


  • Supports 12 users and 4 concurrent calls by default, upgrades available for purchase that provide expansion
  • Rich PBX services, including Call Forwarding, Transfer,Parking, Intercom/Paging, IVR, Emergency Calls, etc
  • Built-in audio and video conferencing platform, supports Wave Desktop/Web/Android/iOS
  • Fast provisioning of Grandstream SIP endpoints
  • Supports multiple audio and video encodings, such as Opus, G.711 A-law/U-law, G.722, G722.1 G722.1C, G.723.15.3K/6.3K, G.726-32, G.729A/B, iLBC, GSM; T.38 , H.264, H.263, H263+, VP8
  • Full API available for third-party platform and application integration
  • Supports Property Management Systems (PMS), call centers, CRM integration, and more.


Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax
  • 3 individual internal antennas ( 2 x dual band + 1 x single band 5G)
  • 2.4GHz: maximum gain 4dBi
  • 5 GHz: maximum gain 6dBi
Channel Bandwidth
  • 2.4G: 20 and 40 MHz
  • 5G: 20, 40, 80, 160 MHz
Wi-Fi and System Security WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control
lockdown via digital signatures, unique security certificate and random default password per devic

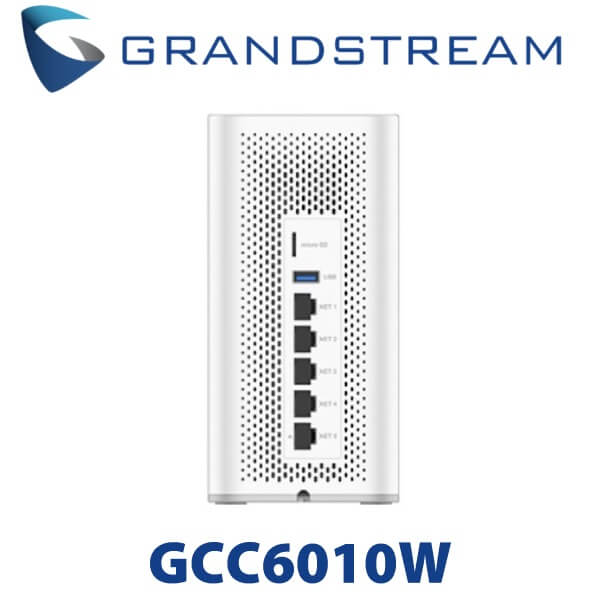

Network Ports 5x Gigabit Ethernet ports
*All ports are WAN/LAN configurable, max 3x WAN
Network Protocols IPv4, IPv6, IEEE802.1q, IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab
  • DDNS, Port Forwarding, DMZ, UPnP, DoS & Spoofing defense, traffic rules, NAT, ALG
  • DPI, Anti-Virus, IPS/IDS, SSL proxy
  • Content Control: DNS filtering, web url/class/key words filtering, application identification and control
  • IPsec VPN Client-to-Site / Site-to-Site
  • IPSec Encryption: 3DES, AES
  • IPSec Authentication: MD5, SHA-1, SHA2-256
  • IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14
  • IPSec Protocols: ESP
  • IPSec NAT Traversal
  • PPTP VPN Server / Client
  • PPTP Encrpytion: MPPE 40-bit, 128-bit
  • PPTP/L2TP Authentication: MS-CHAPv1/2
  • L2TP Client-to-Site
  • OpenVPN® Server / Client
  • OpenVPN® Encryption: AES, DES
  • OpenVPN® Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512
  • OpenVPN® Certificate: RSA
  • WireGuard®
  • Unit Dimension: 95 x 95 x 193 mm
  • Unit Weight: 565g
  • Entire Package Dimension: 186 x 127 x 105 mm
  • Entire Package Weight: 920g
Package Content GCC6010W, Universal Power Supply, Network Cable, Quick Installation Guide
