Description

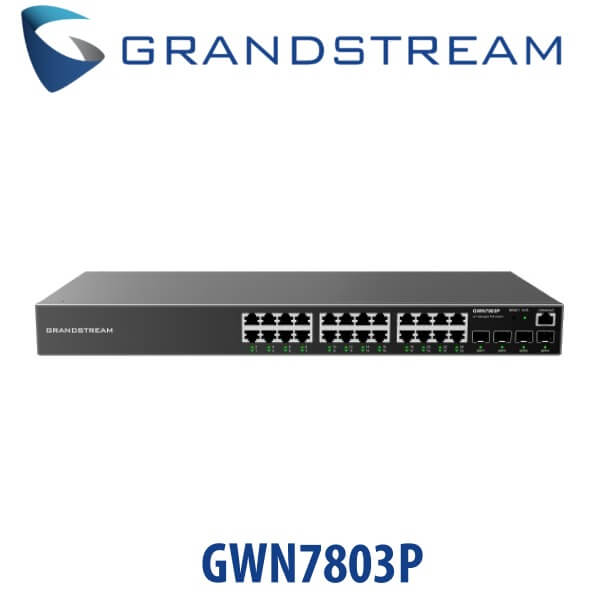

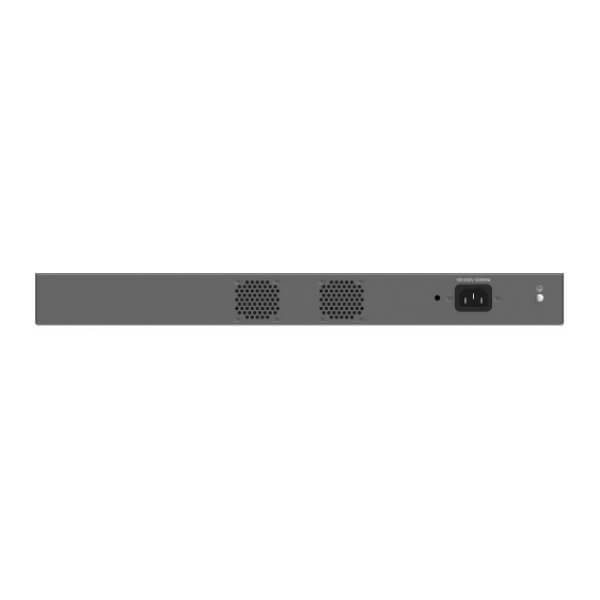

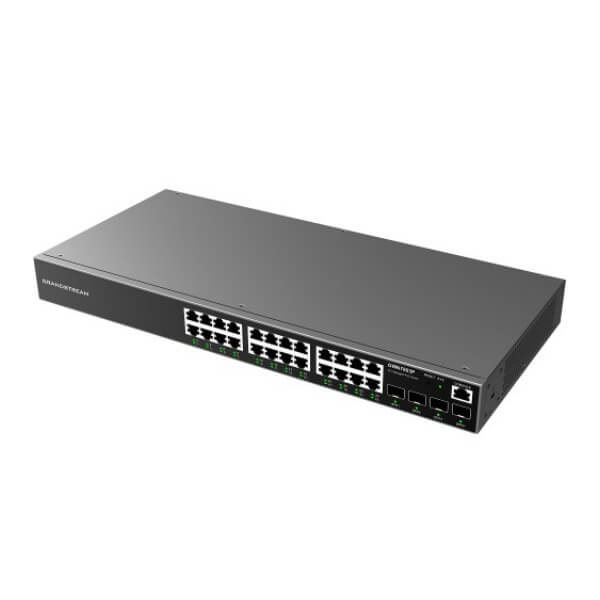

Grandstream GWN7803P Network Switch Dubai

The Grandstream GWN7803P Dubai is a managed network switch with Power over Ethernet (PoE) capabilities. It belongs to the GWN7800 series of managed network switches, which are designed for small and medium-sized businesses. These switches allow businesses to create efficient, secure, and scalable networks that can be fully managed. The Grandstream GWN7803P Dubai offers advanced features for flexible traffic segmentation, such as Virtual LAN (VLAN) capabilities. It also has advanced Quality of Service (QoS) features that prioritize network traffic, ensuring optimal performance. Additionally, the switch has IGMP Snooping, which helps optimize network performance, and comprehensive security features to safeguard against potential attacks. One of the key advantages of the GWN7803P is its ability to provide power to PoE devices, such as IP phones, IP cameras, and Wi-Fi access points. This ensures that these devices can operate without the need for separate power sources. The GWN7800 series can be managed in various ways, including using the local network controller on the switch’s network interface. Moreover, the Grandstream GWN7803P Dubai supports GWN Cloud and GWN Manager, which are Grandstream’s cloud and local Wi-Fi management platforms respectively.

Features

• 24 Gigabit Ethernet ports
• 4 Gigabit SFP ports
• 24 PoE ports
• Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
• Supports deployment in IPv6 and IPv4 networks
• Provides quaternary binding of  IP, MAC, VLAN & port;
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Device management via SNMP, RMON, CLI, HTTPS, TR069, GWN Manager, GWN.Cloud
• Advanced QoS auto detects and prioritizes latency sensitive audio/video/RTP/ VoIP/SIP packets
• 3-Year Warranty Guaranteed

Technical Specifications

• Model : GWN7803P
• Network Protocol :
  • IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z,
    IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
• Gigabit Ethernet Ports : 24
• Gigabit SFP Ports : 4
• Console : 1
• Number of PoE Ports : 24
• Integrated Power Supply : 400W
• Max Output Power per PoE Port : 30W
• Max Total PoE Output Power : 360W
• PoE Standards : IEEE 802.3af/at
• Auxiliary Ports :
  • 1x Reset Pinhole
• Forwarding Mode : Store-and-forward
• Total non-blocking throughput : 28Gbps
• Switching Capability : 56Gbps
• Forwarding Rate :
  • 41.66M packets per second
• Packet Buffer : 4.1MB
• Switching :
  • 8K static, dynamic and filtering MAC addresses
  • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
  • VLAN virtual interface
  • GVRP
  • 8 link aggregation groups
  • Spanning tree, 64 instances for STP/RTSP/MSTP
• Multicast : IGMP Snooping, MLD Snooping, MVR
• Mounting :
  • Desktop
  • Wall-Mount
  • or rack-mount (rack-mount brackets included)
• LEDs :
  • 1x tri-color LED for device tracking and status indication
  • 28x green LEDs for data ports
  • 24x yellow-color LEDs for PoE ports
• Package Content :
  • GWN7803P Switch
  • 1x 1.2m(10A) AC Cable
  • 1x Ground Cable
  • Rack-mounting Standard Brackets
  • 4x Rubber Feet
  • 2x Lug Ear
  • 3-Year Warranty Guaranteed
