Cisco Catalyst3850-24L Dubai



Cisco Catalyst3850-24L Dubai

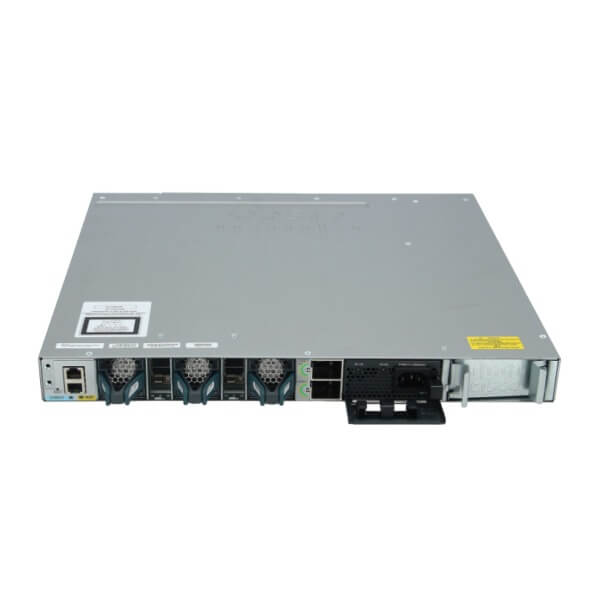

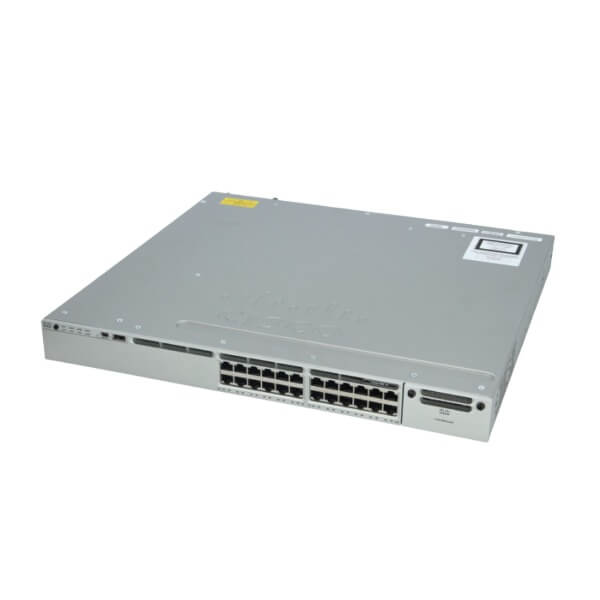

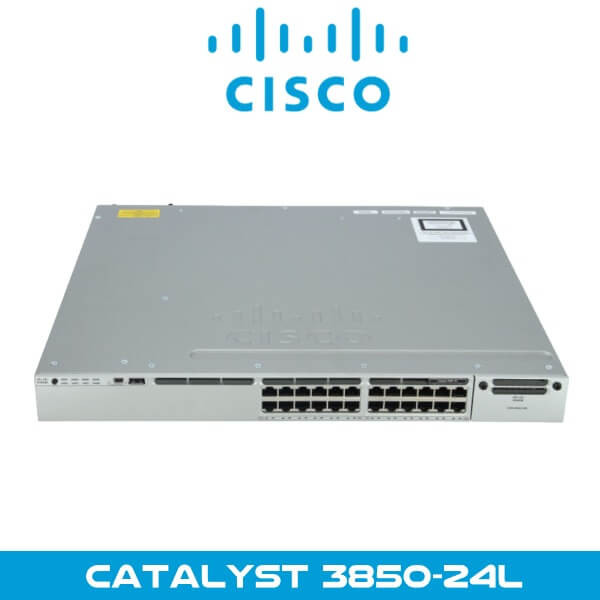

The Cisco Catalyst3850-24L Dubai is next generation stackable enterprise level switch and integrated with 24 Ethernet POE + ports with upgradeable LAN base IOS image.

Category:

Description

Cisco Catalyst3850-24L Network switch Dubai

The Cisco Catalyst3850-24L Dubai is next generation stackable enterprise level switch and integrated with 24 Ethernet POE + ports with upgradeable LAN base IOS image. It is designed for access layer with 255 VLANs and IEEE802.3at POE+ standard supporting. The status LEDs include STAT (status), DUPLX (duplex), SPEED, STACK, SYST (system), ACTV (active) PoE and S-PWR (Stack Power). The switch supports one hot-swappable network module that provides uplink ports to connect to other devices. The switch should only be operated with either a network module or a blank module installed.

The Cisco Catalyst 3850 Series is the next generation of enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480. The Cisco Catalyst3850-24L Dubai support full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans and power supplies.

Cisco Catalyst3850-24L Features

QoS

The 3850 switch has advanced wired plus wireless QoS capabilities. It uses the Cisco modular QoS command line interface (MQC). The switch manages wireless bandwidth using unprecedented hierarchical bandwidth management starting at the per-access-point level and drilling further down to per-radio, per-service set identification (SSID), and per-user levels. This helps manage and prioritize available bandwidth between various radios and various SSIDs (enterprise, guest, and so on) within each radio on a percentage basis. The switch is also capable of automatically allocating equal bandwidth among the connected users within a given SSID. This makes sure that all users within a given SSID get a fair share of the available bandwidth while being connected to the network. The UADP ASIC enables the hierarchical bandwidth management and fair sharing of bandwidth, thereby providing hardware-based QoS for optimized performance at line-rate traffic.

In addition to these capabilities, the switch is able to do class of service (CoS) or differentiated services code point (DSCP) based queuing, policing, shaping, and marking of wired plus wireless traffic. This enables users to create common policies that can be used across wired plus wireless traffic. The 3850 also supports downloadable policy names from the Cisco Identity Services Engine (ISE) when a user successfully authenticates to the network using the ISE.

Security

The Cisco Catalyst 3850 provides a rich set of security features for wired plus wireless users. Features such as IEEE 802.1x, Dynamic Host Configuration Protocol (DHCP) snooping, IP Source Guard and control plane protection, wireless intrusion prevention systems (WIPSs), and so on enable protection against unauthorized users and attackers. With a variety of wired plus wireless users connecting to the network, the switch supports session-aware networking, in which each device connected to the network is identified as one session, and unique access control lists (ACLs) and/or QoS policies can be defined and applied using the ISE for each of these sessions, providing better control on the devices connecting to the network.

Resiliency

Cisco StackWise-480 Technology
Cisco StackWise-480 technology is built on the highly successful industry-leading StackWise® technology, which is a premium stacking architecture. StackWise-480 has a stack bandwidth of 480 Gbps. StackWise-480 uses Cisco IOS Software SSO for providing resiliency within the stack. The stack behaves as a single switching unit that is managed by an “active” switch elected by the member switches. The active switch automatically elects a standby switch within the stack. The active switch creates and updates all the switching/routing/wireless information and constantly synchronizes that information with the standby switch. If the active switch fails, the standby switch assumes the role of the active switch and continues to the keep the stack operational. Access points continue to remain connected during an active-to-standby switchover. A working stack can accept new members or delete old ones without service interruption. StackWise-480 creates a highly resilient single unified system of up to four switches, providing simplified management using a single IP address, single Telnet session, single CLI, auto-version checking, auto-upgrading, auto-configuration, and more. StackWise-480 also enables local switching in Cisco Catalyst 3850 Series Switches.

Cisco StackPower Technology
The Cisco Catalyst 3850 Series uses the Cisco StackPower technology present on the Cisco Catalyst 3850 Series. StackPower is an innovative power interconnect system that allows the power supplies in a stack to be shared as a common resource among all the switches. Cisco StackPower unifies the individual power supplies installed in the switches and creates a pool of power, directing that power where it is needed. Up to four switches can be configured in a StackPower stack with the special connector at the back of the switch using the StackPower cable, which is different than the StackWise-480 cables.

Technical Specs

model info

WS-C3850-24P-L

enclosure type

Rack-mountable – 1U

Ports

24 x 10/100/1000 (POE+)

Network management Interface

  • Ethernet management port : RJ-45 connectors, 4-pair Cat-5 UTP cabling
  • Management console port : RJ-45-to-DB9 cable for PC connections

Available PoE Power

435W

Switching Capacity

92Gbps

Maximum stacking number

up to 9 switches with same IOS feature set in same series

Stack Bandwidth

480Gbps

Forwarding Performance

68.4Mpps

FNF entries

24,000 flows

Maximum VLANs IDs

1,000

MAC Address Table Size

32K

CPU

Multicore CPU

RAM

4 G

Flash Memory

2 G

Wireless

Number of AP per switch/stack

100

Number of wireless clients per switch/stack

2000

Total number of WLANs per switch

64

Wireless bandwidth per switch

up to 20Gbps

Supported Aironet AP series

3600, 3500, 2600, 1600, 1260, 1140, 1040

Expansion / Connectivity

Console ports

USB (Type-B), Ethernet (RJ-45)

Expansion Slot(s)

1 network module slot and 1 power redundant slot

Network Modules Selection

  • C3850-NM-4-1G : 4 x 1G uplinks network module
  • C3850-NM-2-10G : 2 x 10G or 4 x 1G uplinks network module

Stacking cable

  • STACK-T1-50CM StackWise stacking cable with a 0.5 m length
  • STACK-T1-1M StackWise stacking cable with a 1.0 m length
  • STACK-T1-3M StackWise stacking cable with a 3.0 m length

Stack Power Cable (recommended)

  • CAB-SPWR-30CM stack power cable with a 30CM length
  • CAB-SPWR-150CM stack power cable with a 150CM length

Power supply

PWR-C1-715WAC

Power Device

Power supply – redundant – plug-in module

Power Redundancy

optional

Voltage range (Auto)

100V-240V

Power Consumption of standalone(in Watts)

88.32 (max)

Miscellaneous

Width

17.5 Inches (44.5 cm)

Depth

17.7 Inches (44.5 Cm)

Height

1.75 Inches (4.45 cm)

Weight

16.3 Pounds (7.4Kg)

Rack Mounting Kit

optional

 MTBF in hours

269,450

Compliant Standards

  • IEEE 802.1D Spanning Tree Protoco
  • IEEE 802.1p CoS Prioritization
  • IEEE 802.1Q VLAN
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1X
  • IEEE 802.1X-Rev
  • IEEE 802.11
  • IEEE 802.1ab (LLDP)
  • IEEE 802.3ad
  • IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3z 1000BASE-X
  • RMON I and II standards
  • SNMP v1, v2c, and v3
  • IEEE 802.3af and IEEE 802.3at

System software / license

System software

IOS LAN Base (Upgradable)

EnergyWise license

ENERGY-MGMT, ENERGY-MGT-100-K9

Software license

  • C3850-24-L-S : LAN Base to IP Base RTU paper license
  • C3850-24-L-E : LAN Base to IP Services RTU paper license
  • L-C3850-24-L-S : LAN Base to IP Base RTU electronic license
  • L-C3850-24-L-E : LAN Base to IP Services RTU electronic license

Access Point Licenses

  • L-LIC-CT3850-UPG : Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery)
  • L-LIC-CTIOS-1A : 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
  • LIC-CT3850-UPG : Primary upgrade license SKU for Cisco 3850 wireless controller (paper license)
  • LIC-CTIOS-1A : 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)

Features

  • RPS Support Jumbo Frames VLANS Voice Vlan VTPv2 CDPv2 LLDP 802.3ad LACP and PAgP
  • PVST/PVST+ 802.1W/802.1S Port Fast/Uplink Fast  Dynamic Trunking Protocol (DTP) port CoS Trust
  • and Override Trusted Boundary ACL Classification ingress Policing Auto QoS Per VLAN policies
  • 802.1p queues Scheduling Priority Queuing Configure CoS Priority Queues Configure CoS Priority
  • Queues Configure Queue Weights Configure Buffers and Thresholds Class & Policy Maps Modify CoS
  • and DSCP Mapping Weighted Tail Drop IGMPv1,v2,v3 and MLDv1, v2 DHCP server DSCP transparency
  • HSRP, VRRP, BLGP RIPv1, v2 EIGRP, PIM  OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4  VRF-lite  PIM-SM/DM,
  • PIM sparse-dense mode, SSM Flexible Netflow

Advanced Network security

  • Port security DHCP snooping Dynamic ARP inspection (DAI) IP source guard The Unicast Reverse Path Forwarding (uRPF)
  • Bidirectional data support on a SPAN User authentication
  • Private VLAN  Router and VLAN ACLs  complete identity and security
  • Multidomain authentication MAC address notification
  • IGMP filtering Cisco security VLAN ACL
  • Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
  • Port-based ACLs TrustSec SXP IEEE 802.1ae
  • TACACS+ and RADIUS authentication Cisco standard and extended IP security router ACLs
  • Bridge protocol data unit (BPDU) Guard
  • Spanning Tree Root Guard (STRG) Wireless end-to-end security

Management

  • BRIDGE-MIB CISCO-AUTH-FRAMEWORK-MIB
  • CISCO-BGP4-MIB, BGP4-MIB CISCO-BRIDGE-EXT-MIB
  • CISCO-BULK-FILE-MIB CISCO-CABLE-DIAG-MIB
  • CISCO-CALLHOME-MIB CISCO-CEF-MIB
  • CISCO-CIRCUIT-INTERFACE-MIB
  • CISCO-ENTITY-VENDORTYPE-OID-MIB
  • CISCO-CONTEXT-MAPPING-MIB
  • CISCO-DEVICE-LOCATION-MIB CISCO-DHCP-SNOOPING-MIB
  • CISCO-EIGRP-MIB
  • CISCO-EMBEDDED-EVENT-MGR-MIB
  • CISCO-ENTITY-FRU-CONTROL-MIB CISCO-ENTITY-SENSOR-MIB
  • ENTITY-MIB CISCO-ERR-DISABLE-MIB
  • CISCO-CONFIG-COPY-MIB CISCO-FLOW-MONITOR-MIB
  • CISCO-FTP-CLIENT-MIB CISCO-HSRP-EXT-MIB
  • CISCO-HSRP-MIB CISCO-IETF-ISIS-MIB
  • CISCO-IF-EXTENSION-MIB CISCO-IGMP-FILTER-MIB
  • CISCO-CONFIG-MAN-MIB CISCO-IP-CBR-METRICS-MIB
  • CISCO-IPMROUTE-MIB CISCO-IP-STAT-MIB
  • CISCO-IP-URPF-MIB CISCO-L2L3-INTERFACE-CONFIG-MIB
  • CISCO-LAG-MIB CISCO-LICENSE-MGMT-MIB
  • CISCO-MAC-AUTH-BYPASS-MIB CISCO-MAC-NOTIFICATION-MIB
  • CISCO-MDI-METRICS-MIB CISCO-FLASH-MIB CISCO-OSPF-MIB
  • CISCO-OSPF-TRAP-MIB CISCO-PAE-MIB CISCO-PAGP-MIB
  • CISCO-PIM-MIB CISCO-PING-MIB CISCO-PORT-QOS-MIB
  • CISCO-PORT-SECURITY-MIBCISCO-PORT-STORM-CONTROL-MIB
  • CISCO-POWER-ETHERNET-EXT-MIB CISCO-PRIVATE-VLAN-MIB
  • CISCO-PROCESS-MIB CISCO-PRODUCTS-MIBCISCO-RF-MIB
  • CISCO-RTP-METRICS-MIB CISCO-RTTMON-MIB
  • CISCO-SMART-INSTALL-MIB
  • CISCO-SNMP-TARGET-EXT-MIB CISCO-STACKMAKER-MIB
  • CISCO-MEMORY-POOL-MIB CISCO-STP-EXTENSIONS-MIB
  • CISCO-SYSLOG-MIB CISCO-TCP-MIB CISCO-UDLDP-MIB
  • CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB CISCO-VLAN-MEMBERSHIP-MIB CISCO-VTP-MIB EtherLike-MIB
  • HC-RMON-MIB IEEE8021-PAE-MIB IEEE8023-LAG-MIB
  • IF-MIB IGMP-MIB IGMP-STD-MIB IP-FORWARD-MIB
  • IP-MIB IPMROUTE-STD-MIB LLDP-EXT-MED-MIB
  • LLDP-MIB NOTIFICATION-LOG-MIB
  • OLD-CISCO-MEMORY-MIB CISCO-CDP-MIB
  • POWER-ETHERNET-MIB RMON2-MIB
  • RMON-MIB SNMP-COMMUNITY-MIB SNMP-FRAMEWORK-MIB
  • SNMP-MPD-MIB SNMP-NOTIFICATION-MIB SNMP-PROXY-MIB
  • SNMP-TARGET-MIB SNMP-USM-MIB SNMPv2-MIB
  • SNMP-VIEW-BASED-ACM-MIB TCP-MIB UDP-MIB
  • CISCO-IMAGE-MIB CISCO-STACKWISE-MIB
  • AIRESPMACE-WIRELESS-MIB CISCO-LWAPP-IDS-MIB
  • CISCO-LWAPP-AP-MIB CISCO-LWAPP-CCX-RM-MIB
  • CISCO-LWAPP-CLIENT-ROAMING-MIB
  • CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB
  • CISCO-LWAPP-DOT11-CCX-CLIENT-MIB
  • CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB
  • CISCO-LWAPP-DOT11-CLIENT-MIB CISCO-LWAPP-DOT11-MIB
  • CISCO-LWAPP-DOWNLOAD-MIB CISCO-LWAPP-LINKTEST-MIB
  • CISCO-LWAPP-MFP-MIB CISCO-LWAPP-MOBILITY-EXT-MIB
  • CISCO-LWAPP-QOS-MIB CISCO-LWAPP-REAP-MIB
  • CISCO-LWAPP-ROGUE-MIB CISCO-LWAPP-RRM-MIB
  • CISCO-LWAPP-SI-MIB CISCO-LWAPP-TSM-MIB
  • CISCO-LWAPP-WLAN-MIB CISCO-LWAPP-WLAN-SECURITY-MIB

Technical Support and Services

Cisco  SMARTnet Service Cisco Smart Foundation Service Cisco SP Base Service Cisco Focused Technical Support Services

Environmental Ranges

With AC power supply Operating environment and altitude

Operating temperature up to 5000 ft (1500 m)

23ºF to 113ºF (-5ºC to +45ºC)

Operating temperature up to 10,000 ft (3000 m)

23ºF to 104ºF (-5ºC to +40ºC)

Short-term exception at sealevel with single fan failure

23ºF to 113ºF (-5ºC to +45ºC)

Short-term exception up to 5000 feet (1500 m)

23ºF to 122ºF (-5ºC to 50ºC)

Short-term exception up to 10,000 feet (3000 m)

23ºF to 113ºF (-5ºC to 45ºC)
