Avaya HC020 Dubai

Avaya HC020 Dubai

The Avaya HC020 Huddle Camera Dubai is highly flexible and can be used with products of XT series or can be used as a laptop camera for their Windows and macOS.

Category:

Description

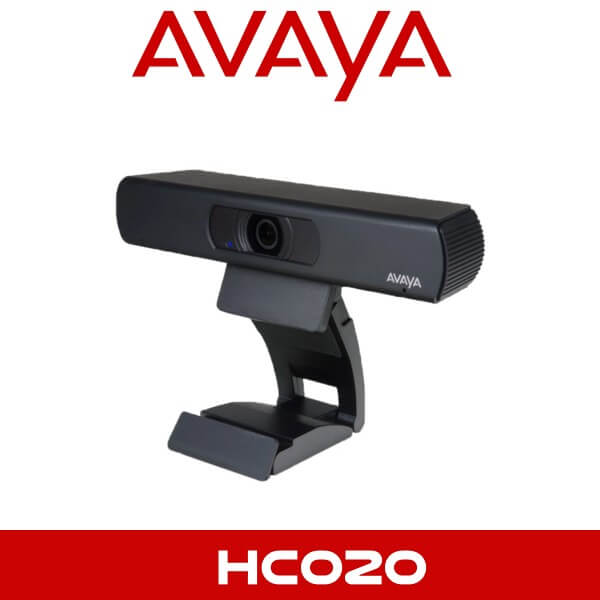

Avaya IX Huddle Video Conference Camera HC020 Dubai

Avaya HC020 Huddle Camera Dubai boasts of a powerful 8x digital zoom capability which further enhances the image quality and fine details. For outstanding audio clarity, the HC020 Dubai is fitted with an omnidirectional microphone which offers a 360° coverage for those within a distance of 9.8′. What’s more, a 123° horizontal and 80° fields of view offer a suitable image area while an included remote control allows for effective zooming, panning, as well as backlight control for maximum efficiency.

The Avaya HC020 Huddle Camera Dubai is highly flexible and can be used with products of XT series or can be used as a laptop camera for their Windows and macOS. It features an Ultra HD 4K sensor which delivers a 4K UHD video signal at 30fps resulting in crystal clear images.

An integrated USB 3.0 Type-B to Type-A cable enables you to connect your Avaya HC020 Huddle Camera Dubai to your host system for H.264 video compression. An included HDMI port  also provides uncompressed video which you may share with others as desired. Avaya HC020 Huddle Camera offers you an optional 1-way POD microphone for use in small rooms. You do not need any technical expertise in operating the Avaya HC020 since it is designed to offer the easiest possible deployment process. It is highly suitable for use by individual workgroups, small to medium-sized businesses, and can also be used to complement existing infrastructure in enterprises.

General Features

  • Easy to use and deploy
    • You do not need any technical expertise in operating the Avaya HC020 since it is designed to offer the easiest possible deployment process.
  • Maximum Efficiency
    • Users can enjoy full control directly from the XT Room System through Remote Control, Scopia Control, Web Interface, APIs, and so on. Avaya IX Huddle Cameras HC020 Dubai is the Best solution from Video Conference Dubai.
  • Full-Scene Coverage
    • For outstanding audio clarity, the HC020 Dubai is fitted with an omnidirectional microphone which offers a 360° coverage for those within a distance of 9.8′. A powerful 8x digital zoom capability  further enhances the image quality and fine details. What’s more, a 123° horizontal and 80° fields of view offer a suitable image area while an included remote control allows for effective zooming, panning, as well as backlight control for maximum efficiency.
  • Perfect for small, medium and large meeting spaces
    • The huddle cameras are great for enabling all of your small to medium meeting rooms and spaces, delivering utility, security, and an exceptional experience for training, brainstorming, team and customer meetings with a private connection. the benefit of installation and use make them ideal for individual workgroups, small to mid-size businesses, or complementing an enterprise collaboration deployment.
  • Camera output: USB-HDMI
    • An integrated USB 3.0 Type-B to Type-A cable enables you to connect your Avaya HC020 Huddle Camera Dubai to your host system for H.264 video compression. An included HDMI port  also provides uncompressed video which you may share with others as desired.

Avaya IX Huddle Camera HC020 Specifications.

  • Camera Model: HC020 [email protected]
  • Image device :  [email protected]/25 CMOS 1/2.5’’
  • Video Formats with laptop : [email protected]/25 1080p60/50/30/25
  • Video Formats with XT : 1080p30 / 720p30
  • Video signal : Compressed (H.264) on USB or uncompressed on HDMI
  • Focal Length : f=2.8mm
  • Min object distance (wide) : 500mm
  • Min illumination : 0.5 Lux @ (F1.8, AGC ON)
  • HFoV : 104° (up to 123°)
  • VFoV : 68°
  • Optical Zoom (*) :  NA
  • Digital Zoom (*) : 8x
  • Pan Range : ePTZ (**)
  • Tilt Range :  ePTZ (**)
  • Serial Control : Via USB
  • Ceiling Mount :  Supported
  • Camera mount : Tripod screw hole (1/4-20 UNC)
  • Weight :  0.34Kg
  • Dimensions (w/h/d):  194mm x 34mm x 42mm (without bracket)
  • Current consumption (max): 0.6A
  • Video configurations :  White balance (auto/manual); Focus Mode (auto/manual); Sharpness; Backlight; Exposure Compensation; Picture (auto/manual) and WDR level
  • Voltage Range : 5V(USB)
  • IR repeater as TTL signal :  Not available
  • Camera Output : USB 3.0 – HDMI
  • Microphone : Included, frequency response 50Hz – 8KHz, 3m radius omni (6m diameter), coverage 360°
  • Presets : 122 (for all connected cameras, directly on XT codec)
  • Far end camera control : Through XT codec (H.224, H.281)
  • Interoperability : The Avaya HC020 camera is  compatible with Avaya Conferencing clients such as Spaces and Avaya IX Workplace and with third-party conferencing clients such as Microsoft© Skype for Business, Microsoft© Teams, Zoom©, BlueJeans©, Google Hangouts, Pexip, Cisco WebEx, StarLeaf, Rainbow, Ring Central, Ring Central Meetings
