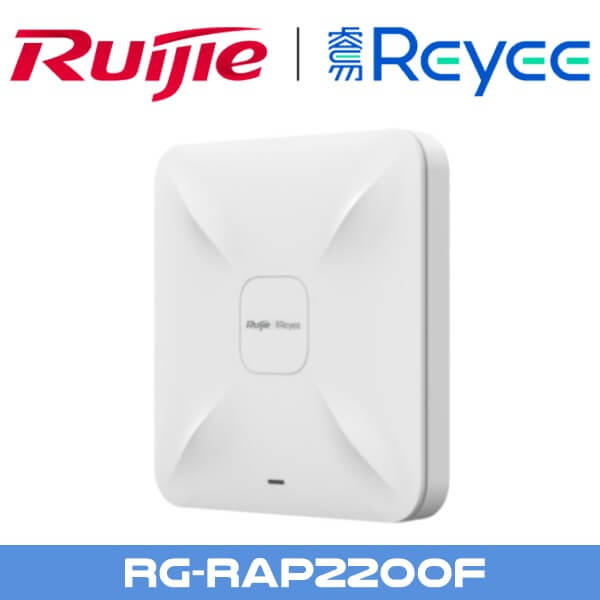

Ruijie RG-RAP2200F Accesspoint Dubai



Ruijie RG-RAP2200F Access Point Dubai

Ruijie Reyee RG-RAP2200F Dubai dual-band ceiling mount AP is a high-performance ceiling mount AP for indoor large-area Wi-Fi coverage scenarios. Compliant with 802.11a/b/g/n/ac Wave1/Wave2 Wi-Fi protocol, RG-RAP2200F supports MU-MIMO dual-stream technology and offers built-in omnidirectional antennas.

Description

Ruijie Reyee RG-RAP2200F Access Point Dubai

Ruijie RG-RAP2200F Accesspoint Dubai dual-band ceiling mount AP is a high-performance ceiling mount AP for indoor large-area Wi-Fi coverage scenarios. Compliant with 802.11a/b/g/n/ac Wave1/Wave2 Wi-Fi protocol, RG-RAP2200F supports MU-MIMO dual-stream technology and offers built-in omnidirectional antennas. It can operate concurrently at 2.4GHz and 5GHz, providing high-speed wireless access of 400Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1267Mbps per AP.

Ruijie RG-RAP2200F Accesspoint Dubai supports Ruijie’s self-organizing Network feature. With the Ruijie Cloud app, users can quickly complete the device deployment and configuration, remote management, operation and maintenance of the entire network, which greatly reduces the investment of equipment cost, labor cost and time cost in the process of wireless network construction. The industrial product design, iconic edges and breathing light makes the product more recognizable. Adopting the non-directional installation design, the new mounting kits support various installation methods including on desktop, ceiling, wall, and pole, which improves the versatility of installation, simplifies the installation steps, reduces the installation difficulty, and greatly improves the installation experience of the device.

RG-RAP2200 Series supports Ruijie’s self-developed smart networking feature. With the Ruijie Cloud app, users can quickly complete the device deployment and configuration, remote management, operation and maintenance of the entire network, which greatly reduces the investment of equipment cost, labor cost and time cost in the process of wireless network construction. Users can perform comprehensive local management or remote management of the equipment in the entire network via the Ruijie Cloud app, equipment EWEB management, Ruijie Cloud platform, etc. Users can also share the network to third party for network hosting and collaborative management, thereby achieving simpler, easier to use, more secure and convenient enterprise network operation and maintenance.

ruijie rg rap2200f accesspoint dubai

ruijie rg rap2200f accesspoint dubai

Features

High-speed dual-band Wi-Fi

Ruijie RG-RAP2200F Accesspoint Dubai supports 2.4GHz and 5GHz dual-band communication, providing access rate of 400Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1267Mbps per AP. It can provide 5GHz frequency band with less interference, wider channel, and faster speed for the terminals, allowing the users to enjoy excellent wireless experience.

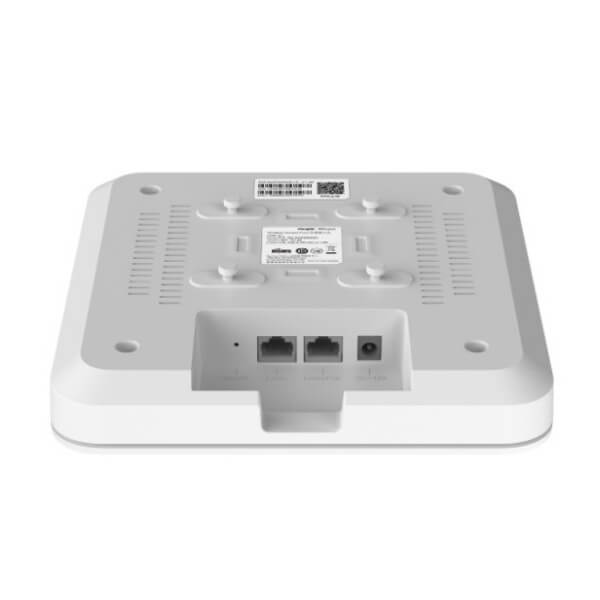

Dual LAN ports design

The device adopts the dual LAN ports design. Even for complex networking requirements, it can easily and quickly support the expansion of third-party devices, such as cameras, time and attendance devices

Support routing and AP mode

The device supports both AP and routing mode. A wireless network can be formed with multiple APs, or it can be used as a wireless router when deployed independently. The device offers more flexible configurations, more abundant application features, and more extensive applicable scenarios.

Support Layer 3 networking

The device supports Layer 3 roaming for the complex Layer 3 network. When users move across the Layer 3 networks, seamless roaming can be achieved without service interruption.

Stronger and more stable signals

An aluminum alloy antenna reflector is added to reflect interference signals and focus effective signals so as to provide stronger signal transmission and better receiving sensitivity. The device uses FBAR to filter out all kinds of interferences caused by the operator’s base stations, microwave ovens, Bluetooth devices, etc., so as to provide cleaner wireless signals, higher transmission rate and more stable transmission quality.

Robust casing

With the robust and flame-retardant material of the AP casing, the impact resistance is 5 times higher than that of common ABS plastic materials. The tensile and flexural strengths are increased by 30%, which is not easy to damage. Users can rest assured during usage and maintenance.

Simple installation

It supports various installation methods including on desktop, ceiling, wall, and pole. Adopting the non-directional installation design, the equipment can be installed in one go efficiently.

Fast and smart configuration

In large-scale complex networks, the configuration of the entire network can be completed by connecting to a single gateway device. There is no need to configure the devices separately, which can greatly reduce the device configuration time.

Industrial design

The industrial product design, iconic edges and breathing light makes the product more recognizable

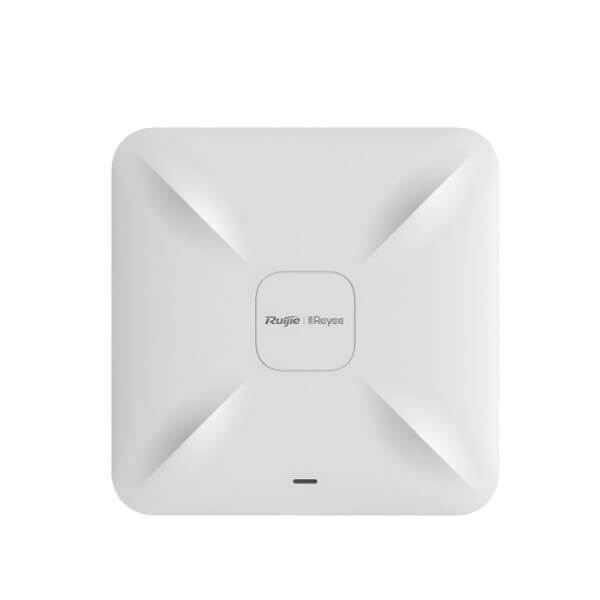

ruijie rg rap2200f accesspoint sharjah

ruijie rg rap2200f accesspoint sharjah

Visualized operation and maintenance

The cloud computing network topology can comprehensively present the equipment operating status of the entire network. Through the rich information in the topology, you can quickly get the full picture of the network (network egress status, link status, device status), and quantify the user experience and network quality, so that users can master the information of the entire network.

Remote collaborative management

Users can perform comprehensive remote operation, management, and maintenance of the equipment in the entire network via the Ruijie Cloud app, Ruijie Cloud platform, etc. They can also share the network to third party for network hosting and collaborative management to operate and maintain the enterprise network more efficiently

Specifications

Hardware specifications
Radio Dual-stream dual-band
Protocol Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n
Operating Bands 802.11b/g/n :2.4G ~ 2.4835GHz

802.11a/n/ac : 5G:5.150~5.250GHz,5.725~5.850GHz (country specific)

Antenna Internal antennas(2.4G: 2dBi,5G: 2dBi)
Spatial Streams 2.4G 2x2MIMO  5G 2x2MIMO
Max Throughput
  • Up to 400Mbps at 2.4G
  • Up to 867Mbps at 5G
  • 1.267Gbp per AP
Modulation
  • OFDM : BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
  • DSSS : DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps
  • MIMO-OFDM : BPSK, QPSK, 16QAM, 64QAM and 256QAM
Receive Sensitivity
  • 11b : -91dBm (1Mbps), -88dBm (5Mbps), -85dBm (11Mbps)
  • 11a/g : -89dBm (6Mbps), -80dBm (24Mbps), -76dBm (36Mbps), -71dBm (54Mbps)
  • 11n : -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15
  • 11ac HT20 : -83dBm (MCS0), -57dBm (MCS9)
  • 11ac HT40 : -79dBm (MCS0), -57dBm (MCS9)
  • 11ac HT80 : -76dBm (MCS0), -51dBm (MCS9)
Maximum Transmit Power
  • 5.725~5.850GHz :≤20dBm (EIRP)
  • 5.150~5.250GHz :≤20dBm (EIRP)
  • 2.4~2.4835GHz :≤20dBm (EIRP)
Adjustable Power 1dBm
Dimensions 194mm×194mm×35mm (excluding mounting kits)
Weight 0.45kg (excluding mounting kits)
Service Ports
  • 2 10/100Base-T Ethernet ports,
  • PoE/LAN1 port supports PoE
Management Port NA
LED Indicator NA
Power Supply Single indicator (green light)
Power Consumption
  • Local power supply, DC 12V/1.5A (Note: The power adapter is sold as an optional accessory)
  • 802.3af/802.3at PoE
Environment ≤ 12.95W
Operating temperature : 0°C~40°C
Storage temperature : -40°C~70°C
Operating humidity : 5%~95%(non-condensing)
Installation Storage humidity : 5%~95%(non-condensing)
Safety Standard GB4943, IEC 62368-1
EMC Standard GB9254,EN301 489,EN50155,EN50121,EN55032,EN61000,EN55035
Vibration Standard IEC61373
Radio Standard EN300 328, EN301 893
MTBF >250000H
Software Features
Operating Mode AP mode and routing mode
WLAN
  • Maximum number of clients : 110
  • Recommended number of clients : 48 (16 at 2.4GHz, 32 at 5GHz)
  • Up to 8 SSIDs
