Ruijie RG-EAP602 Accesspoint Dubai



Ruijie RG-EAP602 Access Point Dubai

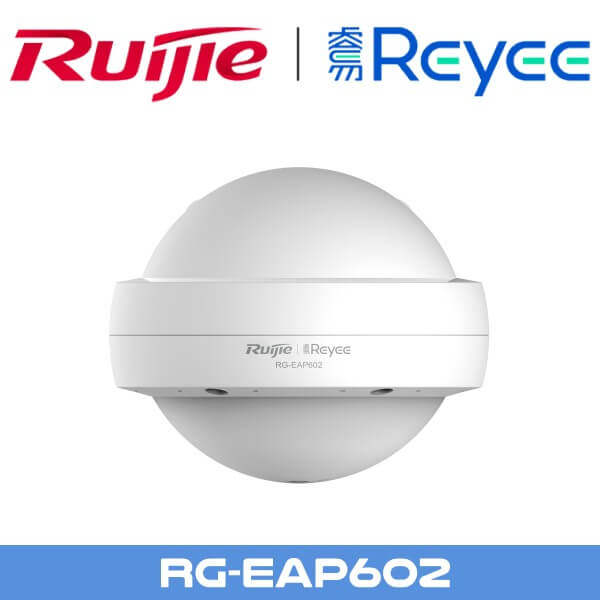

Ruijie Reyee RG-EAP602 Dubai is a high-power outdoor omnidirectional dual-band wireless access point supporting 802.11b/g/n/ac, designed for villages, villas, parks, scenic spots, plazas. With concurrent 2.4GHz and 5GHz, the AP supports dual-band dual-stream MIMO technology

Description

Ruijie Reyee RG-EAP602 Access Point Dubai

Ruijie RG-EAP602 Accesspoint Dubai is a high-power outdoor omnidirectional dual-band wireless access point supporting 802.11b/g/n/ac, which is designed for villages, villas, parks, scenic spots, plazas, etc. With concurrent 2.4GHz and 5GHz, the AP supports dual-band dual-stream MIMO technology, which can provide 300Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1167Mbps per AP. The built-in omnidirectional high-gain antennas provide excellent coverage for the users.

RG-EAP602 supports Self-organizing network features, which realizes auto-discovery, auto-networking and auto-configuration of devices without the need for controllers or Internet access. With the mobile app, users can quickly complete the device deployment and configuration, remote management, operation and maintenance of the entire network, which greatly reduces the investment of equipment cost, labor cost and time cost in the process of wireless network construction. The Ruijie RG-EAP602 Accesspoint Dubai users can perform comprehensive local management or remote management of the equipment in the entire network via the mobile app, web management, Ruijie Cloud platform, Router, etc. Users can also share the network to third party for collaborative management, thereby offering a simpler, easier to use, more secure and convenient enterprise network.

Features

  • 11ac Wave2 technology
  • 300m coverage radius
  • Auto-provisioning via Self-Organizing Network: Supports Ruijie’s self-developed smart networking feature, which breaks through the product limitations and realizes auto-discovery, auto-networking and auto-configuration between routers, switches, and wireless APs without the need for controllers or Internet access;
  • Lifetime free Ruijie Cloud management: Remote fault alarm, one-click optimizing and maintenance on Ruijie Cloud App;
  • Stable wireless service under harsh environment: Surge Protection 6KV | IP Rating IP68 Operating temperature: -30°C~65°C
  • Industrial Design
ruijie rg eap602 accesspoint dubai

ruijie rg eap602 accesspoint dubai

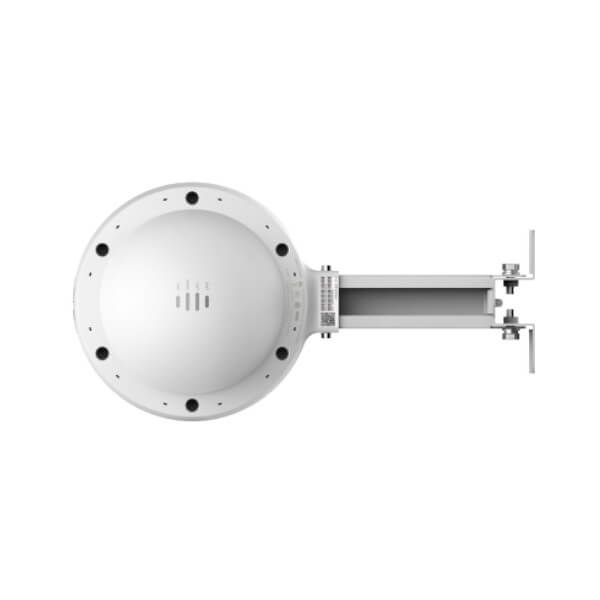

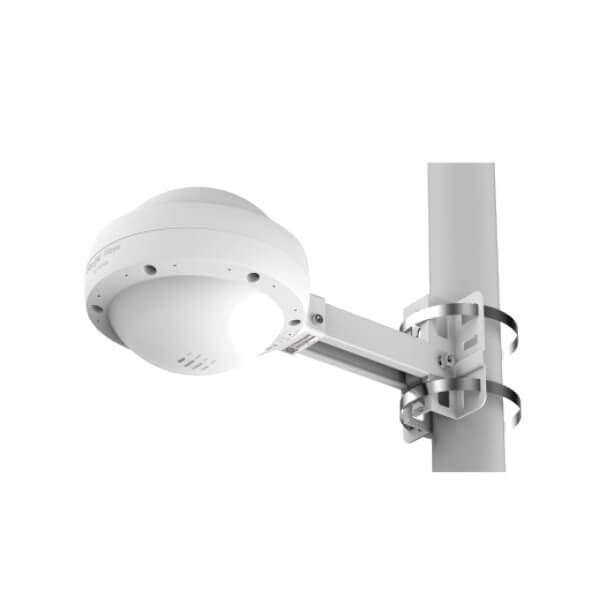

Separate mounting bracket installation

With the separate mounting bracket installation, Ruijie Reyee RG-EAP602 installation can be completed quickly in two steps, reducing the difficulty of working at heights.

Dual power supply

RG-EAP602 supports 802.3af/at PoE and DC12V local power supply. The two power supply modes can be connected concurrently to offer power redundancy, avoiding power failure caused by lightning damage to the power supply and greatly improving outdoor operation reliability.

Dual Ethernet ports

Ruijie RG-EAP602 Accesspoint Dubai is an ideal choice for the hybrid deployment of outdoor wireless coverage and outdoor surveillance. The 2 gigabit Ethernet ports can directly connect to cameras or cascade switches, which greatly enriches the outdoor networking solutions and application scenarios.

Smart networking

The Ruijie RG-EAP602 Accesspoint Dubai supports 3 networking modes including router management, Ruijie Cloud platform management and smart network management. It can work with Reyee routers, smart PoE switches and APs for unified discovery, networking, configuration and management. It can also operate under routers of any brand without hardware controller, thereby reducing the cost of network construction or transformation.

High-performance wireless access

RG-EAP602 supports 802.11n@2.4GHz and 802.11ac@5GHz, offering access rate of 300Mbps at 2.4Ghz, 867Mbps at 5GHz and up to 1167Mbps per AP. The superior wireless performance greatly optimizes the wireless users’ network experience. The 164 maximum concurrent clients and up to 300m coverage radius also significantly improve the deployment result of outdoor wireless scenarios.

Excellent environmental adaptability

The Ruijie RG-EAP602 Accesspoint Dubai offers an IP68-rated enclosure that fulfills waterproof, dustproof, damp-proof and flame-retardant requirements to withstand harsh environments such as wind erosion, rain and high humidity. The features greatly lengthen the equipment life span and effectively reduce the maintenance cost. The industrial-grade components and enclosure can withstand a wide temperature range from -30°C to 65°C without any influence on the stability and life span, which is very suitable for the harsh outdoor environments including the cold weather and humid weather.

ruijie rg eap602 accesspoint sharjah

ruijie rg eap602 accesspoint sharjah

AI network optimization

Intelligent network management and optimization can be achieved through artificial intelligence, including but not limited to:

  • Automatically recognize and add the new equipment to the network
  • Automatically avoid WAN address conflict
  • Smart network topology displays and diagnosis
  • Network optimization and radio frequency adjustment

Specifications

Hardware specifications
Model RG-EAP602
Radio 2.4GHz & 5GHz dual-band dual-stream
Protocol
  • 2.4GHz : 802.11 b/g/n
  • 5GHz : 802.11a/b/g/n/ac
Spatial Streams
  • 2.4GHz : 2 Spatial Streams, 2×2 MIMO
  • 5GHz : 2 Spatial Streams, 2×2 MIMO
Max Throughput
  • 2.4GHz : 300Mbps
  • 5GHz : 867Mbps
  • Up to 1167Mbps per AP
Transmit Power ≤500mw(27dBm,RF transmit power only)
Dimensions 200mm*220mm*166mm (excluding mounting kits)
Weight 1kg (excluding mounting kits)
Service Ports
  • 2 x 10/100/1000Mbps Ethernet ports(one of which supports 802.3af/at PoE)
  • 1 reset button
Reset 1 DC 12V power socket
LED Indicators
  • Wi-Fi indicator
  • Warning indicator
  • LAN1 connection indicator
  • LAN2 connection indicator
Power Supply
  • 802.3af / 802.3at
  • DC 12V 1.5A
Built-in Antennas Built-in omnidirectional antennas (basic gain 3dBi)
Power Consumption <12.95W
Coverage Radius Open and unobstructed direction : 2.4G 100m,5G 300m

(the actual coverage distance may vary according to different obstruction situations and different performances of wireless terminals)

Surge Protection 6000V
IP Rating Above IP68
MTBF >250000H
Environment
  • Operating temperature : -30°C~65°C
  • Storage temperature : -40°C~85°C
  • Operating humidity : 0%~100% (non-condensing)
  • Storage humidity : 0%~100% (non-condensing)
Security
  • Support PSK authentication
  • Support static blacklist and whitelist
  • Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption
Software Features
WLAN
  • Maximum number of clients : 164
  • Recommended number of clients : 96
  • Up to 8 SSIDs
  • Support SSID hiding
  • Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID
  • SSID-based and radio-based STA limit
  • Support Layer 2 user isolation
Routing Support static IP address and DHCP
Management and maintenance
  • Support local or remote management with app
  • Support local management with web
  • Support remote management with Ruijie Cloud platform
Platform management features
  • Automatic RF adjustment via the platform
  • Unified configuration via the platform
  • Unified monitoring via the platform
