Ruijie RG-AP820LV2 Accesspoint Dubai



Ruijie RG-AP820LV2 Access Point Dubai

Ruijie RG-AP820LV2 Dubai is the Ruijie’s highest price-performance entry Wi-Fi 6 enterprise indoor access point. Certified by Tolly’s latest Test Report, the Ruijie RG-AP820LV2 verified on user capacity up to 1024 Wi-Fi clients.

Description

Ruijie RG-AP820LV2 Access Point Dubai

Ruijie RG-AP820LV2 Accesspoint Dubai is the Ruijie’s highest price-performance entry Wi-Fi 6 enterprise indoor access point. Certified by Tolly’s latest Test Report, the Ruijie RG-AP820LV2 Accesspoint Dubai verified on user capacity upto 1024 Wi-Fi clients, and provide up to 65% higher total throughput in legacy Wi-Fi 5 environment. Featuring a stylish design, Ruijie RG-AP820LV2 Accesspoint Dubai comes with slim form factor design, only 26mm in height with hidden LAN cabling design. The Ruijie RG-AP820LV2 Accesspoint Dubai supports selectable dual-band dual-radio (2.4G + 5G or 5G+5G) mode to guarantee for the best compatibility and highest performance. Maximum of  2.4Gbps wireless throughput when dual 5G radio high-performance mode adopted, and upto 1.775Gbps throughput at normal 2.4G+5G mode. The Ruijie RG-AP820LV2 Accesspoint Dubai fully comply with Wi-Fi 6 OFDMA Modulation, MU-MIMO, and BSS Color Spatial Reuse, allowing RG-AP820-LV2 guarantees minimal signal interference and a maximum of 1024 client connections.

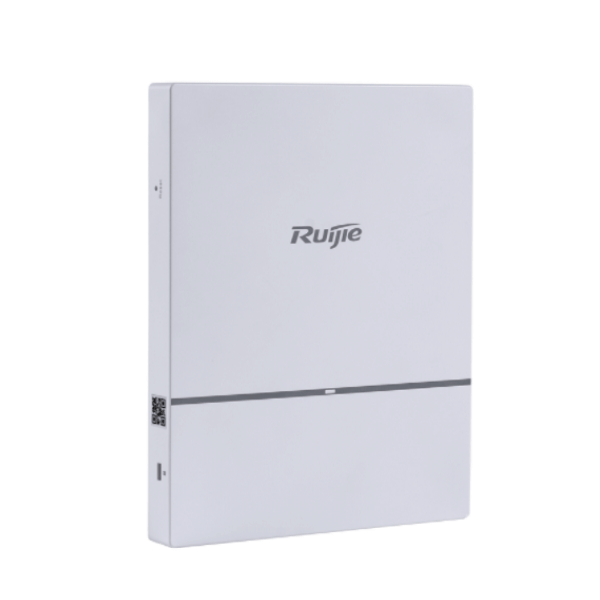

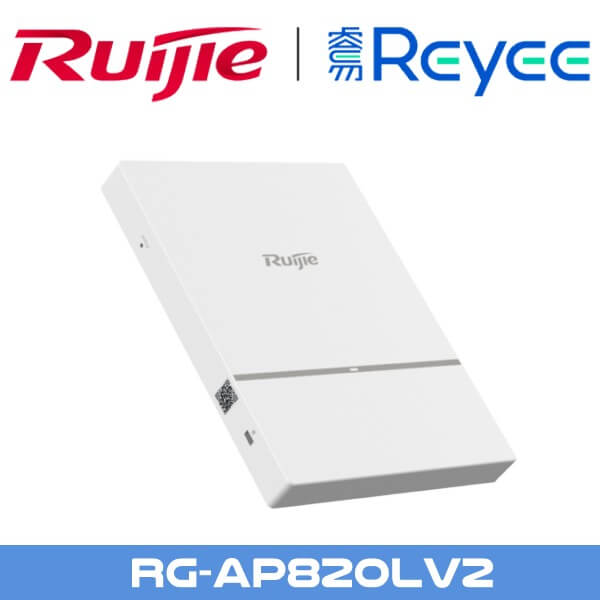

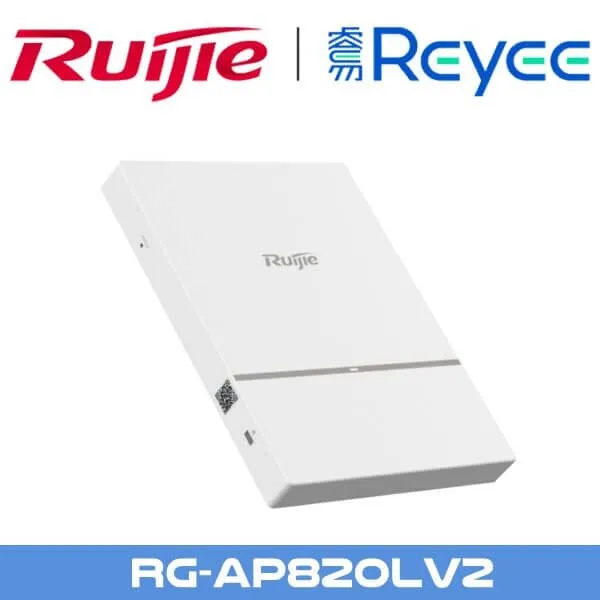

ruijie rg ap820lv2 wifi accesspoint dubai

ruijie rg ap820lv2 wifi accesspoint dubai

Moreover, Ruijie RG-AP820LV2 Accesspoint Dubai is IoT ready with integrated module of BLE, without the need of external module and additional investment. Verified by Tolly Test Report, Ruijie RG-AP820LV2 Accesspoint Dubai providing nearly line-rate throughput at 955Mbps wireless performance by built-in Gigabit uplink port. Management efficiency and wireless security have never been easy, Ruijie enterprise APs support hybrid management mode. Either deployed as standalone AP (Fat mode) or managed AP (Fit mode), the AP will detect the operation mode automatically without extra effort on firmware upgrade.

For enhanced service, users are recommended to buy either of the following:

Public Cloud : Ruijie Cloud –Ruijie Public Cloud service (powered by RG-MACC) is targeted for the SME segment with integrated captive portal, authentication (such as PPSK for employees, Facebook, voucher, account, etc.), and reporting features. Together with Ruijie Cloud Mobile App (free download), SME customers can provision and manage their networks at fingertips

Hybrid Cloud :  RG-WS6000 Series Wireless Controller (on-premises) Plus Cloud Management (Optional) –targeted for enterprise office and campus with single or multiple sites and high-density AP deployment. The controller appliances are installed at the customer’s site with fully integrated wireless management and authentication feature, supporting up to 5000 Aps per cluster.  Optionally, the cloud management platform allows for value-added features like centralized device configuration and monitoring, AI radio (RF) optimization, reporting

Private Cloud : RG-MACC Software Controller –targeted for ISP/MSP, government, or multi-national corporation (MNC) with diverse customer sites and demand on integration of their billing, portal and security systems. The RG-MACC supports unified device management, not only for wireless access points, but also switches and gateway devices

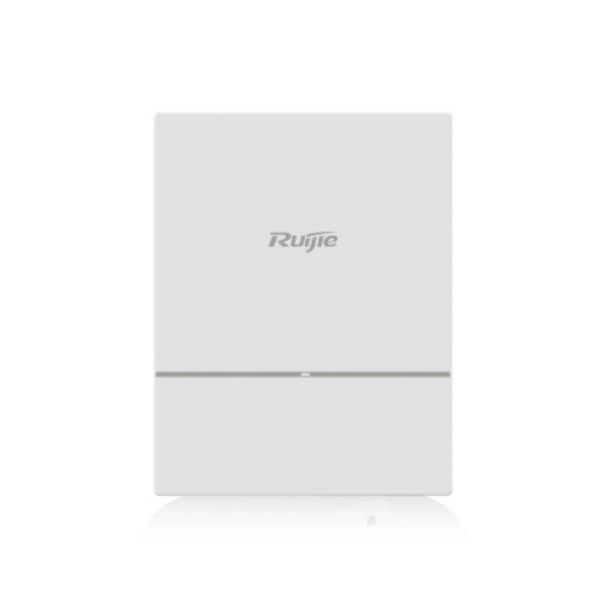

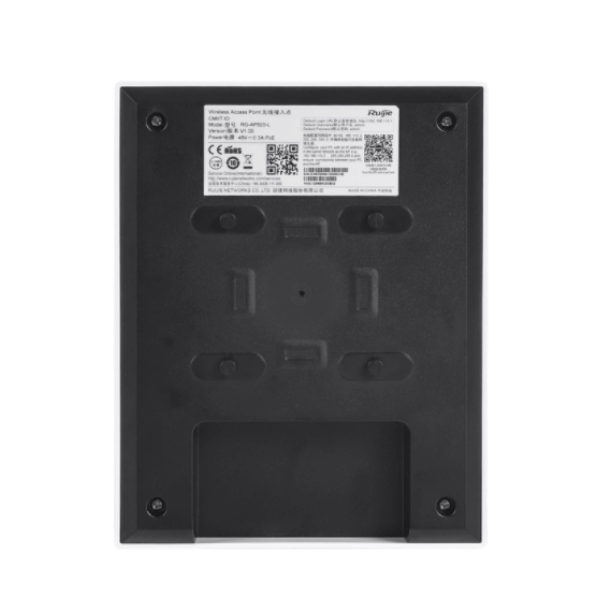

ruijie rg ap820lv2 wifi accesspoint sharjah

ruijie rg ap820lv2 wifi accesspoint sharjah

Features

  • Access point WiFi6 device, ceiling-mounted, wall –mounted
  • Speed ​​up to 1.775Gbps (Radio1:4G 0.574Gbps, Radio2:5G 1.2Gbps)
  • Supports 2 bands 2.4GHz and 5GHz standard 802.11a/b/ g/n/ac/ax Wave1/Wave2, MU-MIMO
  • Antenna 2.4G: 3dBi, 5G: 3dBi. Stream Up to 4: 2×2:2 in 2.4GHz, 2×2:2 in 5GHz
  • Supports up to 1024 users | Up to 32 SSIDs
  • Recommended number of concurrent users 300+
  • 1 10/100/1000M Uplink port (supports PoE power), 1 Console port
  • Supports 802.3af power (15.4W)
  • Support DC 48V/1A power source
  • LEDs for signal & operation status (red, green, blue)
  • Ruijie Cloud service support allows quick, simple configuration, easy management and monitoring

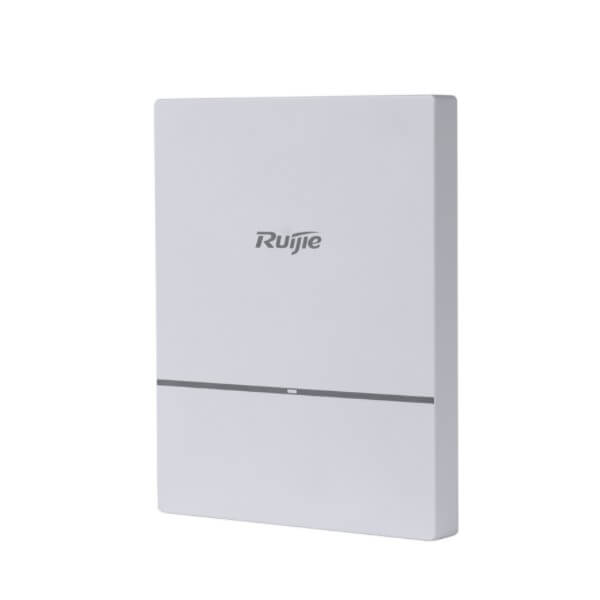

ruijie rg ap820lv2 accesspoint uae

ruijie rg ap820lv2 accesspoint uae

Specifications

Model  RG-AP820-L(V2)
Hardware specifications
Radio Dual-radio dual-band :

  • Radio 1 : 2.4G 11ax/5G 11ax: 2×2 MIMO
  • Radio 2 : 5G 11ax: 2×2 MIMO
Protocol Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac
Operating Bands
  • 802.11b/g/n/ax :2.4G ~ 2.483GHz
  • 802.11a/n/ac/ax : 5.150~5.350GHz,5.47~5.725GHz,5.725~5.850GHz (vary depending on different countries)
Spatial Streams Up to 4: 2×2:2 in 2.4GHz , 2×2:2 in 5GHz
Max Throughput Maximum throughput (5G+5G mode) per AP : 2.4Gbps

  • Radio1:5G low band 1.2Gbps
  • Radio2:5G high band 1.2Gbps

2.4G+5G operation mode, maximum throughput per AP : 1.775Gbps

  • Radio1:2.4G 0.574Gbps
  • Radio2:5G 1.2Gbps
Modulation
  • OFDM :BPSK@6/9Mbps,QPSK@12/18Mbps,16-QAM@24Mbps,64-QAM@48/54Mbps
  • DSSS :DBPSK@1Mbps,DQPSK@2Mbps,and CCK@5.5/11Mbps
  • MIMO-OFDM :BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM

OFDMA (up to 1024-QAM)

Receiver Sensitivity
  • 11b :-96dBm(1Mbps),-93dBm(5Mbps),-89dBm(11Mbps)
  • 11a/g :-91dBm(6Mbps),-85dBm(24Mbps),-80dBm(36Mbps),-74dBm(54Mbps)
  • 11n :-90dBm(MCS0),-70dBm(MCS7),-89dBm(MCS8),-68dBm(MCS15)
  • 11ac HT20 :-88dBm(MCS0), -63dBm(MCS9)
  • 11ac HT40 :-85dBm(MCS0), -60dBm(MCS9)
  • 11ac HT80 :-82dBm(MCS0), -57dBm(MCS9)
  • 11ax HT80 :-82dBm(MCS0), -57dBm(MCS9), -52dBm(MCS11)
Antenna Integrated antenna design
Antenna Gain
  • 2.4G : 3dBi
  • 5G : 3dBi
Service Ports 1 10/100/1000M Ethernet ports, PoE In
Management Port 1 console port
Reset Button Support
Anti-theft Lock Support
LED Indicator 1 LED indicator (Support red, green, blue, orange and flashing mode, which indicates device access)
Transmit Power ≤100mw(20dBm) (vary depending on different countries)
Adjustable Power 1dBm
Power Supply Local power supply (DC 48V/1A) (DC Power adapters should be purchased from third-party vendors separately if needed)

PoE (802.3af) – full spectrum operation

Power Consumption <12.95W
Physical Specifications
Temperature
  • Operating Temperature: -10°C to 50°C
  • Storage Temperature: -40°C to 70°C
Humidity
  • Operating Humidity : 5% to 95% (non-condensing)
  • Storage Humidity : 5% to 95% (non-condensing)
Installation Mode Ceiling/wall-mountable
Dimensions (W x D x H) 153mm ×193mm x26mm(Height of the AP only, excluding the mount kit)
Weight ≤0.5kg (include mount kit)
IP Rating IP41
MTBF 250,000 hours
Certifications and Compliance
Wi-Fi Alliance
  • Wi-Fi CERTIFIED a, b, g, n, ac
  • Wi-Fi CERTIFIED 6
  • WPA3-Enterprise, Personal
  • Wi-Fi Enhanced Open
  • Wi-Fi Agile Multiband
  • WMM
Safety Standard GB4943, EN/IEC 62368-1
EMC Standard GB9254, EN301 489
Radio Standard SRRC, EN300 328, EN301 893
Software Specifications
WLAN Maximum clients per AP 1024
BSSID capacity Up to 32
SSID hiding Support
5G Priority (Band Steering) Support
Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID Support
Remote Intelligent Perception Technology (RIPT) Support
Intelligent device recognition technology Support
Intelligent load balancing based on the number of users or traffic Support
STA control SSID/radio-based
Bandwidth control STA/SSID/AP-based bandwidth control
Data encryption WPA(TKIP), WPA-PSK, WPA2(AES), WPA3, WEP(64/128 bits)
PSK and web authentication Support
PPSK authentication (For Employee) Support (require wireless controller)
802.1x authentication Support
PEAP authentication Support
Data frame filtering Whitelist, static/dynamic blacklist
User isolation Support
Rogue AP detection and countermeasure Support
Dynamic ACL assignment Support
RADIUS Support
CPU Protection Policy (CPP) Support
Network Foundation Protection Policy (NFPP) Support
IP IPv4 and IPv6 address Support
Multicast routing Multicast to unicast conversion
DHCP service DHCP Snooping, Option 82, Server, Client
Management and Maintenance Supported wireless LAN controllers
  • Ruijie WS Series Wireless Controller
  • Ruijie MACC-Base Software Controller
  • Ruijie Cloud (Public Cloud)
Management protocol Telnet, SSH, TFTP, Web
Wireless Intelligent AI Optimization Service (WIS) Support
SNMP SNMPV1,V2c,V3
LLDP LLDP, LLDP-MED, LLDP-POE
Syslog / Debug Support
FAT/FIT/MACC mode switching Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management
