Grandstream GXV3450 Dubai



Grandstream GXV3450 Dubai

The Grandstream GXV3450 Dubai runs Android 11 and offers instant access to hundreds of thousands of Android apps.

Category:

Description

Grandstream GXV3450 Video IP Phone Dubai

Grandstream GXV3450 Dubai is a premium 16-line IP Video Phone for Android that offers a multi-platform video collaboration solution for its users. It is also designed to offer the full functionality of an Android tablet, thus offering an all-in-one communications solution. Grandstream GXV3450 Dubai is equipped with a 5-inch 1280 x 720 capacitive touch screen that not only offers an enhanced visual clarity in poor light conditions, but also offers a quick access to details. It also comes with a tilt-able camera, USB 3.0, dual microphones and support for 720p HD video.

The Grandstream GXV3450 Dubai runs Android 11 and offers instant access to hundreds of thousands of Android apps. Combining a highly-functional IP video phone and an advanced video collaboration solution, and the functionality of an Android tablet, the GXV3450 offers businesses throughout the world a powerful desktop communication and productivity solution. Grandstream GXV3450 Dubai can be seamlessly integrated with other Grandstream products, including Wi-Fi access points, routers, facility access solutions, IP PBXs, video conferencing devices and more.

Quick Features

  • Runs Android 11 and offers access to the millions of Android apps
  • 5-inch (1280×720) capacitive touch screen
  • Built-in 2-megapixel camera for video calling with privacy shutter
  • Integrated dual-band Wi-Fi (802.11 a/b/g/n/ac)
  • Built-in Bluetooth support for syncing with mobile devices, Bluetooth headsets, etc.
  • Dual-mic HD speakerphone with Noise Shield 2.0, advanced echo cancellation and excellent double-talk performance for any scenario
  • Dual Gigabit ports with PoE/PoE+
  • 16 lines with up to 16 SIP accounts
  • Built-in support for 10-way HD audio conferencing and 3-way 720p 30fps HD video conferencing
  • Quad-core 1.8GHz ARM Cortez A55 processor with 2GB RAM and 16GB eMMC Flash
  • Peripherals include USB 3.0, USB 2.0, and RJ9 headset jack
  • Advanced SDK/API available for custom application deployment

Technical Specs

Protocols/Standards

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®
Network Interfaces

Dual switched 10/ 100/ 1000 Mbps ports with integrated PoE/PoE+
Graphic Display

5.0 inch 1280×720 capacitive touch screen (5 points) IPS LCD
Camera

Tiltable 2 mega-pixel CMOS camera with privacy shutter, 1080P@30fps
Bluetooth

Yes, integrated Bluetooth 5.0
Wi-Fi

Yes, dual-band dual-stream Wi-Fi 5(2.4GHz & 5GHz) with 802.11 a/b/g/n/ac
Auxiliary Ports

RJ9 headset jack (allowing EHS with Plantronics headsets), USB 2.0 port, USB 3.0 port
Feature Keys

11 functions keys for CONFERENCE, TRANSFER, SEND/REDIAL, MUTE, EARPHONE, SPEAKERPHONE, VOLUME -/+. 3 dedicated Android keys for HOME, RECENT, and BACK
Voice Codecs and Capabilities

Wide-band Opus, wide-band G.722, G.711μ/a, G. 729A/B, G.726-32, iLBC, in-band and out-ofband DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC, ANS, Noise Shield 2.0
Video Codecs and Capabilities

H.264 BP/MP/HP, video resolution up to 720p, frame rate up to 30 fps, bit rate up to 2Mbps, 3-way video conference (720p@30fps), anti-flickering, and auto exposure
Telephony Features

Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 10-way audio conference(including the host), shared-call-appearance (SCA) / bridged-line-appearance (BLA), virtual Programmable Key, downloadable contacts (XML, LDAP, up to 1000 items), call record(local and server), call log (up to 1000 records), call waiting, auto answer, XML customization of screen,
flexible dial plan, personalized music ringtones and music on hold, server redundancy & fail-over
Sample Applications

  • Local apps : Contacts, Call History, File Manager, Programmable Key, Settings, Browser, Clock,Voicemail, Calculator, Recorder, GS Market, etc.
  • Supports third-party Android apps
  • API/SDK available for advanced custom application development

Android

Runs Android 11.0
Applications Deployment

Support Android 11 compliant applications to be developed, downloaded and run on the device with provisioning control
HD Audio

Yes, 2 omnidirectional microphones, HD handset and speakerphone with support for wideband audio
Base Stand

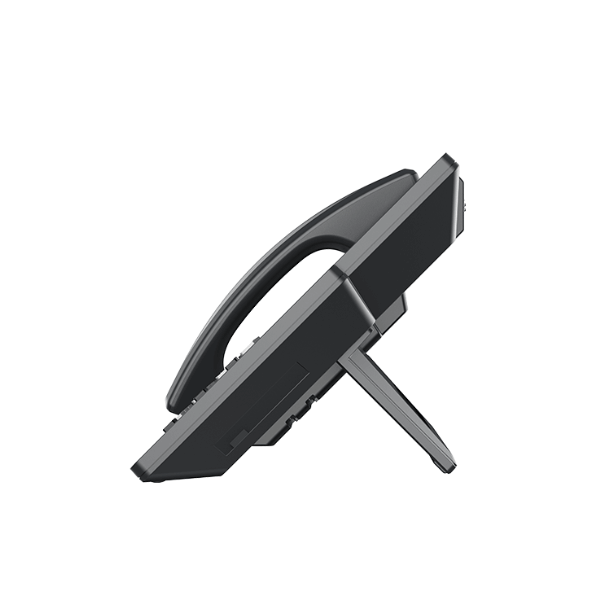

Yes, desktop stand with three adjustable levels.
Extension Module

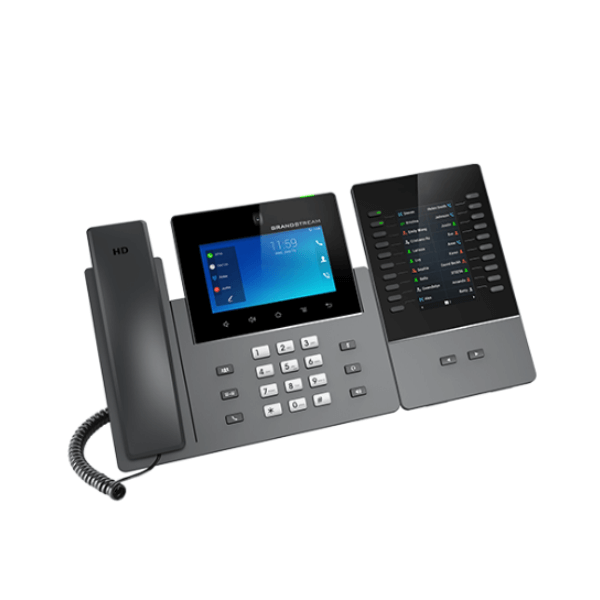

Yes, can power up to 4 GBX20 EXT modules which feature a 272×480 color LCD, 20 quick-dial/ BLF keys with dual-color LED, 2 navigation keys, and less than 1.2W power consumption per unit
QoS

Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security

User and administrator level passwords, random default admin password, MD5 and MD5-sess based authentication, 256bit-AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control, anti-hacking secure boot Multi-language English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese, and more
Upgrade/Provisioning

Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using TR-069 or AES encrypted XML configuration file, GDMS

Power & Green Energy Efficiency

Universal power adapter included :

  • Input : 100-240VAC 50-60Hz;
  • Output : 12VDC 1.5A (18W)

Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4

*Must use PSU or PoE+ to power up the phone when using USB devices and/or 2 or more GBX20 expansion modules.

Temperature and Humidity

Operation : 0°C to 40°C, Storage : -10°C to 60°C,
Humidity : 10% to 90% Non-condensing
Package Content :

GXV3450 phone, handset with cord, base stand, universal power supply, network cable, screen cleaning cloth, quick installation guide
Compliance

FCC : CFR 47 Part 15 Subpart B Class B; CFR 47 Part 15 Subpart C; CFR 47 Part 15 Subpart E; Part 68 (HAC) IC : RSS-247, RSS-GEN, RSS-102, ICES-003, CS-03
CE : EN 55032 Class B;EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN IEC 62368-1; ETSI EN 300328; ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; EN IEC 62311
UKCA : BS EN 55032 Class B; BS EN 55035; BS EN IEC 61000-3-2; BS EN 61000-3-3; BS EN IEC
62368-1; ETSI EN 300328; ETSI EN 301893; ETSI EN 301489-1; ETSI EN 301489-17; BS EN IEC 62311 RCM : AS/ACIF S040 AS/CA S004; AS/NZS CISPR 32; AS/NZS 62368.1; AS/NZS 4268 RoHS2.0
