Flyingvoice FWR8102 Wireless VoIP Router can also be used as an FTP server to implement resources such as files and pictures in the LAN shared. At the same time, the two FXS interfaces are well adapted to the needs of ordinary small and micro enterprises.



Category:

Description

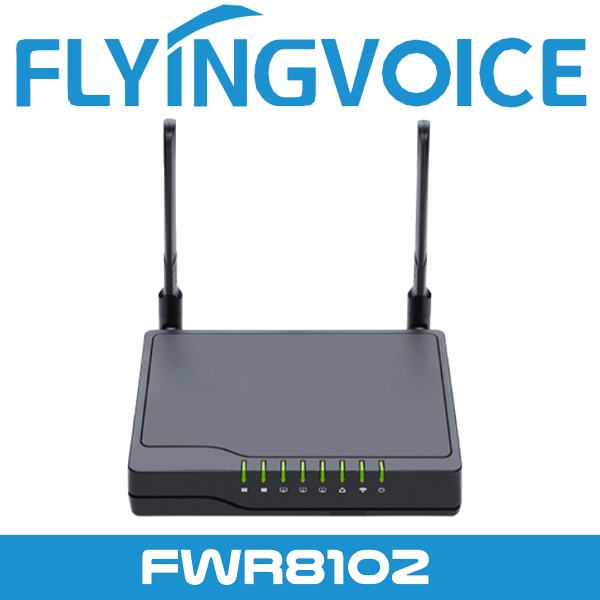

Flyingvoice FWR8102 Wireless VoIP Router Dubai

Flyingvoice FWR8102 Dubai could be a highly integrated access device that integrates route and VoIP. The Wireless VoIP Router supports 2.4GHz wireless, for VoIP terminal users, it not only provides users with the VoIP functions but also allows users to enjoy the wireless network. Flyingvoice FWR8102 Dubai can also be used as an FTP server to implement resources like files and pictures within the LAN shared. At the identical time, the 2 FXS interfaces are well adapted to the requirements of ordinary small and micro enterprises for one-way FXS and one-way fax, and no additional cost is required to feature additional equipment.

Supporting the SIP V2 and 802.11n standards, the Flyingvoice FWR8102 Dubai Wireless Router is compatible with most network service providers. Flyingvoice FWR8102 Dubai has four 10/100Mbps network ports and two FXS interfaces, which greatly facilitates the belief of VoIP networks. The Flyingvoice FWR8102 Dubai not only provides high-quality spoken language, wired network sharing but also provides access point (AP) functions in daily wireless communication. Equipped with a sophisticated router, the Flyingvoice FWR8102 Dubai can make voice calls through a SIP proxy, also has IP sharing and QoS mechanisms. the tiny and exquisite appearance won’t waste plenty of space for the office network and communication requirements.

FWR8102 Wireless Router VoIP Features :

• Support QoS
• 10/100Mbps Ethernet
• Support 2.4GHz 300Mbps Wi-Fi
• Real-time IP fax, T.38 and T.30

Flyingvoice FWR8102 Wireless VoIP Router Specifications :

Flash

  • 16MB Flash

RAM

  • 128MB DDR2 RAM

Power

  • AC/DC Adapter
  • AC Input: 100~240V, 50~60Hz
  • DC Output: 12V, 1A

Operating System

  • Linux 2.6.36

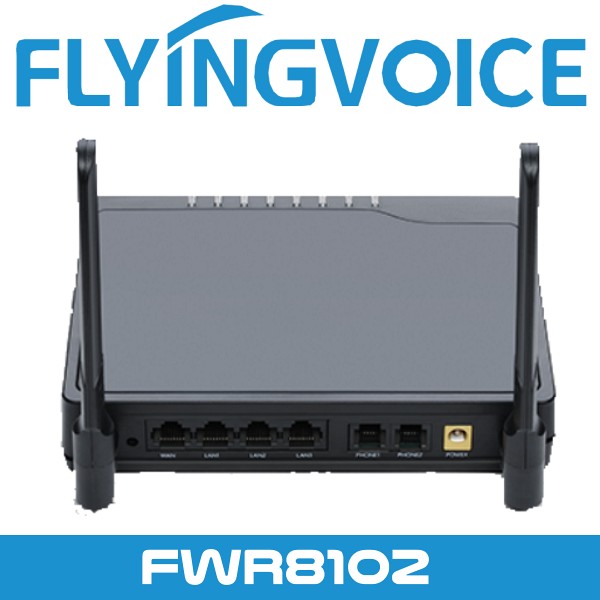

I/O Interfaces

  • 1 RJ-45 WAN Port (Ethernet 100 Base-T)
  • 3 RJ-45 LAN Ports (Ethernet 100 Base-T)
  • 2 RJ-11 FXS Ports

Environmental

  • Operation Temperature: 0~50 Degree C
  • Storage Temperature: -25~ 85 Degree C
  • Relative Humidity: 10%~90% No Condensing

Audio Codec

  • G.711(A/u),PESQ>4
  • G.729AB,PESQ>3.6
  • Adaptive Jitter Buffer Management
  • Voice Activity Detection
  • Comfort Noise Generation
  • Echo Cancellation
  • T.30 FAX with G.711
  • Real time FAX over IP via T.38

Feature Keys

  • 2T2R 2.4G 802.11 b/g/n(300 Mbps)
  • Support VoIP FXS port with SIP and T.38 FAX

Protocols

  • SIP V2.0 (RFC 3261)
  • Backward compatible with RFC2543
  • Session timer (RFC4028)
  • SDP (RFC2327)
  • RTP/RTCP (RFC1889/RFC1890)
  • NAPTR for SIP URI lookup (RFC2915)
  • STUN (RFC2030)
  • ARP/RARP (RFC 826/903)
  • SNTP (RFC 2030)
  • DHCP/PPPoE
  • HTTP Server for Web Management
  • TFTP/HTTP/HTTPS for Auto Provisioning
  • Message Waiting Indicator (RFC3842)
  • DHCP Option Codes for SIP (RFC3361)
  • DNS/DNS SRV (RFC1706 and RFC 2782)
  • TR069 (TR098,TR104)
  • IEEE802.1Q VLAN/802.1p/DSCP
  • SNMP v2

Applications

  • Support NAT mode and Bridge mode
  • Support DDNS
  • MAC address cloning
  • SIP proxy redundancy
  • NAT Traversal by STUN
  • Built-in Wired speed NAT Router
  • DHCP Server and Client
  • IP conflict detection
  • Port Forwarding, DMZ, SuperDMZ
  • 802.1Q VLAN/802.1p, DSCP, Rate Limiting
  • VPN(PPTP,L2TP, OpenVPN) Passthrough,IPSec
  • SNTP
  • IGMPv2
  • Firewall(DDoS attack)

Wireless

  • 802.11 b/g/n support
  • 4 SSID
  • Static WEP(64/128bit)
  • Dynamic WEP(64/128bit)
  • AES(CCMP/TKIP)
  • MAC certification
  • WEP certification
  • WPA-PAK/WPA-PSK(2.0)
  • WPA/WPA2
  • AP Isolation and MBSSID AP Isolation
  • WMM
  • WDS
  • WPS
  • Station list
  • MAC Filter(different from wired MAC Filter)

Call Features

  • 3-way conference
  • Call hold
  • Call forwarding
  • Call Transfer
  • Call waiting
  • DTMF Relay: In-band, RFC2833 and SIP INFO
  • QoS Layer 3
  • Call Log
  • CID/CWCID
  • Dial Plan

Management

  • Firmware Upgrade
  • Web Management Interface
  • IVR-driven Management Interface
  • Local and Remote Syslog (RFC3164)
  • Auto Provisioning
  • SNTP Time Synchronization
  • Multi User Level
  • SNMP v2
  • Telnet
  • TR069

SIZE And Weight

  • 158mm(L)x140mm(W)x29mm(H)
  • 225g (N.W)

Product Number Description

  • FWR8100 1 WAN 3 LAN
  • FWR8101 1 WAN 3 LAN 1 FXS
  • FWR8102 1 WAN 3 LAN 2 FXS
