Flyingvoice G504 Dubai



Flyingvoice G504 Dubai

The Flyingvoice G504 Dubai is based on SIP V2 and compatible with most service providers, which brings great convenience when deploying VoIP network.

Category:

Description

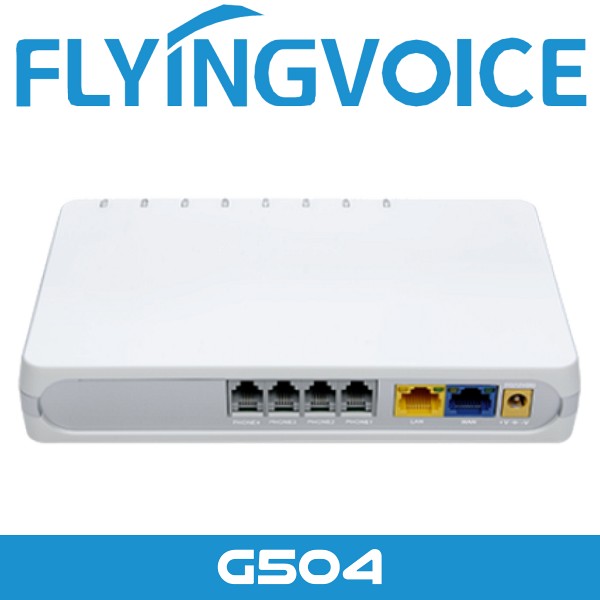

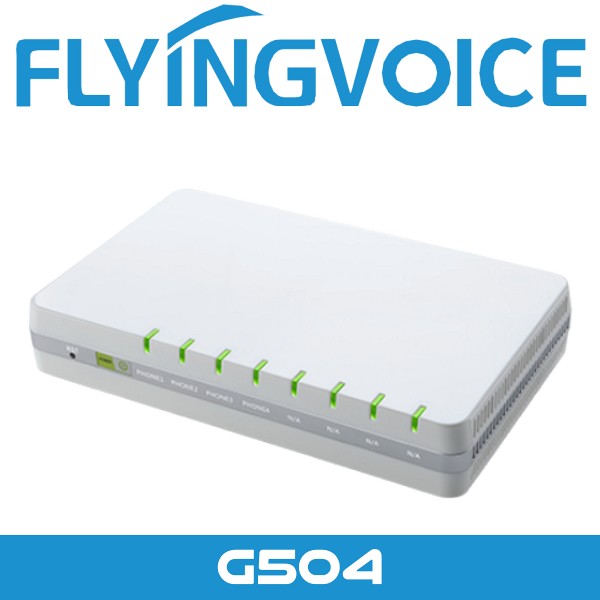

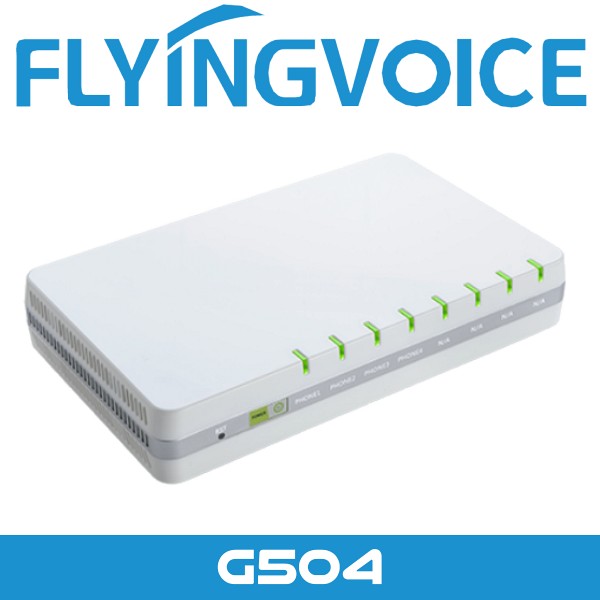

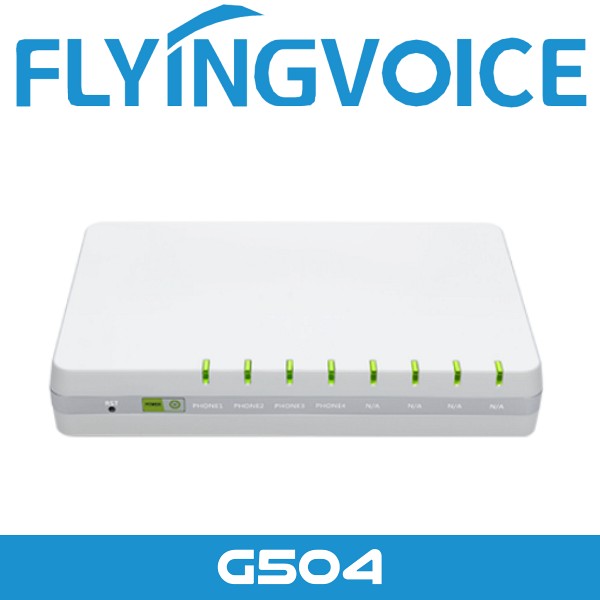

Flyingvoice G504 FXS VoIP Adapter Dubai

Flyingvoice G504 Dubai FXS VoIP Adapter, which has 4 FXS ports, one LAN port, and one WAN port, is one amongst the most popular VoIP ATAs researched and produced by FlyingVoice. Flyingvoice G504 Dubai can not only provide 4 SIP lines for users to create calls but also it’s a wire-speed NAT router, cause you to enjoy an easy network atmosphere. What’s more, Flyingvoice G504 Dubai FXS VoIP Adapter support T.38 real-time FAX and T.30 FAX with G.711.Flyingvoice G504 FXS VoIP Gateway Dubai may be a stand-alone device, which needs no PC to form Internet calls. This Flyingvoice G504 Dubai guarantees clear and reliable voice quality on the Internet, which is fully compatible with the SIP industry standard and ready to interoperate with many other SIP devices and software on the market. Their compact size, excellent voice quality, packed feature functionality and best-in-class price-performance point enable consumers to maximize the ability of IP voice and data connectivity. G504 is predicated on the SIP V2.0 standard and compatibility with most service providers. Flyingvoice G504 Dubai FXS VoIP Adapter features 4 FXS telephone ports, TR069 CPE management & monitoring protocols and a base indicate vertical

Flyingvoice G504 FXS VoIP Adapter Features :

  • All-in-one Adapter
    • With 4 FXS ports, Flyingvoice G504 Dubai  can not only provide 4 SIP lines for users to make calls, but it is also a wire-speed NAT router, make you enjoy convenient and flexible network. It supports T.38, T.30 and G.711 fax standard, no additional purchase costs.
  • Gigabit Ethernet Ports
    • Flyingvoice G504 Dubai has 2*10/100/1000M Ethernet ports which support a theoretical maximum data rate of one gigabit per second (1,000 Mbps), which provides high-speed network connections to devices and smooth data transfer.
  • Stand-alone Device
    • Flyingvoice G504 Dubai is a stand-alone device, which requires no PC to make Internet calls.
  • Broad Compatibility
    • The Flyingvoice G504 is based on SIP V2 and compatible with most service providers, which brings great convenience when deploying VoIP network.
  • Easy Management
    • Flyingvoice G504 is equipped with advanced management protocols such as SNMP and TR069, which is easy to achieve unified deployment and centralized management.

Flyingvoice G504 FXS VoIP Adapter Specifications :

VoIP SoC

  • CPU: MTK MT7621A

Flash

  • 16MB Flash

RAM

  • 256MB SDRAM

Power

  • AC/DC Adapter
  • AC Input: 100~240V, 50~60Hz
  • DC Output: 12V, 2A

Operating System

  • Linux 2.6.36

I/O Interfaces

  • 2 RJ-45 for 10/100/1000Ethernet Ports
  • 4 RJ-11 for FXS Ports

Environmental

  • Operation Temperature: 0~50 Degree C
  • Storage Temperature: -25~ 85 Degree C
  • Relative Humidity: 10%~90% No Condensing

Audio Codec

  • G.711(A/u),PAMS>4.3
  • G.729A/AB,PAMS>4.0
  • T.30 FAX with G.711
  • Real time FAX over IP via T.38(Phone 2 port only)
  • Adaptive Jitter Buffer
  • Voice Activity Detection
  • Comfort Noise Generation
  • Echo Cancellation

Management

  • Firmware Upgradeable
  • Web Management Interface
  • IVR-driven Management Interface
  • Local and Remote Syslog (RFC3164)
  • Auto Provisioning
  • SNTP Time Synchronization
  • Multi-User Level
  • SNMPv2
  • TR069

Protocols

  • SIP V2 (RFC 3261,3262,3263,3264)
  • Backward Compatible with RFC2543
  • Session Timer (RFC4028)
  • SDP (RFC2327)
  • RTP/RTCP (RFC1889 and RFC1890)
  • NAPTR for SIP URI Lookup (RFC2915)
  • STUN (RFC 3489)
  • ARP/RARP (RFC 826/903)
  • SNTP (RFC 2030)
  • DHCP/PPPoE
  • PPTP/L2TP VPN
  • HTTP Server for Web Management
  • TFTP/HTTP/HTTPS for Auto Provisioning
  • DNS/DNS SRV (RFC1706 and RFC 2782)

Applications

  • NAT/NAPT Router function
  • MAC Address Cloning
  • DHCP Server
  • PPTP/L2TP VPN
  • PPPoE
  • SIP proxy redundancy
  • Dynamic via DNS SRV, A records
  • NAT Traversal by STUN
  • DMZ
  • QoS with Layer 3
  • DHCP Client and DHCP Server
  • IP conflict detection

Call Features

  • 3-way Conference
  • Music on hold
  • DTMF mode: In-band, RFC2833 and SIP INFO
  • Call Hold
  • Call Forwarding
  • Call Mute
  • Call Transfer
  • Call Waiting
  • Speed Dial
  • Caller ID and CWCID
  • Hotline
  • Real time fax over IP via T.38
  • T.30 FAX with G.711
  • Dial Plan
  • Black List
  • Call Log

SIZE And Weight

  • 180mm(L)x110mm(W)x30mm(H)
  • 295g(N.W)
