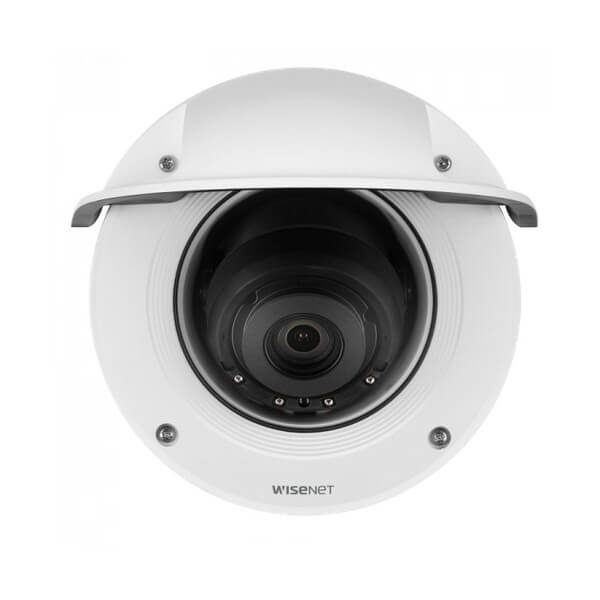

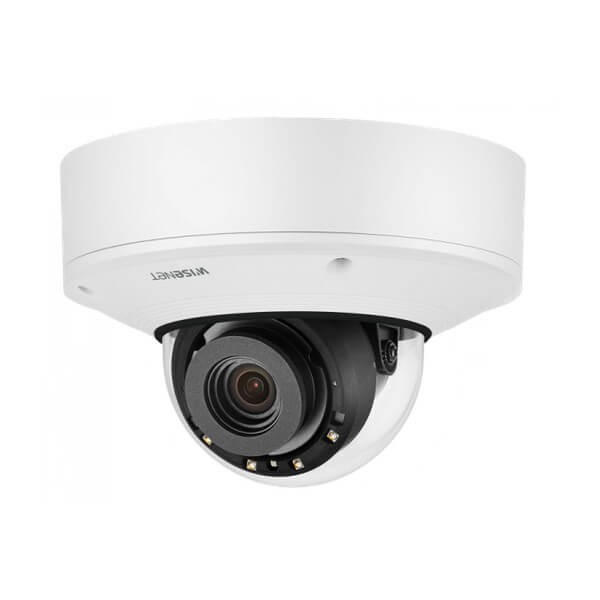

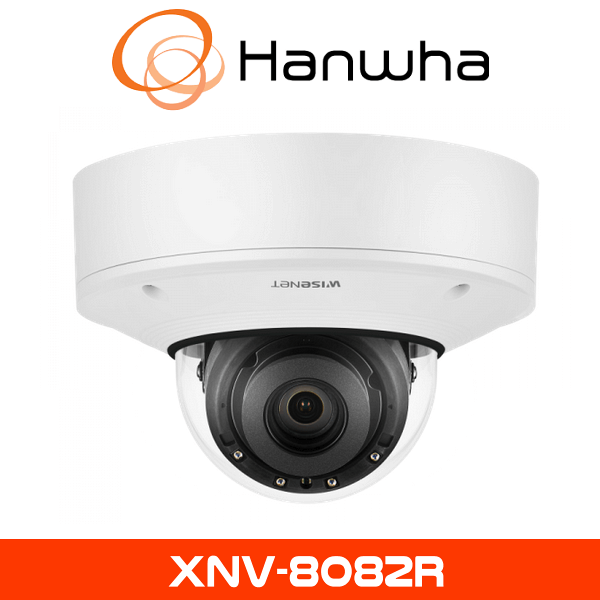

Hanwha XNV-8082R AI CCTV Camera
The Hanwha XNV-8082R AI CCTV Camera, previously recognized as Samsung CCTV, is a high-performance 6MP outdoor dome camera designed for intelligent security monitoring in harsh environments. Featuring deep learning AI-powered analytics, ultra-HD imaging, and adaptive IR night vision, this rugged camera ensures high-quality surveillance for commercial, industrial, and critical infrastructure applications.
6MP Ultra-High-Resolution Imaging
The XNV-8082R is equipped with a 6MP image sensor, delivering high-resolution video clarity for forensic investigations and real-time monitoring. This ensures detailed security footage and enhanced object identification.
AI-Powered Deep Learning Analytics
The integrated AI-driven analytics enhance security monitoring by distinguishing between humans, vehicles, and objects, reducing false alarms and increasing security efficiency. Features include motion detection, virtual line crossing, intrusion alerts, and loitering detection.
Smart IR Night Vision
With adaptive IR illumination, the XNV-8082R provides clear night vision up to 50 meters (164 feet), ensuring detailed imaging even in complete darkness.
Rugged Vandal-Resistant and Weatherproof Housing
Designed for harsh environments, the camera features a IK10-rated impact-resistant dome and IP67-rated weatherproof housing, ensuring long-lasting durability against vandalism, dust, and extreme weather conditions.
Optimized Bandwidth and Storage Efficiency
Utilizing H.265 video compression, the XNV-8082R optimizes bandwidth consumption while maintaining ultra-HD video quality, allowing for longer recording durations and cost-effective data management.
Easy Installation and Seamless Integration
Supporting Power over Ethernet (PoE), the camera simplifies installation by requiring only a single cable for power and data transmission. ONVIF compliance ensures integration with leading video management systems (VMS).
Key Specifications:
- Resolution: 6MP Ultra HD (3072 × 2048)
- AI-powered analytics: Human/vehicle classification, motion detection, virtual line crossing, intrusion detection, loitering alerts
- Infrared Night Vision: Up to 50m (164 feet) with smart IR
- Video Compression: H.265/H.264/MJPEG
- Weatherproof Rating: IP67 for extreme outdoor conditions
- Vandal-Resistant Rating: IK10 for high-impact protection
- Power Source: Power over Ethernet (PoE) and 12V DC
- Operating Temperature: -40°C to +55°C (-40°F to +131°F)
- Network Connectivity: Ethernet 10/100/1000 Base-T
- ONVIF Compliance: Compatible with major VMS platforms
Specifications:
| Video | |
| Imaging Device | 1/2.8″ CMOS |
| Resolution | 3328×1872, 3072×1728, 2592×1944, 2688×1520, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps(@6MP Max. 5fps) |
| Min. Illumination | Color: 0.05Lux(F1.2, 1/30sec, 30IRE) BW: 0.005Lux(F1.2, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation USB: Micro USB Type B, 1280×720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8~8.4mm(3x) motorized varifocal |
| Max. Aperture Ratio | F1.2(Wide)~F2.8(Tele) |
| Angular Field of View | H: 114°(Wide)~40°(Tele) V: 62°(Wide)~22°(Tele) D: 133°(Wide)~46°(Tele) |
| Min. Object Distance | 0.7m(2.23ft) |
| Focus Control | Simple focus |
| Lens Type | DC Auto Iris, P iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~360° / 0°~85° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | extremeWDR(120dB) |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, 4point Quadrangle zones – Color: Gray/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Off / Max gain / Manual |
| White Balance | ATW / NarrowATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support(Fill/stretch mode) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker(2~1/12,000sec) Prefer shutter control |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Analytics events – Defocus detection, Directional detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Fog detection, Virtual line, Audio detection, Sound classification, Shock detection, Face/upper body detection |
| Business Intelligence | People counting, Queue management, Heatmap |
| Alarm I/O | 2 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription |
| Alarm Events | When alarm trigger occurred – File upload(image): e-mail/FTP/SFTP – File upload(video clip): FTP/SFTP – Notification: e-mail – Recording: SD/SDHC/SDXC or NAS recording at event triggers – Alarm output – Handover: PTZ preset, send message by HTTP/HTTPS/TCP – Audio clip playback – MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| IR Viewable Length | WiseIR 40m(131.23ft) |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles, 3 virtual channel support) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Security | |
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware |
| User authentication | Digest Authenticaton, Prevent brute-force attacks |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure), SRTP |
| Access Control | IP-based access control |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | HTPM(Hanwha trusted platform module), SDcard partition encrypt |
| Security Certificate | CyberSecurity assuarance program UL CAP(UL 2900-2-3 L2) |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2slot Max. 1TB(512GBx2) |
| Memory | 4GB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~95% RH(non-condensing) * Start up should be done at above -30°C |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~90% RH |
| Certification | IP66/IP67/IP6K9K, IK10+, NEMA4X |
| Input Voltage | PoE(IEEE802.3af, class3), 12VDC |
| Power Consumption | PoE: Max 12.95W, typical 10.7W 12VDC: Max 11.5W, typical 9.0W 24VAC: Max 13.5W, typical 11.0W Power redundancy failover |
| Mechanical | |
| Color / Material | White / Aluminum Bubble: Hard-coated dome |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø180x125mm(ø7.09×4.92″), 1900g(4.19 lb) |
| Compatible Conduit hole / Gangbox | 19.1mm(3/4″)(M25) single, double, 4″ octagon, 4″ square |
| Hanging Mount (Dome) | SBP-180HMW1 |
| Backbox | SBV-180BW, SBV-180WW |
| Ceiling Mount (Assy) | SBP-150CMI/300CMI, SBP-300CMW1/900CMW, SBP-300CMTW, SBP-300CMTS |
| Wall Mount | SBP-300WMW/WMW1, SBP-390WMW2 |
| Pole Mount | SBD-180PMW, SBP-300PMW2 |
| In-ceiling Mount | SHD-1350FPW |
| Parapet Mount | SBP-300LMW, SBP-156LMW1 |
| Corner Mount | SBP-300KMW1 |
| Cabinet | SBP-300NBW |
| Other Compatible Models | SPB-VAN85W |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA – EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835 |
| Safety | UL 60950-1, CAN/CSA C22.2 NO. 60950-1 IEC/EN 62471 |
| Environment | EN IEC 63000 IEC 60529 IP66/IP67, ISO 20653 IP6K9K, IEC 62262 IK10+ NEMA 250 type 4X |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 43.2m(141.81ft) / Tele: 182.9m(599.97ft) |
| Observe (63PPM/ 19PPF) | Wide: 17.3m(56.73ft) / Tele: 73.1m(239.99ft) |
| Recognize (125PPM/ 38PPF) | Wide: 8.6m(28.36ft) / Tele: 36.6m(119.99ft) |
| Identify (250PPM/ 76PPF) | Wide: 4.3m(14.18ft) / Tele: 18.3m(60.00ft) |
