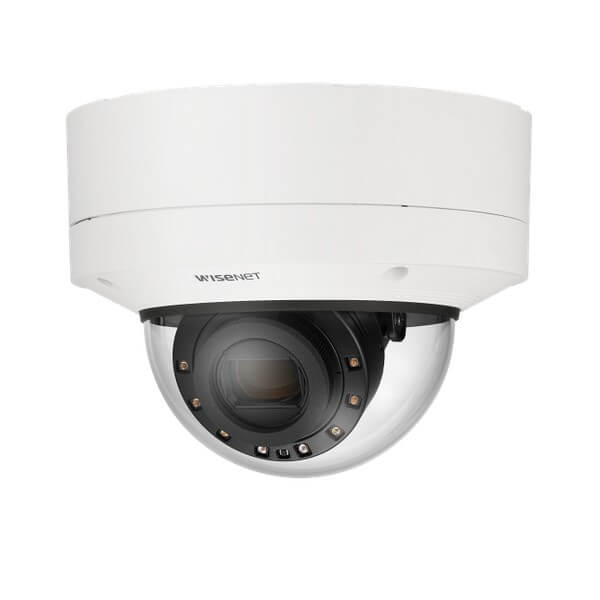

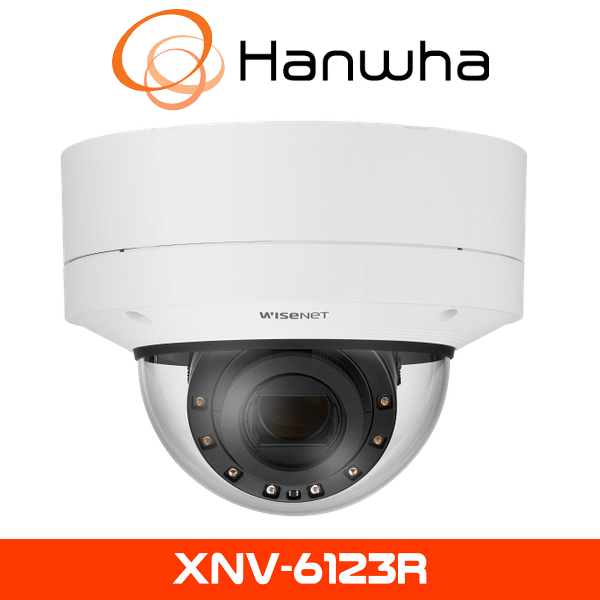

Hanwha XNV-6123R Vandal-Resistant Dome Camera



Hanwha XNV-6123R Vandal-Resistant Dome Camera

The Hanwha XNV-6123R CCTV Camera, from Hanwha CCTV Previously Known As Samsung CCTV, is a high-performance 2MP vandal-resistant dome camera designed for advanced surveillance. Available through trusted Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE, it features a 5.2~62.4mm motorized varifocal lens with 12x optical zoom, offering a 54.58° to 5.30° field of view, ideal for capturing distant details in retail, parking lots, or public spaces.

Description

DESCRIPTION TO Hanwha XNV-6123R Vandal-Resistant Dome Camera

The Hanwha XNV-6123R CCTV Camera, from Hanwha CCTV Previously Known As Samsung CCTV, is a high-performance 2MP vandal-resistant dome camera designed for advanced surveillance. Available through trusted Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE, it features a 5.2~62.4mm motorized varifocal lens with 12x optical zoom, offering a 54.58° to 5.30° field of view, ideal for capturing distant details in retail, parking lots, or public spaces. Its AI-driven analytics detect and classify objects like people, vehicles, faces, and license plates, reducing false alarms. With WiseIR, it delivers night vision up to 90 meters, ensuring clear low-light performance, while 150dB WDR provides crisp visuals in high-contrast settings. WiseStream III optimizes bandwidth for cost efficiency.

2MP Clarity with 12x Optical Zoom

The Hanwha XNV-6123R camera’s 2MP CMOS sensor delivers clear footage at 1920×1080, capturing fine details in retail, parking lots, or public spaces. Its 120fps capability ensures fluid video playback for fast-moving scenes, ideal for dynamic environments like entry/exit points or busy streets. The 5.2~62.4mm motorized varifocal lens provides a 12x optical zoom, offering a field of view from 54.58° to 5.30°, enabling precise focus on distant objects. This makes it perfect for monitoring expansive areas or zooming in on specific targets, such as license plates or faces, with clarity.

EXtraLUX Low-Light Performance

Hanwha XNV-6123R With eXtraLUX technology, the camera achieves exceptional low-light performance at 0.03 Lux in color and 0 Lux with IR enabled, ensuring detailed images in dimly lit conditions. This is ideal for indoor spaces after hours or shaded outdoor areas, reducing the need for additional lighting and enhancing visibility for nighttime surveillance.

WiseIR for Long-Range Night Vision

Equipped with WiseIR technology, the Hanwha XNV-6123R CCTV Camera provides illumination up to 90 meters, delivering sharp black-and-white images in complete darkness. This extended range is perfect for outdoor surveillance in areas like parking lots, perimeters, or public plazas, ensuring robust 24/7 security coverage without external light sources.

150dB WDR for Exceptional Imaging

The 150dB WDR balances high-contrast scenes, ensuring details are visible in bright sunlight or shadowed areas, such as retail entrances or sunlit courtyards. This capability delivers consistent image quality for reliable monitoring in challenging lighting conditions, making it suitable for environments with fluctuating light levels.

WiseStream III for Bandwidth Efficiency

WiseStream III, Hanwha XNV-6123R  an AI-enhanced compression technology, reduces bandwidth and storage needs by up to 80% by prioritizing key frame areas. This ensures cost-effective operations for large-scale CCTV networks, supported by Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE, making it ideal for systems requiring efficient data management.

Rugged and Weatherproof Design

Rated IP67, IP66, IP6K9K, NEMA4X for dust, water, and corrosion resistance, and IK10+ for vandal protection, the Hanwha XNV-6123R CCTV Camera is built to endure harsh environments, operating reliably from -40°C to +55°C. Its durable design (Ø160.0 x 118.0mm, 1.1kg) ensures longevity in outdoor settings like parking lots or indoor high-traffic areas, maintaining performance under extreme weather or physical impacts.

Digital Image Stabilization

The built-in gyro sensor enables DIS, minimizing blur from vibrations in windy or busy environments, ensuring steady footage for accurate monitoring. This is particularly valuable in high-traffic locations like public facilities or retail spaces where movement is common, maintaining video clarity for reliable analysis.

Comprehensive Audio Capabilities

The camera supports two-way audio with one input/output, enabling real-time communication between operators and monitored areas. Audio detection and sound classification identify critical sounds, such as screams or crashes, enhancing situational awareness in crowded or sensitive locations, making it a powerful tool for proactive security monitoring.

Flexible Storage and Connectivity

Dual microSD slots provide up to 512GB of storage for data redundancy, safeguarding footage during network disruptions. PoE and 12V DC power options offer versatile installation choices, while ONVIF compatibility ensures seamless integration with third-party systems. A USB port facilitates easy setup, supported by Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE, ensuring robust network connectivity.

Key Specifications

  • Imaging Device: 1/2.8″ 2MP CMOS sensor
  • Resolution: 2MP (1920×1080) at up to 120fps
  • Lens: 5.2~62.4mm (12x) motorized varifocal lens
  • Field of View: Horizontal: 54.58° (wide) to 5.30° (tele); Vertical: 31.92° to 3.00°
  • Minimum Illumination: Color: 0.03 Lux (F1.6, 1/30sec, 30IRE); B/W: 0 Lux (IR LED on)
  • IR Distance: WiseIR up to 90m (295.28ft)
  • Wide Dynamic Range: 150dB WDR
  • Compression: H.265, H.264, MJPEG with WiseStream III support
  • Storage: Dual microSD/SDHC/SDXC up to 512GB
  • Analytics: AI-based object detection (person, face, vehicle, license plate), video analytics (loitering, directional detection, fog detection, tampering, motion detection, virtual line/area, enter/exit, shock detection), audio detection, sound classification, digital auto-tracking
  • Environmental Ratings: IP67, IP66, IP6K9K, NEMA4X, IK10+
  • Power: PoE (IEEE802.3af), 12V DC; Max 12.0W (PoE), 10.5W (12V DC)
  • Connectivity: RJ-45 (10/100BASE-T), USB port for setup
  • Audio: 1 input/1 output, two-way audio support
  • Dimensions: Ø160.0 x 118.0mm
  • Weight: 1.1kg
  • Operating Temperature: -40°C to +55°C

Specifications

Video
Imaging Device 1/2.8″ CMOS
Resolution 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240
Max. Framerate H.265/H.264: Max. 120fps/100fps(60Hz/50Hz)(WDR off)
Max. 60fps/50fps(60Hz/50Hz)(WDR on)
MJPEG: Max. 30fps
Min. Illumination Color: 0.03Lux(F1.6, 1/30sec, 30IRE)
BW: 0.003Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on), 30/25fps

Color: 0.06Lux(F1.6, 1/60sec, 30IRE)
BW: 0.006Lux(F1.6, 1/60sec, 30IRE), 0Lux(IR LED on), 60/50fps

Color: 0.12Lux(F1.6, 1/120sec, 30IRE)
BW: 0.012Lux(F1.6, 1/120sec, 30IRE), 0Lux(IR LED on), 120/100fps

Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation
USB: Micro USB Type B, 1280×720 for installation
Lens
Focal Length (Zoom Ratio) 5.2~62.4mm(12x) zoom(digital 32x, total 384x zoom)
Max. Aperture Ratio F1.6(Wide)~F3.0(Tele)
Angular Field of View H: 55˚(Wide)~5˚(Tele)
V: 33˚(Wide)~3˚(Tele)
D: 62˚(Wide)~6˚(Tele)
Min. Object Distance 2.1m(6.89ft)
Focus Control Oneshot AF, Focus save
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0°~360° / 0°~80° / 0°~355°
Sequence Preset(300ea)
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range extremeWDR(150dB)
Digital Noise Reduction WiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point Polygonal zones
Privacy Masking 32ea, 4point Quadrangle zones
– Color: Gray/Green/Red/Blue/Black/White
– Mosaic
Gain Control Off / Max Gain / Manual
White Balance ATW / NarrowATW / AWC / Manual / Indoor / Outdoor
LDC Support(Fill/stretch mode)
Electronic Shutter Speed Minimum / Maximum / Anti flicker(2~1/12,000sec)
prefer shutter control(Based on AI engine)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics Classified object type: Person/Face/Vehicle(Type: car/bus/truck/motorcycle/bicycle)/License plate
Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle)
Support DetectionShot
Analytics events based on AI engine
– Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
Analytics events
– Defocus detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
Alarm I/O 2 configurable I/O ports, DC 12V output(Max. 50mA)
Alarm Triggers Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
Alarm Events When alarm trigger occurred
– File upload(image): e-mail/FTP/SFTP
– File upload(video clip): FTP/SFTP
– Notification: e-mail
– Recording: SD/SDHC/SDXC or NAS recording at event triggers
– Alarm output
– Handover: PTZ preset, send message by HTTP/HTTPS/TCP
– Audio clip playback
– MQTT: publication
Audio In Selectable(mic in/line in)
Audio Out Line out
IR Viewable Length WiseIR 90m(295.28ft)
Network
Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅢ(Based on AI engine)
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Application Programming Interface ONVIF Profile S/G/T/M
SUNAPI(HTTP API)
Wisenet open platform
Security
OS / Firmware Protect Encrypted Firmware, Secure boot, Signed Firmware
User authentication Digest Authenticaton, Prevent brute-force attacks
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure), SRTP
Access Control IP-based access control
Data Protect Encryption Credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage TPM, HTPM(Hanwha trusted platform module), SDcard partition encrypt
Security Certificate TPM with FIPS 140-2 level 2
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slot Max. 1TB(512GBx2)
Memory 2GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+60°C(-40°F~+140°F)
* Start up should be done at above -30°C
0~100% RH(condensing)
Humidity control /w AIR vent
Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / 0~90% RH
Certification IP66/IP67/IP6K9K, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9), IK10+
Input Voltage PoE+(IEEE802.3at type2, Class4), 12VDC
Power Consumption PoE+: Max 19.5W, typical 15.5W
12VDC: Max 16.5W, typical 13.1W
Power redundancy failover
Mechanical
Color / Material White / Aluminum
Bubble: Hard-coated dome
RAL Code RAL9003
Product Dimensions / Weight ø180x138mm(ø7.09×5.43″), 2130g(4.70 lb)
Compatible Conduit hole / Gangbox 19.1mm(3/4″)(M25)
single, double, 4″ octagon, 4″ square
Hanging Mount (Dome) SBP-180HMW1
Backbox SBV-180BW/WW
Ceiling Mount (Assy) SBP-150CMI/300CMI, SBP-300CMW1/900CMW, SBP-300CMTW, SBP-300CMTS
Wall Mount SBP-300WMW/WMW1, SBP-390WMW2
Pole Mount SBD-180PMW, SBP-300PMW2
In-ceiling Mount SHD-1370FPW
Parapet Mount SBP-300LMW, SBP-156LMW1
Corner Mount SBP-300KMW1
Cabinet SBP-300NBW
Certifications & Standards
EMC FCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
– EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
KS C 9832 Class A , KS C 9835
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1
IEC/EN 62471
Environment IEC/EN 63000
IEC/EN 60529 IP66/IP67, ISO 20653 IP6K9K, IEC/EN 62262 IK10+
NEMA TS 2-2013(2.2.8, 2.2.9)
NEMA 250 type 4X
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 73.8m(242.01ft) / Tele: 879.5m(2885.51ft)
Observe (63PPM/ 19PPF) Wide: 29.5m(96.81ft) / Tele: 351.8m(1154.21ft)
Recognize (125PPM/ 38PPF) Wide: 14.8m(48.40ft) / Tele: 175.9m(577.10ft)
Identify (250PPM/ 76PPF) Wide: 7.4m(24.20ft) / Tele: 88.0m(288.55ft)
