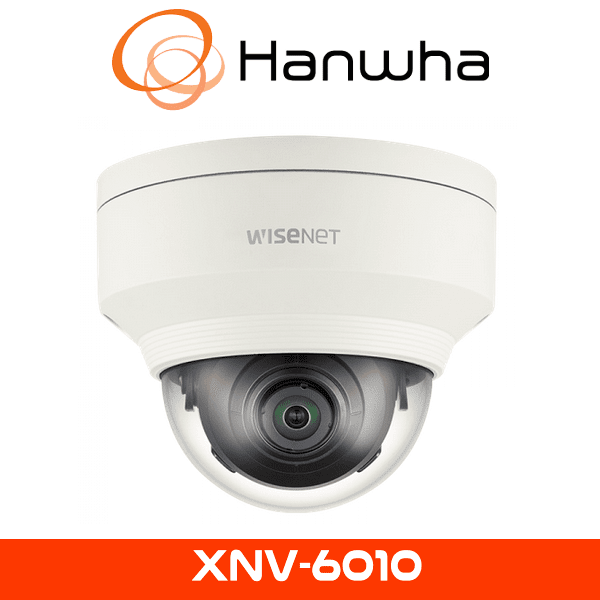

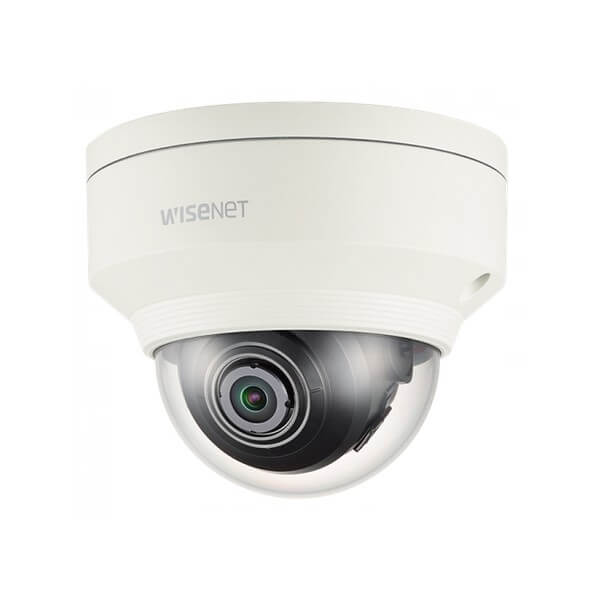

DESCRIPTION TO Hanwha XNV-6010 Vandal-Resistant Dome Camera

The Hanwha XNV-6010 CCTV Camera, from Hanwha CCTV Previously Known As Samsung CCTV, is a high-performance 2MP vandal-resistant dome camera designed for versatile surveillance. It features a 2.4mm fixed lens with a 139° field of view, capturing wide, clear details in retail, offices, or public spaces. Its advanced video analytics detect loitering, directional movement, and tampering, minimizing false alarms and enhancing efficiency. With 150dB WDR, it delivers crisp visuals in high-contrast settings, and WiseStream II optimizes bandwidth for cost-effective operations.

2MP Clarity with Wide-Angle Lens

The Hanwha XNV-6010 camera’s 2MP CMOS sensor delivers crisp footage at 1920×1080, capturing fine details across expansive areas. Its 60fps capability ensures smooth video playback for dynamic scenes, ideal for fast-paced environments like retail floors or public spaces. The 2.4mm fixed lens provides a 139° horizontal field of view, offering broad coverage that minimizes blind spots in large indoor areas or sheltered outdoor spaces, such as parking lots or courtyards. This wide-angle view reduces the need for multiple cameras, making it a cost-effective solution for comprehensive surveillance.

150dB WDR for Exceptional Imaging

The 150dB WDR balances high-contrast scenes, ensuring details remain visible in bright sunlight or shadowed areas, such as retail entrances or lobbies with strong backlighting. This delivers consistent image quality for reliable monitoring in challenging lighting conditions, ensuring no critical detail is missed, even in environments with fluctuating light levels like busy stores or office receptions.

WiseStream II for Bandwidth Efficiency

WiseStream II compression reduces bandwidth and storage requirements by up to 80%, prioritizing key frame areas for efficient data management. This ensures cost-effective operations for large-scale CCTV networks, making it suitable for extensive surveillance systems where data optimization is critical, while maintaining high-quality footage for analysis and review.

Rugged and Weatherproof Design

Rated IP67 and IP66 for dust and water resistance and IK10 for vandal protection, the Hanwha XNV-6010 CCTV Camera is built to withstand harsh conditions, operating reliably from -30°C to +55°C. Its compact design (Ø110.0 x 86.0mm, 0.6kg) ensures discreet placement while maintaining durability, ideal for outdoor settings like parking lots or indoor high-traffic areas. The robust build resists physical impacts and environmental challenges, ensuring long-term performance.

Digital Image Stabilization

The built-in gyro sensor enables DIS, minimizing blur caused by vibrations in busy or windy environments, ensuring steady footage for accurate monitoring. This is particularly valuable in high-traffic locations like retail stores or public facilities where movement is frequent, maintaining video clarity for reliable analysis and evidence collection.

Comprehensive Audio Capabilities

The Hanwha XNV-6010 camera supports two-way audio with one input/output, enabling real-time communication between operators and monitored areas. Audio detection and sound classification identify critical sounds, such as screams or crashes, enhancing situational awareness in crowded or sensitive locations like offices or public spaces, making it a powerful tool for proactive security monitoring.

Flexible Storage and Connectivity

Dual microSD slots provide up to 512GB of storage for data redundancy, safeguarding footage during network disruptions, ensuring no critical moments are lost. PoE and 12V DC power options simplify installation, reducing cabling complexity, while ONVIF compatibility ensures seamless integration with third-party systems. A USB port facilitates easy setup, ensuring robust and reliable network connectivity for efficient operation.

Key Specifications

• Imaging Device: 1/2.8″ 2MP CMOS sensor
• Resolution: 2MP (1920×1080) at up to 60fps
• Lens: 2.4mm fixed lens
• Field of View: Horizontal: 139°; Vertical: 73°
• Minimum Illumination: Color: 0.055 Lux (F2.0, 1/30sec); B/W: 0.0055 Lux (F2.0, 1/30sec)
• Wide Dynamic Range: 150dB WDR
• Compression: H.265, H.264, MJPEG with WiseStream II support
• Storage: Dual microSD/SDHC/SDXC up to 512GB
• Analytics: Video analytics (loitering, directional detection, fog detection, tampering, motion detection, virtual line/area, enter/exit), audio detection, sound classification, heatmap, people counting, queue management, digital auto-tracking
• Environmental Ratings: IP67, IP66, IK10
• Power: PoE (IEEE802.3af), 12V DC; Max 8.0W (PoE), 6.5W (12V DC)
• Connectivity: RJ-45 (10/100BASE-T), USB port for setup
• Audio: 1 input/1 output, two-way audio support
• Dimensions: Ø110.0 x 86.0mm
• Weight: 0.6kg
• Operating Temperature: -30°C to +55°C
