Description
DESCRIPTION TO Hanwha XNO-8030R Bullet Camera

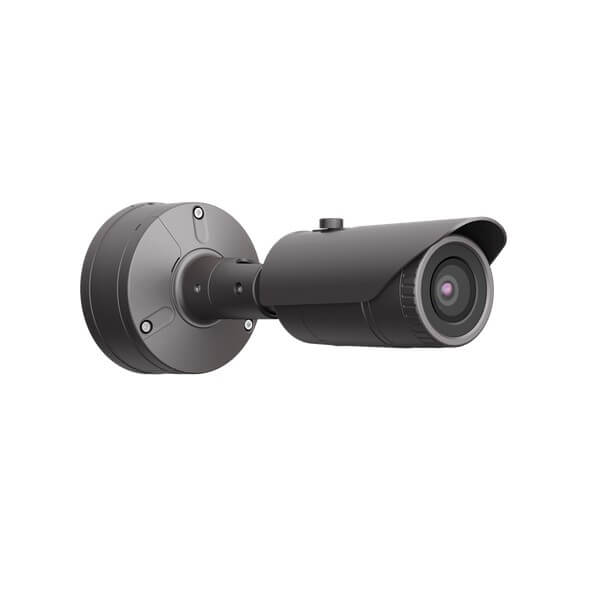

The Hanwha XNO-8030R CCTV Camera, from Hanwha CCTV Previously Known As Samsung CCTV, is a high-performance 5MP bullet camera designed for robust surveillance. Available through trusted Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE, it features a 4.1mm fixed lens with an 80.1° field of view, capturing sharp details in retail, parking lots, or public spaces.
5MP Clarity with Fixed Lens
The camera’s 5MP CMOS sensor delivers high-resolution footage at 2560×1920, capturing fine details in retail, parking lots, or public spaces. Its 30fps ensures smooth video playback for dynamic scenes. The 4.1mm fixed lens provides an 80.1° horizontal field of view, offering balanced coverage for medium-range surveillance, making it suitable for monitoring entrances, perimeters, or open areas with precision.
WiseIR for Night Vision
Equipped with WiseIR technology, the Hanwha XNO-8030R CCTV Camera provides illumination up to 30 meters, ensuring clear black-and-white images in complete darkness. This is ideal for nighttime surveillance in outdoor areas like parking lots or sheltered public spaces, enhancing 24/7 security coverage.
120dB WDR for Balanced Imaging
The 120dB WDR balances high-contrast scenes, ensuring details are visible in bright or shadowed areas, such as retail entrances or sunlit outdoor spaces. This delivers consistent image quality for reliable monitoring in varied lighting conditions.
WiseStream II for Bandwidth Efficiency
WiseStream II compression reduces bandwidth and storage needs by up to 80%, prioritizing key frame areas. This ensures cost-effective operations for large-scale CCTV networks, supported by Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE, making it ideal for extensive surveillance systems.
Rugged and Weatherproof Design
Rated IP67 and IP66 for dust and water resistance and IK10 for vandal protection, the Hanwha XNO-8030R CCTV Camera is built to withstand harsh environments, operating from -40°C to +55°C. Its durable design ensures reliability in outdoor settings like parking lots or indoor high-traffic areas, maintaining performance under challenging conditions.
Digital Image Stabilization
The built-in gyro sensor enables DIS, minimizing blur from vibrations in windy or busy environments, ensuring steady footage for accurate monitoring, particularly in exposed or high-traffic locations.
Comprehensive Audio Capabilities
The camera supports two-way audio with one input/output, enabling real-time communication. Audio detection and sound classification identify abnormal noises like screams or crashes, enhancing situational awareness, especially in public or commercial spaces.
Flexible Storage and Connectivity
A microSD slot provides up to 256GB of storage for data redundancy, safeguarding footage during network disruptions. PoE and 12V DC power options simplify installation, while ONVIF compatibility ensures integration with third-party systems, supported by Hanwha Distributors in Dubai and Samsung CCTV Distributors in UAE.
Key Specifications
- Imaging Device: 1/1.8″ 5MP CMOS sensor
- Resolution: 5MP (2560×1920) at up to 30fps
- Lens: 4.1mm fixed lens
- Field of View: Horizontal: 80.1°; Vertical: 58.7°
- Minimum Illumination: Color: 0.15 Lux (F1.6, 1/30sec); B/W: 0 Lux (IR LED on)
- IR Distance: WiseIR up to 30m (98.4ft)
- Wide Dynamic Range: 120dB WDR
- Compression: H.265, H.264, MJPEG with WiseStream II support
- Storage: MicroSD/SDHC/SDXC up to 256GB
- Analytics: Video analytics (loitering, directional detection, fog detection, tampering, motion detection, virtual line/area, enter/exit, shock detection), audio detection, sound classification
- Environmental Ratings: IP67, IP66, IK10
- Power: PoE (IEEE802.3af), 12V DC; Max 11.0W (PoE), 9.5W (12V DC)
- Connectivity: RJ-45 (10/100BASE-T)
- Audio: 1 input/1 output, two-way audio support
- Dimensions: Ø78.0 x 259.8mm
- Weight: 1.2kg
- Operating Temperature: -40°C to +55°C
Specifications
| Video | |
| Imaging Device | 1/1.8″ 6MP CMOS |
| Resolution | 2560×1920, 2560×1440, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264 : Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.16Lux(F1.6, 1/30sec) B/W: 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P), for installation USB: Micro USB Type B, 1280×720, for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.6mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 77.9°, V:57.9°, D: 98.7° |
| Min. Object Distance | 0.4m(1.31ft) |
| Focus Control | Simple focus |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, DWDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones – Color: Grey/Green/Red/Blue/Black/White – Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Business Intelligence | People counting, Queue management, Heatmap |
| Serial Interface | Not support |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and E-Mail Notification via E-Mail SD/SDHC/SDXC or NAS recording at Event Triggers Alarm output Handover |
| Audio In | Selectable(Mic in/Line in), Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max. output level: 1Vrms |
| IR Viewable Length | 30m(98.43ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC : 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area) WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour , LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH *Start up should be done at above -20°C |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP67/IP66/NEMA4X, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 10.3W 12VDC: Max 9.3W |
| Mechanical | |
| Color / Material | Dark grey / Aluminum |
| Product Dimensions / Weight | Ø70x296mm(Ø2.76″x11.65″), 1220g(2.69 lb) |
