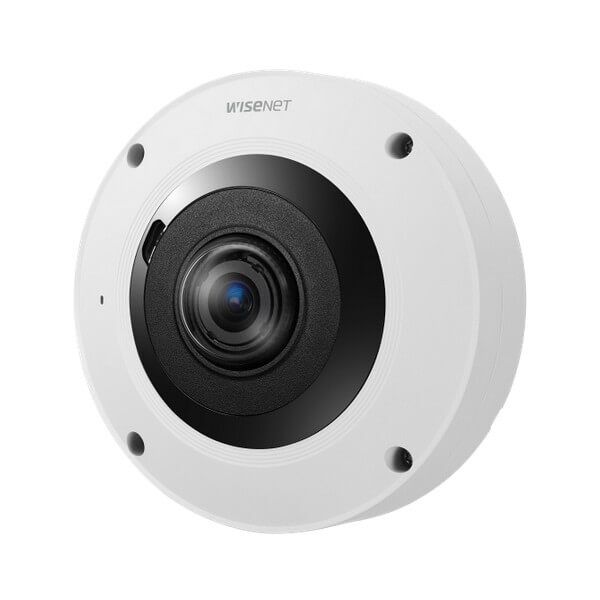

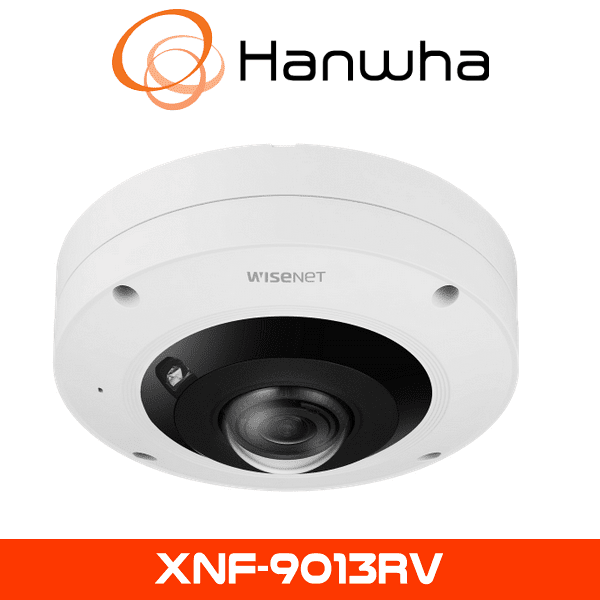

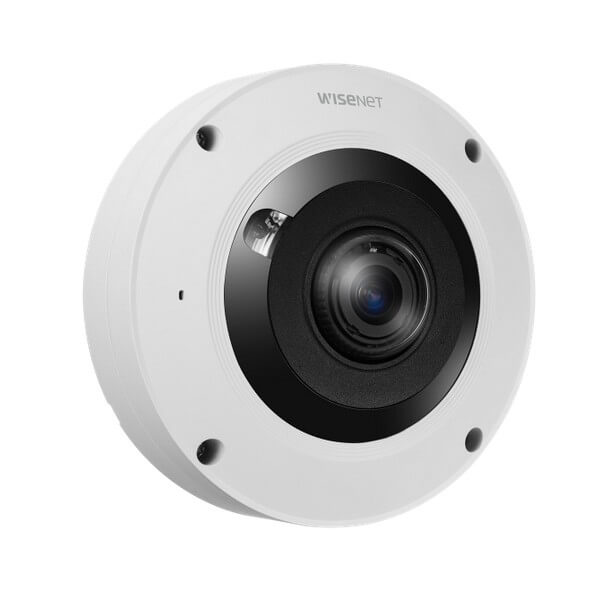

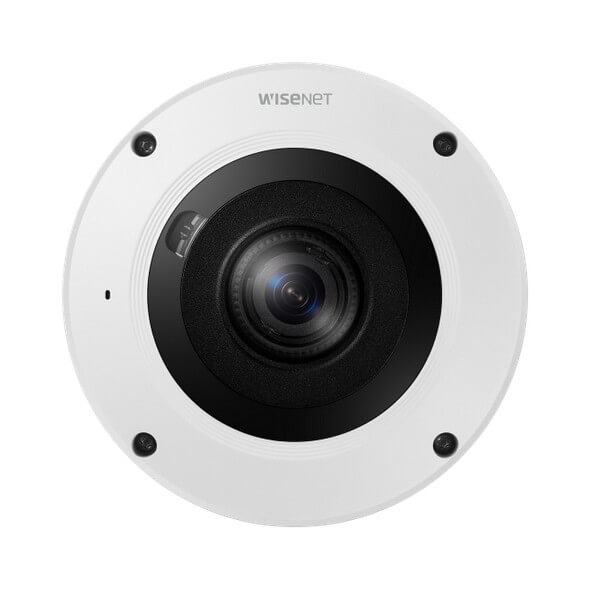

Hanwha XNF-9013RV CCTV Camera



Hanwha XNF-9013RV CCTV Camera

The Hanwha XNF-9013RV CCTV Camera, previously known as Samsung CCTV, offers 12MP resolution and exceptional 360° panoramic surveillance. With integrated IR illumination, smart analytics, and vandal-resistant durability, it’s an optimal security solution for commercial and residential spaces in Dubai

Description

DESCRIPTION TO Hanwha XNF-9013RV CCTV Camera

The Hanwha XNF-9013RV CCTV Camera, formerly Samsung CCTV, combines advanced panoramic surveillance capabilities with ultra-high-resolution imaging. Designed specifically for challenging security environments, this camera is ideal for businesses, commercial complexes, public institutions, and residential buildings in Dubai, Abu Dhabi, and the UAE.

Ultra-High Resolution Imagery

Achieve unprecedented clarity and detail with the Hanwha XNF-9013RV’s powerful 12-megapixel sensor, delivering sharp and vivid images at resolutions up to 3008×3008 pixels. Its outstanding visual clarity is crucial for detailed surveillance, ensuring precise monitoring and accurate identification of critical events.

360° Panoramic Coverage

The XNF-9013RV provides an expansive 360° panoramic view, effectively eliminating blind spots and ensuring comprehensive coverage. This feature is particularly beneficial in expansive areas such as shopping centers, parking lots, large retail spaces, and public transportation hubs throughout Dubai and the UAE.

Advanced Night Vision Capabilities

Equipped with powerful built-in IR illuminators, the Hanwha XNF-9013RV CCTV Camera ensures consistent visibility in low-light conditions. Its IR illumination extends effectively up to 15 meters, allowing for reliable round-the-clock surveillance, enhancing security protocols and maintaining constant vigilance.

Enhanced Video Analytics

The camera includes cutting-edge video analytics like intrusion detection, motion detection, loitering detection, and tampering alarms. These intelligent features proactively detect and notify users of unusual activities, significantly improving response times and operational efficiency, essential for maintaining security standards in urban centers like Dubai and Abu Dhabi.

Rugged and Vandal-Proof Build

Built to withstand tough environments, the Hanwha XNF-9013RV features an IK10-rated vandal-resistant casing. Its robust IP66-rated enclosure ensures complete protection against dust, moisture, and harsh weather conditions typical in the UAE, ensuring durable and reliable performance.

Easy System Integration

The Hanwha XNF-9013RV CCTV Camera is fully compatible with major network protocols and integrates seamlessly with leading Video Management Systems (VMS). This flexibility simplifies installation, enabling users to effortlessly incorporate the camera into new or existing security infrastructures.

Efficient Compression and Storage Management

Utilizing advanced H.265/H.264 compression technologies, the XNF-9013RV significantly reduces bandwidth consumption and storage needs, making it highly efficient for continuous, long-term video recording scenarios common in commercial and residential installations in Dubai and Abu Dhabi.

Simple Installation and Maintenance

Designed for convenience, this Hanwha CCTV camera supports remote configuration and adjustments, greatly simplifying installation and ongoing maintenance. Its intuitive user interface and installation tools help ensure quick, hassle-free deployment and operational continuity.

Versatile Use Cases and Complementary Products

Ideal for use in large open spaces such as malls, educational facilities, airports, corporate complexes, and residential communities, the XNF-9013RV pairs excellently with other Hanwha CCTV solutions, including NVRs, PTZ cameras, and video management software, providing comprehensive, fully integrated security systems tailored to diverse environments.

Key Features
• AI technology
– Classified object type: Person/Face/Vehicle/License plate
– Support Detection Shot
– Object detection-Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit)
• Stereographic type fisheye lens
• Improved image quality
– extreme WDR (2MP@60fps) by scene Analysis and Local contrast enhancement
– WiseNRⅡ, Auto prefer shutter control based on AI
• Resolution/Framerate
– Original view-Max.30fps/25fps@3008×3008 (60Hz/50Hz)
– Double panorama-Max.30fps/25fps@3584×1792 (60Hz/50Hz)
– Single panorama-Max.30fps/25fps@3584×896 (60Hz/50Hz)
• WiseStreamⅢ based on AI
• Next level cybersecurity
– Device Certificate (Root CA, pre-installed)
– TPM 2.0 (FIPS 140-2 certified), Secure OS/boot/storage, Verified FW forgery
• Adjustable IR distance with WisePower : PoE+mode-13m, PoE mode-8m
• Mirco SD/SDHC/SDXC 2 slot: Max. 1TB (512GBx2ea)
• Reinforced durability
– IP66, NEMA4X, IK10, Metal shielded RJ-45
– Hard-coated dome bubble
• Additional accessories
– Black Skin Cover (SBC-160BF), Tilted wall mount (SBP-160TMW1)

Specification

Video
Imaging Device 1/2.3″ CMOS
Resolution Original view(1:1): 3008×3008~480×480
Double panorama(2:1): 3584×1792~640×320
Single panorama(4:1): 3584×896~640×160
Quad view: 3584×2688~640×480
Q1/Q2/Q3/Q4(4:3): 1792×1344~640×480
Max. Framerate H.265/H.264:
Original view-Max. 30fps/25fps@3008×3008(60Hz/50Hz),
Double panorama-Max. 30fps/25fps@3584×1792(60Hz/50Hz)
Single panorama-Max. 30fps/25fps@3584×896(60Hz/50Hz)
MJPEG: Max. 30fps(@9MP Max. 5fps)
Min. Illumination Color: 0.39Lux(F2.2, 1/30sec, 30IRE)
BW: 0Lux(IR LED on)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P), for Installation
USB: Micro USB Type B, 1280×720 for installation
Lens
Focal Length (Zoom Ratio) 1.08mm fixed focal
Max. Aperture Ratio F2.2
Angular Field of View H: 187° / V: 187° / D: 187°
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range Lens rotation
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range extremeWDR(120dB)
Digital Noise Reduction WiseNRⅡ(Based on AI engine), SSNRⅤ
Motion Detection 8ea, 8point Polygonal zones
Privacy Masking 32ea, 4point Quadrangle zones
– Color: Gray/Green/Red/Blue/Black/White
– Mosaic
Gain Control Off / Max Gain / Manual
White Balance ATW / NarrowATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker(1/5~1/12,000sec)
Prefer shutter control(Based on AI engine)
Video Rotation Flip, Mirror
Analytics Classified object type: Person/Face/Vehicle(Type: car/bus/truck/motorcycle/bicycle)/License plate
Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle)
Support DetectionShot
Analytics events based on AI engine
– Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
Analytics events
– Defocus detection, Tampering, Fog detection, Audio detection, Sound classification, Virtual area(Appear/Disappear)
Business Intelligence Based on AI engine: People/Vehicle counting, Queue management, Heatmap
Alarm I/O 2 configurable I/O ports
Alarm Triggers Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
Alarm Events When alarm trigger occurred
– File upload(image): e-mail/FTP/SFTP
– File upload(video clip): FTP/SFTP
– Notification: e-mail
– Recording: SD/SDHC/SDXC or NAS recording at event triggers
– Alarm output
– Handover: PTZ preset, send message by HTTP/HTTPS/TCP
– Audio clip playback
– MQTT: publication
Audio In Selectable(mic in/line in/built-in mic)
Audio Out Line out
IR Viewable Length WiseIR, PoE: 8m(26.25ft), PoE+: 13m(42.65ft)
Network
Ethernet Metal shielded RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅢ(Based on AI engine)
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles, 5 virtual channel support)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
Application Programming Interface ONVIF Profile S/G/T/M
SUNAPI(HTTP API)
Wisenet open platform
Security
OS / Firmware Protect Encrypted Firmware, Secure boot, Signed Firmware
User authentication Digest Authenticaton, Prevent brute-force attacks
Network authentication IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Secure Communication HTTPS, WSS(WebSocket Secure), SRTP
Access Control IP-based access control
Data Protect Encryption Credentials, Encrypt compress for live recording file export
Audit Access / System / Event Log management
Device ID Device certificate(Hanwha Vision Root CA)
Secure Storage TPM, HTPM(Hanwha trusted platform module), SDcard partition encrypt
Security Certificate TPM with FIPS 140-2 level 2
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slot Max. 1TB(512GBx2)
Memory 4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C~+60°C(-40°F~+140°F) / 0~95% RH(non-condensing)
Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / 0~90% RH
Certification IP66, NEMA4X, IK10
Input Voltage WisePower(PoE(IEEE802.3af, class3)/PoE+(IEEE802.3at type2, Class4)), 12VDC
Power Consumption PoE: Max 12.95W, typical 9.4W, 12VDC: Max 12.9W, typical 9.0W
PoE+: Max 23.0W, typical 9.4W, 12VDC: Max 22.0W, typical 9.0W
Mechanical
Color / Material White / Aluminum
Bubble: Hard-coated dome
RAL Code RAL9003
Product Dimensions / Weight ø160x72mm(ø6.30×2.83″), 1170g(2.58 lb)
Compatible Conduit hole / Gangbox single, double, 4″ octagon, 4″ square
Hanging Mount (Dome) SBP-160HMW1
Skin Cover SBC-160BF
Backbox SBV-180BW/180WW
Ceiling Mount (Assy) SBP-150CMI/300CMI, SBP-300CMW1/900CMW, SBP-300CMTW, SBP-300CMTS
Wall Mount SBP-300WMW/300WMW1, SBP-390WMW2, SBP-160WMW1
Pole Mount SBD-180PMW/300PMW2
In-ceiling Mount SHD-1600FPW/1600FW
Parapet Mount SBP-300LMW, SBP-156LMW1
Corner Mount SBP-300KMW1
Tilt Mount SBP-160TMW1
Cabinet SBP-300NBW
Certifications & Standards
EMC FCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
– EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
KS C 9832 Class A , KS C 9835
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1
IEC 62471
Environment EN IEC 63000
IEC 60529 IP66, IEC 62262 IK10
NEMA 250 type 4X
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) 34.9m(114.49ft)
Observe (63PPM/ 19PPF) 13.9m(45.60ft)
Recognize (125PPM/ 38PPF) 7.0m(22.96ft)
Identify (250PPM/ 76PPF)

3.5m(11.48ft)
